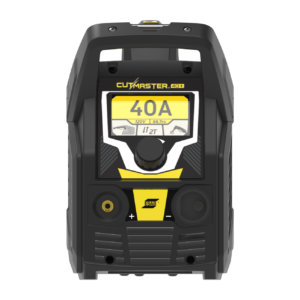

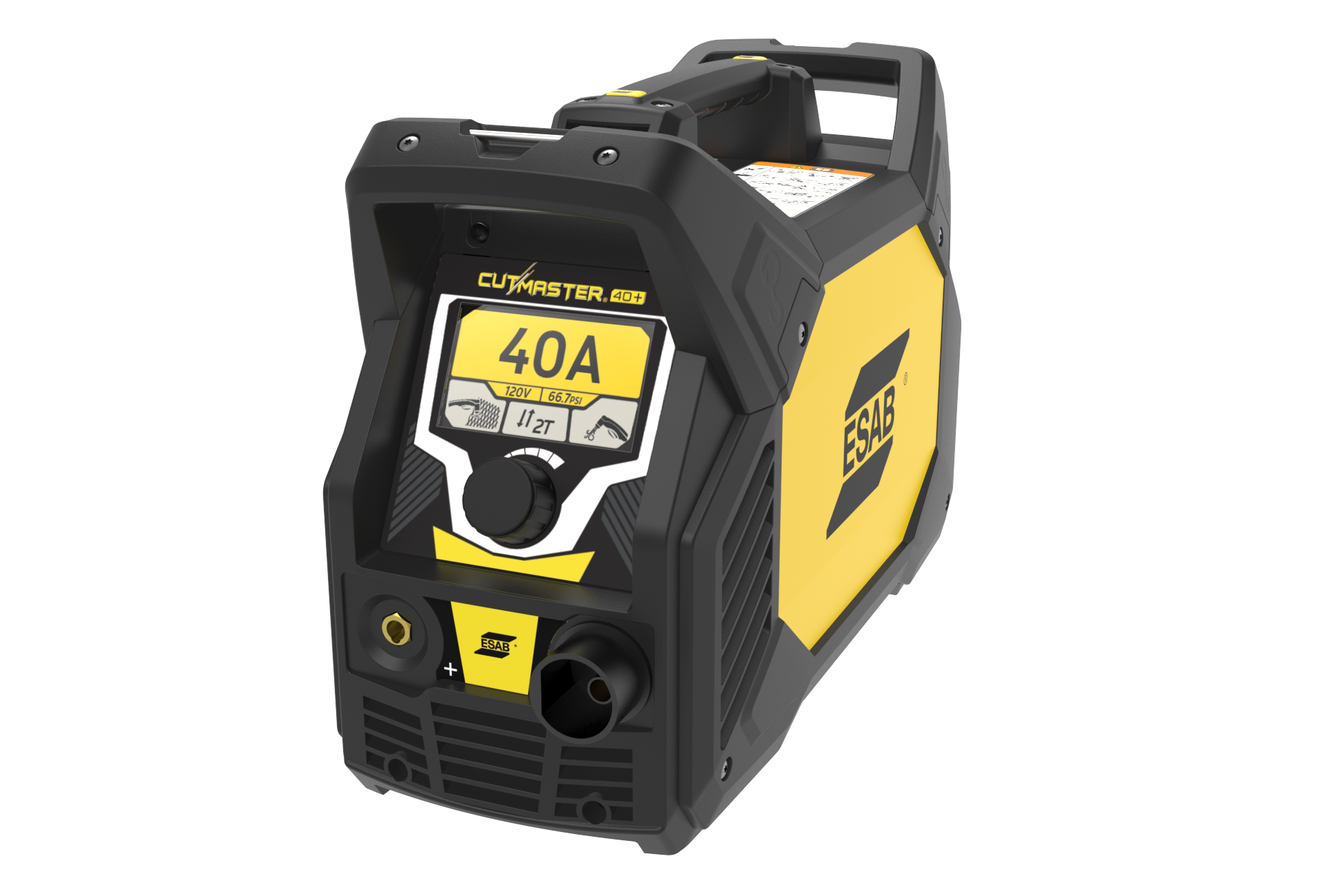

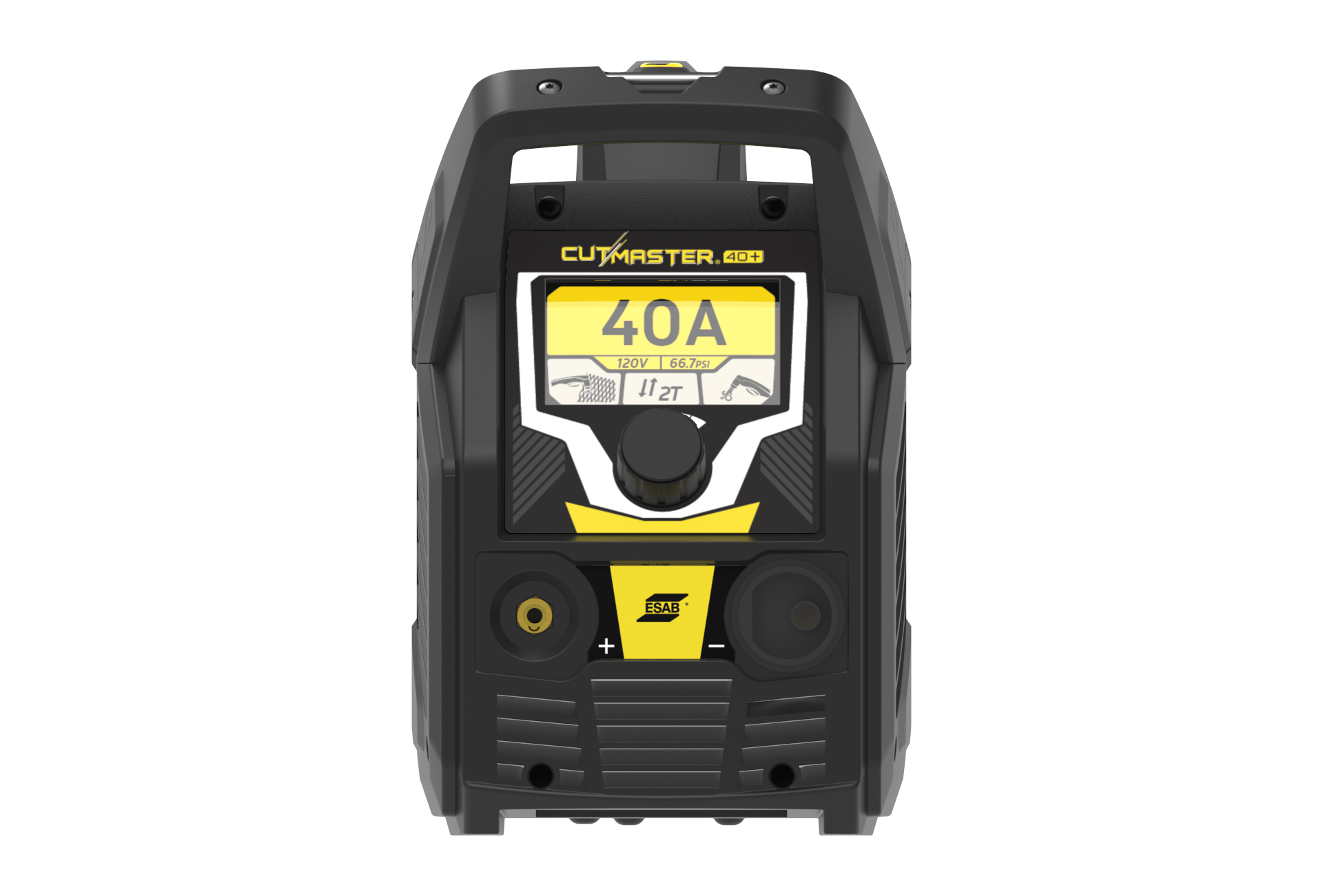

ESAB Cutmaster 40+ Plasma Cutter

SKU: 0559141006

ESAB Cutmaster 40+ Plasma Cutter

SKU: 0559141006

$3,055.00

EA

$3,055.00

ESAB Cutmaster 40+ is the perfect combination of power and portability for hand-held plasma cutting machines. Plus means more, so we’ve added a user-friendly 4.3in. TFT LCD screen and we’ve also upgraded the power of the machine to provide more control and flexibility so you can master any genuine cutting with ease to 12mm, regular hand cutting to 16mm and occasional severance cutting to 25mm. Together with the SL60 1Torch, it all adds up to the total plasma cutting package.

Features Includes:

  • Portable and durable with three handles and lightweight industrial all-weather housing
  • Bright 4.3in. TFT LCD display with glove-friendly adjustment knob simplifies use and provides greater control and flexibility

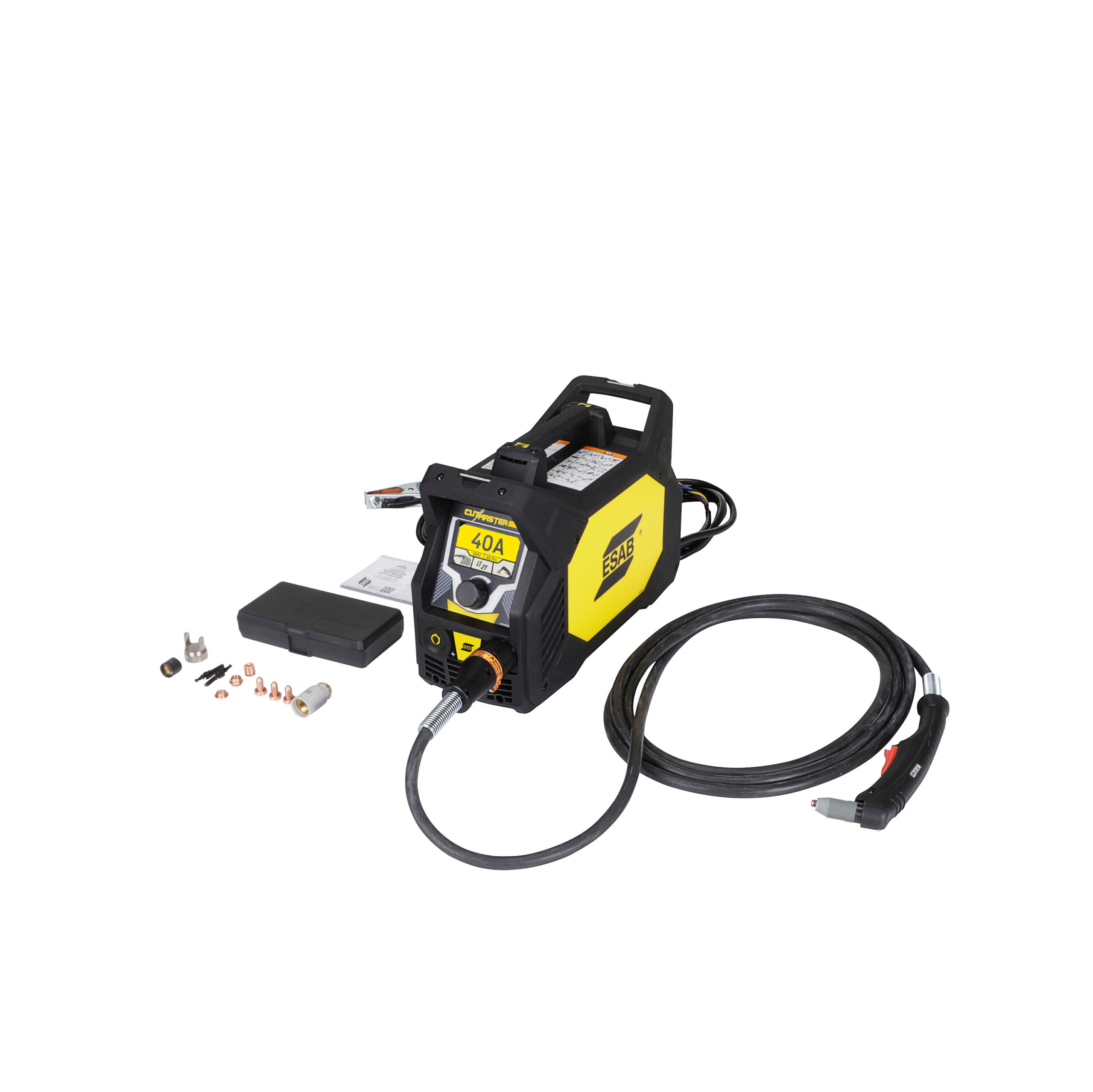

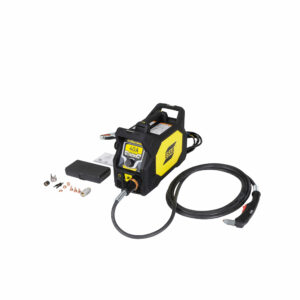

  • Comes with industrial SL60 1Torch featuring 2T/4T function, safety trigger lock, and double-tap trigger to conserve bottled air
  • Switch between normal and mesh cutting modes
  • Automatic air pressure detection and post-cut air purge to expand consumable life
  • Duty cycle: 40% @ 40A; 100% @20A
  • Cutmaster Black Series consumables included for up to 60% longer life
  • Industry leading 3-year warranty on power supply and 1-year warranty on torch and leads

P/N: 0559141006

Out of stock

AUS
100 Years of Australian Heritage
Support_Final

Unmatched Local Expertise & Support

ESAB_Final 1
Backed by ESAB Global Innovation

Also available here online

If you need further information
Talk to us on 1300 654 674

Description

Master Every Cut
Features includes:
  • Portable and durable with three handles and lightweight industrial all-weather housing
  • Bright 4.3in. TFT LCD display with glove-friendly adjustment knob simplifies use and provides greater control and flexibility
  • Comes with industrial SL60 1Torch featuring 2T/4T function, safety trigger lock, and double-tap trigger to conserve bottled air
  • Switch between normal and mesh cutting modes
  • Automatic air pressure detection and post-cut air purge to expand consumable life
  • Duty cycle: 40% @ 40A; 100% @20A
  • Cutmaster Black Series consumables included for up to 60% longer life
  • Industry leading 3-year warranty on power supply and 1-year warranty on torch and leads
P/N: 0559141006
Brand

Dimensions Power Source

Duty cycle

Gas Requirements

Generator Requirement

Input Power Cable and Plug

Input Voltage

Material Type

Number of Phases

Open Circuit Voltage OCV

Operating Temperature Range

Plug Type

Power Factor at Max Current

Power Supply

Rated Duty Cycle 40c

Regular Hand Cutting Capacity

Usage

Warranty

Welding Process

Work Lead with Ground Clamp

sl60 Torch Duty Cycle

Brand

ESAB

Specifications

BrandESABPower Supply240V, 15A
Welding ProcessPLASMA CUTTINGUsageIndustrial
Material TypeMild Steel, Stainless Steel, AluminiumRecommended Cut CapacityUp to 25mm
Plug Type15ADuty cycle40% @ 40A
Warranty3 Year + 6 Months ExtendedNumber of PhasesSingle Phase
Generator Requirement8kWDimensions Power Source228 H x 117 W x 470 D mm
Regular Hand Cutting Capacity16mm*Open Circuit Voltage OCV298V
Input Voltage230VAC +/- 10%, 50/60Hz, 1phRated Duty Cycle 40c40% @ 40A, 100% @ 20A
Power Factor at Max Current0.98Input Power Cable and Plug3m 1ph 2.5mm² 15A AU plug
Work Lead with Ground Clamp3m 10mm² work cable with 25mm² connectionGas RequirementsCompressed air (Clean & Dry)
Operating Temperature Range'-10°C to + 50°Csl60 Torch Duty Cycle100% @ 60A with 165 l/min air flow
BrandESAB
Power Supply240V, 15A
Welding ProcessPLASMA CUTTING
UsageIndustrial
Material TypeMild Steel, Stainless Steel, Aluminium
Recommended Cut CapacityUp to 25mm
Plug Type15A
Duty cycle40% @ 40A
Warranty3 Year + 6 Months Extended
Number of PhasesSingle Phase
Generator Requirement8kW
Dimensions Power Source228 H x 117 W x 470 D mm
Regular Hand Cutting Capacity16mm*
Open Circuit Voltage OCV298V
Input Voltage230VAC +/- 10%, 50/60Hz, 1ph
Rated Duty Cycle 40c40% @ 40A, 100% @ 20A
Power Factor at Max Current0.98
Input Power Cable and Plug3m 1ph 2.5mm² 15A AU plug
Work Lead with Ground Clamp3m 10mm² work cable with 25mm² connection
Gas RequirementsCompressed air (Clean & Dry)
Operating Temperature Range'-10°C to + 50°C
sl60 Torch Duty Cycle100% @ 60A with 165 l/min air flow
