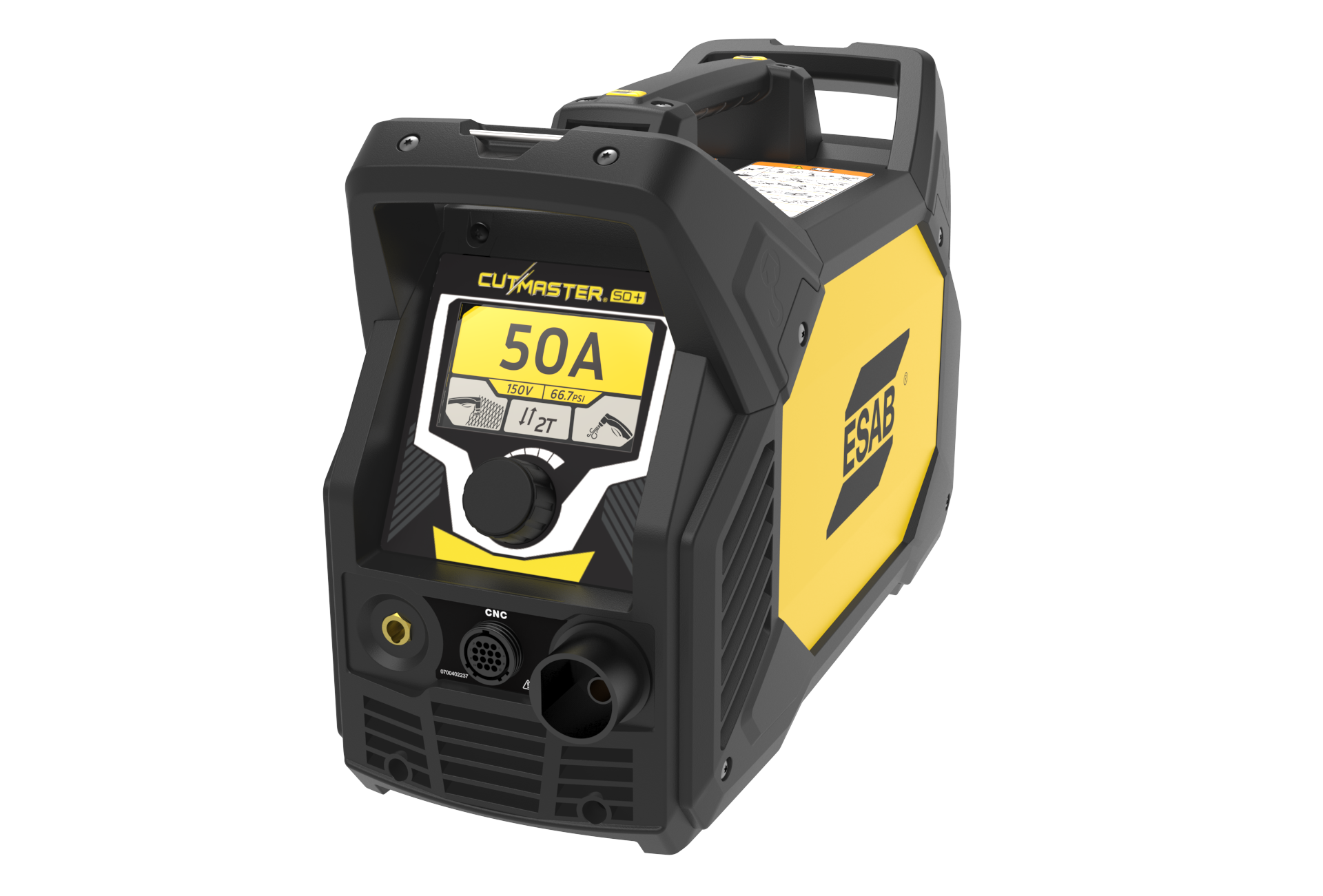

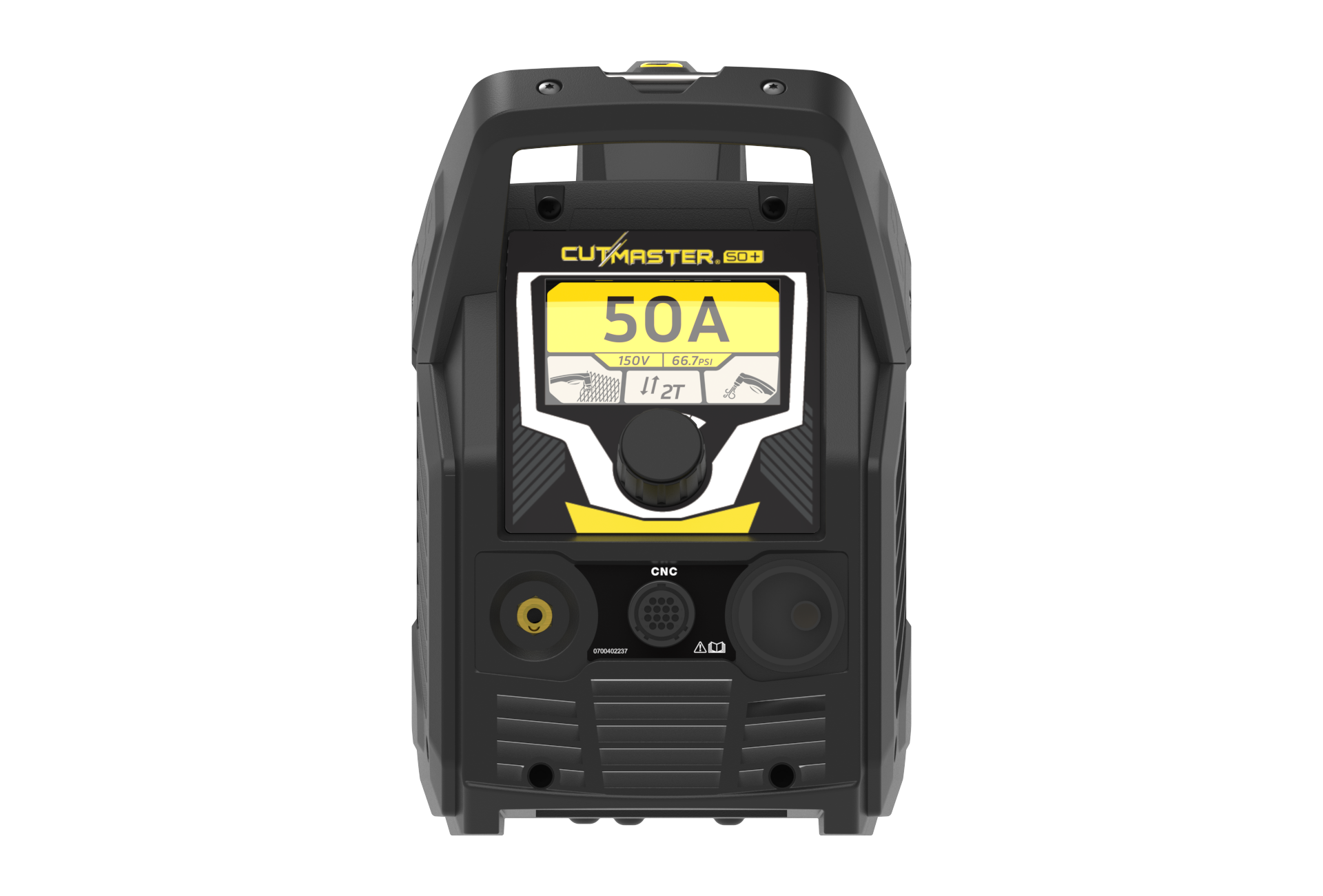

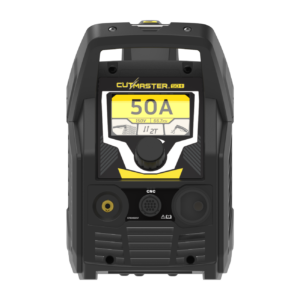

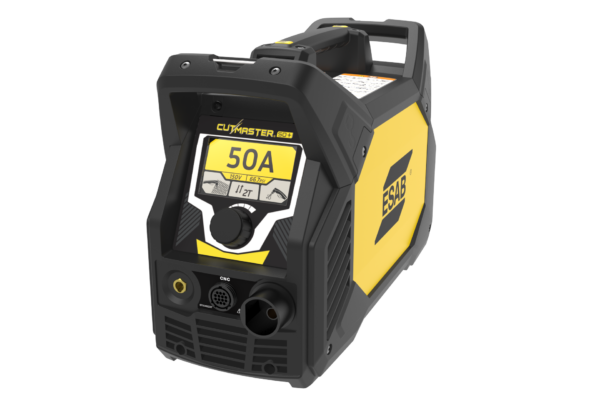

ESAB Cutmaster 50+ Plasma Cutter

Features includes:

Portable and durable with three handles and lightweight industrial all-weather housing
Bright 4.3in. TFT LCD display with glove-friendly adjustment knob simplifies use and provides greater control and flexibility
Input 400V/415V 3-phase power
Comes with industrial SL60 1Torch featuring 2T/4T function, safety trigger lock, and double-tap trigger to conserve bottled air
Switch between normal and mesh cutting modes
Post-cut air purge to expand consumable life
Duty cycle: 60% @ 50A; 100% @ 40A
Cutmaster Black Series consumables included for up to 60% longer life
Industry leading 3-year warranty on power supply and 1-year warranty on torch and leads
CNC functionality with pre-installed 14 pin CPC receptacle and voltage divider which allows: 1. Start/Stop 2.
OK to Move 3. Divided arc voltage (ratio 20:1, 30:1, 40:1, 50:1, 80:1)

P/N: 0559150006

Amperage Output	15 – 50A, continuously adjustable
Brand	ESAB
Dimensions Power Source	465L x 200W x 315H mm
Duty cycle	60% @ 50A
Gas Requirements	Compressed air (Clean & Dry)
Generator Requirement	12kW
Input Power Cable and Plug	3m, 4.0mm2 without plug
Input Voltage	400VAC +/- 15%, 50/60Hz, 3ph
Material Type	Mild Steel, Stainless Steel, Aluminium
Number of Phases	3 Phase
Operating Temperature Range	-10°C to + 50°C
Plug Type	15A
Power Supply	400VAC +/-15%, 15A
Rated Duty Cycle 40c	60% @ 50A, 100% @ 40A
Recommended Cut Capacity	Up to 32mm
Regular Hand Cutting Capacity	25mm*
Usage	Industrial
Warranty	3 Year + 6 Months Extended
Welding Process	PLASMA CUTTING
Work Lead with Ground Clamp	3m 10mm² work cable with 25mm² connection
sl60 Torch Duty Cycle	100% @ 60A with 165 l/min air flow
