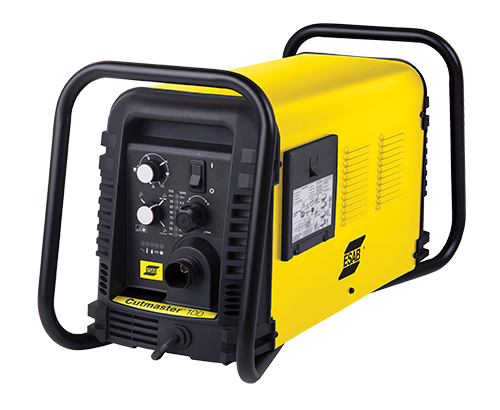

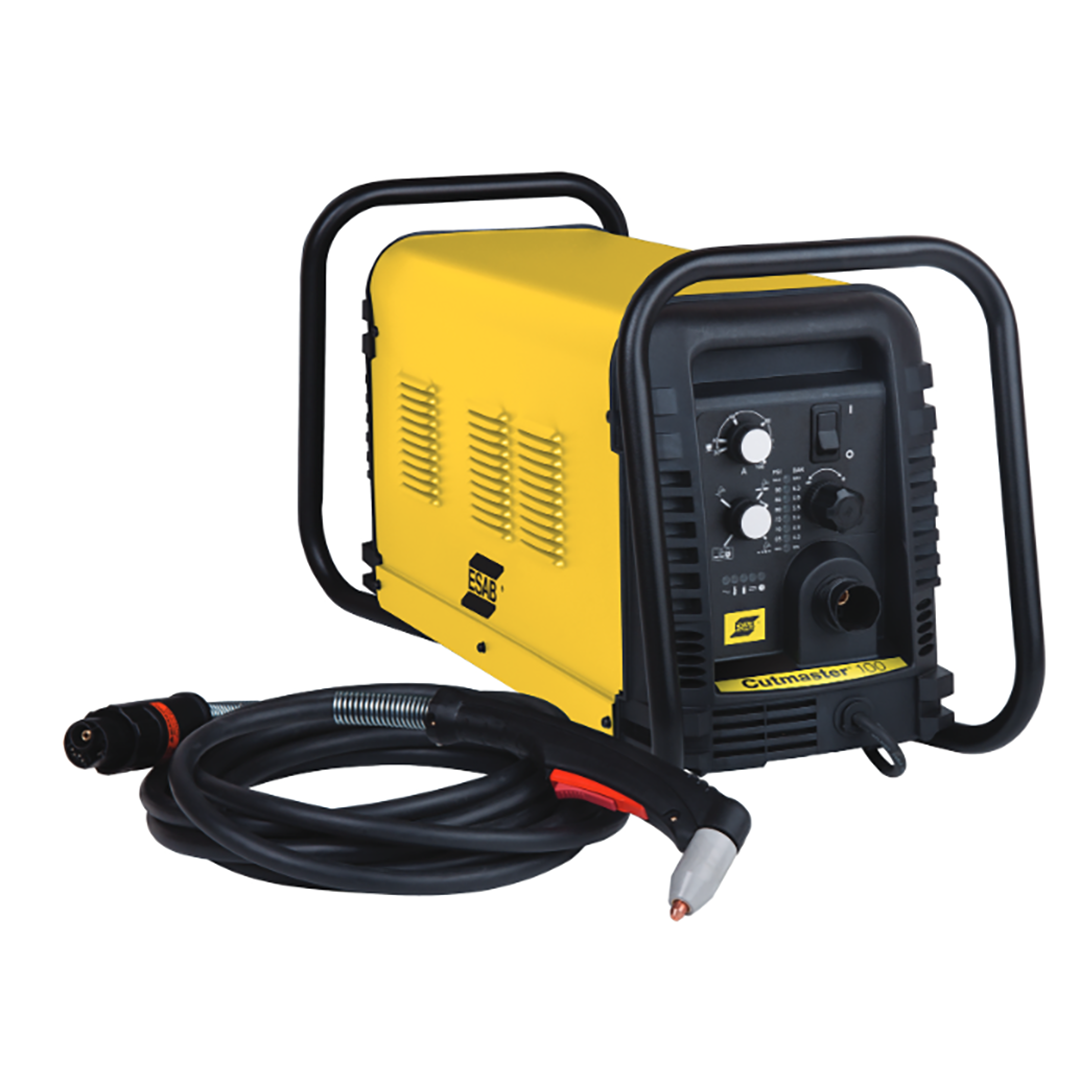

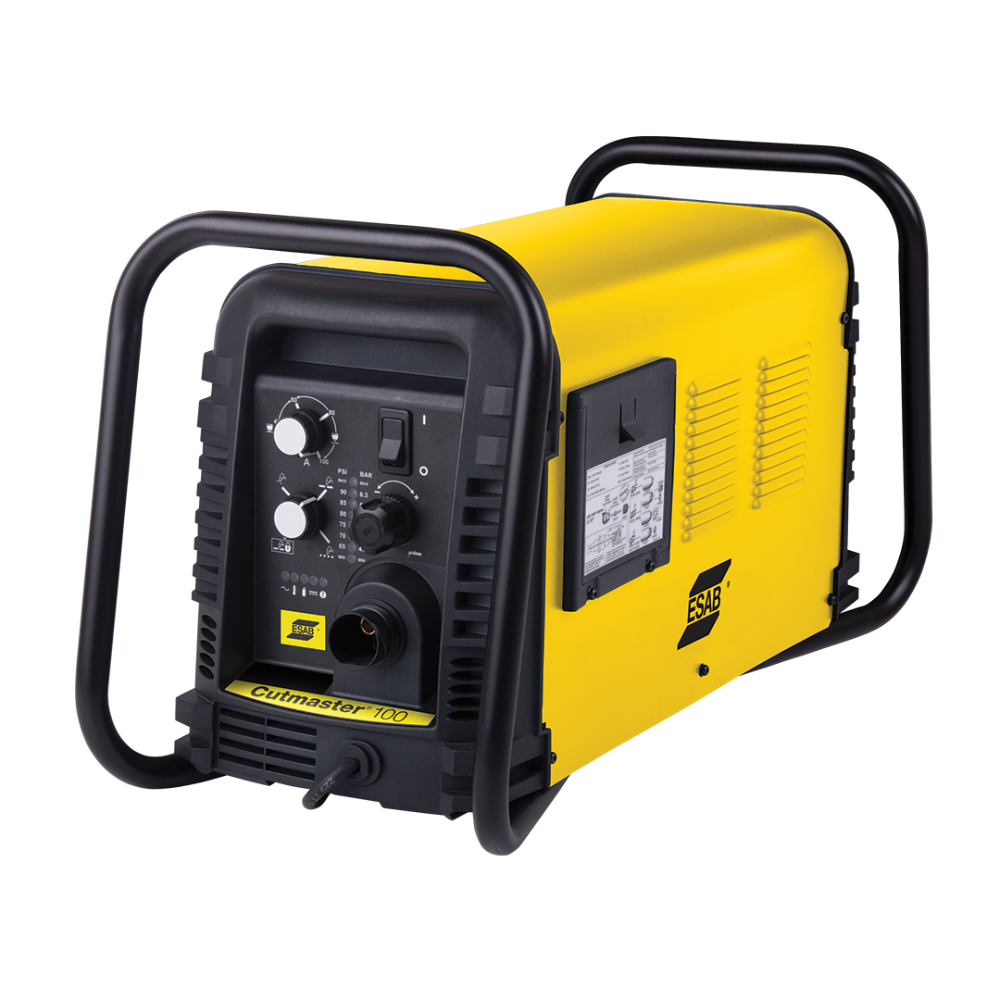

The ESAB Cutmaster 100 weighs in at 28 kg and provides 100 amps of cutting power. This unit’s light weight compact design makes it the most portable and powerful cutting machine available. This unit combined with the 1Torch® has a maximum cut capacity of 45 mm (1 3/4″). More cut capacity than any other system in its class! Packages include power source, SL100 1Torch, spare parts kit, air filter/regulator, work cable and clamp and power cable. The unit is specially designed to serve the 35mm market with a high duty cycle of 60% in a 40°C ambient environment.
Its features includes:
- True Cut– 35mm (1-3/8”)
- Quick Disconnect Torch for easy maintenance or machine torch conversion
- Auto-Restrike on mesh or expanded metal for maximum productivity
- True-Guard roll bar for ultimate protection
- TD Surelok® technology for better quality cuts and longer parts life
- Autopilot restart
- SL100 6.1m hand cutting torch
Specifications:
- Regular Cut Capacity: 35mm
- Severance Cut Capacity: 45mm
- Input Rating: 415V, 50/60 Hz, 3Ph
- Input Air: 520kPa, 212 l/min
- Duty cycle: 60% @ 100A
P/N: 0559117304

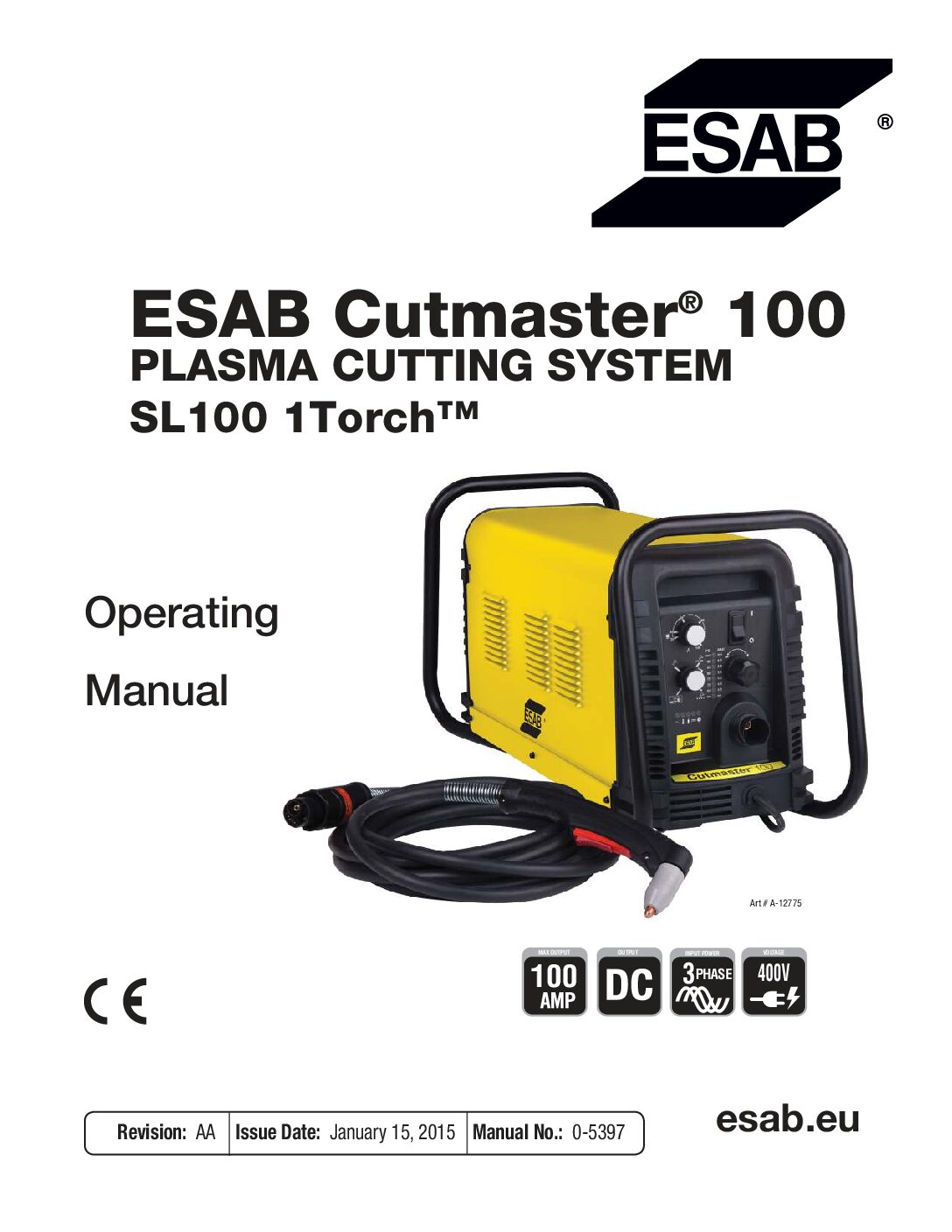

Download
