$2,498.99

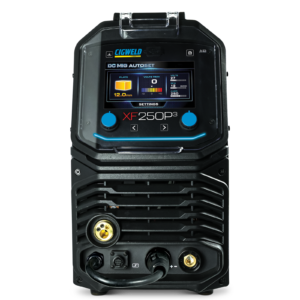

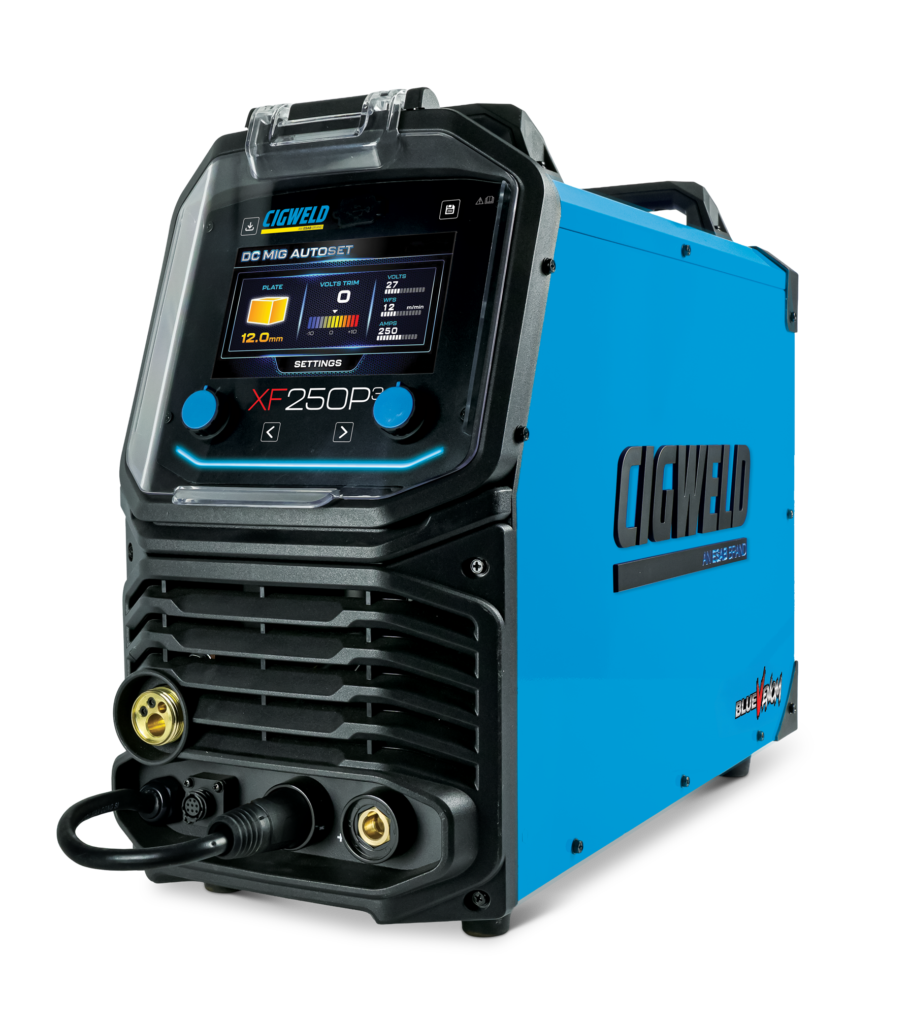

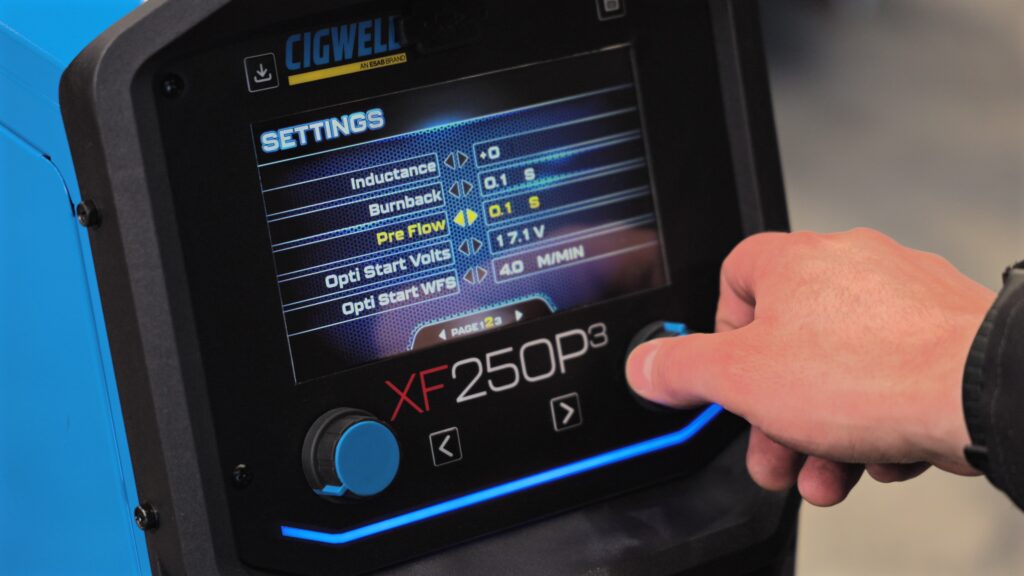

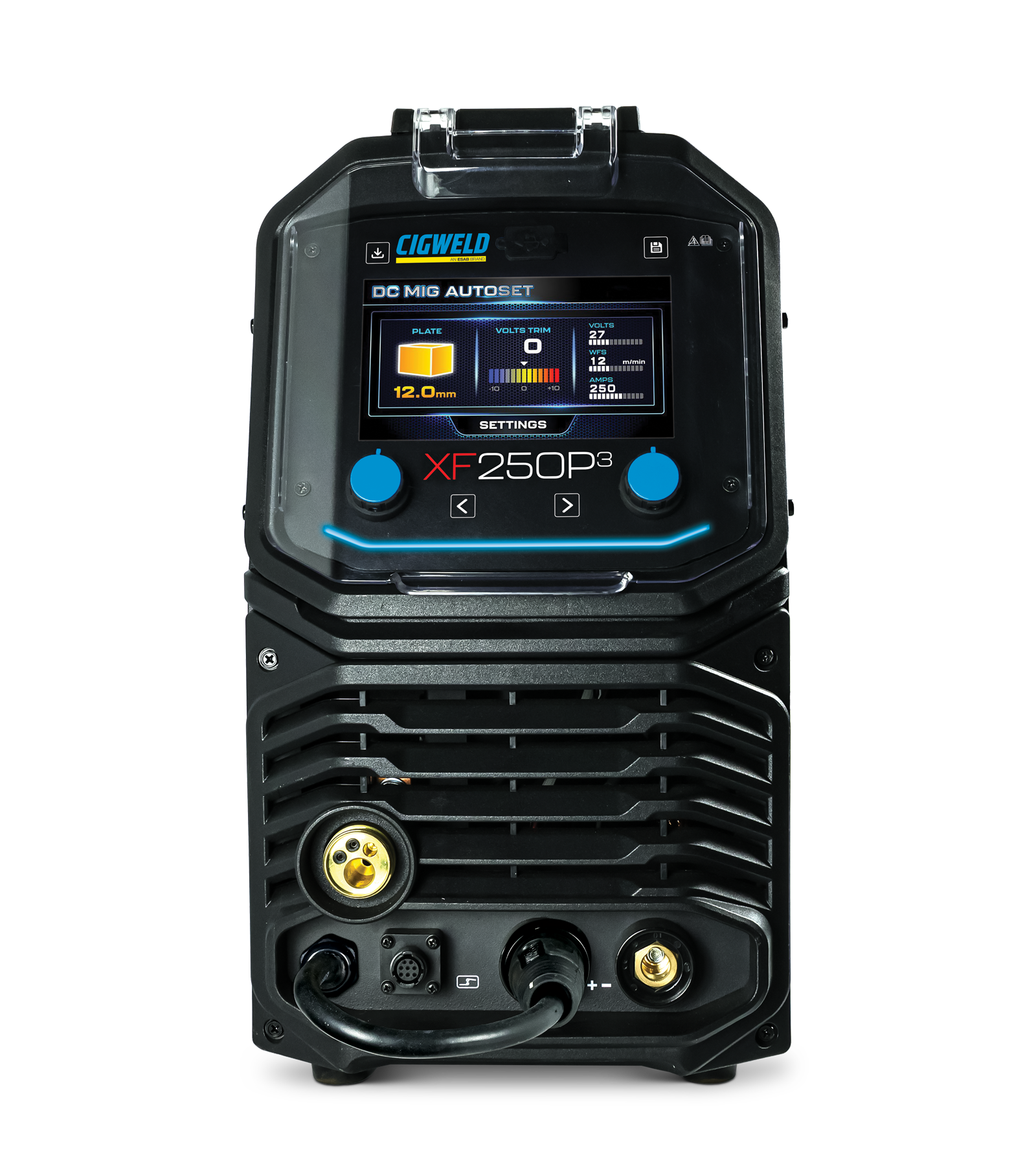

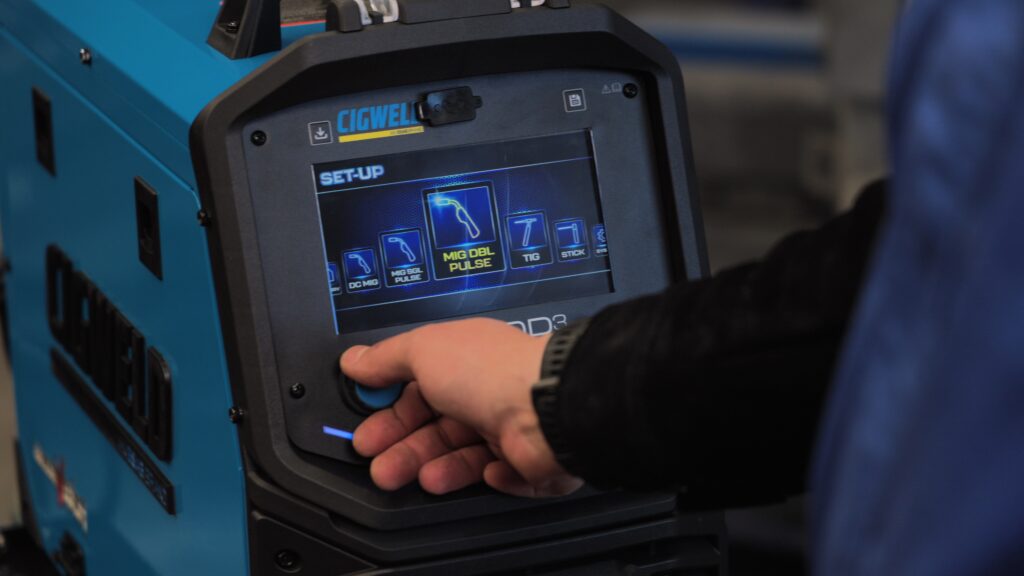

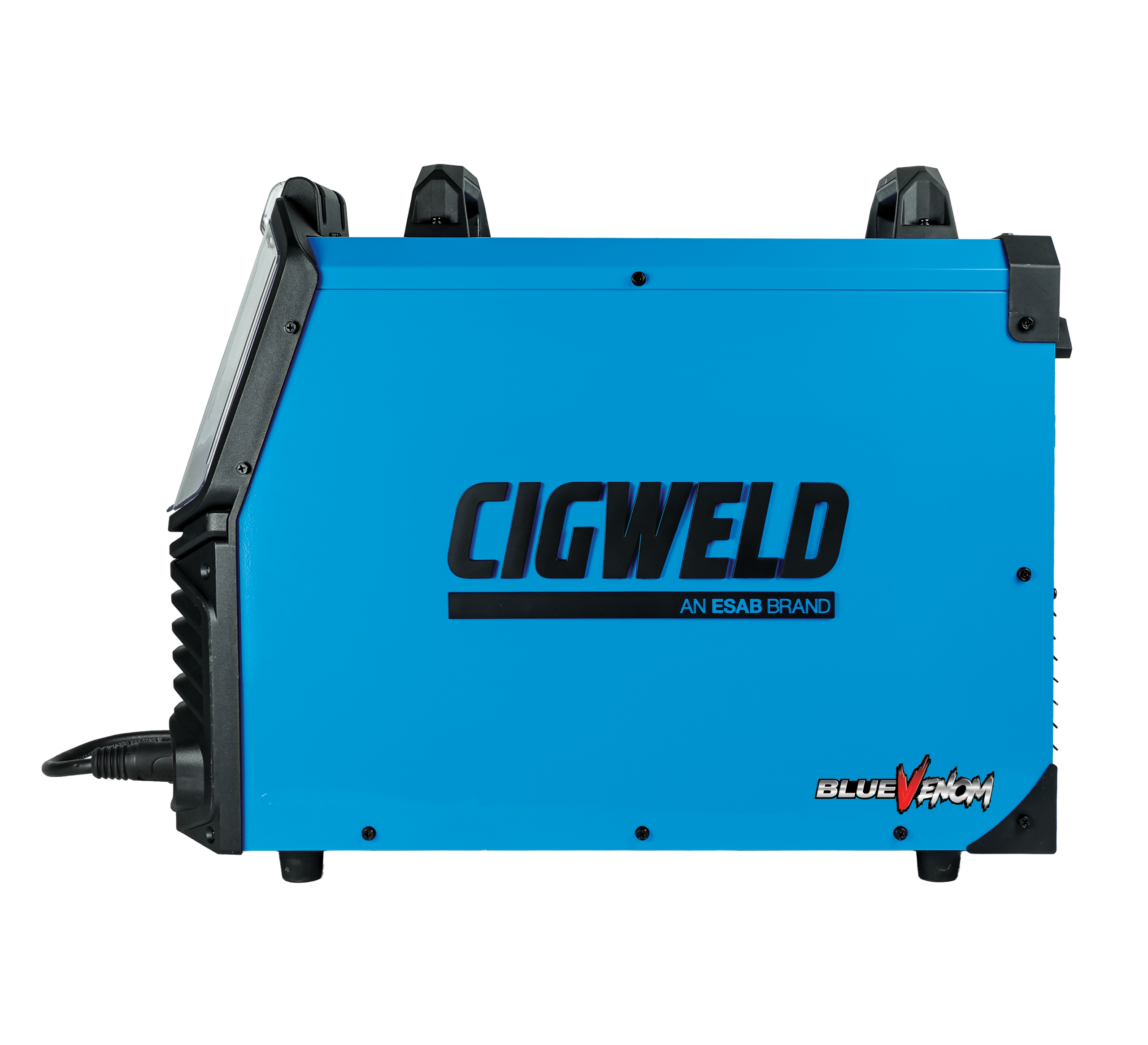

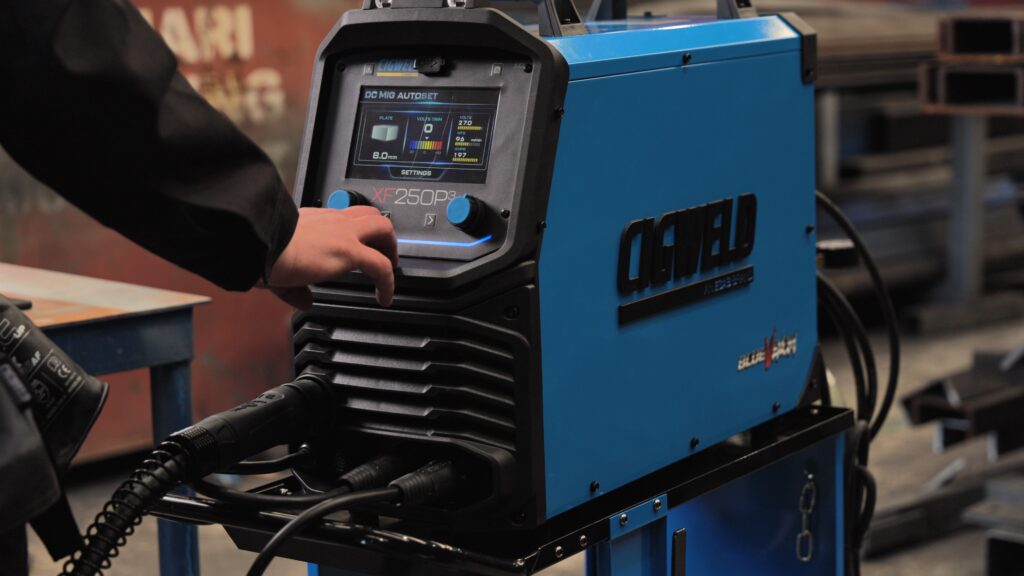

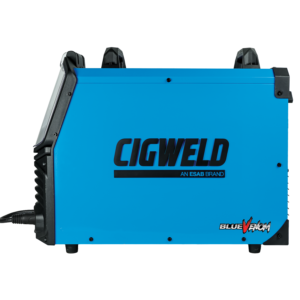

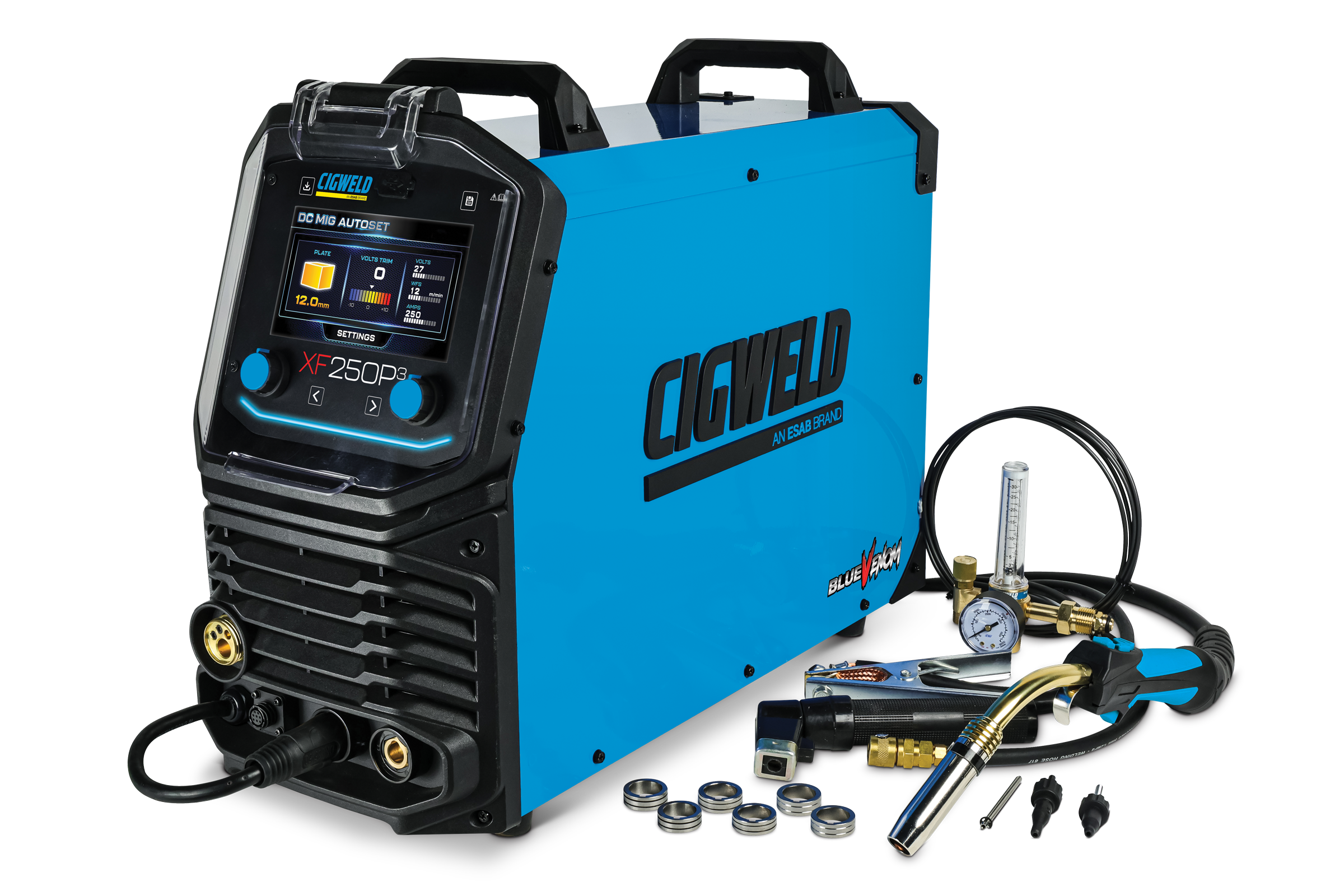

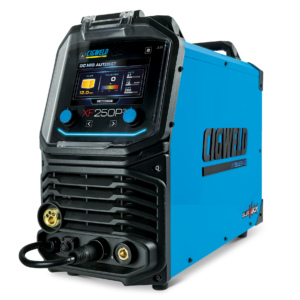

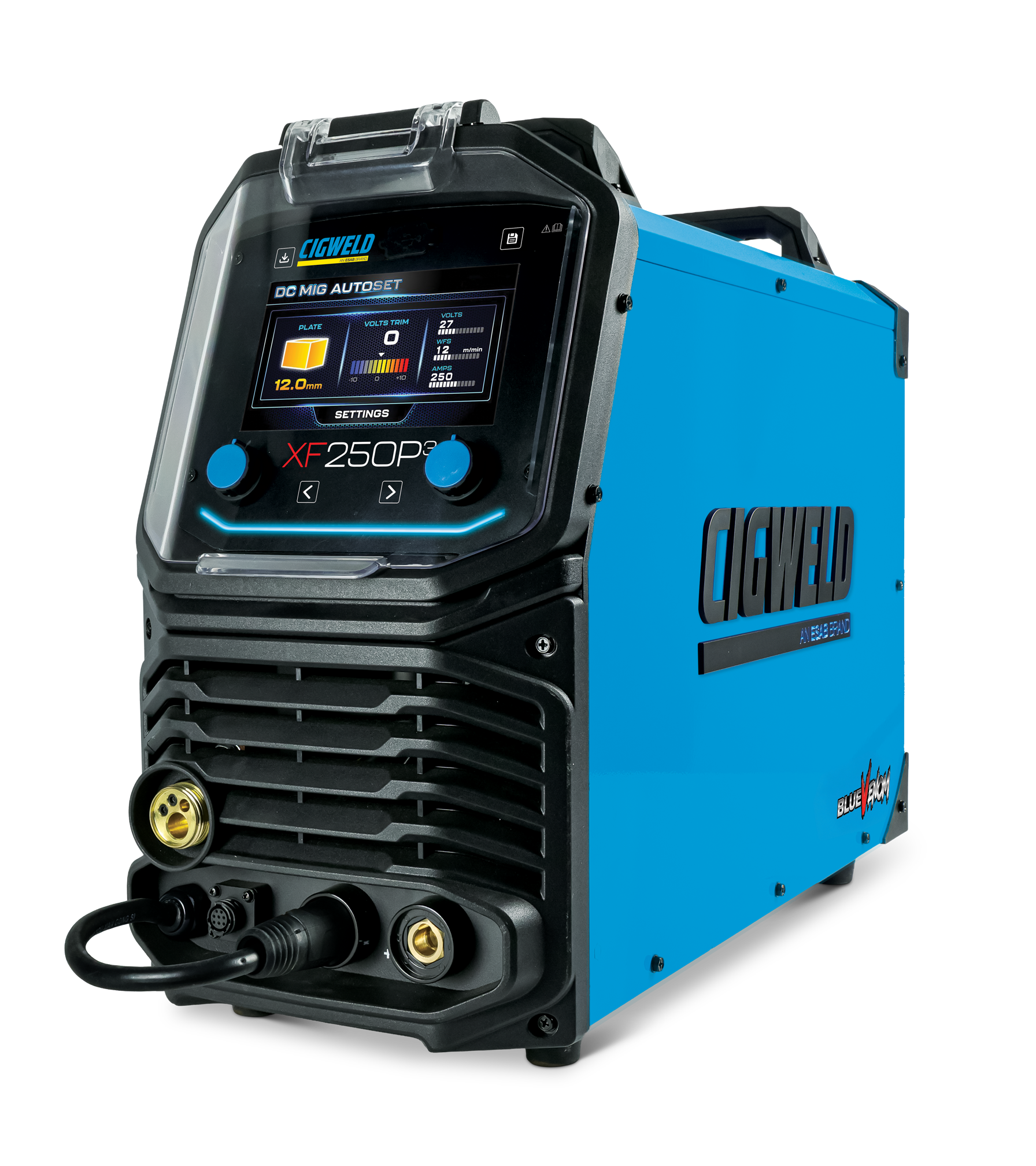

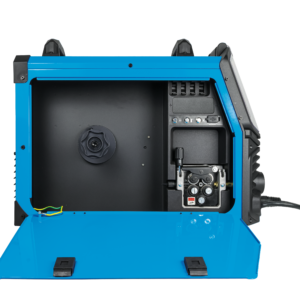

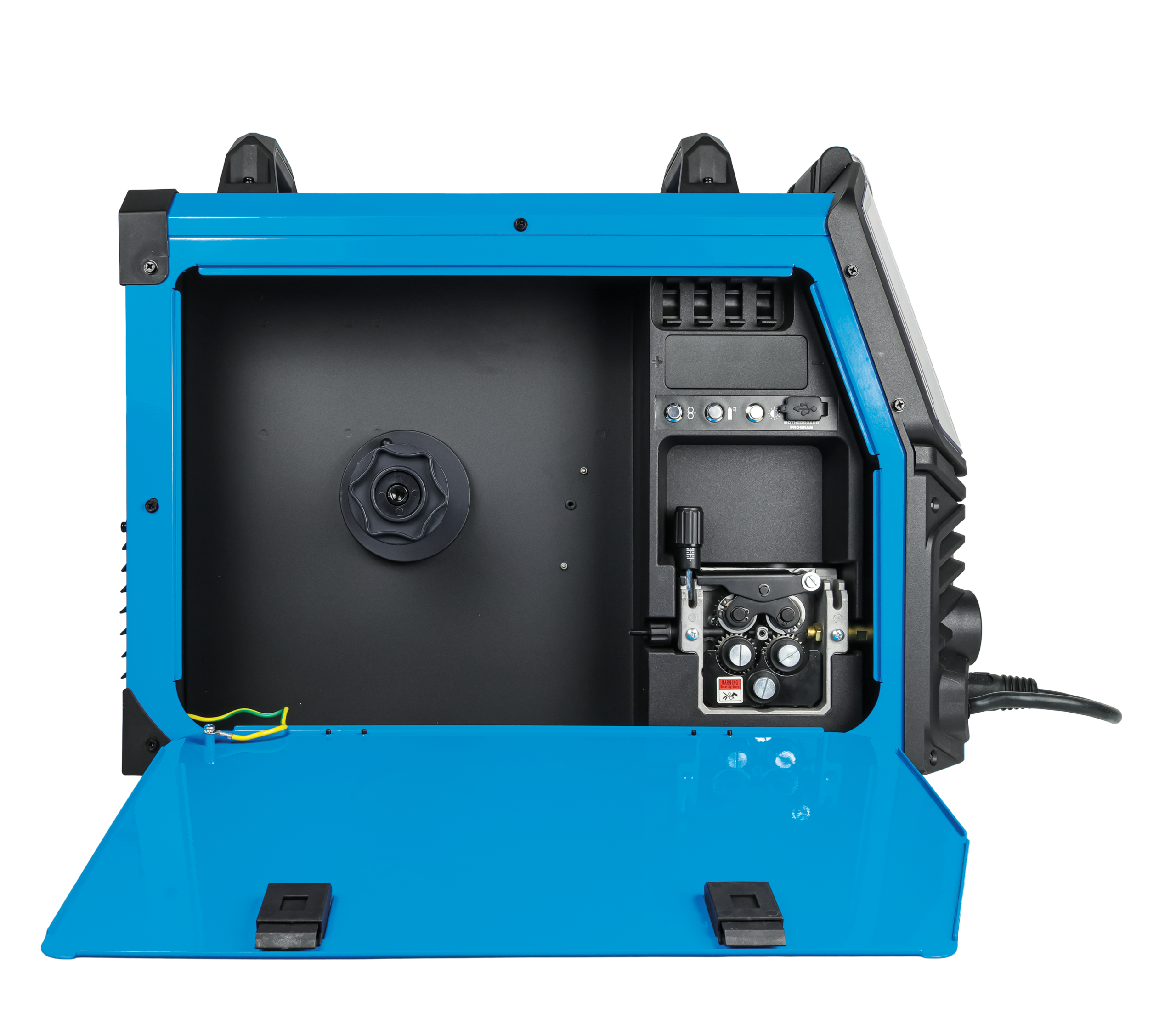

The BlueVenom XF250P3 is a high-performance 250A multi-process welding inverter built to deliver on your demands. Equipped with Single & Double Pulse MIG, Stick Pulse, and TIG Pulse capabilities, it offers precision and versatility across every application. Combined with AUTOSET™ guidance, Opti-Start™ technology, and a 7″ Full Colour LCD, the XF250P3 is ready to perform straight out of the box.
PN: W1400250
Also available here online
Also available here online
If you need further information
Talk to us on 1300 654 674
| Amperage Range | MIG: 30A –250A |
|---|---|
| Australian Standard | |
| Brand | |
| Dimensions (Package) | 715(L) x 385(W) x 520(H) |
| Dimensions (Power Source) | 620(L) x 260(W) x 495(H) |
| MIG Duty Cycle @ 40° | 250A @ 18%, 26.5V |
| Minimum Generator Required | 10.5kVA (0.8 Power Factorat Max Amps) |
| Nominal Supply Frequency | |
| Power Supply | |
| Protection Class | IP23S |
| STICK Duty Cycle @ 40° | 205A @ 25%, 28.2V |
| Supply Lead & Plug: | 15 Amp |
| TIG Duty Cycle @ 40° | 250A @ 25%, 20.0V |
| Voltage Reduction Device VRD: | Yes on Stick Mode (<35V) |
| Weight (Package) | 36kg |
| Weight (Power Source) | 25.5kg |
| Brand | Cigweld | Power Supply | Single Phase –15A Plug 230V +/-10% |
| Australian Standard | AS 60974.1:2020 | Supply Lead & Plug: | 15 Amp |
| Nominal Supply Frequency | 50/60Hz | Minimum Generator Required | 10.5kVA (0.8 Power Factorat Max Amps) |
| Amperage Range | MIG: 30A –250A TIG: 10A –250A STICK: 30A –205A | MIG Duty Cycle @ 40° | 250A @ 18%, 26.5V |
| TIG Duty Cycle @ 40° | 250A @ 25%, 20.0V | STICK Duty Cycle @ 40° | 205A @ 25%, 28.2V |
| Voltage Reduction Device VRD: | Yes on Stick Mode (<35V) | Weight (Power Source) | 25.5kg |
| Weight (Package) | 36kg | Dimensions (Power Source) | 620(L) x 260(W) x 495(H) |
| Dimensions (Package) | 715(L) x 385(W) x 520(H) | Protection Class | IP23S |
| Brand | Cigweld |
| Power Supply | Single Phase –15A Plug 230V +/-10% |
| Australian Standard | AS 60974.1:2020 |
| Supply Lead & Plug: | 15 Amp |
| Nominal Supply Frequency | 50/60Hz |
| Minimum Generator Required | 10.5kVA (0.8 Power Factorat Max Amps) |
| Amperage Range | MIG: 30A –250A TIG: 10A –250A STICK: 30A –205A |
| MIG Duty Cycle @ 40° | 250A @ 18%, 26.5V |
| TIG Duty Cycle @ 40° | 250A @ 25%, 20.0V |
| STICK Duty Cycle @ 40° | 205A @ 25%, 28.2V |
| Voltage Reduction Device VRD: | Yes on Stick Mode (<35V) |
| Weight (Power Source) | 25.5kg |
| Weight (Package) | 36kg |
| Dimensions (Power Source) | 620(L) x 260(W) x 495(H) |
| Dimensions (Package) | 715(L) x 385(W) x 520(H) |
| Protection Class | IP23S |
For over 100 years, CIGWELD has proudly served Australian industry with trusted, high-performance welding equipment.
Local Expertise & Support
CIGWELD is committed to providing exceptional customer service, with products backed by local expertise and nationwide support.
As part of ESAB, CIGWELD benefits from world-leading innovation and technology, ensuring our customers get access to the most advanced and reliable solutions available.
Find your nearest CIGWELD ESAB distributor or service agent.. Search by postcode or suburb to locate trusted partners who stock our products and support our full range of welding solutions.
Also available here online

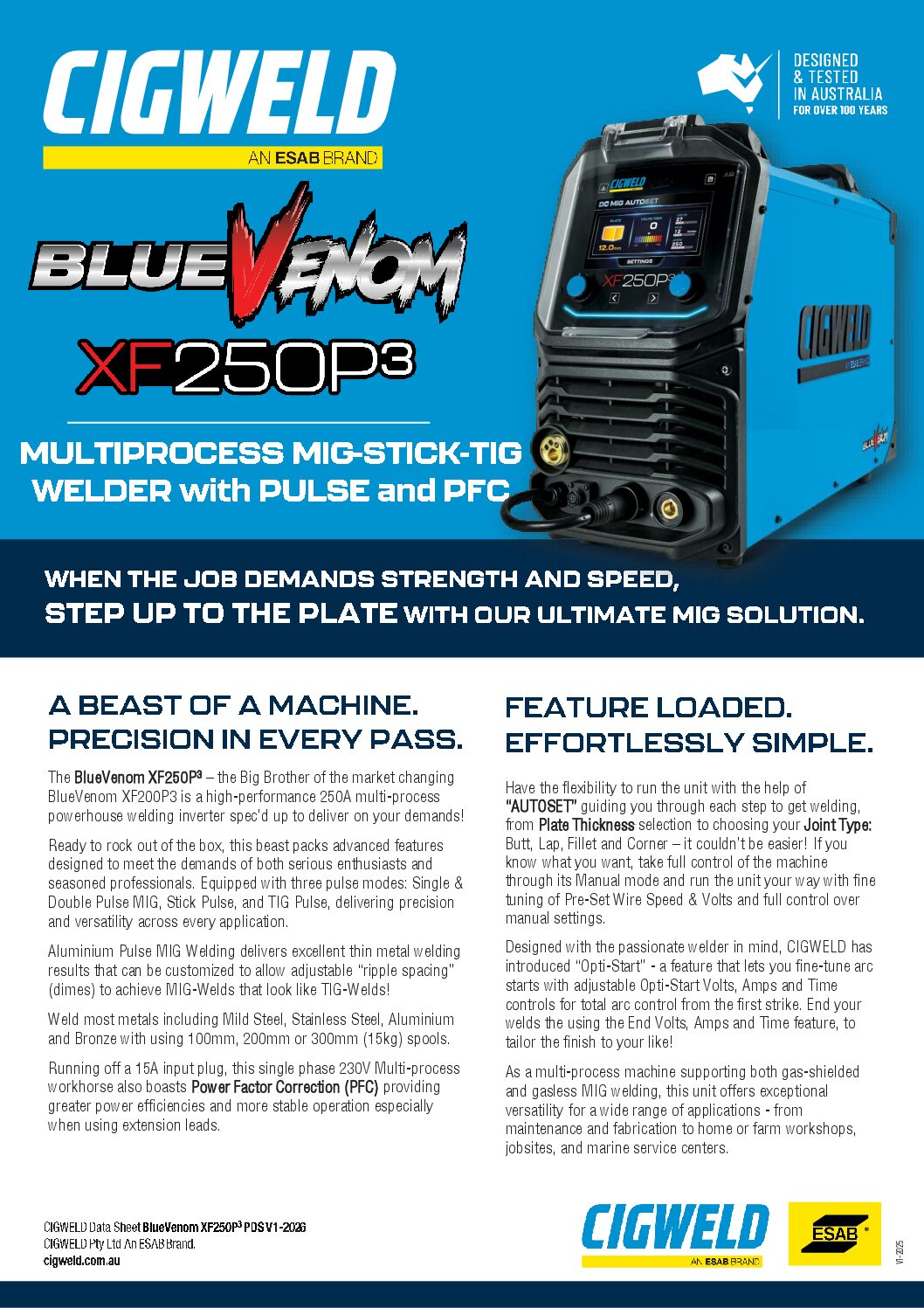

Download
