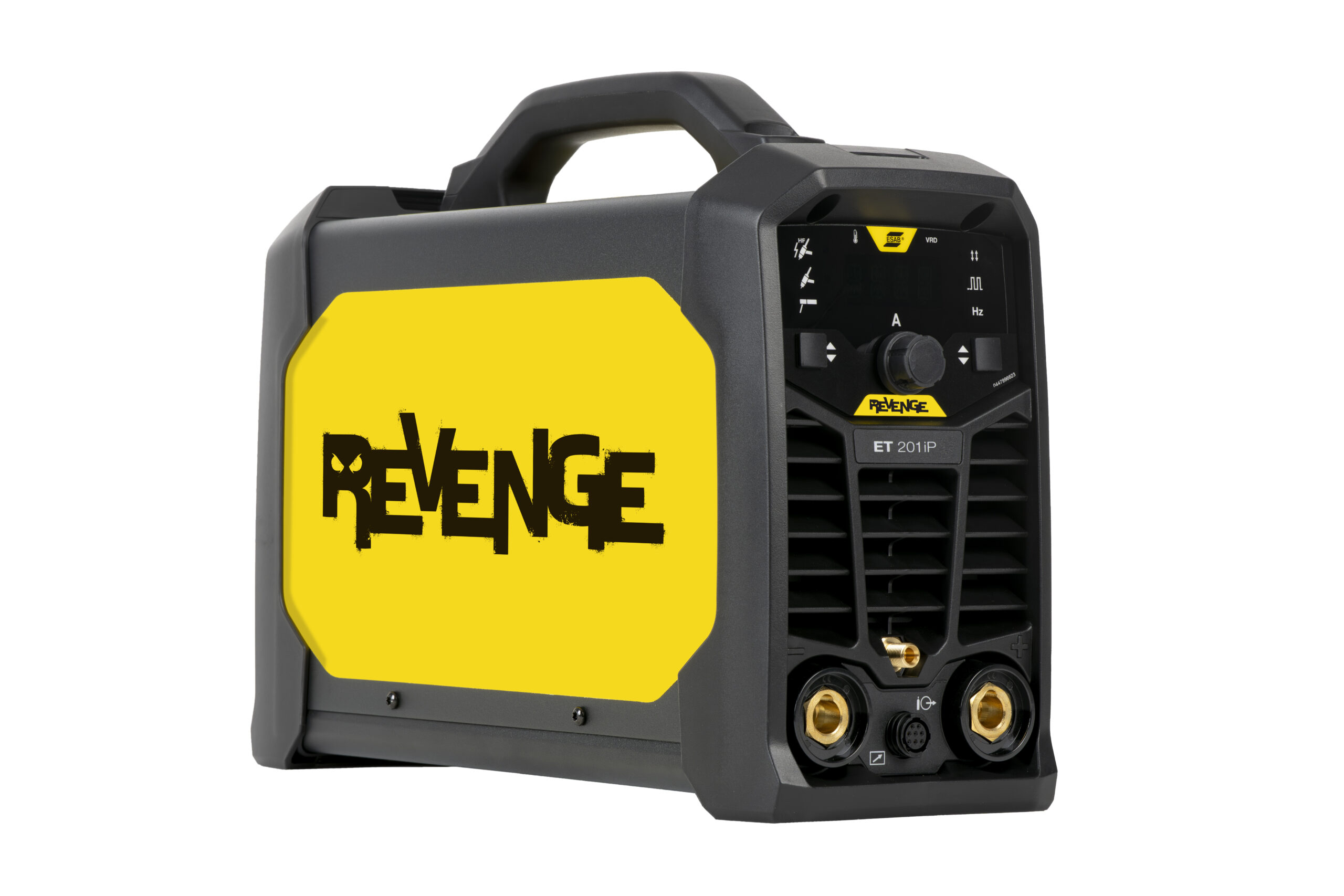

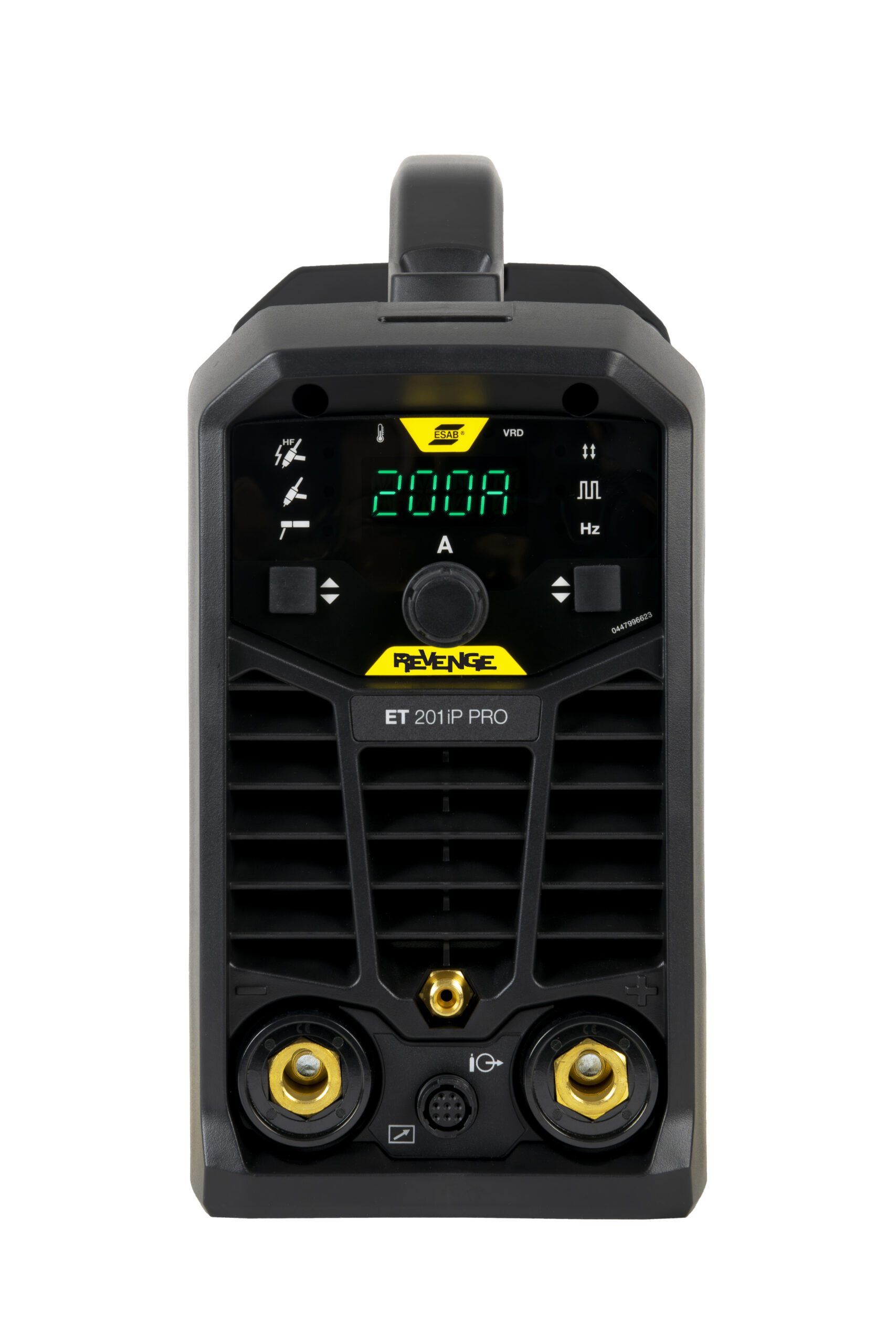

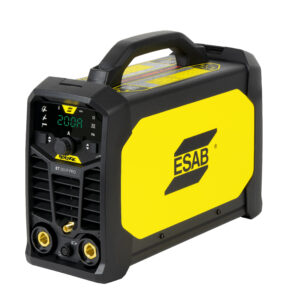

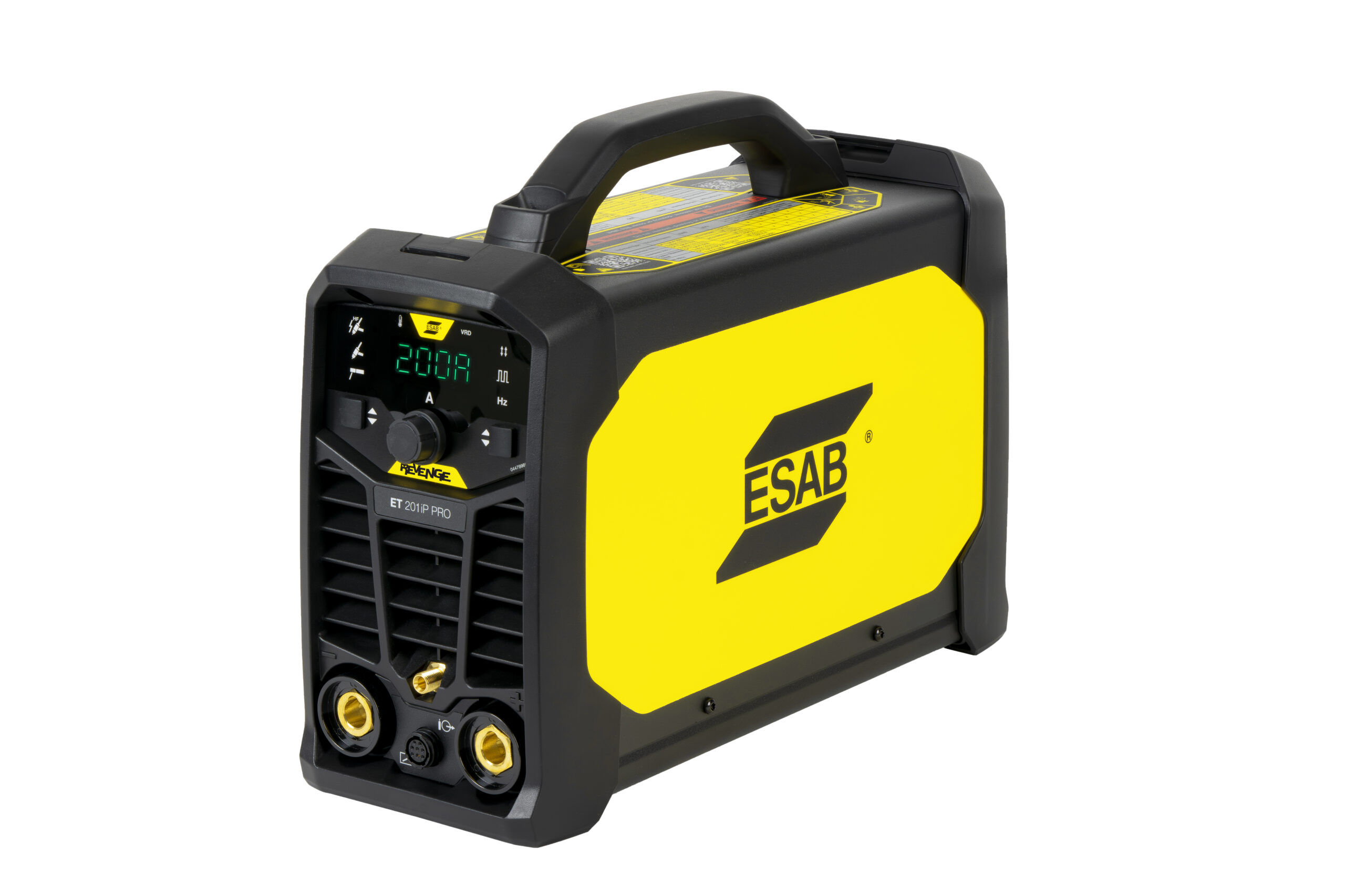

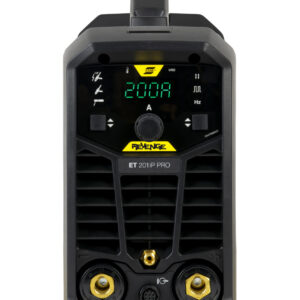

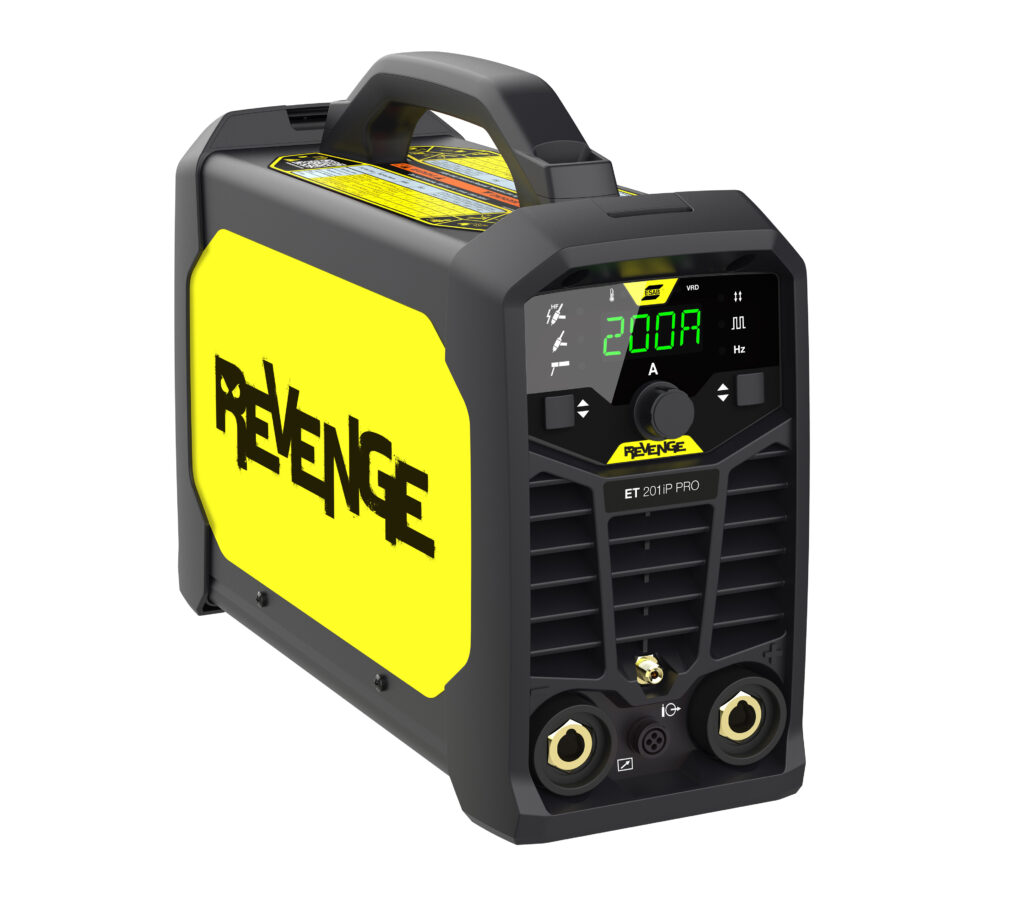

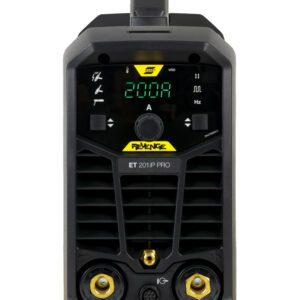

ESAB Revenge ET 201iP PRO

SKU: 0705002003

ESAB Revenge ET 201iP PRO

SKU: 0705002003

$2,210.00

EA

$2,210.00

ESAB REVENGE ET 201iP PRO – TOTAL CONTROL, TOTAL PERFORMANCE

The Revenge ET 201iP PRO is a high-frequency start TIG and Stick inverter built for professionals who demand precision and control. Compact, lightweight, and durable, it’s engineered for reliability in workshops, fabrication floors, and field sites alike.

This advanced unit offers exceptional arc characteristics in both TIG and Stick modes, with extensive TIG parameter control — including gas pre-flow, start current, ramp-up/down times, finish current, and post-flow — all programmable in 2T or 4T mode.
With a pulse frequency up to 500 Hz, you gain total control over heat input, perfect for thin-gauge materials and demanding applications.

Options & Accessories:

  • Shoulder strap (P/N: 0700500086)
  • MMA 4 Analogue Remote Control incl. 10m cable and 8 – pin connector (P/N:0700500084)
  • TIG Torch SR-B 26 with Flexible Neck and Potentiometer 4m (P/N:0464691002)
  • TIG Torch SR-B 26 with Flexible Neck and Potentiometer 8m (P/N:0464691003)
  • Argon Mini-Regulator and Gas Hose Kit (P/N:W4013010)
  • lectrode Holder 200A and Lead Assembly, 4m (13ft), 50 mm (P/N:WS200E13)
  • Ground Clamp 200A and Lead Assembly, 3m (10ft), 50 mm (P/N:WS200G10)
  • TIG Foot Control, 4.5 m (15ft) cable and 8-pin connector (P/N:W401445)

P/N: 0705002003

Out of stock

AUS
100 Years of Australian Heritage
Support_Final

Unmatched Local Expertise & Support

ESAB_Final 1
Backed by ESAB Global Innovation
Where To Buy
Where To Buy

Also available here online

›
›
›
›

Specifications

Downloads

If you need further information
Talk to us on 1800 855 412

Compare
Add to wishlist

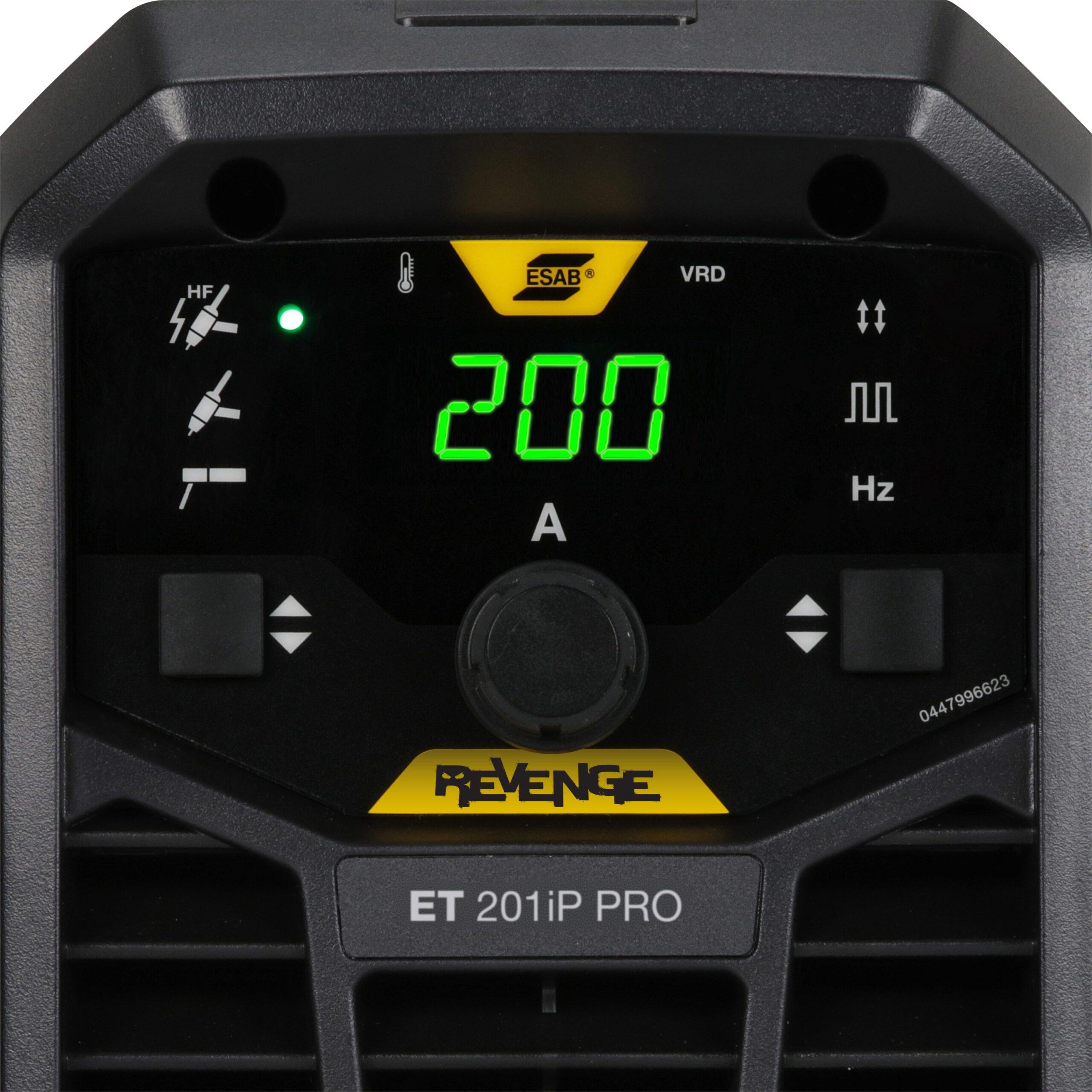

Precision TIG Control
Fine-tune every welding parameter — including gas pre-flow, ramp-up/down, and post-flow — for unmatched control and consistency, giving professionals complete command over the welding process.
Pulse TIG up to 500 Hz
Achieve exceptional heat control and precision with a pulse frequency of up to 500 Hz, allowing superior weld quality on thin sheets, intricate joints, and delicate components.
Pulse Stick Functionality
Advanced Pulse Stick mode minimizes spatter and distortion, ensuring clean, stable arcs and flawless results even when welding in out-of-position or complex environments.
Power Factor Correction (PFC)
Integrated PFC technology maintains a steady, efficient arc even when powered through long extension cables — up to 100 metres — for consistent results on any job site.
Rugged, Lightweight Build
Built with a durable IP23S-rated housing and weighing just 10kg, the Revenge ET 201iP PRO delivers professional-grade durability and portability for workshop or field applications.
Precision TIG Control
Fine-tune every welding parameter — including gas pre-flow, ramp-up/down, and post-flow — for unmatched control and consistency, giving professionals complete command over the welding process.
Pulse TIG up to 500 Hz
Achieve exceptional heat control and precision with a pulse frequency of up to 500 Hz, allowing superior weld quality on thin sheets, intricate joints, and delicate components.
Pulse Stick Functionality
Advanced Pulse Stick mode minimizes spatter and distortion, ensuring clean, stable arcs and flawless results even when welding in out-of-position or complex environments.
Power Factor Correction (PFC)
Integrated PFC technology maintains a steady, efficient arc even when powered through long extension cables — up to 100 metres — for consistent results on any job site.
Rugged, Lightweight Build
Built with a durable IP23S-rated housing and weighing just 10kg, the Revenge ET 201iP PRO delivers professional-grade durability and portability for workshop or field applications.
Revenge ET 201iP PRO – Precision Meets Power
Built for professionals who need superior arc control and dependable portability, the Revenge ET 201iP PRO combines TIG accuracy, Stick versatility, and industrial toughness in one compact system.
Additional Features

, ,

Brand

Certification Mark

Current Range

Dimensions Power Source

Duty cycle

Enclosure Class

Energy Save Mode

Generator Requirement

Material Thickness STICK

Material Thickness TIG

Material Type

, ,

Maximum Output

Operating Temperature

Plug Type

Power Supply

Primary Voltage 1ph

Pulse Capable

Pulse Capable MIG

Pulse Capable STICK

Pulse Capable TIG

Pulse Stick frequency

0.2 – 100Hz
Pulse TIG frequency

0.2 – 500Hz
Pulse stick frequency

0.2 – 100Hz
Pulse tig frequency

0.2 – 500Hz
Rated kVA

Stick (Stick) Welding Output (120 V)

110 A / 24.4 V @ 25% Duty Cycle, 70 A / 22.8 V @ 60% Duty Cycle, 55 A / 22.2 V @ 100% Duty Cycle
Stick (Stick) Welding Output (230 V)

200 A / 28.0 V @ 25% Duty Cycle, 129 A / 25.2 V @ 60% Duty Cycle, 100 A / 24.0 V @ 100% Duty Cycle
Stick welding output 120 v

110 A / 24.4 V @ 25% Duty Cycle, 55 A / 22.2 V @ 100% Duty Cycle, 70 A / 22.8 V @ 60% Duty Cycle
Stick welding output 230 v

100 A / 24.0 V @ 100% Duty Cycle, 129 A / 25.2 V @ 60% Duty Cycle, 200 A / 28.0 V @ 25% Duty Cycle
TIG (GTAW) Welding Output (120 V)

140 A / 15.6 V @ 25% Duty Cycle, 90 A / 13.6 V @ 60% Duty Cycle, 70 A / 12.8 V @ 100% Duty Cycle
TIG (GTAW) Welding Output (230 V)

200 A / 18.0 V @ 25% Duty Cycle, 129 A / 15.2 V @ 60% Duty Cycle, 100 A / 14.0 V @ 100% Duty Cycle
Tig output gtaw 120 v

140 A / 15.6 V @ 25% Duty Cycle, 70 A / 12.8 V @ 100% Duty Cycle, 90 A / 13.6 V @ 60% Duty Cycle
Tig output gtaw 230 v

100 A / 14.0 V @ 100% Duty Cycle, 129 A / 15.2 V @ 60% Duty Cycle, 200 A / 18.0 V @ 25% Duty Cycle
Usage

VRD Voltage

< 35 V DC
Vrd voltage

< 35 V DC
Warranty

Weight

Welding Process

, ,

Brand

ESAB

Input Power
115/230V ±15%, 1ph, 50/60Hz
Maximum Output
200A
Rated kVA
7 kVA
Energy Save Mode
<50W
VRD Voltage
<35V DC
Stick (230V)
200A @ 25% 129A @ 60% 100A @ 100%
Stick (120V)
110A @ 25% 70A @ 60% 55A @ 100%
TIG (230V)
200A @ 25% 129A @ 60% 100A @ 100%
TIG (120V)
140A @ 25% 90A @ 60% 70A @ 100%
Pulse TIG Frequency
0.2 – 500 Hz
Pulse Stick Frequency
0.2 – 100 Hz
Current Range
10 – 200A (Process-dependent)
Operating Temperature
-10°C to +40°C
Enclosure Class
IP23S
Dimensions (mm)
403 × 153 × 264
Weight
10kg
Standards
EN / IEC Certified

Specifications

BrandESABPower Supply240V
Plug Type15AWelding ProcessDC HF TIG, DC LIFT-TIG, STICK
UsageIndustrialMaterial TypeMild Steel, Silicone Bronze, Stainless Steel
Additional FeaturesDC TIG, HF Start, PulseMaterial Thickness STICKUp to 8mm
Material Thickness TIGUp to 8mmPulse CapableYes
Duty cycle200A @ 25%Warranty1 Year
Generator Requirement6.9 kVADimensions Power Source403 x 153 x 264 mm
Pulse Capable MIG'---Pulse Capable TIGYes
Pulse Capable STICKYesPrimary Voltage 1ph115/230 VAC ± 15%, 1 ph, 50/60 Hz
Maximum Output200 ARated kVA7 kVA
Energy Save Mode50 WattsVRD Voltage< 35 V DC
Vrd voltage< 35 V DCStick (Stick) Welding Output (230 V)200 A / 28.0 V @ 25% Duty Cycle, 129 A / 25.2 V @ 60% Duty Cycle, 100 A / 24.0 V @ 100% Duty Cycle
Stick (Stick) Welding Output (120 V)110 A / 24.4 V @ 25% Duty Cycle, 70 A / 22.8 V @ 60% Duty Cycle, 55 A / 22.2 V @ 100% Duty CycleStick welding output 230 v100 A / 24.0 V @ 100% Duty Cycle, 129 A / 25.2 V @ 60% Duty Cycle, 200 A / 28.0 V @ 25% Duty Cycle
TIG (GTAW) Welding Output (230 V)200 A / 18.0 V @ 25% Duty Cycle, 129 A / 15.2 V @ 60% Duty Cycle, 100 A / 14.0 V @ 100% Duty CycleTIG (GTAW) Welding Output (120 V)140 A / 15.6 V @ 25% Duty Cycle, 90 A / 13.6 V @ 60% Duty Cycle, 70 A / 12.8 V @ 100% Duty Cycle
Stick welding output 120 v110 A / 24.4 V @ 25% Duty Cycle, 55 A / 22.2 V @ 100% Duty Cycle, 70 A / 22.8 V @ 60% Duty CyclePulse TIG frequency0.2 - 500Hz
Tig output gtaw 230 v100 A / 14.0 V @ 100% Duty Cycle, 129 A / 15.2 V @ 60% Duty Cycle, 200 A / 18.0 V @ 25% Duty CyclePulse Stick frequency0.2 - 100Hz
Tig output gtaw 120 v140 A / 15.6 V @ 25% Duty Cycle, 70 A / 12.8 V @ 100% Duty Cycle, 90 A / 13.6 V @ 60% Duty CycleCurrent Range10 - 200 A (Depending on process)
Pulse tig frequency0.2 - 500HzPulse stick frequency0.2 - 100Hz
Operating Temperature'-10 to +40°CEnclosure ClassIP 23S
Certification MarkEN IECWeight10kg
BrandESAB
Power Supply240V
Plug Type15A
Welding ProcessDC HF TIG, DC LIFT-TIG, STICK
UsageIndustrial
Material TypeMild Steel, Silicone Bronze, Stainless Steel
Additional FeaturesDC TIG, HF Start, Pulse
Material Thickness STICKUp to 8mm
Material Thickness TIGUp to 8mm
Pulse CapableYes
Duty cycle200A @ 25%
Warranty1 Year
Generator Requirement6.9 kVA
Dimensions Power Source403 x 153 x 264 mm
Pulse Capable MIG'---
Pulse Capable TIGYes
Pulse Capable STICKYes
Primary Voltage 1ph115/230 VAC ± 15%, 1 ph, 50/60 Hz
Maximum Output200 A
Rated kVA7 kVA
Energy Save Mode50 Watts
VRD Voltage< 35 V DC
Vrd voltage< 35 V DC
Stick (Stick) Welding Output (230 V)200 A / 28.0 V @ 25% Duty Cycle, 129 A / 25.2 V @ 60% Duty Cycle, 100 A / 24.0 V @ 100% Duty Cycle
Stick (Stick) Welding Output (120 V)110 A / 24.4 V @ 25% Duty Cycle, 70 A / 22.8 V @ 60% Duty Cycle, 55 A / 22.2 V @ 100% Duty Cycle
Stick welding output 230 v100 A / 24.0 V @ 100% Duty Cycle, 129 A / 25.2 V @ 60% Duty Cycle, 200 A / 28.0 V @ 25% Duty Cycle
TIG (GTAW) Welding Output (230 V)200 A / 18.0 V @ 25% Duty Cycle, 129 A / 15.2 V @ 60% Duty Cycle, 100 A / 14.0 V @ 100% Duty Cycle
TIG (GTAW) Welding Output (120 V)140 A / 15.6 V @ 25% Duty Cycle, 90 A / 13.6 V @ 60% Duty Cycle, 70 A / 12.8 V @ 100% Duty Cycle
Stick welding output 120 v110 A / 24.4 V @ 25% Duty Cycle, 55 A / 22.2 V @ 100% Duty Cycle, 70 A / 22.8 V @ 60% Duty Cycle
Pulse TIG frequency0.2 - 500Hz
Tig output gtaw 230 v100 A / 14.0 V @ 100% Duty Cycle, 129 A / 15.2 V @ 60% Duty Cycle, 200 A / 18.0 V @ 25% Duty Cycle
Pulse Stick frequency0.2 - 100Hz
Tig output gtaw 120 v140 A / 15.6 V @ 25% Duty Cycle, 70 A / 12.8 V @ 100% Duty Cycle, 90 A / 13.6 V @ 60% Duty Cycle
Current Range10 - 200 A (Depending on process)
Pulse tig frequency0.2 - 500Hz
Pulse stick frequency0.2 - 100Hz
Operating Temperature'-10 to +40°C
Enclosure ClassIP 23S
Certification MarkEN IEC
Weight10kg

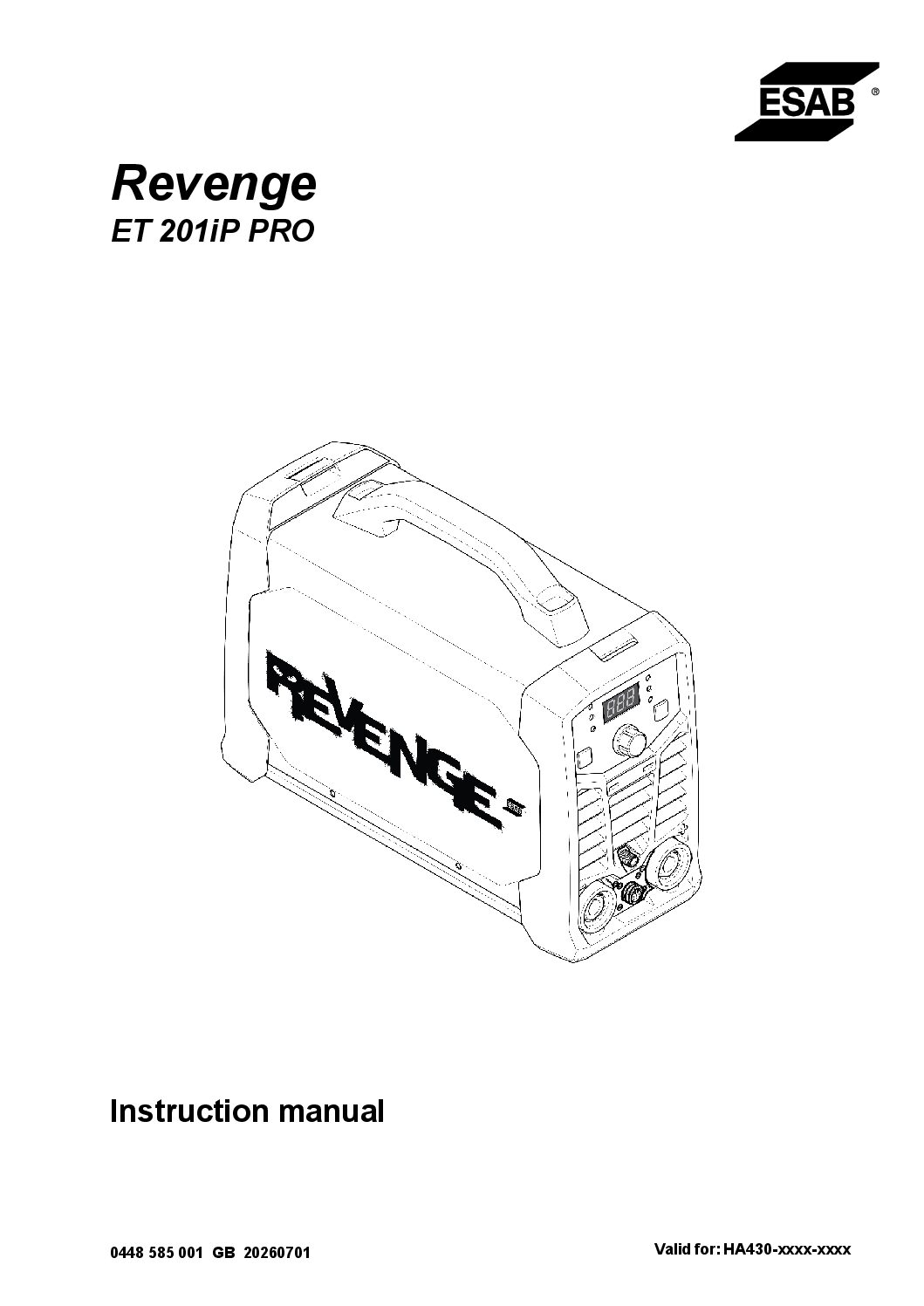

Downloads
