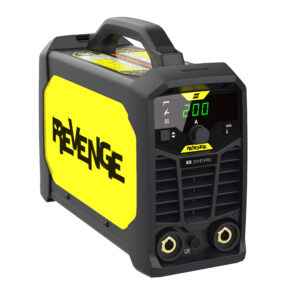

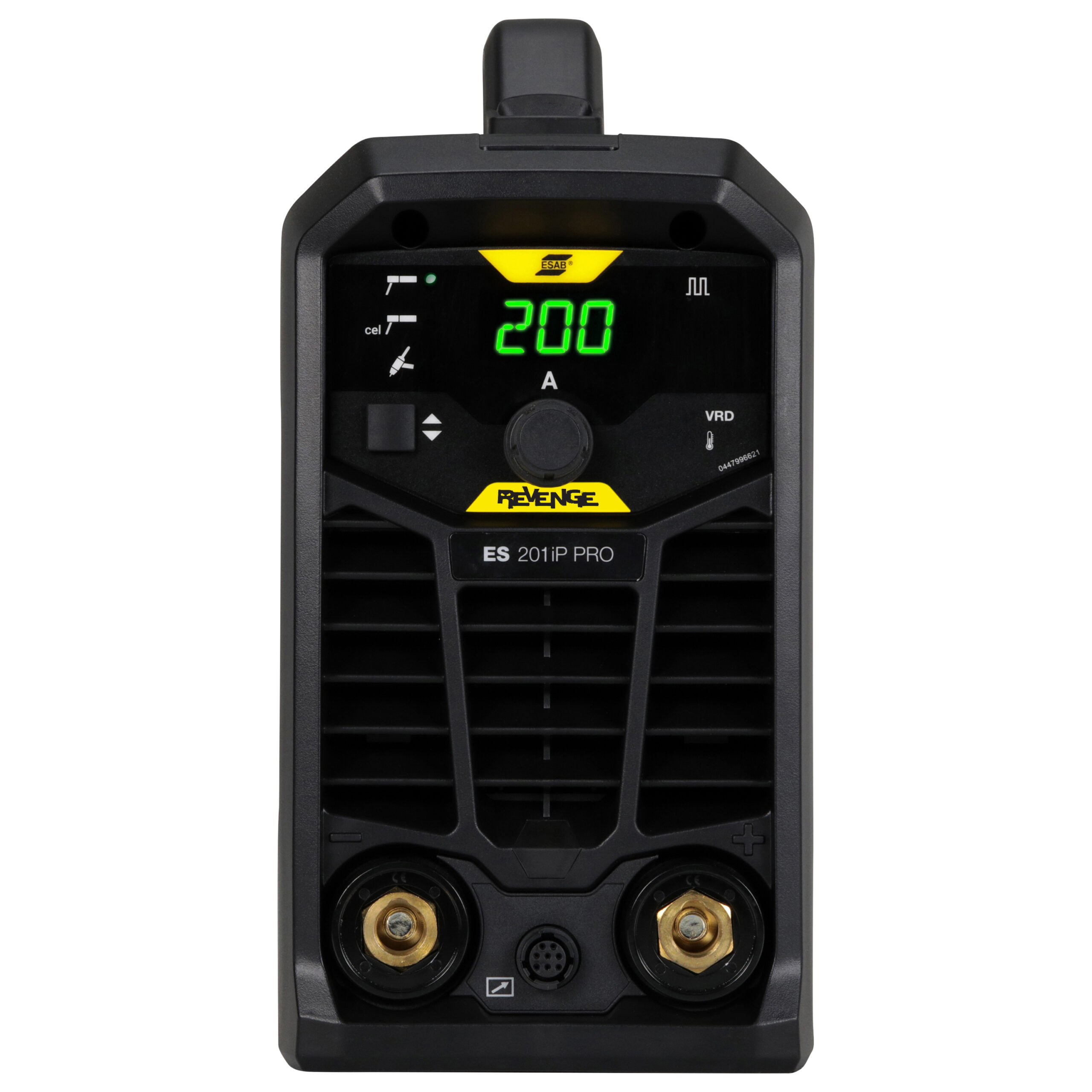

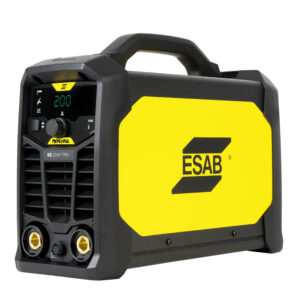

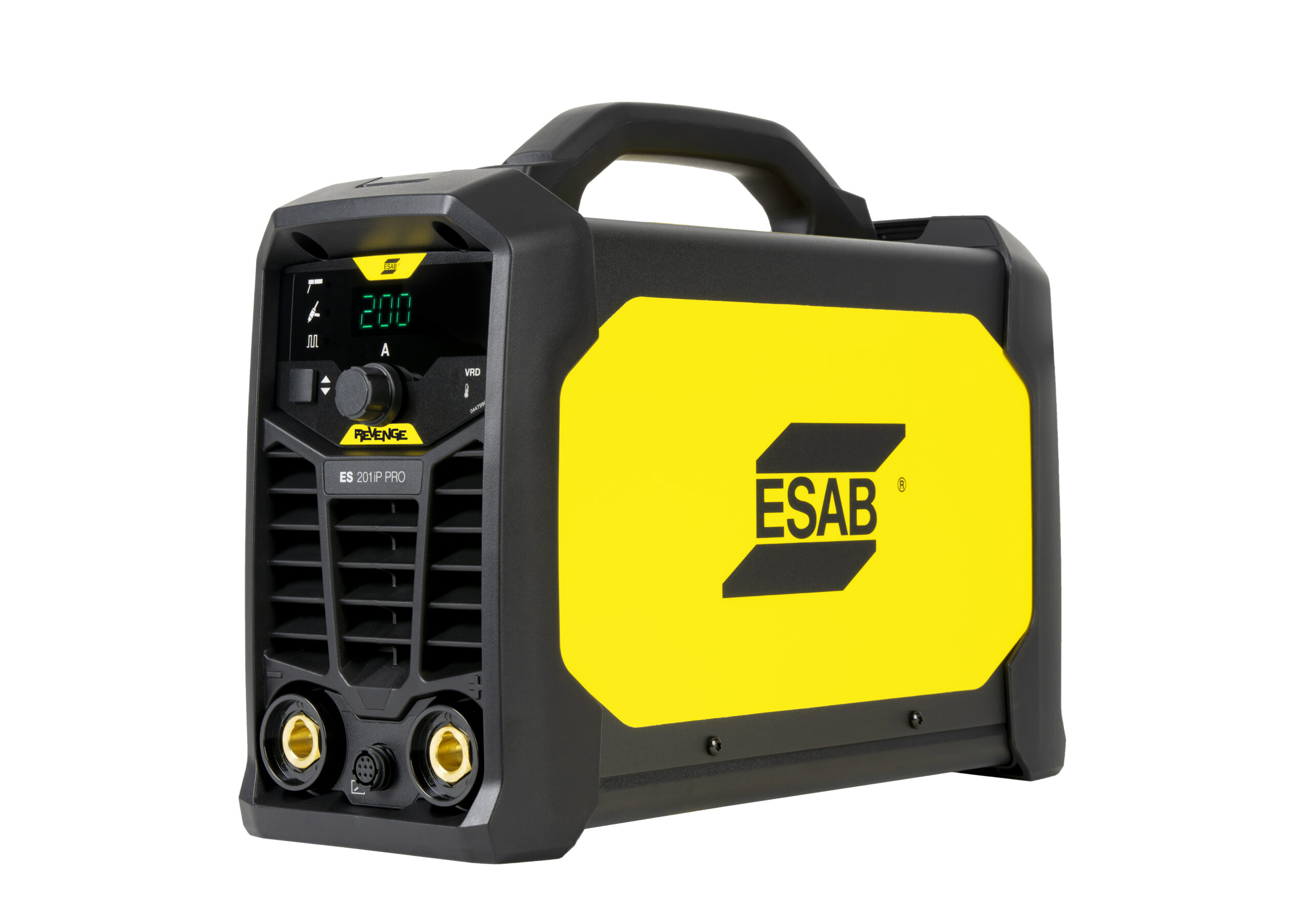

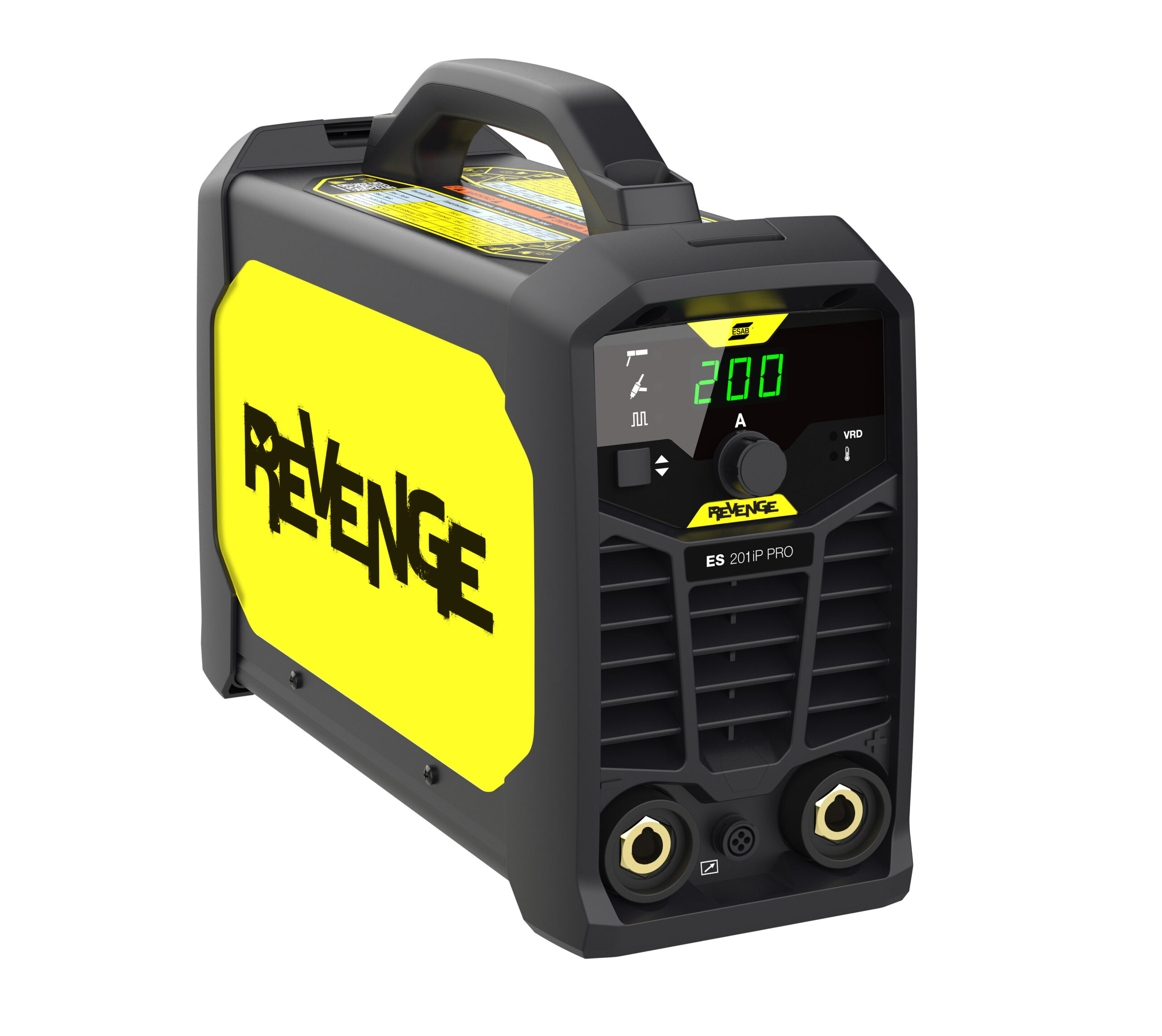

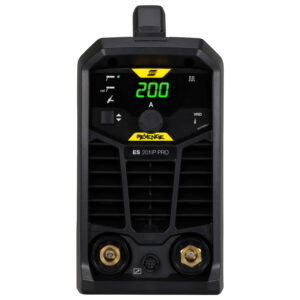

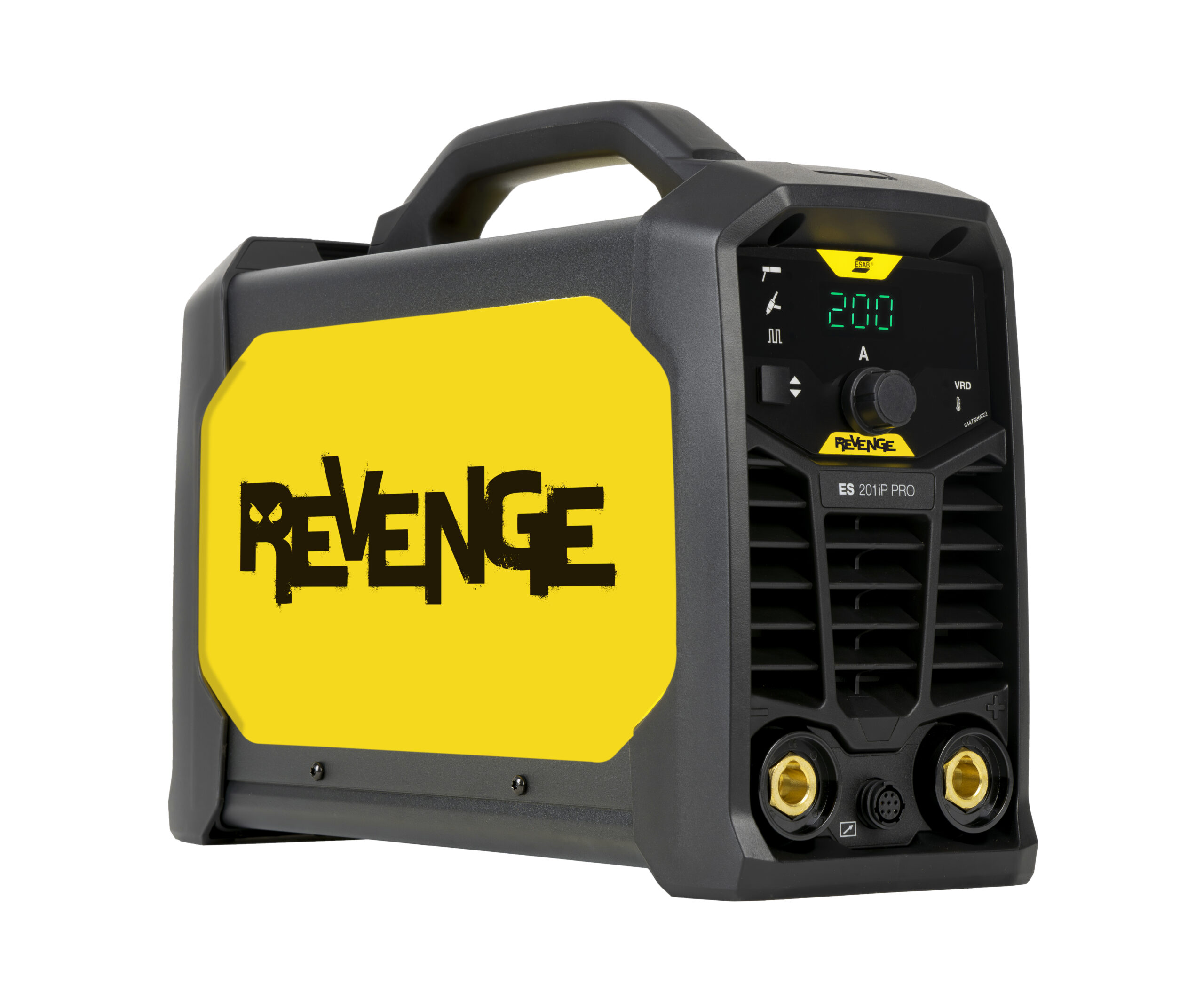

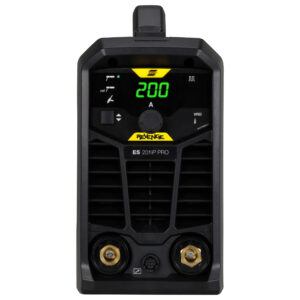

ESAB Revenge ES 201iP PRO

SKU: 0705002002

ESAB Revenge ES 201iP PRO

SKU: 0705002002

$1,324.00

EA

$1,324.00

ESAB REVENGE ES 201iP PRO – BUILT TO PERFORM, BUILT TO LAST

The ESAB Revenge ES 201iP PRO is a robust, professional-grade inverter welder designed to deliver precise control, smooth DC output, and exceptional reliability. Powered by advanced power electronics and digital control, it ensures a stable, consistent arc across a wide range of metals — including steel, stainless steel, and cast iron.

This compact powerhouse combines high-end performance with portability, featuring Pulse Stick functionality for superior control of heat input and reduced distortion, spatter, and undercuts. With dual voltage input and a rugged IP23S-rated design, it’s engineered to excel in both shop and site conditions.

Options & Accessories:

  • Revenge Plastic Case (P/N: 0700500085)
  • TIG Torch 17V, 3m lead – Gas Valve – Dinse 50mm (P/N: W7003021)
  • Argon Mini-Regulator and Gas Hose Kit (P/N: W4013010)
  • Welding Lead Set (Electrode Holder & Ground Clamp leads Assembly) – 400A 8m (P/N: 646325)
  • Electrode Holder 200 A and Lead Assembly, 4m (P/N: WS200E13)
  • Ground Clamp 200 A and Lead Assembly, 3m (P/N: WS200G10)
  • TIG Foot Control, 4.5m cable and 8-pin connector (P/N: W4014450)
  • MMA 4 Analogue Remote-Control incl. 10m cable (P/N: 0700500084)

P/N: 0705002002

Out of stock

AUS
100 Years of Australian Heritage
Support_Final

Unmatched Local Expertise & Support

ESAB_Final 1
Backed by ESAB Global Innovation
Where To Buy
Where To Buy

Also available here online

›
›
›
›

What's included?

Specifications

Downloads

If you need further information
Talk to us on 1800 855 412

Compare
Add to wishlist
Dual Voltage Flexibility
Seamlessly operates on both 120V and 230V input power, offering the versatility to handle welding tasks across workshops, construction sites, or remote job locations with equal reliability.
Pulse Stick Functionality
The advanced Pulse Stick mode provides precise heat input control, minimizing material distortion and spatter while ensuring smoother, cleaner, and more professional weld finishes.

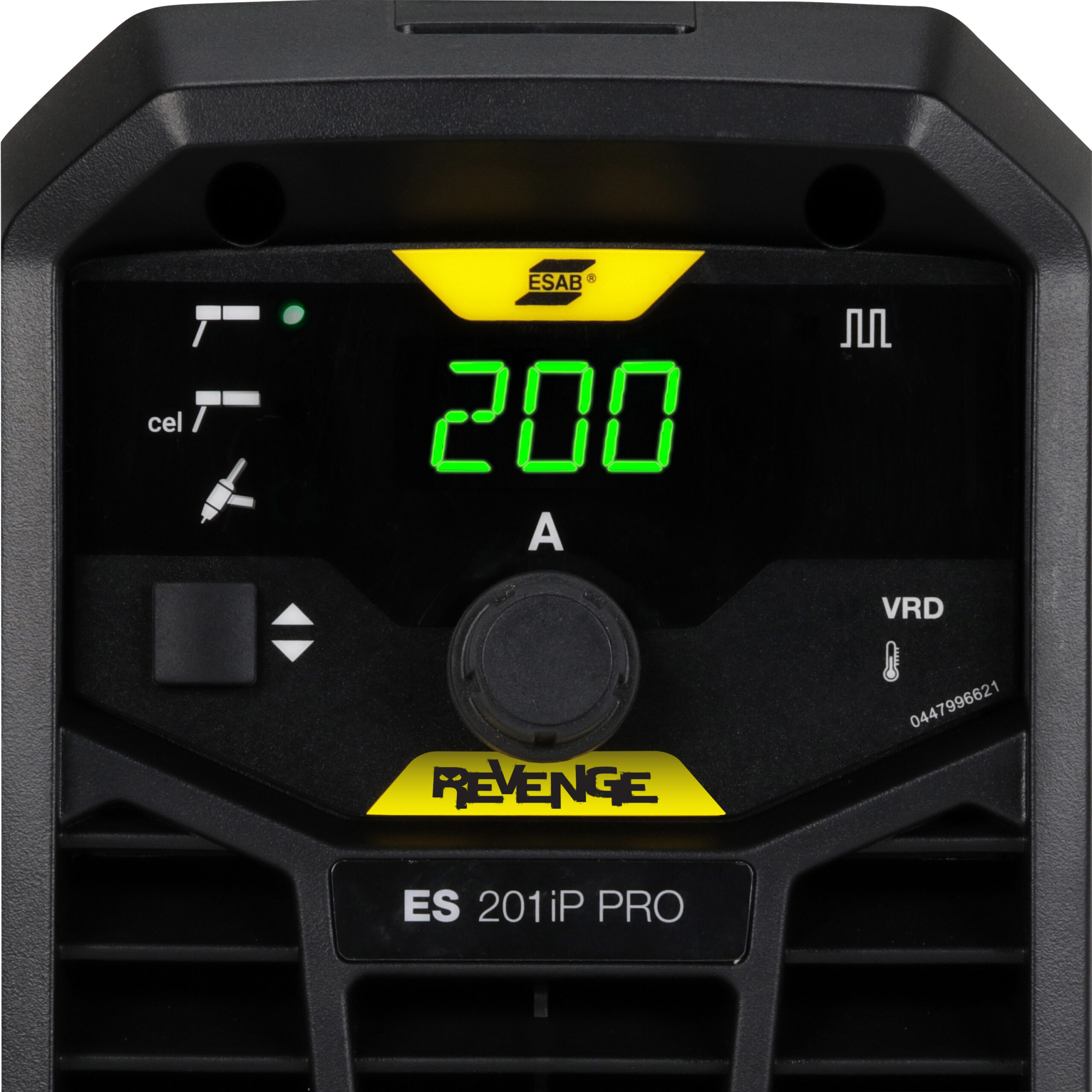

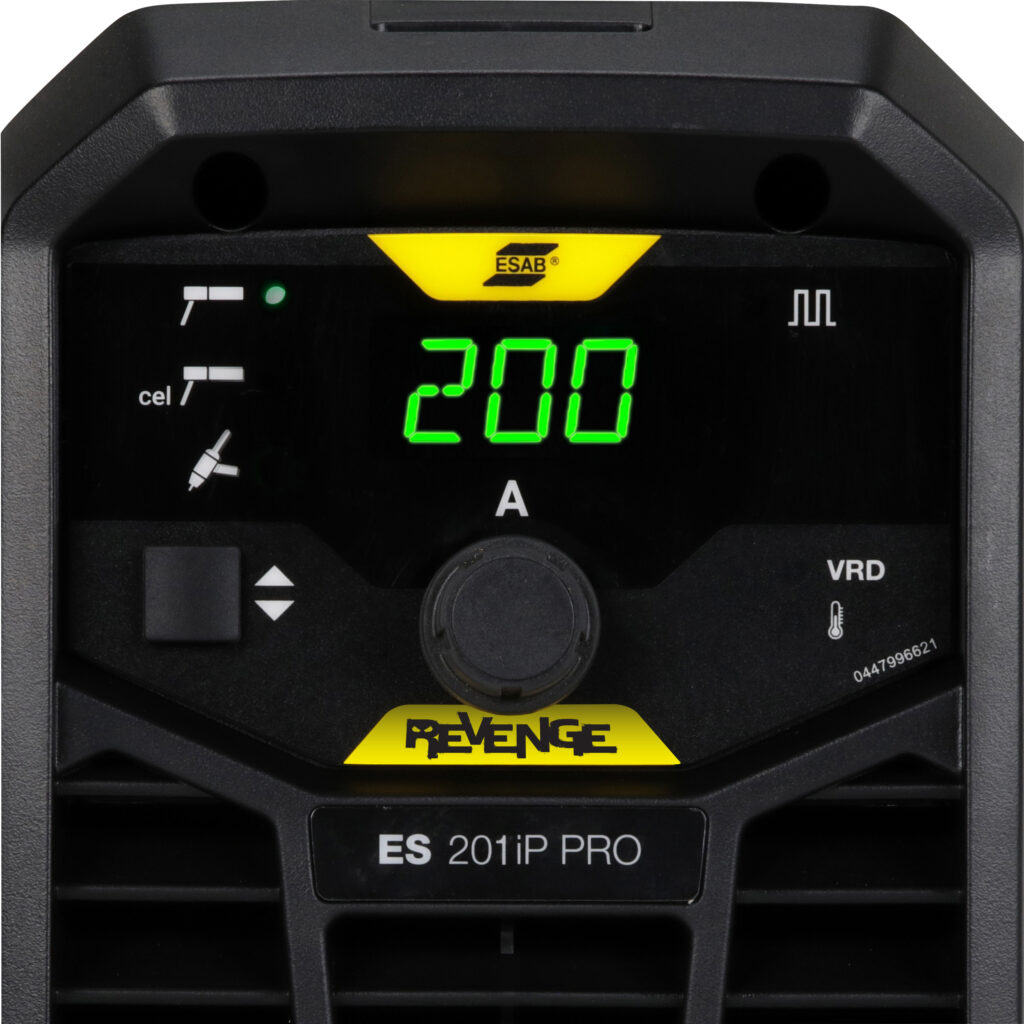

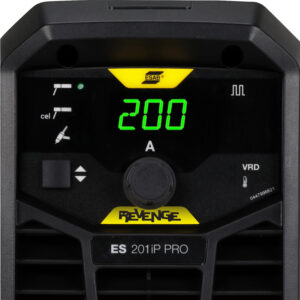

Precise Digital Control
Equipped with a high-performance microprocessor, the system continuously regulates arc parameters for superior stability, consistency, and performance across a wide range of electrodes and positions.
Rugged Portability
Engineered with a reinforced fiberglass housing and weighing just 9.6kg, this welder offers maximum durability and effortless portability, complete with a comfortable carry strap for field or shop use.
Generator Ready
Performs reliably on generator power (7kVA recommended) with PFC technology for steady arcs, even on long leads.
Dual Voltage Flexibility
Seamlessly operates on both 120V and 230V input power, offering the versatility to handle welding tasks across workshops, construction sites, or remote job locations with equal reliability.
Pulse Stick Functionality
The advanced Pulse Stick mode provides precise heat input control, minimizing material distortion and spatter while ensuring smoother, cleaner, and more professional weld finishes.
Precise Digital Control
Equipped with a high-performance microprocessor, the system continuously regulates arc parameters for superior stability, consistency, and performance across a wide range of electrodes and positions.
Rugged Portability
Engineered with a reinforced fiberglass housing and weighing just 9.6kg, this welder offers maximum durability and effortless portability, complete with a comfortable carry strap for field or shop use.
Generator Ready
Performs reliably on generator power (7kVA recommended) with PFC technology for steady arcs, even on long leads.
Revenge ES 201iP PRO – Power. Precision. Portability.
Performance & Versatility
Compact dual-voltage inverter with Pulse Stick control, digital precision, and rugged IP23S build — delivering smooth, powerful welding performance wherever the job takes you.
Additional Features

,

Brand

Current Range

Dimensions

Dimensions Power Source

Enclosure Class

Energy Save Mode

Material Thickness STICK

Material Thickness TIG

Material Type

, ,

Maximum Output

Operating Temperature

Plug Type

Power Supply

,

Pulse Capable MIG

Pulse Capable STICK

Pulse Capable TIG

Pulse Stick frequency

0.2 – 100Hz
Pulse stick frequency

0.2 – 100Hz
Rated kVA

Stick (MMA) Welding Output (120 V)

110 A / 24.4 V (at 25% Duty Cycle), 70 A / 22.8 V (at 60% Duty Cycle), 55 A / 22.2 V (at 100% Duty Cycle)
Stick (MMA) Welding Output (230 V)

200 A / 28.0 V (at 25% Duty Cycle), 129 A / 25.2 V (at 60% Duty Cycle), 100 A / 24.0 V (at 100% Duty Cycle)
Stick mma output 120 v

110 A / 24.4 V (at 25% Duty Cycle), 55 A / 22.2 V (at 100% Duty Cycle), 70 A / 22.8 V (at 60% Duty Cycle)
Stick mma output 230 v

100 A / 24.0 V (at 100% Duty Cycle), 129 A / 25.2 V (at 60% Duty Cycle), 200 A / 28.0 V (at 25% Duty Cycle)
TIG (GTAW) Welding Output (120 V)

140 A / 16.0 V (at 25% Duty Cycle), 90 A / 13.6 V (at 60% Duty Cycle), 70 A / 12.8 V (at 100% Duty Cycle)
TIG (GTAW) Welding Output (230 V)

200 A / 18.0 V (at 25% Duty Cycle), 129 A / 15.2 V (at 60% Duty Cycle), 100 A / 14.0 V (at 100% Duty Cycle)
Tig output gtaw 120 v

140 A / 15.6 V @ 25% Duty Cycle, 70 A / 12.8 V @ 100% Duty Cycle, 90 A / 13.6 V @ 60% Duty Cycle
Tig output gtaw 230 v

100 A / 14.0 V @ 100% Duty Cycle, 129 A / 15.2 V @ 60% Duty Cycle, 200 A / 18.0 V @ 25% Duty Cycle
Usage

VRD On Voltage

< 35 V DC
Vrd on voltage

< 35 V DC
Warranty

Weight

Welding Process

,

Brand

ESAB

Input Power
120–230V ±15%, 1ph, 50/60Hz
Maximum Output
200A
Rated kVA
6.9 kVA
Energy Save Mode
<50W
VRD (On Voltage)
<35V DC
Stick (230V)
200A @ 25% 129A @ 60% 100A @ 100%
Stick (120V)
110A @ 25% 70A @ 60% 55A @ 100%
TIG (230V)
200A @ 25% 129A @ 60% 100A @ 100%
TIG (120V)
140A @ 25% 90A @ 60% 70A @ 100%
Current Range
10–200A (230V) 10–140A (120V)
Pulse Stick Frequency
0.2–100Hz
Operating Temperature
-10°C to +40°C
Protection Class
IP23S
Dimensions (mm)
403 × 153 × 264
Weight
9.6kg

What's Included?

ESAB Revenge ES 201iP PRO

Revenge ES 201iP PRO Power Source
3m Mains Cable and Plug
Electrode Holder with 3m Cable
3m Return Cable with Earth Clamp
Shoulder Strap

Specifications

BrandESABPower Supply120-230 VAC, 50-60 Hz
Welding ProcessDC LIFT TIG, STICKUsageIndustrial
Material TypeMild Steel, Silicone Bronze, Stainless SteelAdditional FeaturesDC Lift TIG, VRD
Material Thickness STICK2.0- 5.0mmMaterial Thickness TIG1.0 - 5.0mm
Plug Type15AWarranty1 Year
Dimensions Power Source403 x 153 x 264mmPulse Capable MIG'---
Pulse Capable TIGYesPulse Capable STICKYes
Maximum Output200 ARated kVA6.9 kVA
Energy Save Mode50 WattsVRD On Voltage< 35 V DC
Vrd on voltage< 35 V DCStick (MMA) Welding Output (230 V)200 A / 28.0 V (at 25% Duty Cycle), 129 A / 25.2 V (at 60% Duty Cycle), 100 A / 24.0 V (at 100% Duty Cycle)
Stick (MMA) Welding Output (120 V)110 A / 24.4 V (at 25% Duty Cycle), 70 A / 22.8 V (at 60% Duty Cycle), 55 A / 22.2 V (at 100% Duty Cycle)Stick mma output 230 v100 A / 24.0 V (at 100% Duty Cycle), 129 A / 25.2 V (at 60% Duty Cycle), 200 A / 28.0 V (at 25% Duty Cycle)
TIG (GTAW) Welding Output (230 V)200 A / 18.0 V (at 25% Duty Cycle), 129 A / 15.2 V (at 60% Duty Cycle), 100 A / 14.0 V (at 100% Duty Cycle)TIG (GTAW) Welding Output (120 V)140 A / 16.0 V (at 25% Duty Cycle), 90 A / 13.6 V (at 60% Duty Cycle), 70 A / 12.8 V (at 100% Duty Cycle)
Stick mma output 120 v110 A / 24.4 V (at 25% Duty Cycle), 55 A / 22.2 V (at 100% Duty Cycle), 70 A / 22.8 V (at 60% Duty Cycle)Pulse Stick frequency0.2 - 100Hz
Tig output gtaw 230 v100 A / 14.0 V @ 100% Duty Cycle, 129 A / 15.2 V @ 60% Duty Cycle, 200 A / 18.0 V @ 25% Duty CycleTig output gtaw 120 v140 A / 15.6 V @ 25% Duty Cycle, 70 A / 12.8 V @ 100% Duty Cycle, 90 A / 13.6 V @ 60% Duty Cycle
Current Range10-200 on 230VAC, 10-140 on 120VAC, depending on processPulse stick frequency0.2 - 100Hz
Operating Temperature'-10 to +40°CEnclosure ClassIP 23S
Dimensions403 x 153 x 264 mm (15.8 x 6 x 10.4 in.)Weight9.6 kg
BrandESAB
Power Supply120-230 VAC, 50-60 Hz
Welding ProcessDC LIFT TIG, STICK
UsageIndustrial
Material TypeMild Steel, Silicone Bronze, Stainless Steel
Additional FeaturesDC Lift TIG, VRD
Material Thickness STICK2.0- 5.0mm
Material Thickness TIG1.0 - 5.0mm
Plug Type15A
Warranty1 Year
Dimensions Power Source403 x 153 x 264mm
Pulse Capable MIG'---
Pulse Capable TIGYes
Pulse Capable STICKYes
Maximum Output200 A
Rated kVA6.9 kVA
Energy Save Mode50 Watts
VRD On Voltage< 35 V DC
Vrd on voltage< 35 V DC
Stick (MMA) Welding Output (230 V)200 A / 28.0 V (at 25% Duty Cycle), 129 A / 25.2 V (at 60% Duty Cycle), 100 A / 24.0 V (at 100% Duty Cycle)
Stick (MMA) Welding Output (120 V)110 A / 24.4 V (at 25% Duty Cycle), 70 A / 22.8 V (at 60% Duty Cycle), 55 A / 22.2 V (at 100% Duty Cycle)
Stick mma output 230 v100 A / 24.0 V (at 100% Duty Cycle), 129 A / 25.2 V (at 60% Duty Cycle), 200 A / 28.0 V (at 25% Duty Cycle)
TIG (GTAW) Welding Output (230 V)200 A / 18.0 V (at 25% Duty Cycle), 129 A / 15.2 V (at 60% Duty Cycle), 100 A / 14.0 V (at 100% Duty Cycle)
TIG (GTAW) Welding Output (120 V)140 A / 16.0 V (at 25% Duty Cycle), 90 A / 13.6 V (at 60% Duty Cycle), 70 A / 12.8 V (at 100% Duty Cycle)
Stick mma output 120 v110 A / 24.4 V (at 25% Duty Cycle), 55 A / 22.2 V (at 100% Duty Cycle), 70 A / 22.8 V (at 60% Duty Cycle)
Pulse Stick frequency0.2 - 100Hz
Tig output gtaw 230 v100 A / 14.0 V @ 100% Duty Cycle, 129 A / 15.2 V @ 60% Duty Cycle, 200 A / 18.0 V @ 25% Duty Cycle
Tig output gtaw 120 v140 A / 15.6 V @ 25% Duty Cycle, 70 A / 12.8 V @ 100% Duty Cycle, 90 A / 13.6 V @ 60% Duty Cycle
Current Range10-200 on 230VAC, 10-140 on 120VAC, depending on process
Pulse stick frequency0.2 - 100Hz
Operating Temperature'-10 to +40°C
Enclosure ClassIP 23S
Dimensions403 x 153 x 264 mm (15.8 x 6 x 10.4 in.)
Weight9.6 kg

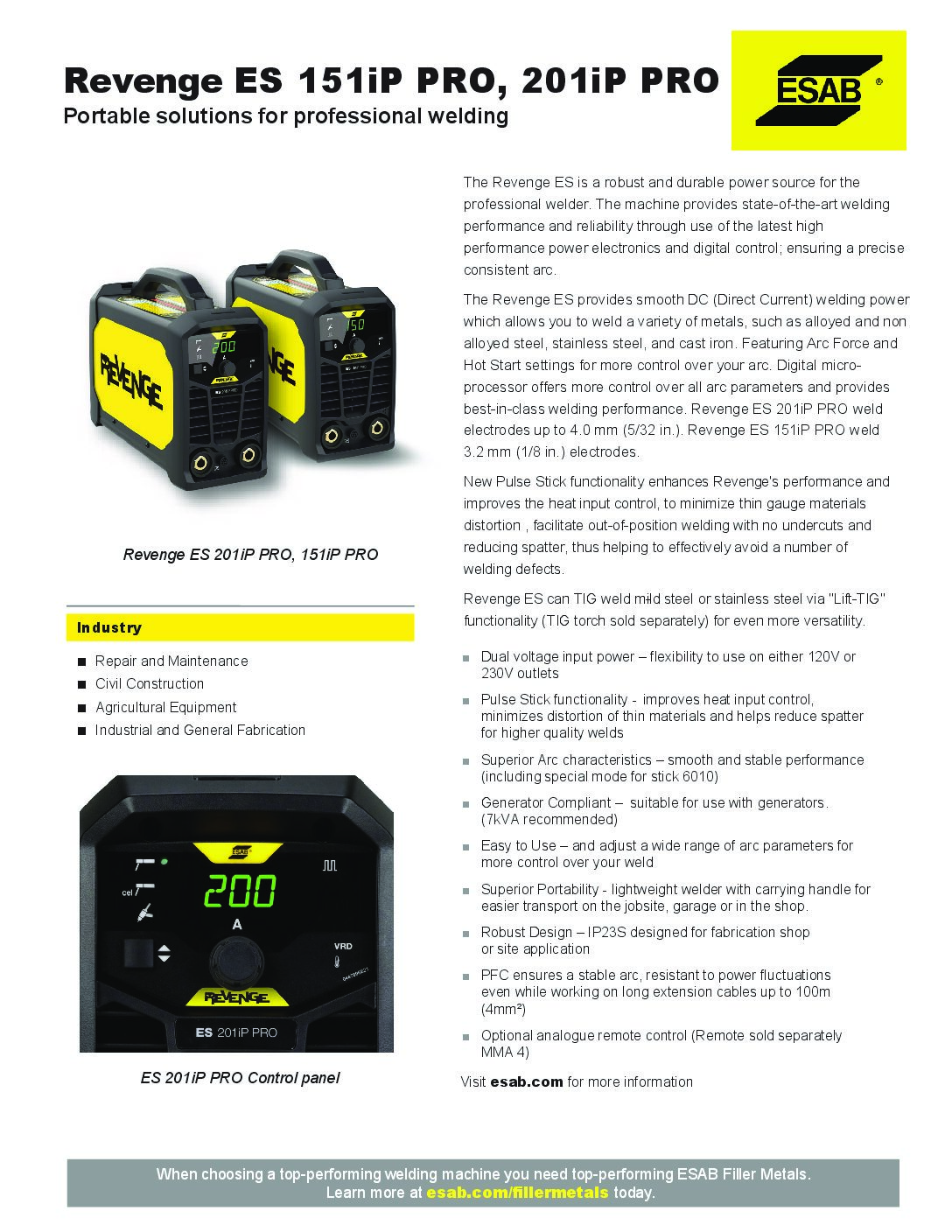

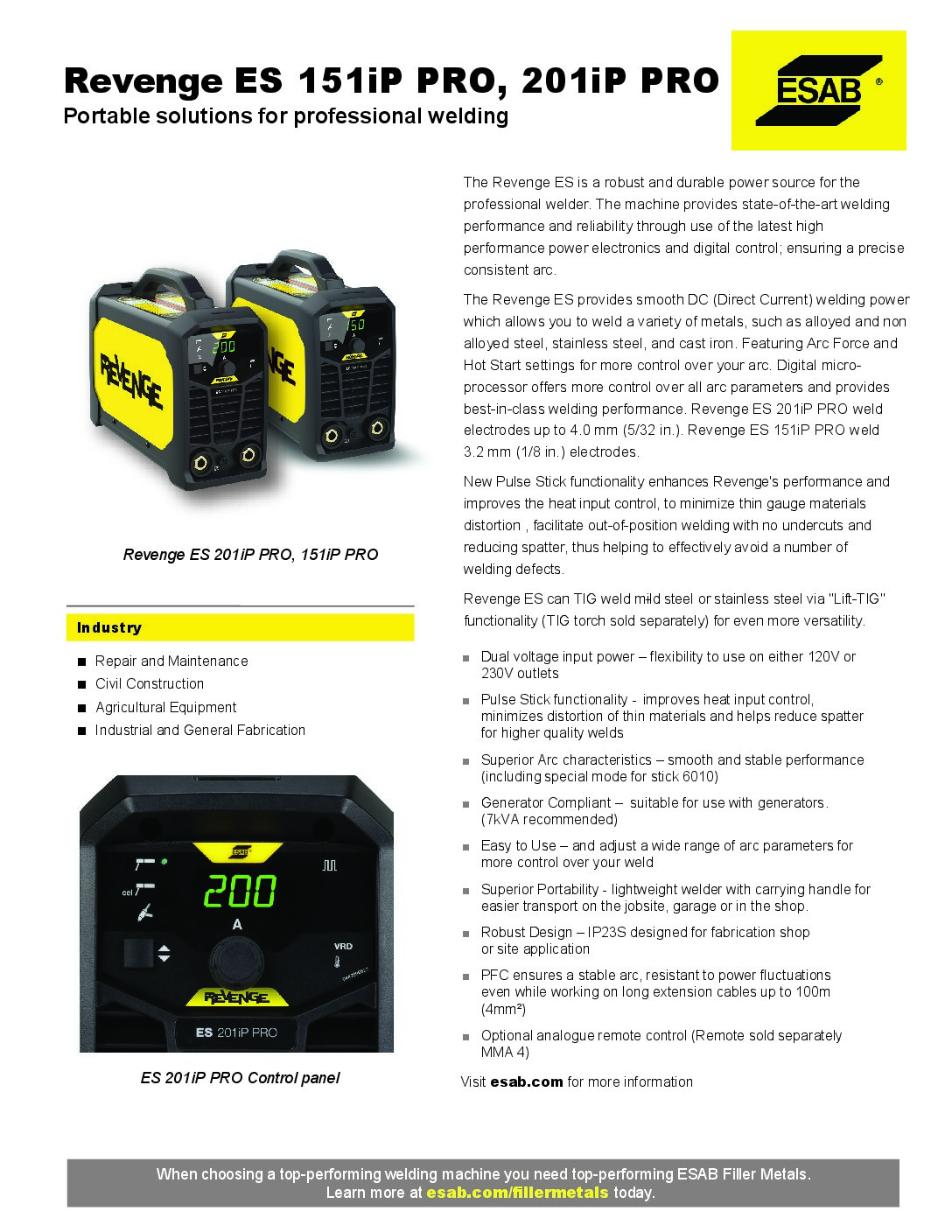

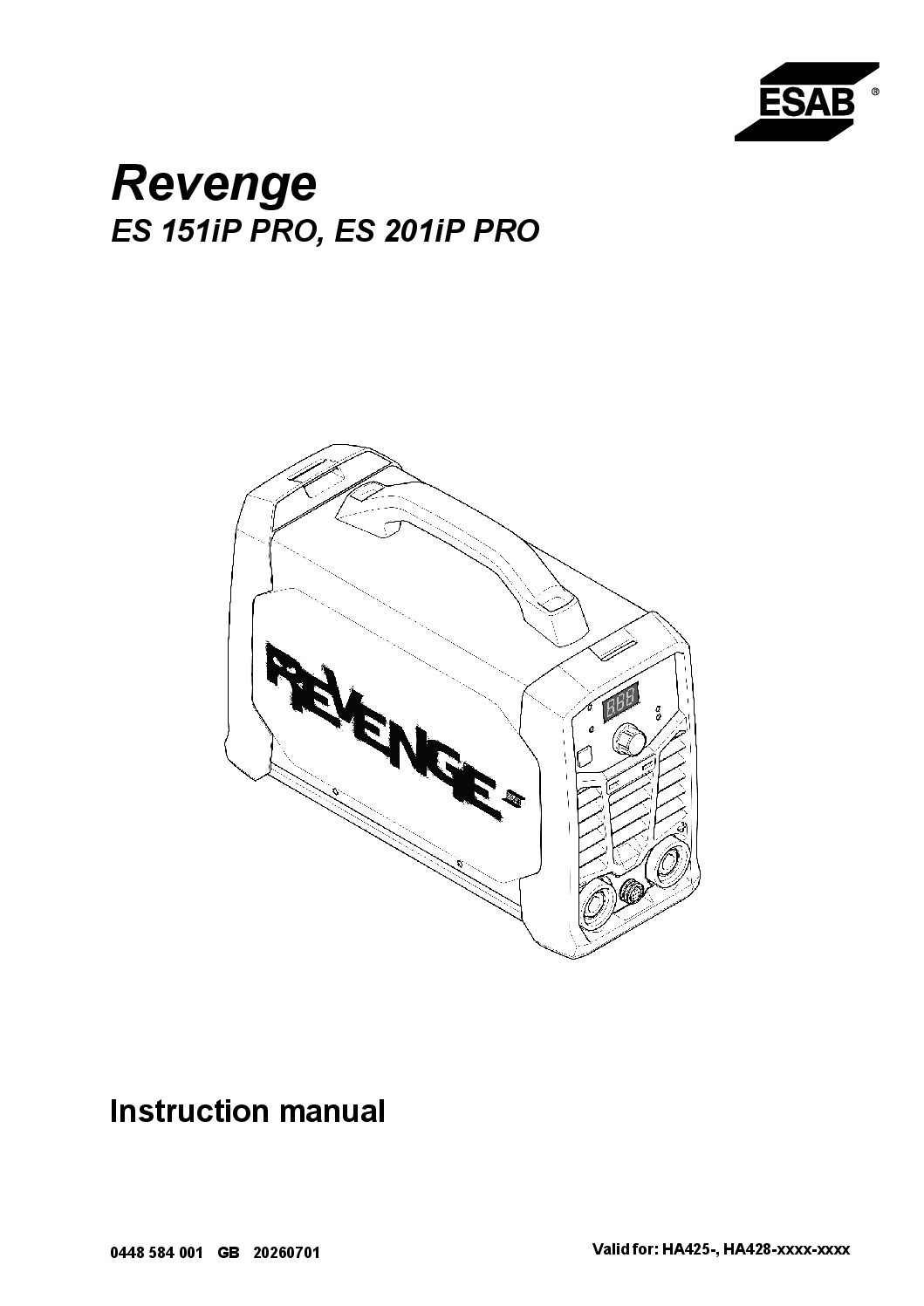

Downloads

Related Products

Lead Set 250A, 4m Cable, 25mm DINSE Connector, Twist Lock Holder

Learn More

Heavy Duty Aluminized Welding Gloves - XL

Learn More

Chipping Hammer – Spring Handle

SKU: 646215
Learn More

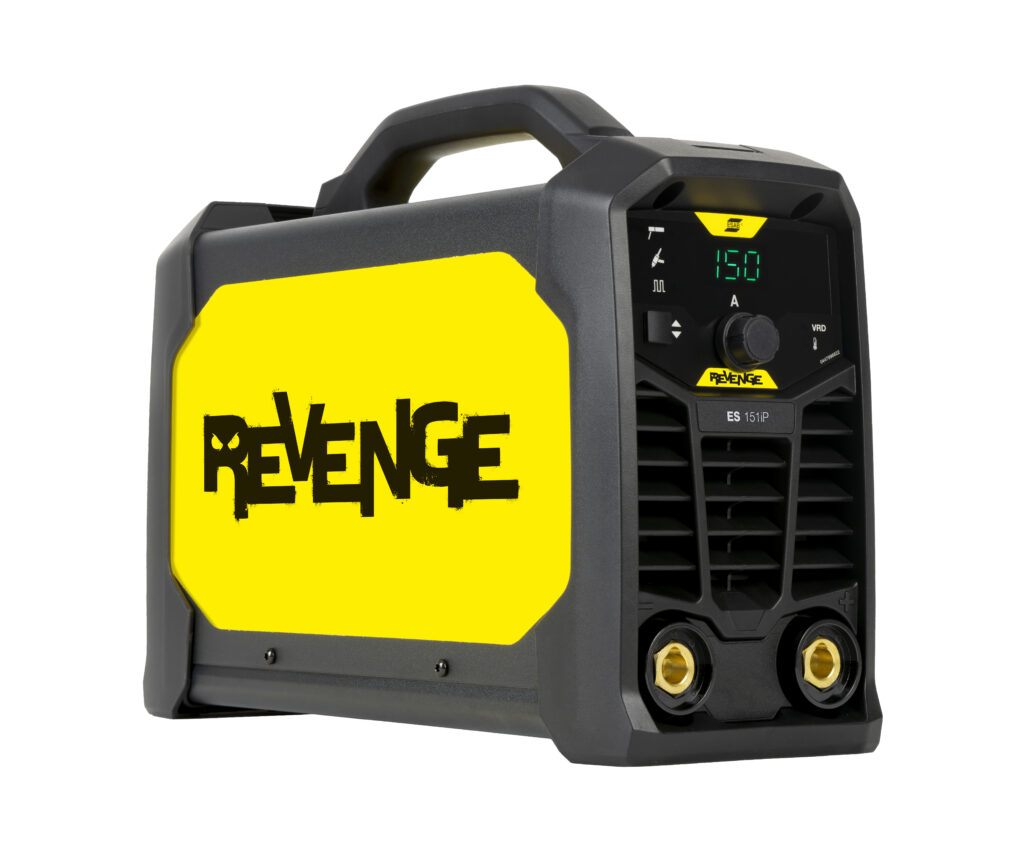

ESAB Revenge ES 151iP PRO
