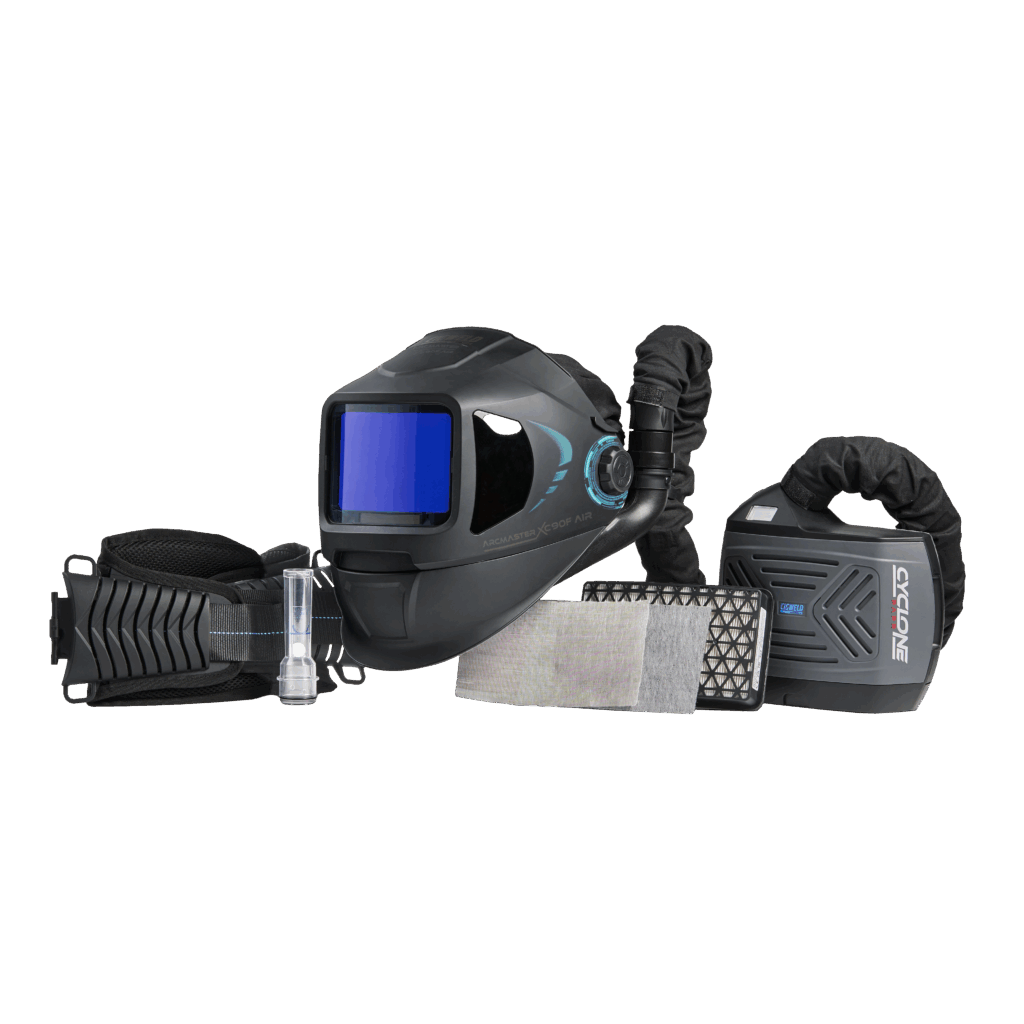

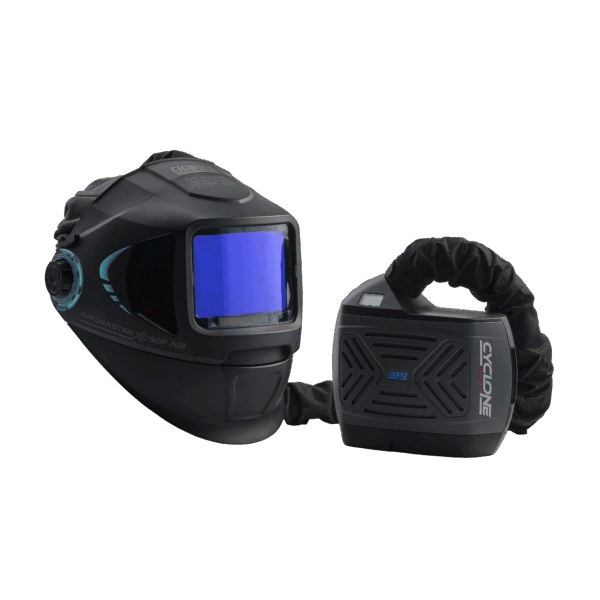

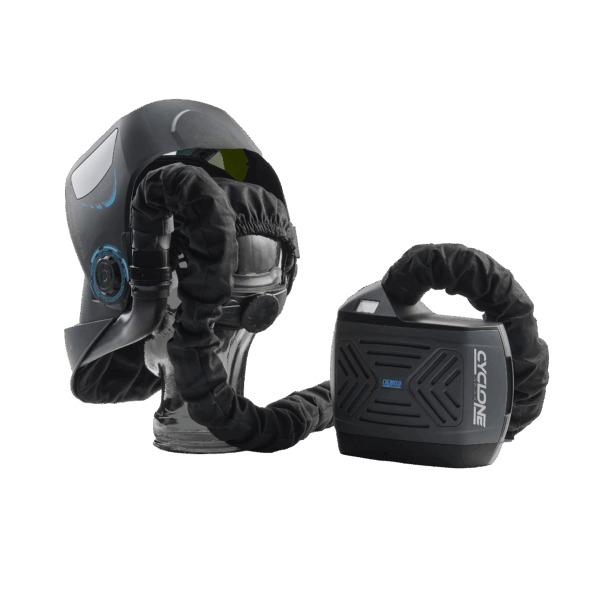

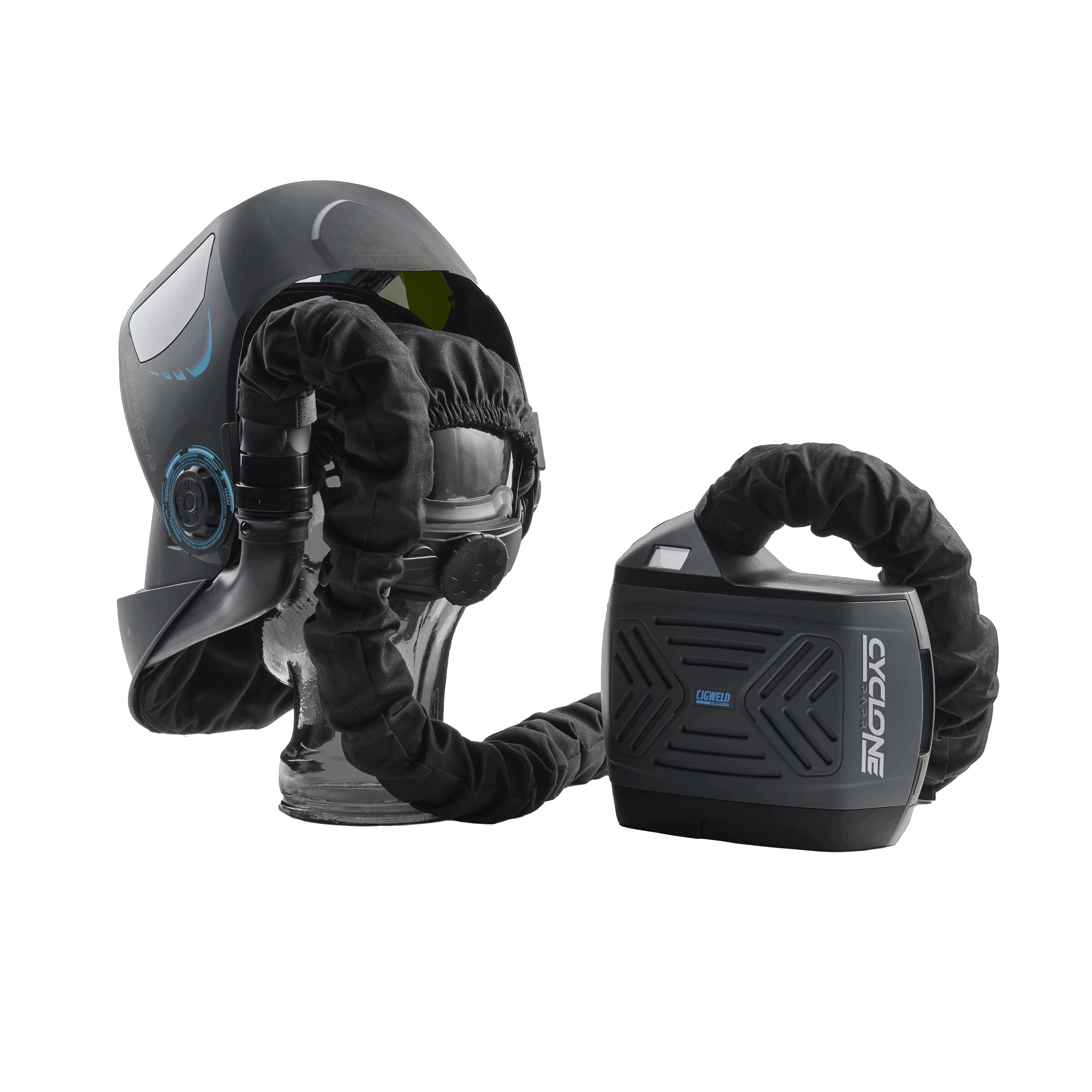

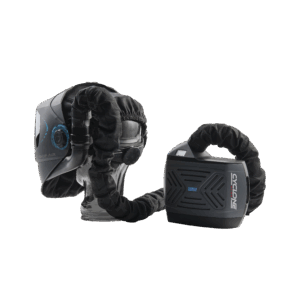

Arcmaster XC90F with Cyclone PAPR – Pro Kit

SKU: 45XC90F2AIR

Arcmaster XC90F with Cyclone PAPR – Pro Kit

SKU: 45XC90F2AIR

$1,299.00

EA

$1,299.00

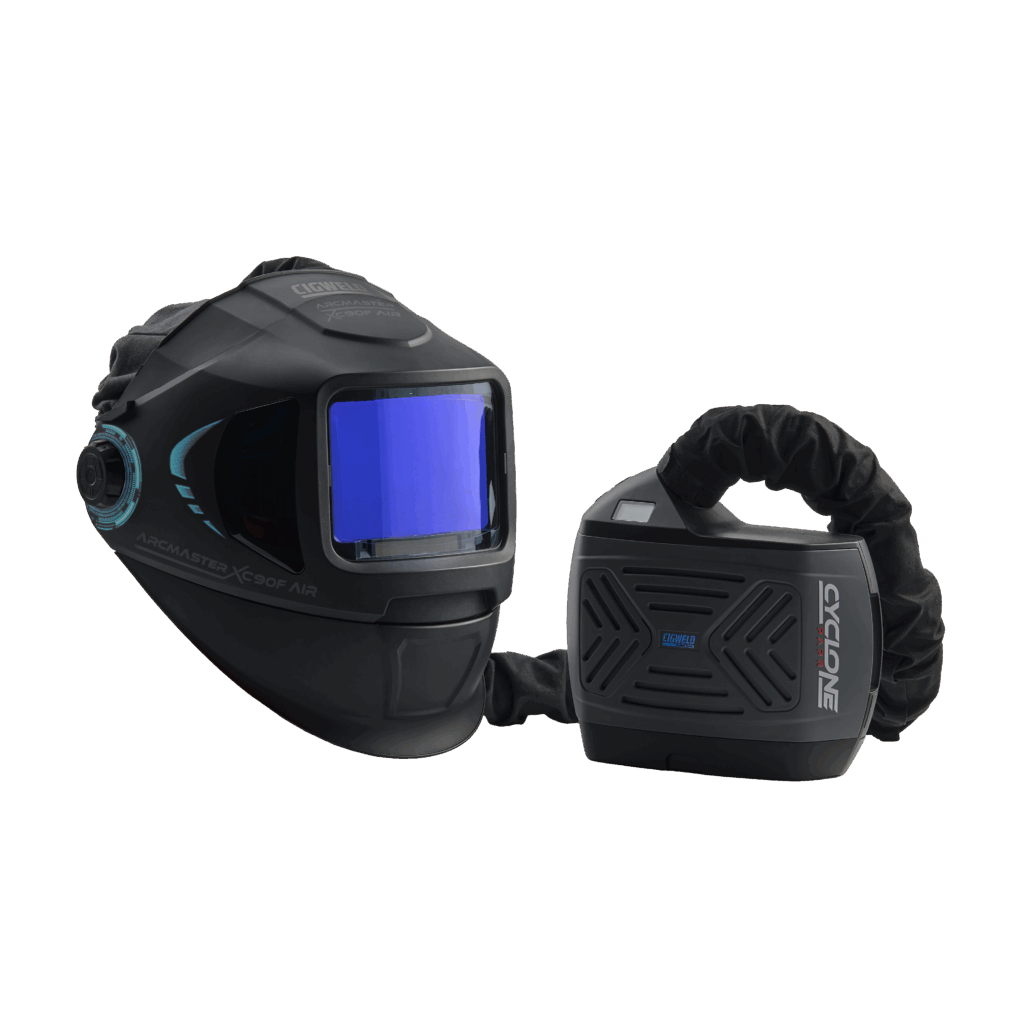

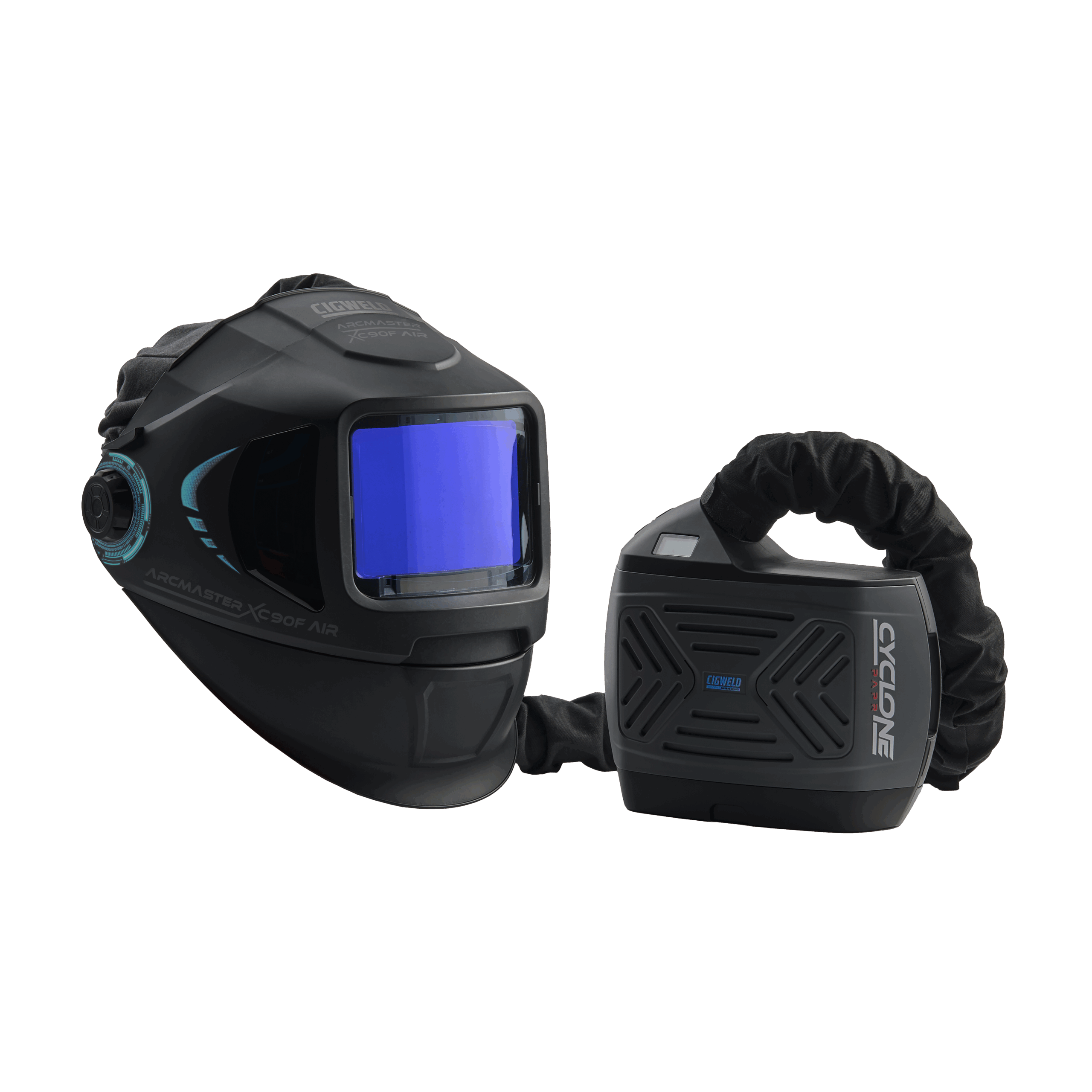

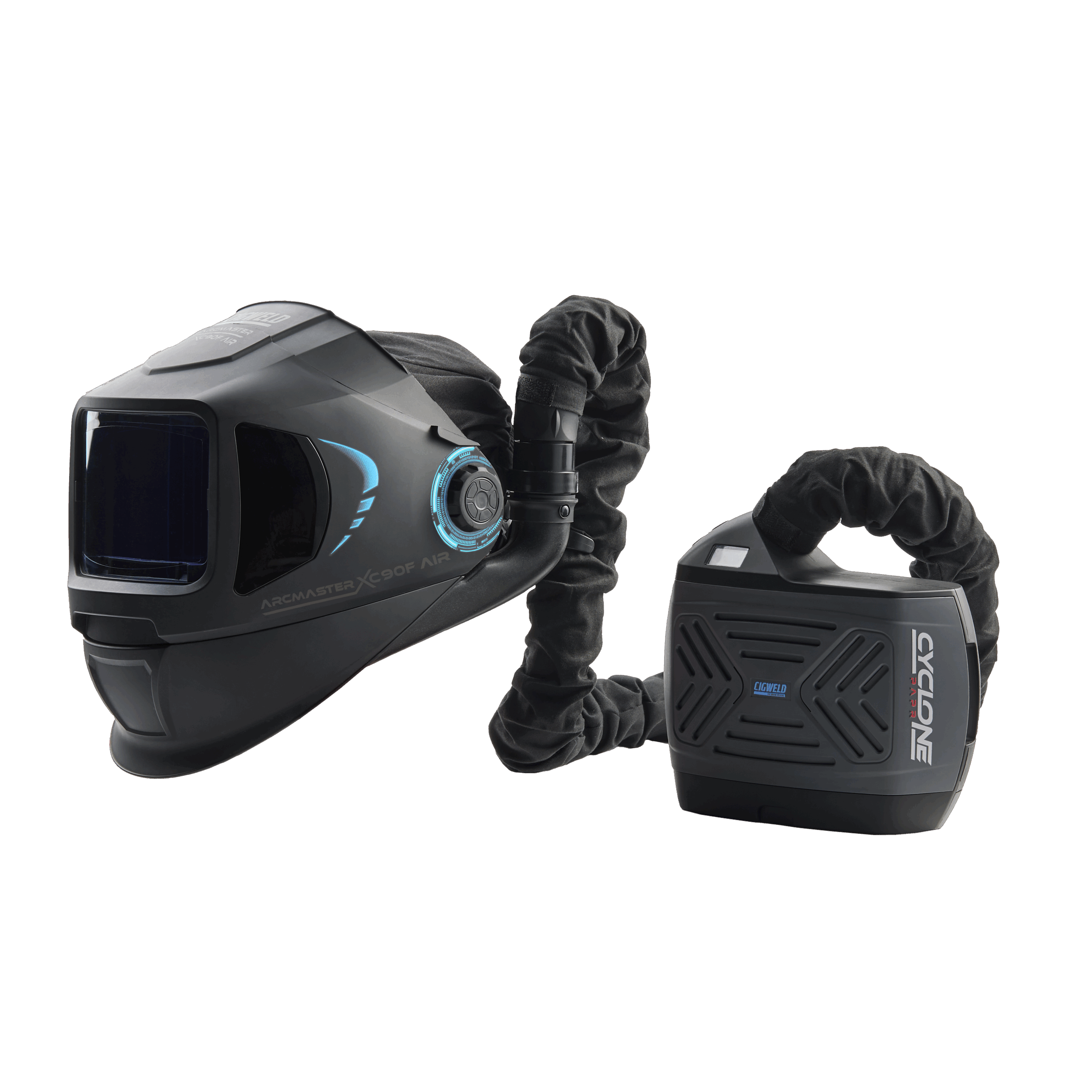

The ARCMASTER XC90F AIR with CYCLONE PAPR represents the pinnacle of welding protection technology. Combining the premium flip-front XC90F AIR helmet with the powerful CYCLONE PAPR system, this Pro Kit delivers unparalleled clarity, safety, and comfort for professionals who refuse to compromise on performance.

P/N: 45XC90F2AIR

AUS
100 Years of Australian Heritage
Support_Final

Unmatched Local Expertise & Support

ESAB_Final 1
Backed by ESAB Global Innovation

Also available here online

If you need further information
Talk to us on 1300 654 674

Description

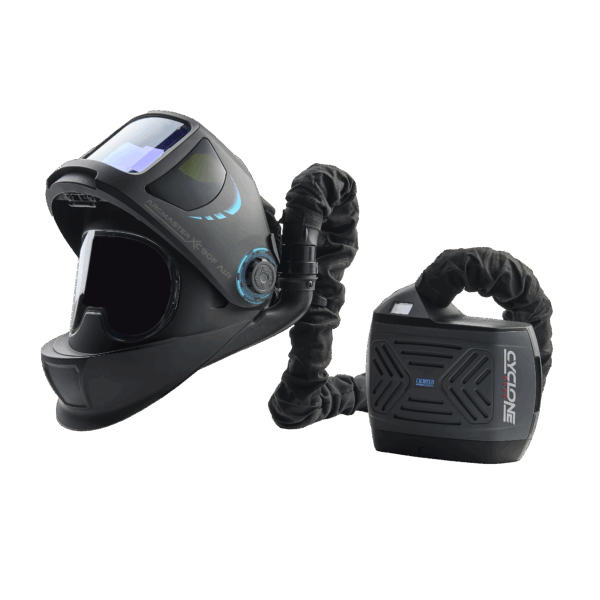

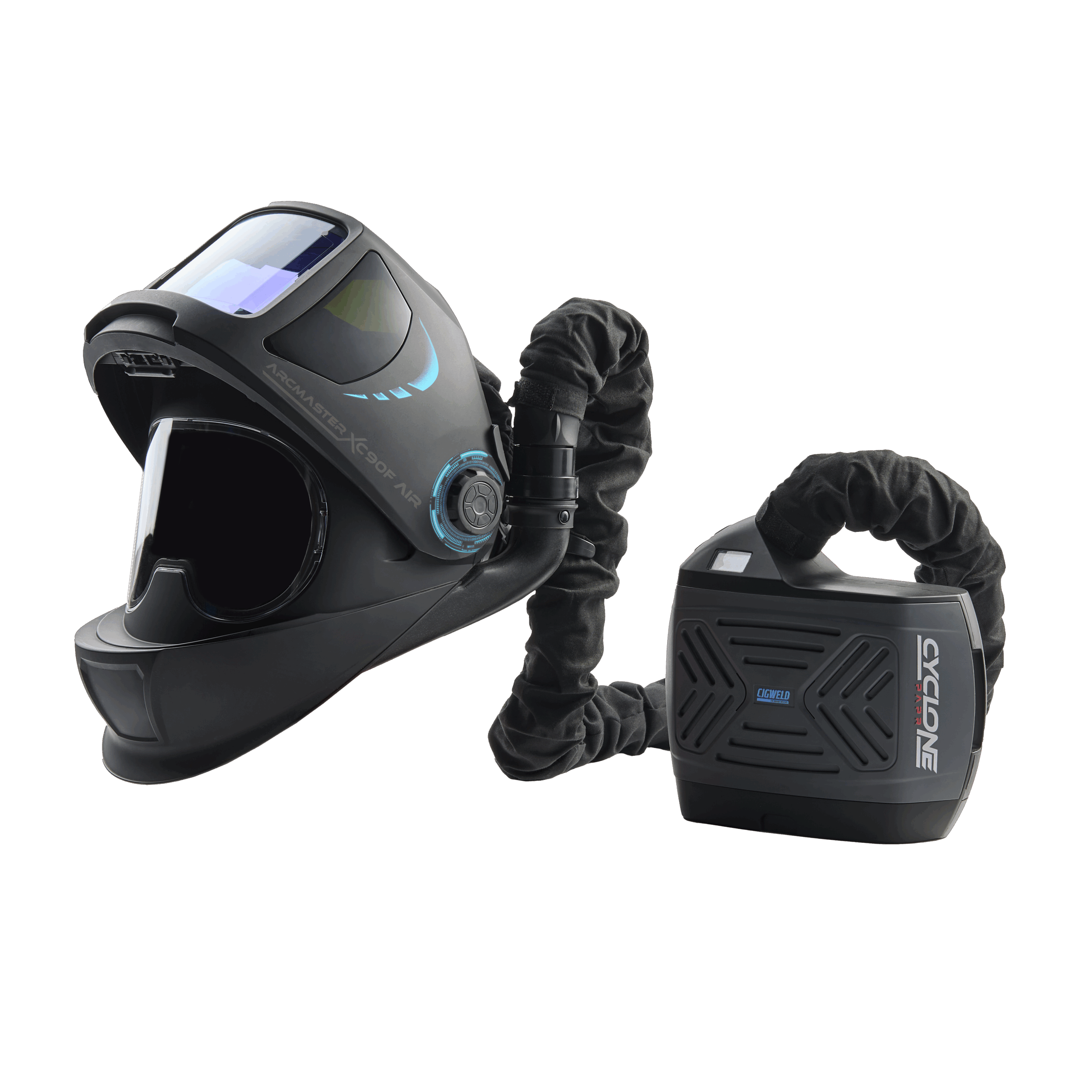

Ultra-Premium Flip-Front Design
Easily removable ADF mechanism and perfectly balanced Soft Nod-Down lid ensure seamless operation and effortless lens changes.
OptiShade™ Auto-Adjusting Technology
A dedicated 5th arc sensor automatically optimises shade levels based on weld light intensity — no manual adjustment needed.
Gradual Mode for Eye Comfort
Smooth, controlled light transitions reduce eye strain and enhance comfort during long welding sessions.
Panoramic Vision
Massive 118mm × 83mm main viewing area with shade 5 side windows and a 240mm × 120mm clear grinding visor offers an unrestricted, panoramic view.
Onboard Memory Profiles
Save and recall up to 9 personalised presets for different welding or grinding applications — perfect for multi-process operators.
Ultra-Premium Flip-Front Design
Easily removable ADF mechanism and perfectly balanced Soft Nod-Down lid ensure seamless operation and effortless lens changes.
OptiShade™ Auto-Adjusting Technology
A dedicated 5th arc sensor automatically optimises shade levels based on weld light intensity — no manual adjustment needed.
Gradual Mode for Eye Comfort
Smooth, controlled light transitions reduce eye strain and enhance comfort during long welding sessions.
Panoramic Vision
Massive 118mm × 83mm main viewing area with shade 5 side windows and a 240mm × 120mm clear grinding visor offers an unrestricted, panoramic view.
Onboard Memory Profiles
Save and recall up to 9 personalised presets for different welding or grinding applications — perfect for multi-process operators.
Advanced Protection. Intelligent Vision. Complete Comfort.

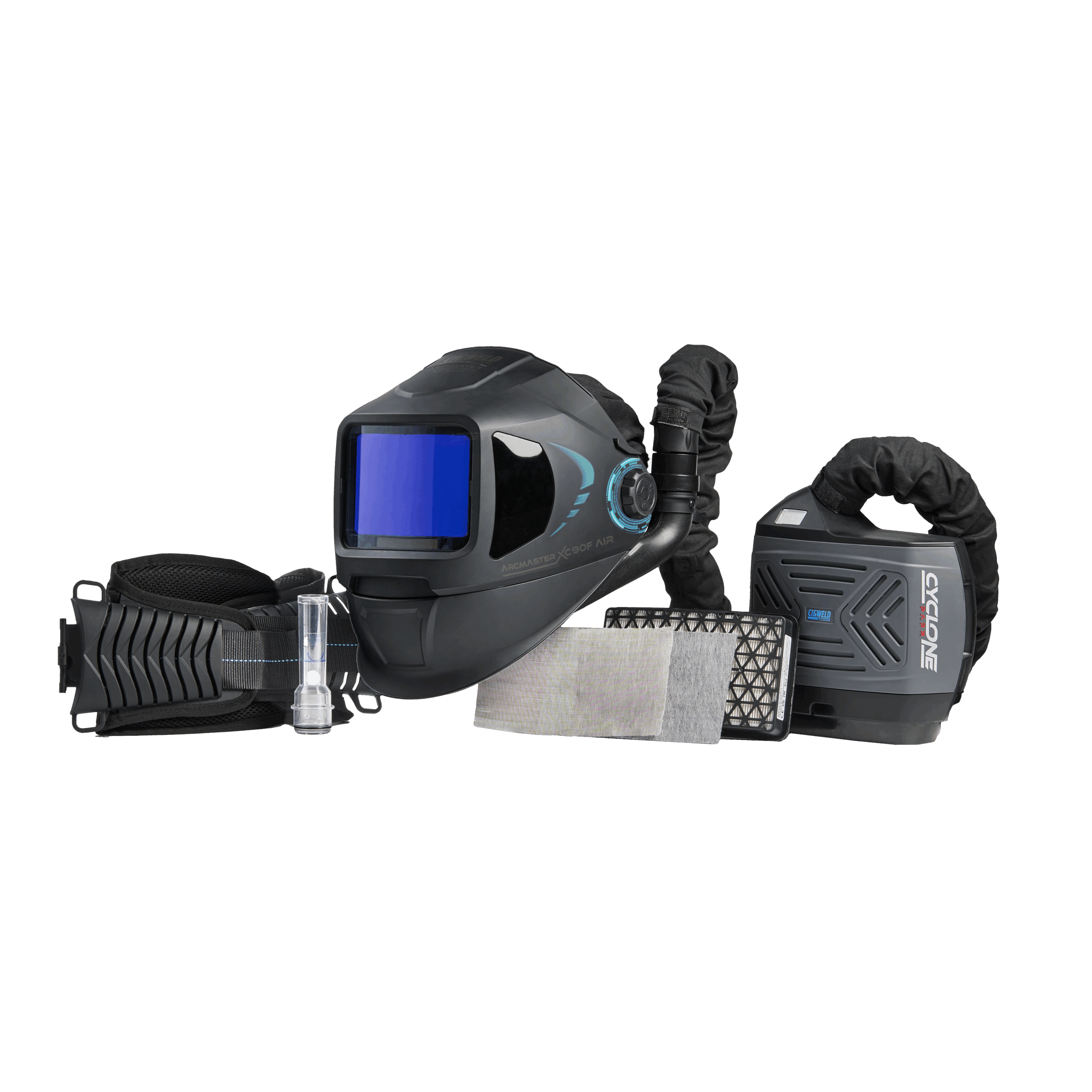

3-Stage Filtration System
Incorporates Spark Arrestor, Prefilter, and P3 Filter stages for maximum respiratory protection against harmful welding fumes.

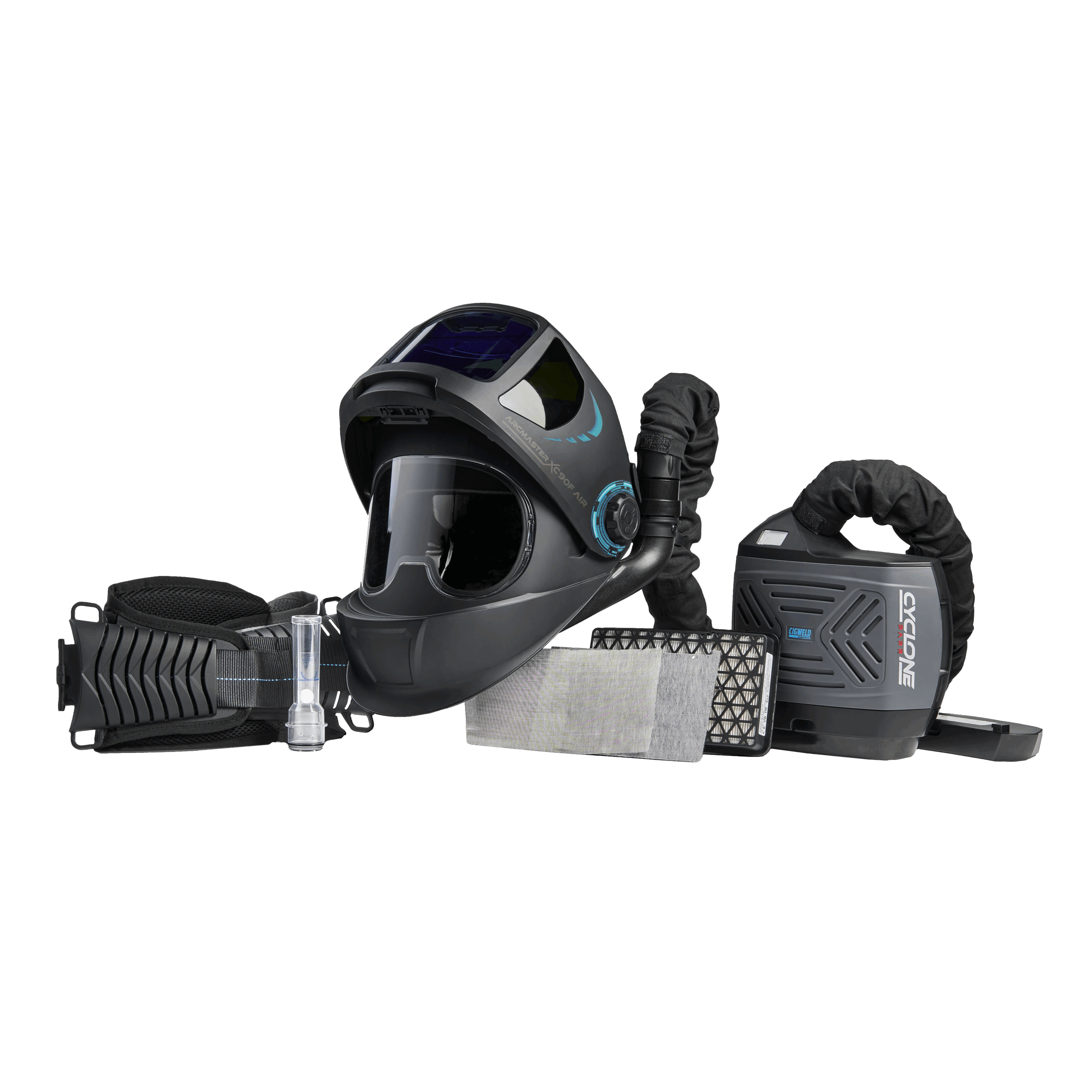

Pro Kit Accessories

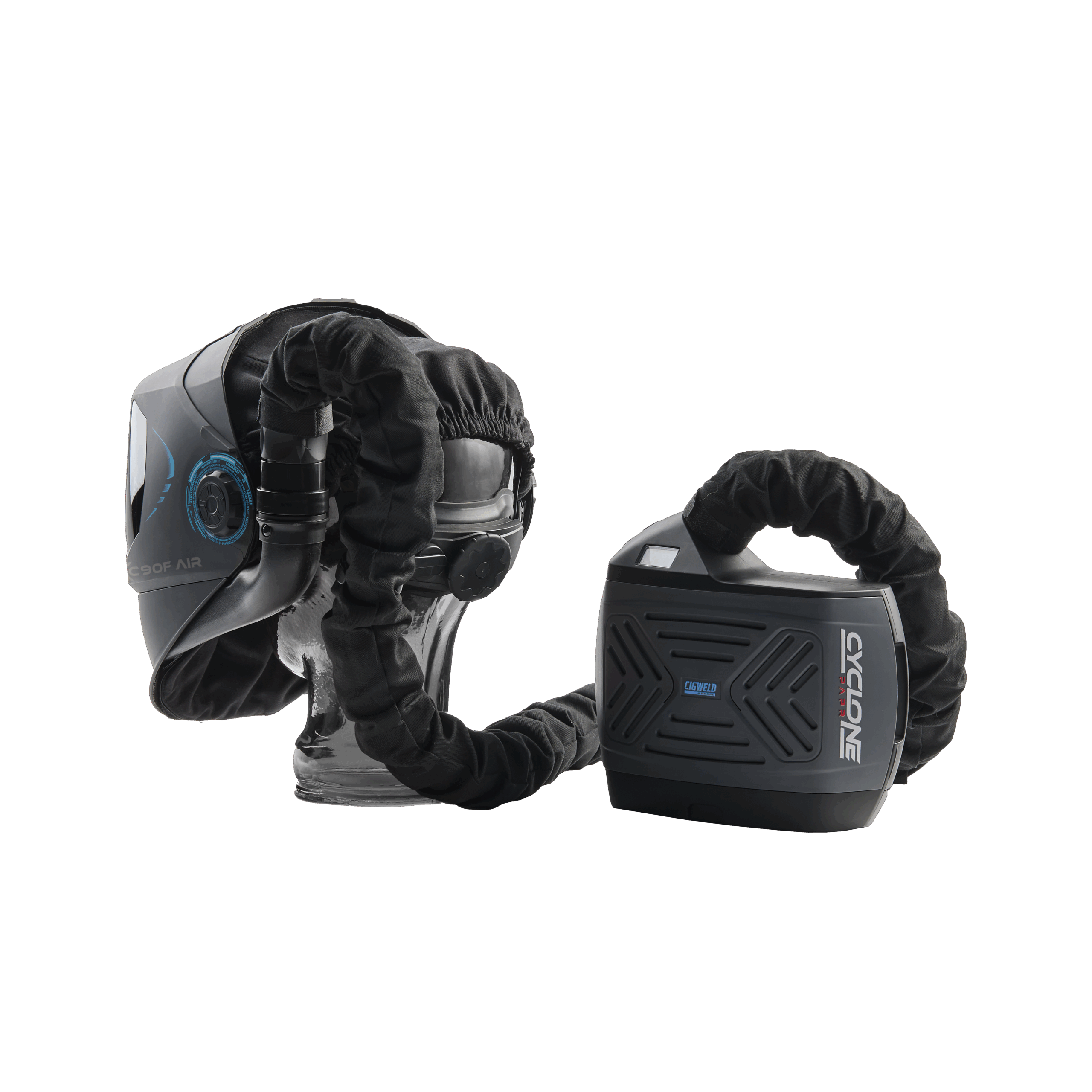

Cyclone Backpack: Ergonomically distributes blower weight evenly across the back for extended use comfort. 5.2Ah Heavy Duty Battery: Delivers up to 20 hours (at 170 L/min) of runtime for long shifts. Rapid Charger (sold separately): Recharges the 5.2Ah battery from 0% to 100% in just 2 hours — half the time of standard chargers.
Weld safe. Breathe easy
Arcmaster XC90F AIR with CYCLONE PAPR - Pro Kit Arcmaster XC90F AIR Features: • The ultra-premium Arcmaster XC90F AIR shares its DNA with the Arcmaster XC90F. • Equipped with one of the easiest to remove ADF mechanisms in a flip welding helmet that makes changing cover lenses quick and effortless. • The lid is designed for perfectly balanced Soft Nod-Down. • The ADF features Ultra View Technology that provides enhanced colour recognition with optimum clarity for a superior viewing experience. • OptiShade Technology uses a dedicated 5th arc sensor to automatically adjust the shade range based on detected light transmittance from the weld environment. Enjoy pinpoint accuracy, crystal-clear visibility and superior protection, no settings needed • Gradual Mode ensures a smooth, controlled transition from dark to light states, reducing eye fatigue and improving operator comfort over long welding sessions. • Onboard Memory lets the welder save up to 9 personalised pre-set profiles to use in a variety of welding or grinding operations on the go without having to fiddle around with the settings every time! • The XC90F AIR comes with a massive 118mm x 83mm main viewing area accompanied by shade 5 passive windows and a large 240mm x 120mm clear grinding visor. Experience an extraordinary panoramic view of the weldment without any restrictions! Tested and certified to: AS/NZS 1337.1, AS/NZS 1338.1, ISO 16321-2 Cyclone PAPR Features: • 3-stage filtration system (Spark Arrestor, Prefilter, P3 Filter) provides the highest possible protection against carcinogenic welding fumes. • Comes equipped with a reliable 2.6Ah battery that lasts up to 10hrs on the lowest (170l/Min) or 6hrs on the highest (230l/Min) airflow setting for minimal down time. • Built in filter alarm system provides real-time vibratory and audible alert to the welder when the filter is clogged or performing at suboptimal levels and needs a replacement, taking guesswork out of the equation for a safer more efficient operation. • Some of the most affordable filter replacement and spares parts to make sure that premium safety is available to everyone and to keep long-term running cost as low as possible. • Premium extra accessories included with the Pro Kit! • Cyclone Backpack: The Cyclone Backpack is engineered to distribute the weight of the blower unit evenly across the back, making the blower unit feel light enough for extended periods of time. • HD Battery: The Arcmaster XC90F with Cyclone PAPR Pro Kit comes with an additional 5.2Ah Heavy Duty Battery. This high-performance battery will keep the ‘Cyclone’ going at full speed for a whopping 20hrs (at 170l/Min)! • Level up with the Rapid charger (sold separately) and charge your included 5.2Ah Heavy Duty Battery from 0 to 100% in just 2hrs, cutting the down time in half compared to the Standard Battery Charger! ** **Rapid Charger is only recommended to use with the 5.2Ah Heavy Duty Battery • Tested and certified to: AS/NZS 1716 and EN 12941 P/N: 45XC90F2AIR
ADVANCED FEATURES

ARC SENSORS

Advanced Features

OptiShade

Arc Sensors

5

Brand

CE Optical Classifcation

ISO 16321-2 V1 (Previously EN379 1/1/1/1)

Ce optical classifcation

ISO 16321-2 V1 (Previously EN379 1/1/1/1)

Controls

Filter Class

TH3 (<0.2% inward leakage)

Filter class

TH3 (<0.2% inward leakage)

Head Gear

Particle Filter Type

P3

Particle filter type

P3

Shade Range

Switch Time Light To Dark

Variable Airflow Rate

170, 200, 230L/min

Variable airflow rate

170, 200, 230L/min

Viewing Area

Warranty (Blower Unit)

1 Year

Warranty (Helmet)

3 Years + 6 Months Extended

Warranty blower unit

1 Year

Warranty helmet

3 Years + 6 Months Extended

Brand

CIGWELD

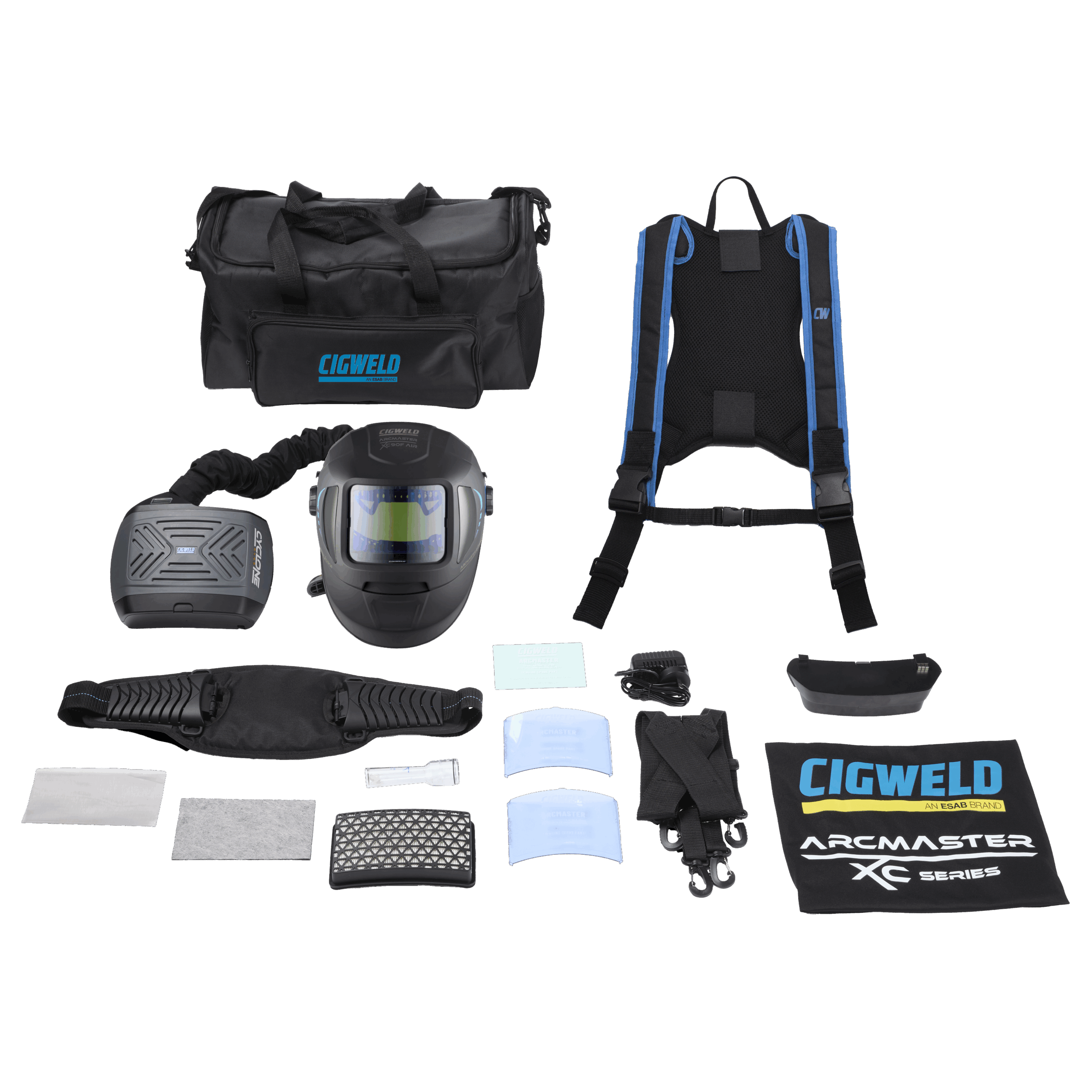

What's Included?

Arcmaster XC90F with Cyclone PAPR – Pro Kit

 Arcmaster XC90F AIR
Arcmaster XC90F AIR
 Front Cover Lens (Spare x 2)
Front Cover Lens (Spare x 2)
 Rear Cover Lens (Spare x 2)
Rear Cover Lens (Spare x 2)

Specifications

BrandCigweldControlsDigital
Shade Range4-8/9-14CE Optical ClassifcationISO 16321-2 V1 (Previously EN379 1/1/1/1)
Ce optical classifcationISO 16321-2 V1 (Previously EN379 1/1/1/1)Viewing Area118mm x 83mm = 99mm²
Head Gear5-Point HarnessSwitch Time Light To Dark0.1ms
Arc Sensors5Particle Filter TypeP3
ARC SENSORS5Filter ClassTH3 (<0.2% inward leakage)
Variable Airflow Rate170, 200, 230L/minParticle filter typeP3
Warranty (Blower Unit)1 YearWarranty (Helmet)3 Years + 6 Months Extended
Filter classTH3 (<0.2% inward leakage)Advanced FeaturesOptiShade
Variable airflow rate170, 200, 230L/minWarranty blower unit1 Year
Warranty helmet3 Years + 6 Months ExtendedADVANCED FEATURESOPTISHADE
BrandCigweld
ControlsDigital
Shade Range4-8/9-14
CE Optical ClassifcationISO 16321-2 V1 (Previously EN379 1/1/1/1)
Ce optical classifcationISO 16321-2 V1 (Previously EN379 1/1/1/1)
Viewing Area118mm x 83mm = 99mm²
Head Gear5-Point Harness
Switch Time Light To Dark0.1ms
Arc Sensors5
Particle Filter TypeP3
ARC SENSORS5
Filter ClassTH3 (<0.2% inward leakage)
Variable Airflow Rate170, 200, 230L/min
Particle filter typeP3
Warranty (Blower Unit)1 Year
Warranty (Helmet)3 Years + 6 Months Extended
Filter classTH3 (<0.2% inward leakage)
Advanced FeaturesOptiShade
Variable airflow rate170, 200, 230L/min
Warranty blower unit1 Year
Warranty helmet3 Years + 6 Months Extended
ADVANCED FEATURESOPTISHADE
