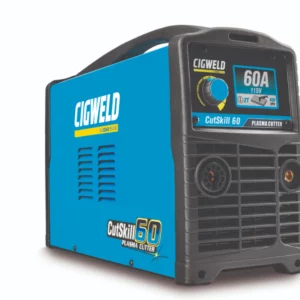

CutSkill 60 Plasma Cutter

Meet the Cigweld plasma cutter CutSkill 60 Plasma System – the big brother to the revolutionary CutSkill 35/45 Plasma Systems.

The new CutSkill 60 packs all the innovative features of the CutSkill 35 and 45 but can clean cut through 20mm Mild Steel and has Gouging capability to top it off!

Ideal for the workshop for serious cutting of Mild/Stainless Steels and Aluminium, the CutSkill 60 delivers a powerful punch for use with a 15 amp socket*.

Industry-leading user interface that takes manual plasma cutting to a whole new level!
This smart technology interface not only incorporates the latest in colour LCD technology but also simplifies the entire cutting set up process.

With a single control knob, the operator can select each function necessary to suit their desired needs. Decide if you want your torch set to manual or latch mode, whether you’re cutting flat or grid plate, gouging then adjust your current and you’re ready to cut!  All of these actions are clearly displayed on the impressive 2.8” colour LCD display.

*Refer to operating manual. Minimum recommended circuit breaker 25A.

Try out this new Cigweld plasma cutter yourself!

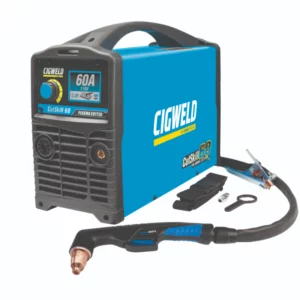

CONTENTS:

• Plasma Power Source – CutSkill 60
• CutSkill 60A Plasma Torch with 1.1mm Cutting / Gouging Tips
• Work Cable and Clamp
• Wrench for Air Filter
• 1 x ¼” Nitto Air Line Connector
• Shoulder Strap
• Operating Manual (Power Source and Plasma Torch)

Weight
18 kg

Brand
Cigweld

Range
Trade/DIY

Number of Phases
Single Phase

Generator Required
15 kVA (at 0.8 Power Factor)

Duty cycle
60A @ 20%
****Upgrade to 4mm2 lead and 20A plug to achieve 30% @ 60A Duty Cycle.

Warranty
3 Year Limited Warranty Refer to operating manual for details

Power Supply
15Amp, 240Volt AC (Output 60A@20%) 20A, 240Volt AC (Output A@30%)Minimum circuit breaker 25Amps)

Material
Mild Steel, Stainless Steel, Aluminium

Usage
Light fabrication, sheetmetal, marine and onsite repairs

Welding Process
Plasma Cutting & Gouging

Australian Standards
AS 60974.1-2006.

Supply Plug Lead
15Amp* fitted plug *Minimum recommended circuit breaker 25A. **Upgrade to 4mm2 lead and 20A plug to achieve 30% @ 60A Duty Cycle.

Cutting Capacity
TRUE CUT – 20mm Mild Steel, 14mm Stainless Steel, 12mm Aluminium Severence Cut – Up to 28mm

Protection Class
IP23S

Cooling
Fan Cooled

Dimensions Power Source
324H x 176W x 437D in mm

Maximum Output Range
20 – 60Amps

Nominal Supply Frequency
50/60 Hz
