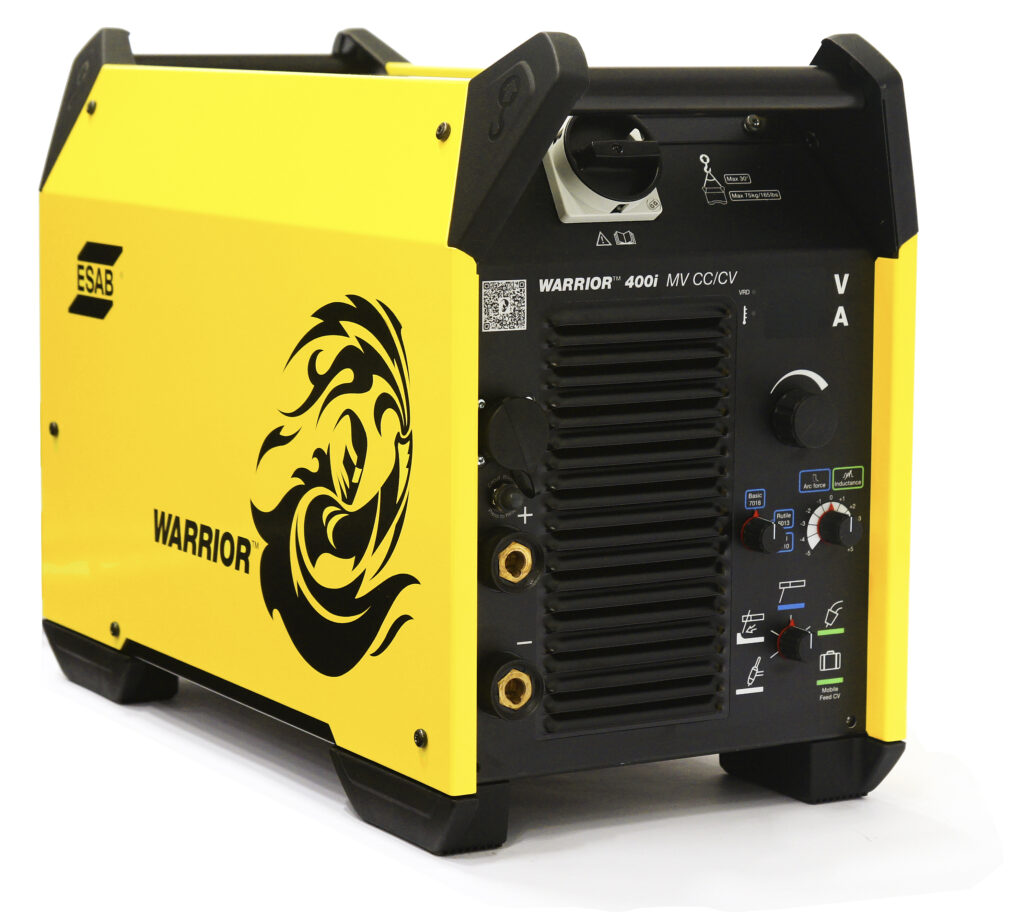

ESAB Warrior 400i CC/CV – 3Ph, 400/415V

SKU: W1009650

ESAB Warrior 400i CC/CV – 3Ph, 400/415V

SKU: W1009650

Price range: $12,450.00 through $15,420.00

EA

Price range: $12,450.00 through $15,420.00

With the Warrior 400i CC/CV, the operator can tailor the welds by locking Voltage (like most power sources), but also the Current. It brings the outstanding arc performance and energy savings you expect from an inverter.

Along with increased energy efficiency and more power from a lighter, smaller, and more portable unit, Warrior provides the simple functionality welders want at a competitive price.

AUS
100+ Years of Australian Heritage
Support_Final
Unmatched Local Expertise & Support
ESAB_Final 1
Backed by ESAB Global Innovation

Also available here online

Also available here online

If you need further information
Talk to us on 1300 654 674

Description

Powerful Welding Capability
Delivers 400A @ 60% duty cycle, with full capacity up to 550A at 50% duty cycle or 400A at 100%, enabling high productivity for a wide range of applications.
Energy Efficient Inverter Technology
Advanced inverter design provides outstanding arc performance while reducing energy consumption compared to conventional welders.
User-Friendly Interface
Intuitive controls with glove-friendly knobs make adjustments simple and fast, allowing welders to get started quickly without sacrificing precision
Robust and Durable Design
IP23-rated housing ensures protection from dust, debris, and weather, making it ideal for rugged shop and outdoor environments.

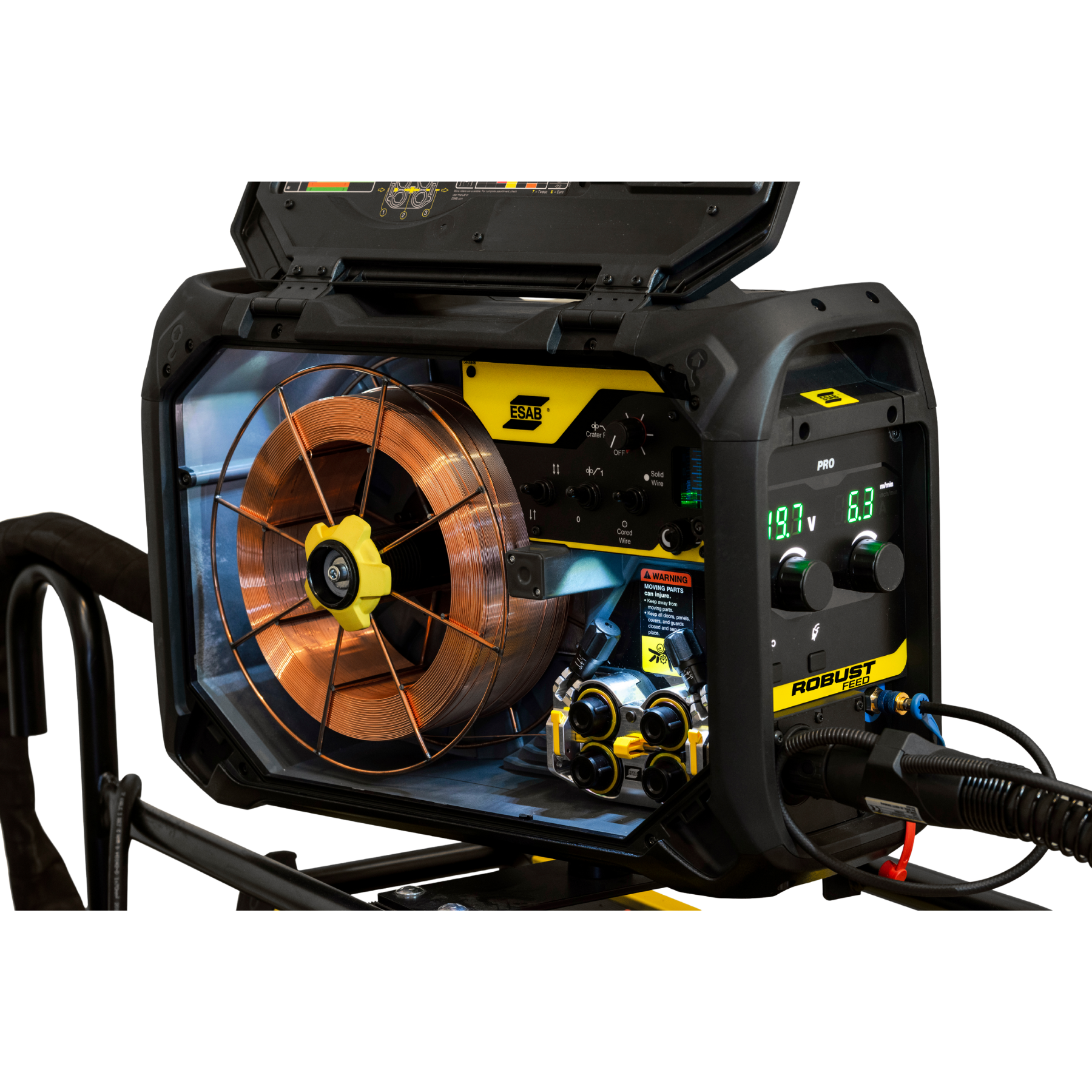

Superior Wire Feeding Performance
The aluminium drive stand feeds solid wire up to 2.0mm and cored wire up to 2.4mm at 0.8–25 m/min, and allows spool changes without opening the drive stand for uninterrupted workflow.
Powerful Welding Capability
Delivers 400A @ 60% duty cycle, with full capacity up to 550A at 50% duty cycle or 400A at 100%, enabling high productivity for a wide range of applications.
Energy Efficient Inverter Technology
Advanced inverter design provides outstanding arc performance while reducing energy consumption compared to conventional welders.
User-Friendly Interface
Intuitive controls with glove-friendly knobs make adjustments simple and fast, allowing welders to get started quickly without sacrificing precision
Robust and Durable Design
IP23-rated housing ensures protection from dust, debris, and weather, making it ideal for rugged shop and outdoor environments.
Superior Wire Feeding Performance
The aluminium drive stand feeds solid wire up to 2.0mm and cored wire up to 2.4mm at 0.8–25 m/min, and allows spool changes without opening the drive stand for uninterrupted workflow.

Additional Features

Portability & Mobility
Three crane-certified handles, two additional lifting points, and optional wheel kits or trolley integration make transporting and positioning the unit effortless. Rounded edges and high-durability wear surfaces allow you to drag the unit across rough surfaces without catching.
Long Cable & Feeder Compatibility
Supports power source cables up to 90 metres and integrates seamlessly with the Robust Feed Pro-OS, giving you flexibility to weld in the most challenging locations.
The ESAB Warrior 400i brings the outstanding arc performance and energy savings you expect from an inverter. Along with increased energy efficiency and more power from a lighter, smaller, and more portable unit, Warrior provides the simple functionality welders want at a competitive price. Perfect for long runs across a variety of applications and delivers 400amps @ 60% Duty Cycle. Warrior has been designed to be durable and rugged, with an IP23 rating for outdoor and indoor use in the rough environment. With an easy-to-use, clear and intuitive user interface for everyone to get started quickly, including glove-friendly knobs make adjustments quick and easy. UNRIVALED PORTABILITY. Robust Feed Pro – OS has three comfortable handles (all are crane certified) and two additional lifting points for best-in-class portability and maneuverability, making it easy to lift and carry through confined spaces and around obstacles. Rounded edges and special high durability wear surfaces let you drag it anywhere without catching on other objects. The optional flat and vertical wheel kits and trolley integration allow for even greater mobility. The new design can handle power source cables up to 90 metres long, so you will always get to where you need to weld – in the shop or the field. UNMATCHED PERFORMANCE. The new precisely crafted aluminium drive stand feeds solid wire up to 2.0mm and cored up to 2.4mm at speeds of 0.8–25.0m/min. When changing the spool, you can feed the new wire without opening the drive stand. When it comes to power, Robust Feed Pro – OS easily handles 550A at 50% duty cycle, 500A at 60% duty cycle, and 400 A at 100%, enabling productivity that few other portable feeders can. Package Includes: Warrior 400i CC/CV – 0465 350 886 Robust Feed Pro – OS – 0445 800 883 Trolley (Robust Feed/Warrior Feed) – 0349 313 450 INTERCONN SET 10m/A 70m – 0459 836 882 Interconnection Strain Relief Kit – 0446 050 880 Tweco No.4 with Euro Connection, 4.5m – OTWX415/3545 REG CMT 250 ARG 55LPM 2 – 201017 KIT CONN 5/8UNRH-5MM HO – 308689 Variations: W1009650, W1009750
Brand

Dimensions Power Source

Duty cycle

Material Thickness MIG

Material Thickness STICK

Material Thickness TIG

Material Type

, , ,

Plug Type

Power Supply

Pulse Capable MIG

Pulse Capable STICK

Pulse Capable TIG

Type

,

Usage

Warranty

Welding Process

, ,

Brand

ESAB

What's Included?

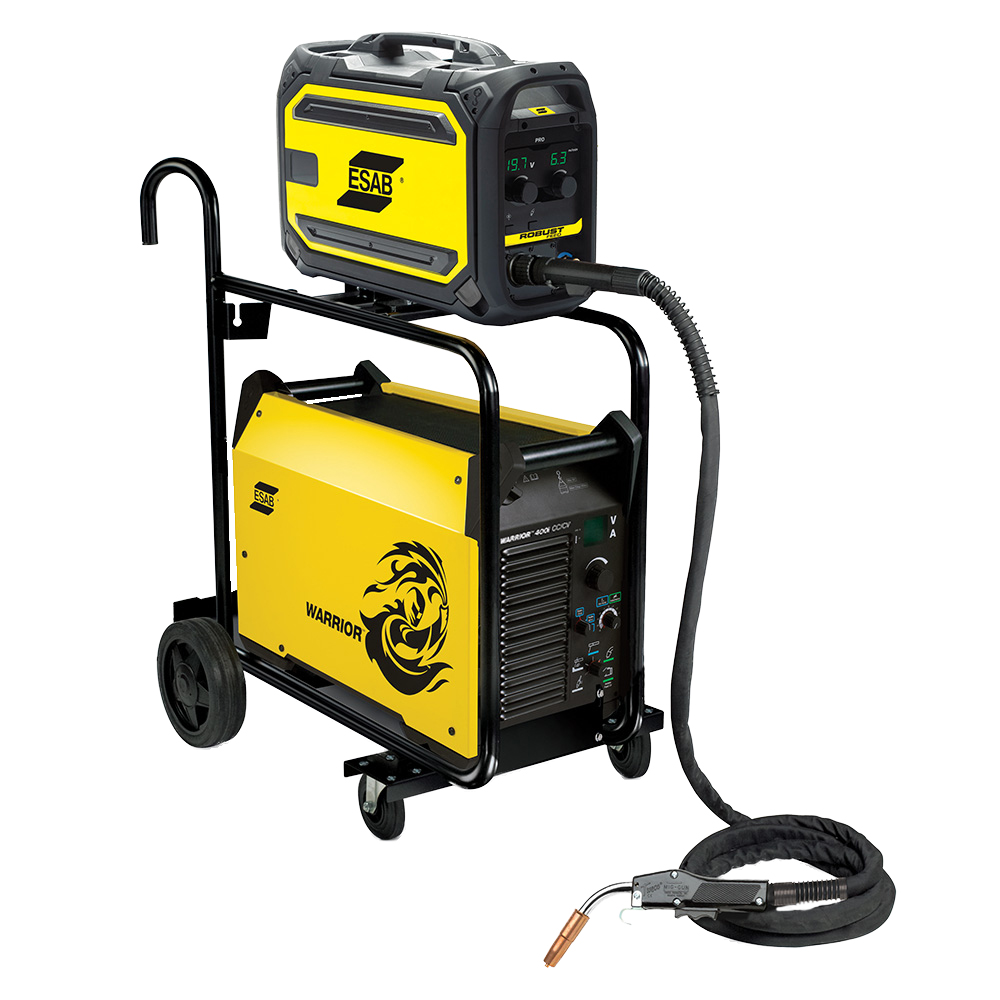

ESAB Warrior 400i CC/CV – 3Ph, 400/415V

Warrior 400i CC/CV Power Source

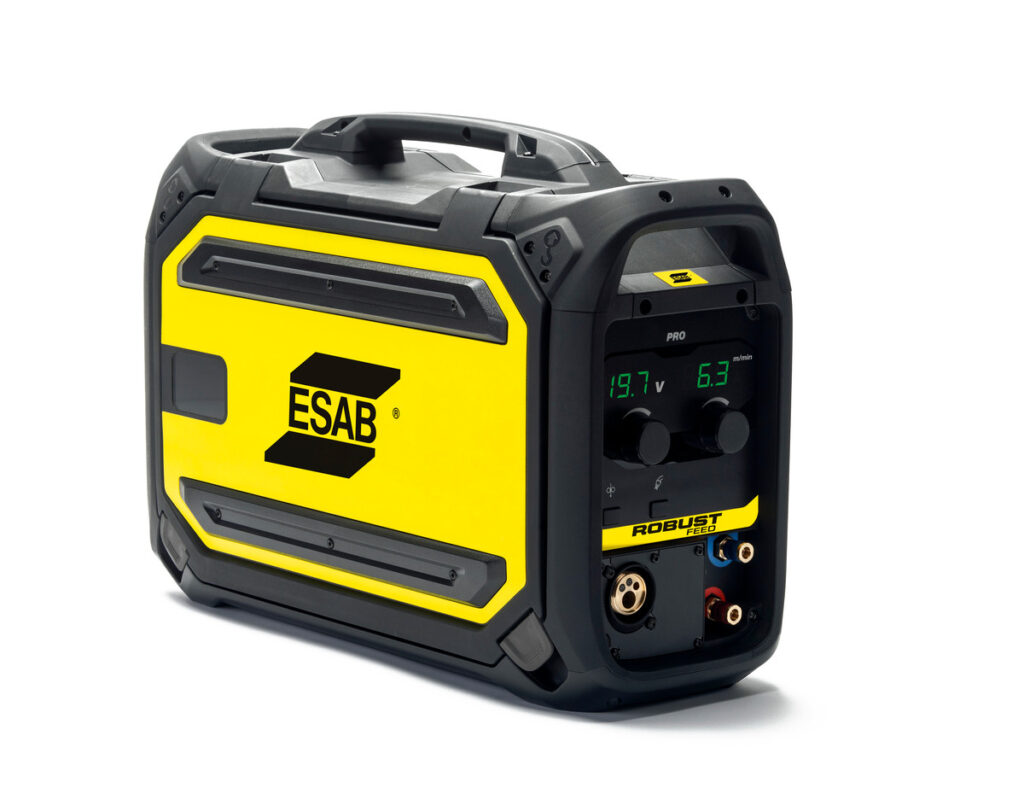

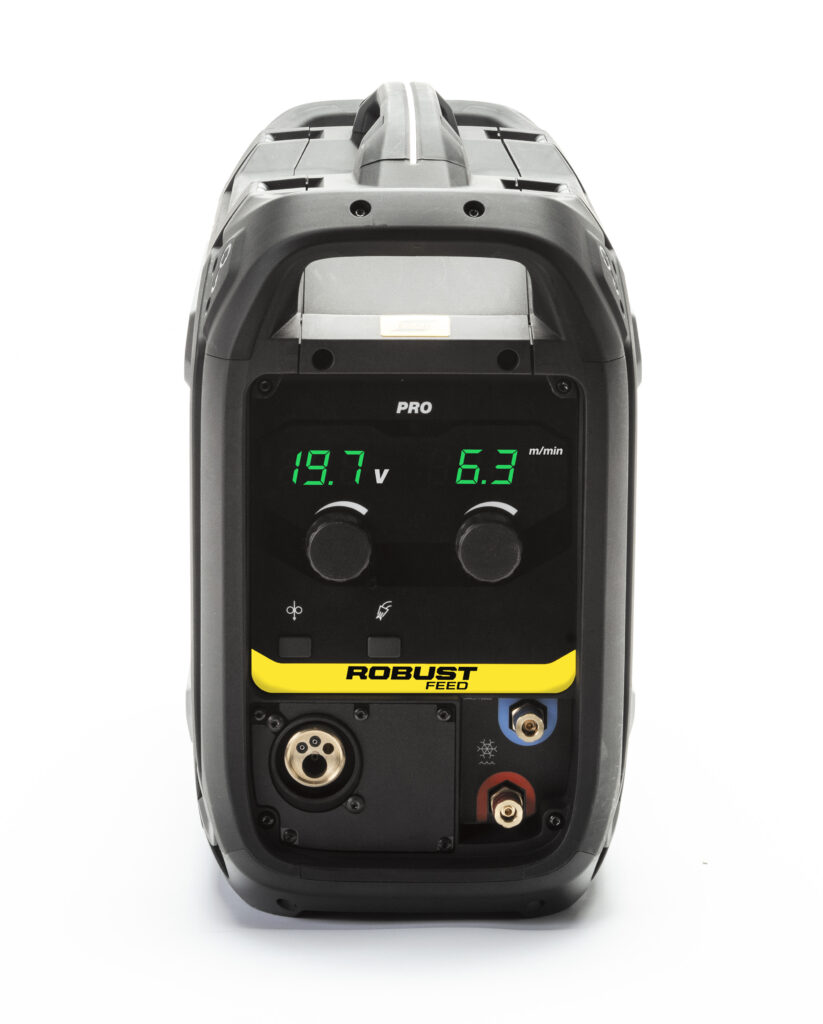

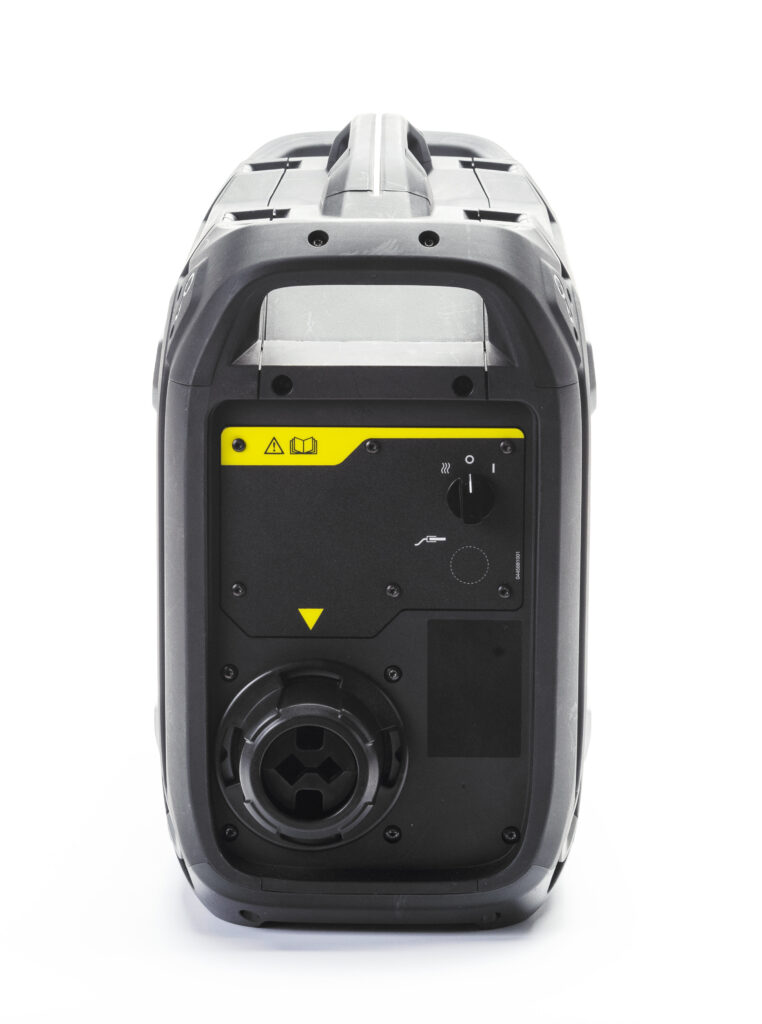

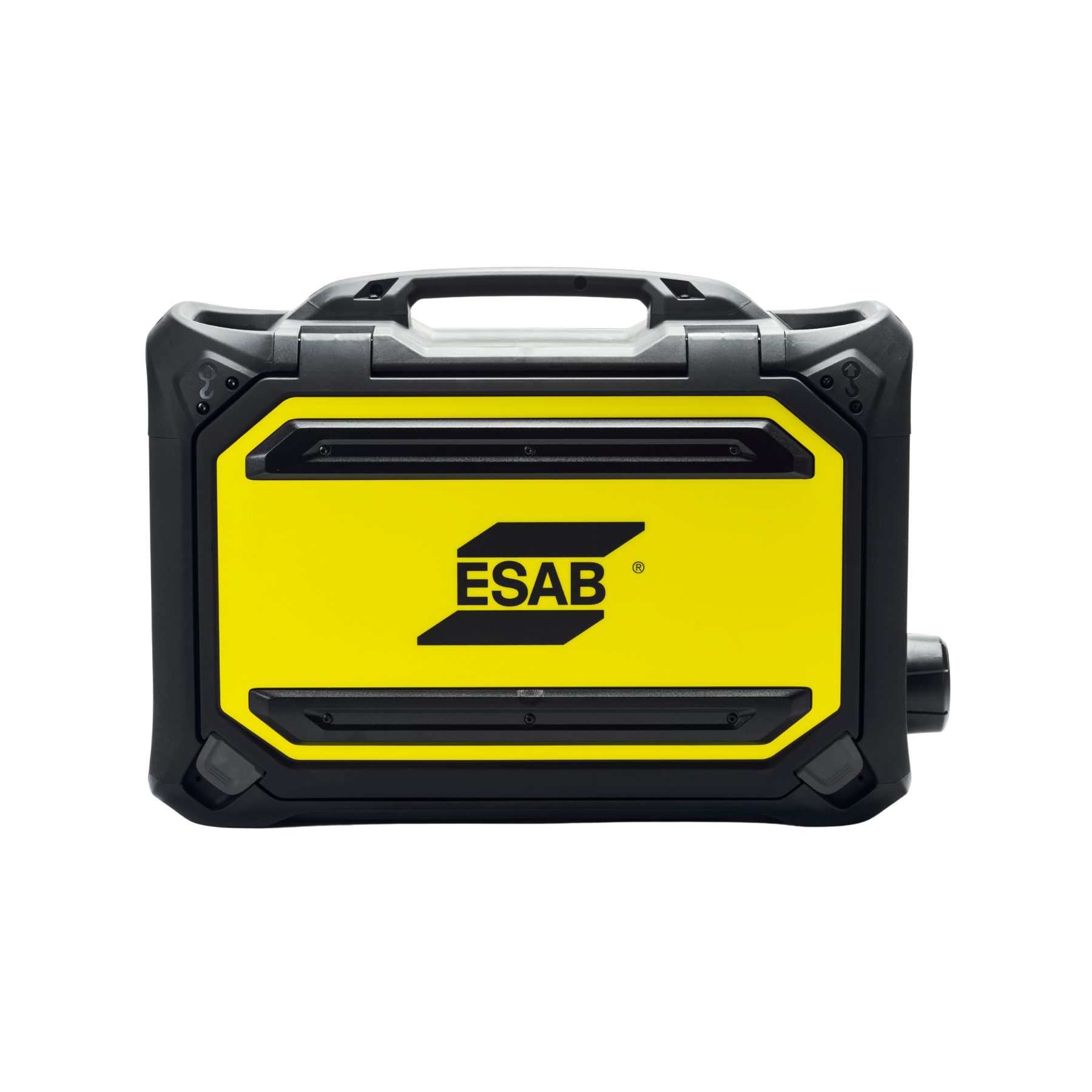

Robust Feed Pro
Trolley
Interconnection Set 10m/A 70m
Interconnection Strain Relief Kit
Tweco No.4 with Euro Connection, 4.5m

Specifications

BrandESABPower Supply415V
Welding ProcessMIG, STICK, TIGUsageIndustrial
Material Thickness MIG0.6-25.0mmMaterial TypeMild Steel, Aluminium, Bronze, Stainless Steel
Pulse CapableNoMaterial Thickness STICK1.6 - 25.0mm
Weight16.8kg, 18kgMaterial Thickness TIG0.6 - 16.0mm
Warranty1 Year + 6 Months ExtendedTypePower Source
TypePlant w/Robust Feed Pro, Plant w/Warrior FeedPlug TypeNot Fitted
Duty cycle550A @ 50%Dimensions Power Source712 x 325 x 470mm
Pulse Capable MIGNoPulse Capable TIGNo
Pulse Capable STICKNo
BrandESAB
Power Supply415V
Welding ProcessMIG, STICK, TIG
UsageIndustrial
Material Thickness MIG0.6-25.0mm
Material TypeMild Steel, Aluminium, Bronze, Stainless Steel
Pulse CapableNo
Material Thickness STICK1.6 - 25.0mm
Weight16.8kg, 18kg
Material Thickness TIG0.6 - 16.0mm
Warranty1 Year + 6 Months Extended
TypePower Source
TypePlant w/Robust Feed Pro, Plant w/Warrior Feed
Plug TypeNot Fitted
Duty cycle550A @ 50%
Dimensions Power Source712 x 325 x 470mm
Pulse Capable MIGNo
Pulse Capable TIGNo
Pulse Capable STICKNo
