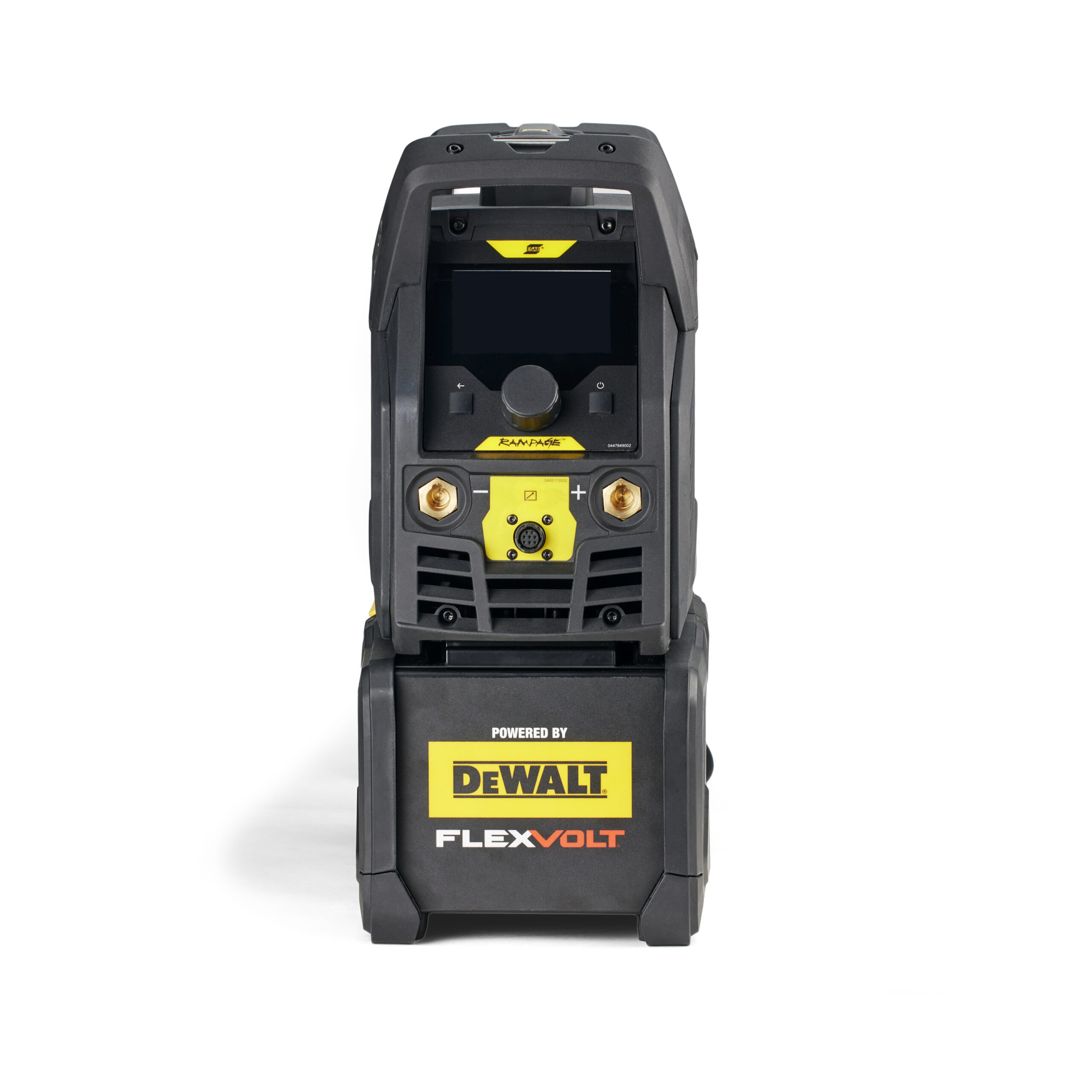

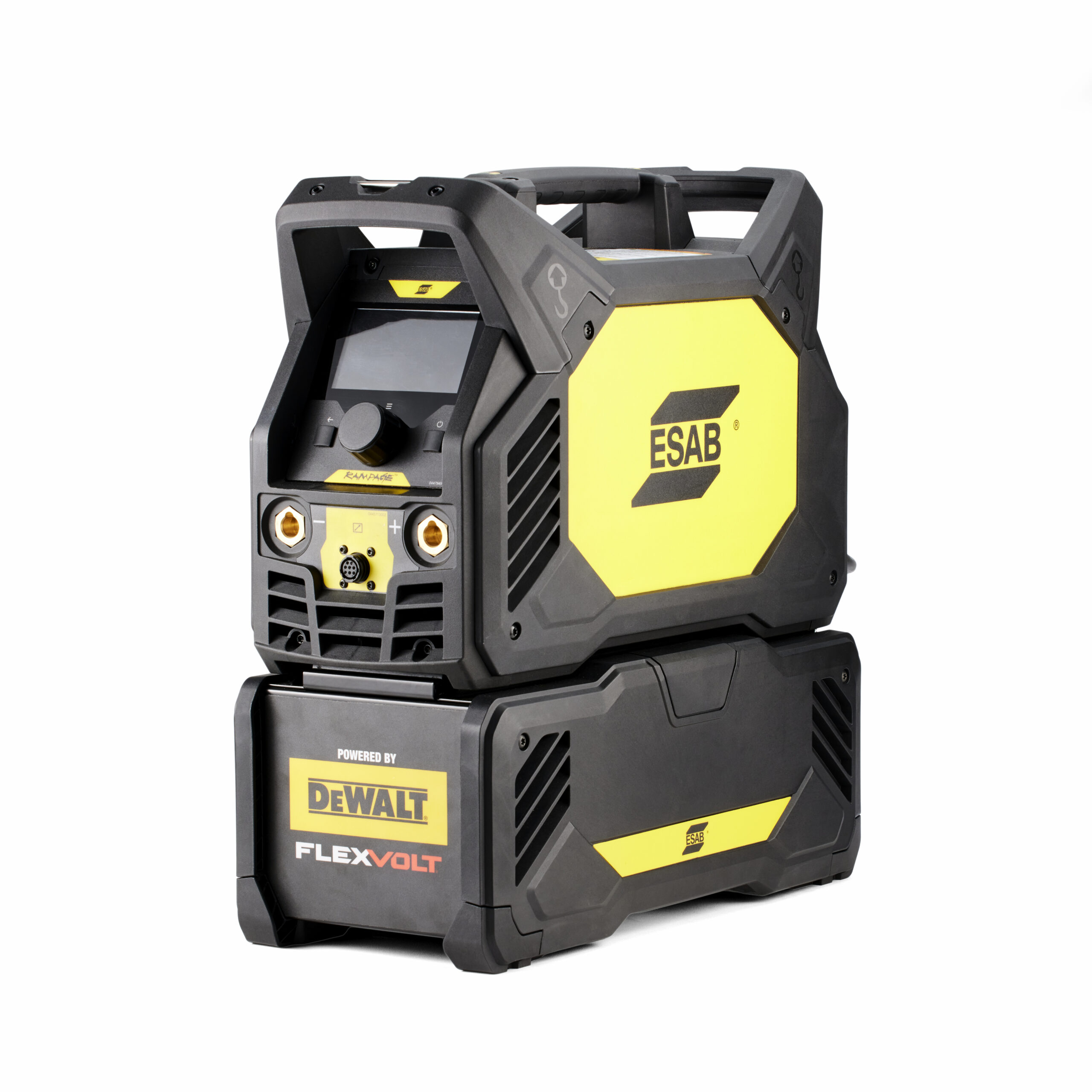

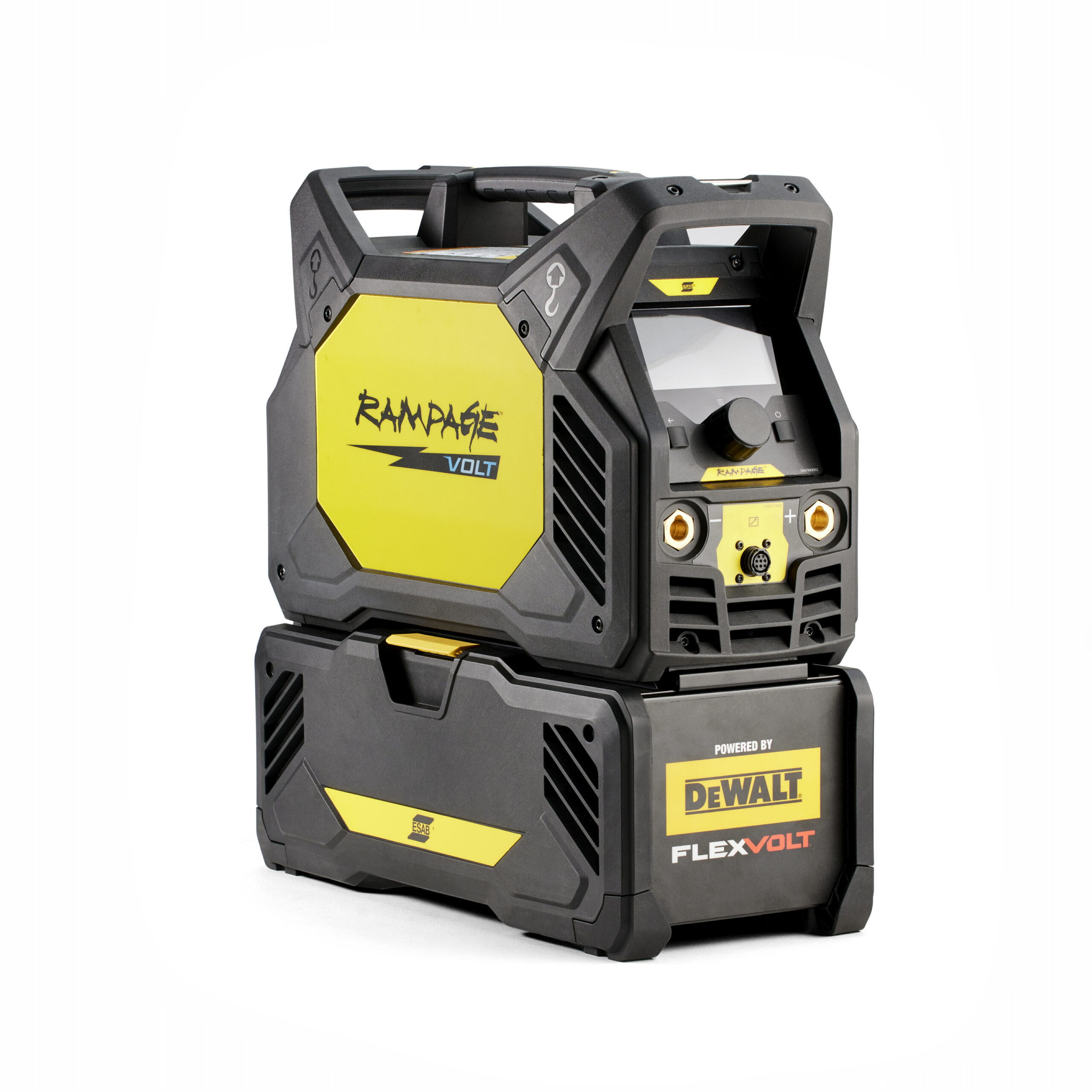

ESAB RAMPAGE Volt ES200i Battery Welder powered by DeWalt – 240V 15A

SKU: E400800200

ESAB RAMPAGE Volt ES200i Battery Welder powered by DeWalt – 240V 15A

SKU: E400800200

$6,240.00

EA

$6,240.00

WELCOME TO THE VOLT AGE! UN-LEASH, UN-LEAD YOURSELF FROM THE POWER GRID!

The ESAB Rampage VOLT™ ES200i is a revolutionary cordless, battery-powered welder that delivers professional-grade Stick (MMAW) and SAFE-TIG (GTAW) performance — anywhere, anytime. Operate in Battery, Mains, or AMP+ Hybrid Mode for unmatched flexibility across environments and applications.

Powered by DEWALT® FLEXVOLT® 18V/54V batteries, the VOLT ES200i burns up to 33 E6013 (2.5mm) electrodes on a single charge using four 12Ah batteries (included). Built for mobile welders working in remote or off-grid locations, this compact powerhouse brings portability, precision, and power together like never before.

Optional Accessories

MMA 4 Analogue Remote Control (10m cable) – 0700500084
SR-17V TIG Torch (Air-cooled, 2.4mm, 4m) – 0700300870
SR-26V TIG Torch (Air-cooled, 4.0mm, 4m) – 0700300871

P/N: E400800200

Out of stock

AUS
100 Years of Australian Heritage
Support_Final

Unmatched Local Expertise & Support

ESAB_Final 1
Backed by ESAB Global Innovation

Also available here online

If you need further information
Talk to us on 1300 654 674

Cordless Welding Freedom
Operate completely untethered with up to 140A on battery power or 200A on AC mains, delivering true off-grid welding performance without sacrificing output or control.
AMP+ Hybrid Mode
The innovative AMP+ Hybrid system intelligently combines mains and battery power to prevent circuit breaker trips and deliver additional power — perfect for smaller or low-voltage worksites.
DEWALT® FLEXVOLT® Integration
Fully compatible with 6Ah, 9Ah, and 12Ah FLEXVOLT® batteries, ensuring extended runtime, faster recharge cycles, and maximum performance for demanding field applications.
Rugged, Portable Design
Built for harsh environments with an impact-resistant housing, reinforced lift points, and an intuitive colour display that remains bright and clear, even under direct sunlight.
Intelligent Arc Control
Features Hot Start, Arc Force, Cellulosic (E6010) mode, and built-in memory storage, providing fine-tuned arc stability and superior weld quality across all materials and positions.
Cordless Welding Freedom
Operate completely untethered with up to 140A on battery power or 200A on AC mains, delivering true off-grid welding performance without sacrificing output or control.
AMP+ Hybrid Mode
The innovative AMP+ Hybrid system intelligently combines mains and battery power to prevent circuit breaker trips and deliver additional power — perfect for smaller or low-voltage worksites.
DEWALT® FLEXVOLT® Integration
Fully compatible with 6Ah, 9Ah, and 12Ah FLEXVOLT® batteries, ensuring extended runtime, faster recharge cycles, and maximum performance for demanding field applications.
Rugged, Portable Design
Built for harsh environments with an impact-resistant housing, reinforced lift points, and an intuitive colour display that remains bright and clear, even under direct sunlight.
Intelligent Arc Control
Features Hot Start, Arc Force, Cellulosic (E6010) mode, and built-in memory storage, providing fine-tuned arc stability and superior weld quality across all materials and positions.
Professional Grade Performance. Anywhere, Anytime
Additional Features

, , ,

Brand

Dimensions Power Source

Material Thickness STICK

Material Thickness TIG

Material Type

, ,

Plug Type

Power Supply

,

Pulse Capable STICK

Pulse Capable TIG

Usage

Warranty

Welding Process

,

Brand

ESAB

Input Voltage
120V / 230V / 240V ±15%, 1ph, 50/60Hz
Power Factor (Max Current)
0.99
Efficiency (Max Current)
80%
Output (MMA – Mains Mode)
200A / 28V @ 25% 100A / 24V @ 100%
Output (MMA – Battery Mode)
140A / 25.2V @ 18% 60A / 22.4V @ 100%
Output (TIG – Mains Mode)
200A / 18V @ 25% 100A / 14V @ 100%
Output (TIG – Battery Mode)
150A / 16V @ 18% 70A / 12.8V @ 100%
OCV (Open Circuit Voltage)
80VDC
Protection Class
IP23
Operating Temp
-10°C to +40°C
Dimensions (with Battery Box)
480 × 220 × 485 mm
Weight
19kg(Power Source + Box) 38kg (with Batteries)
Certification
ETL

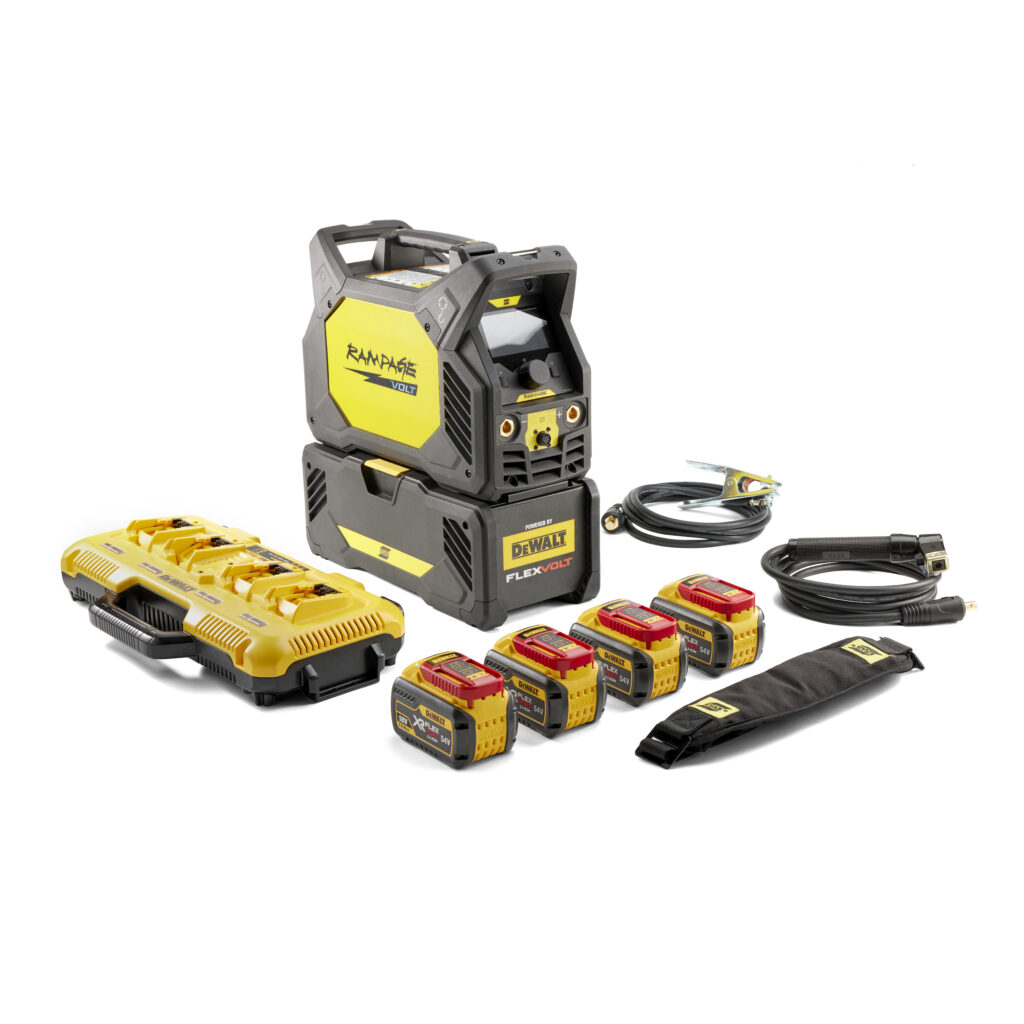

What's Included?

ESAB RAMPAGE Volt ES200i Battery Welder powered by DeWalt – 240V 15A

Rampage VOLT™ ES200i Power Source

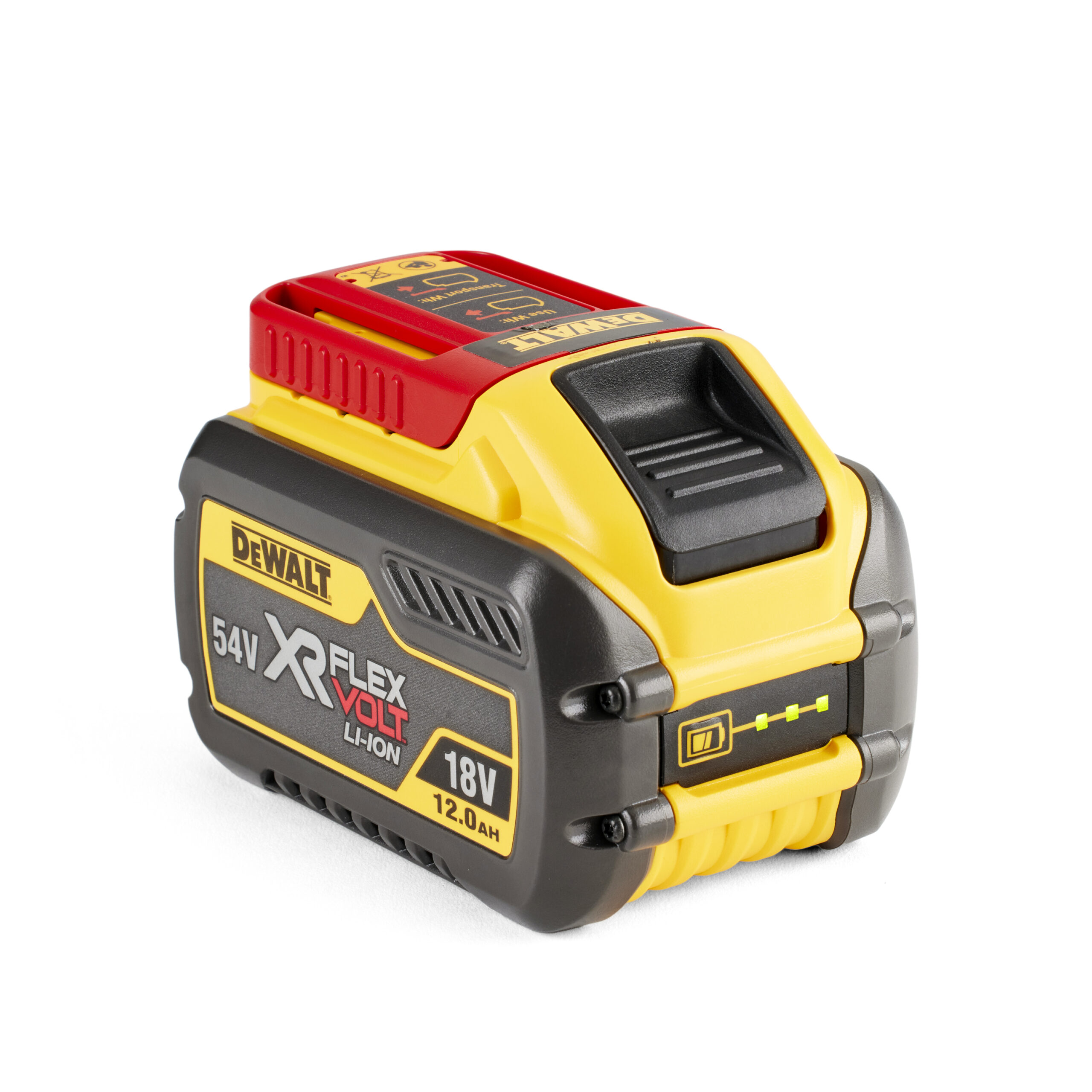

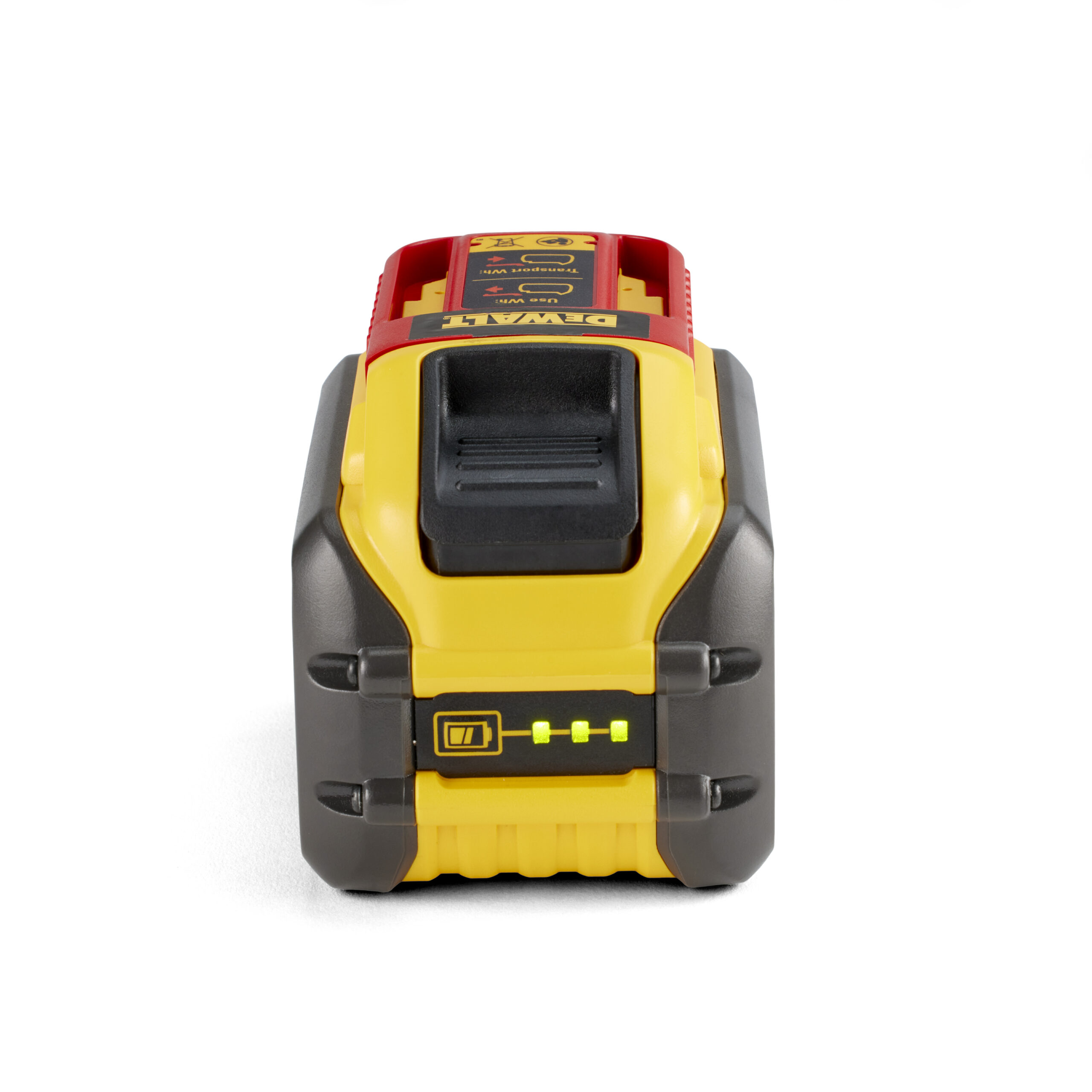

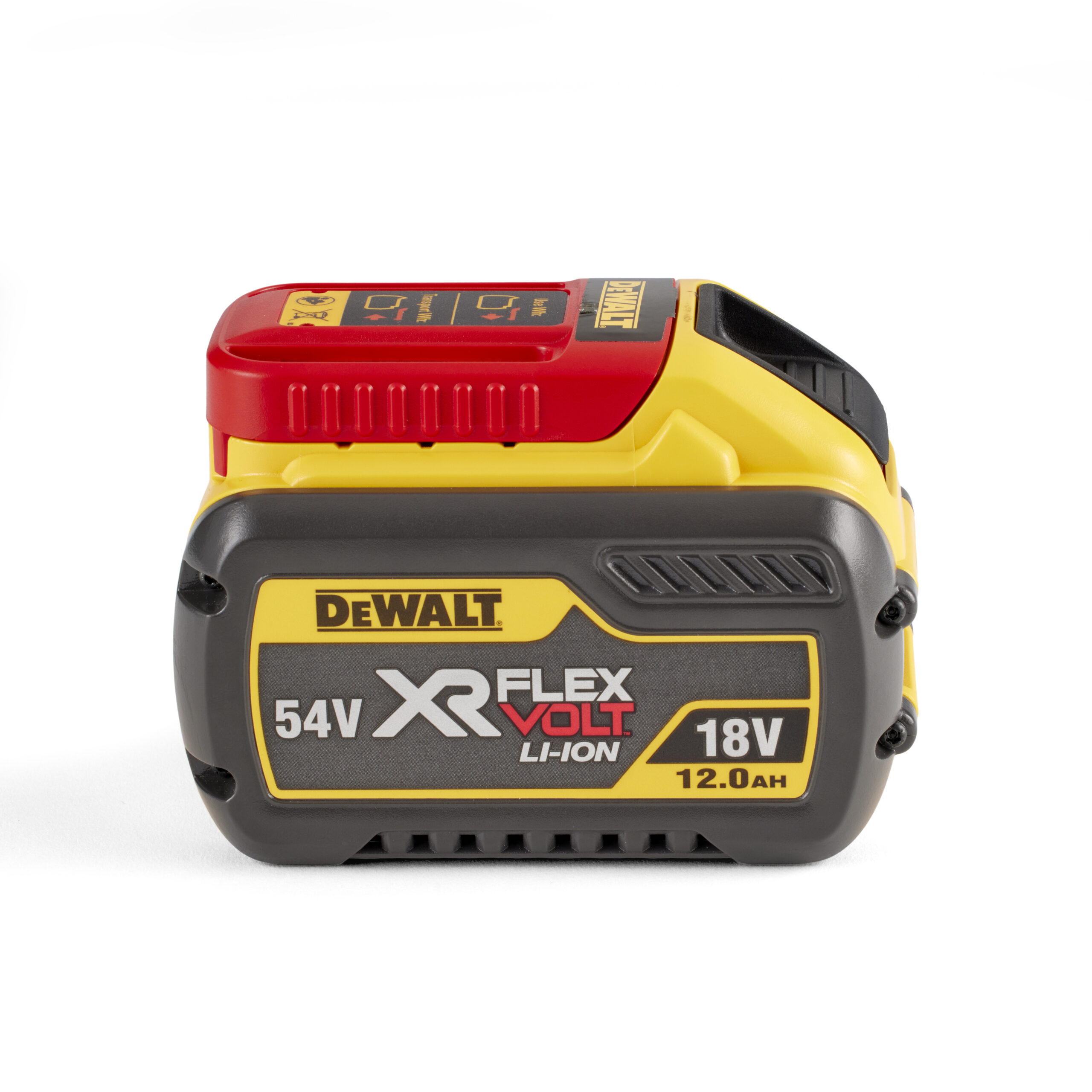

4 × DEWALT® FLEXVOLT® 12Ah Batteries
DEWALT® Four-Port Fast Charger
Electrode Holder with 3m Cable
3m Earth Clamp with Return Cable

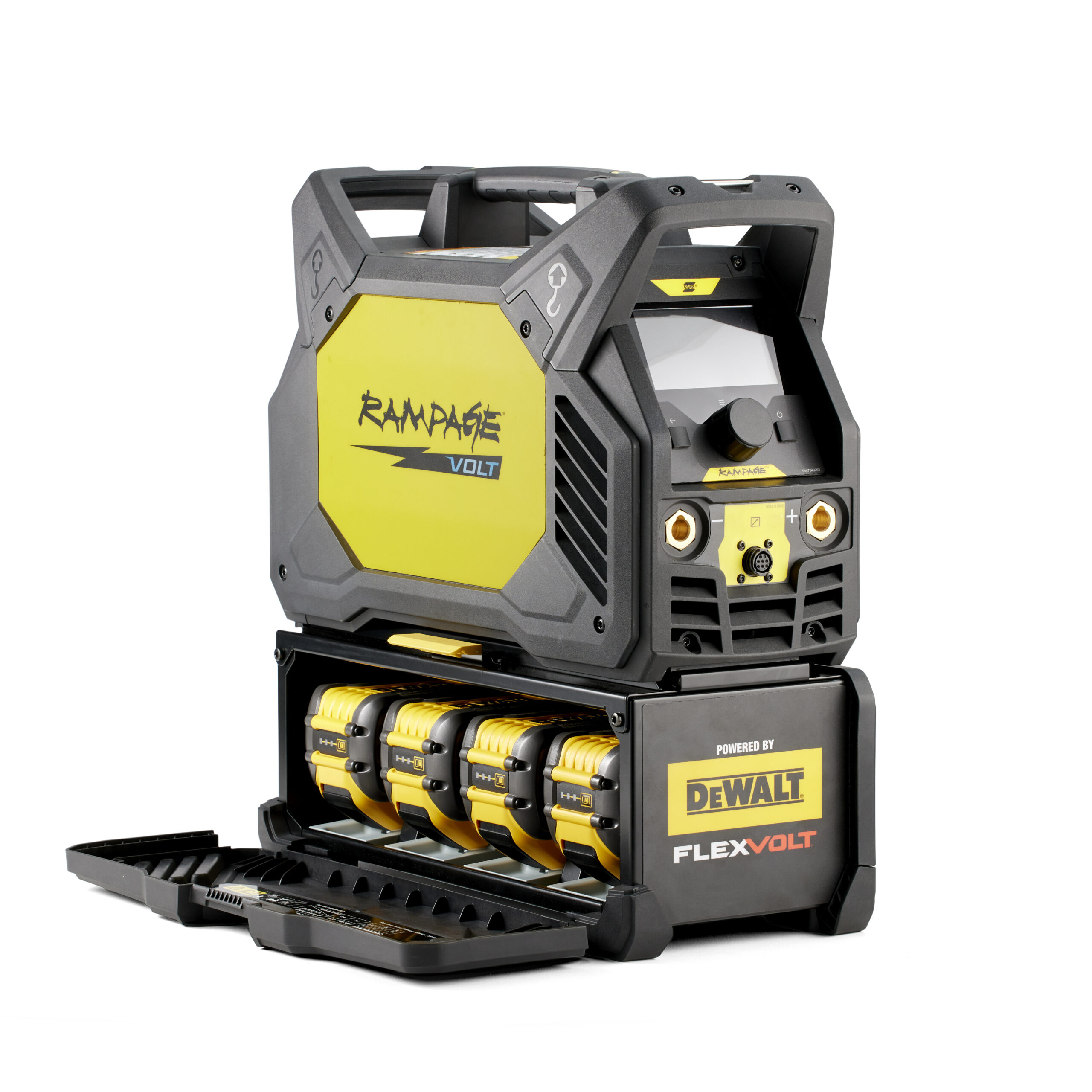

Detachable Battery Box
Shoulder Strap

Specifications

BrandESABPower Supply120-230 VAC, 50-60 Hz
Welding ProcessDC LIFT TIG, STICKUsageIndustrial
Material TypeMild Steel, Silicone Bronze, Stainless SteelAdditional FeaturesArc Force, DC Lift TIG, Hot Start, VRD
Material Thickness STICK2.0 - 8.0mmMaterial Thickness TIG1.0 - 8.0mm
Plug Type15AWarranty1 Year
Dimensions Power Source480 x 220 x 485 mmPulse Capable TIGNo
Pulse Capable STICKNo
BrandESAB
Power Supply120-230 VAC, 50-60 Hz
Welding ProcessDC LIFT TIG, STICK
UsageIndustrial
Material TypeMild Steel, Silicone Bronze, Stainless Steel
Additional FeaturesArc Force, DC Lift TIG, Hot Start, VRD
Material Thickness STICK2.0 - 8.0mm
Material Thickness TIG1.0 - 8.0mm
Plug Type15A
Warranty1 Year
Dimensions Power Source480 x 220 x 485 mm
Pulse Capable TIGNo
Pulse Capable STICKNo
