Think MIG welding is hard to set?
Not Any more!
The

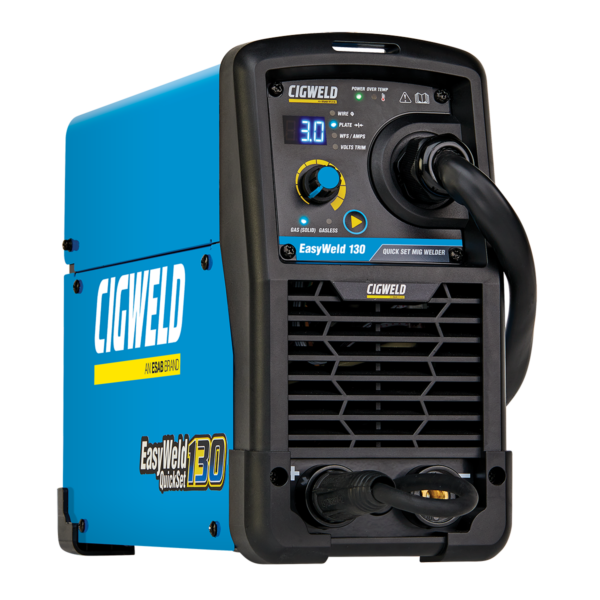

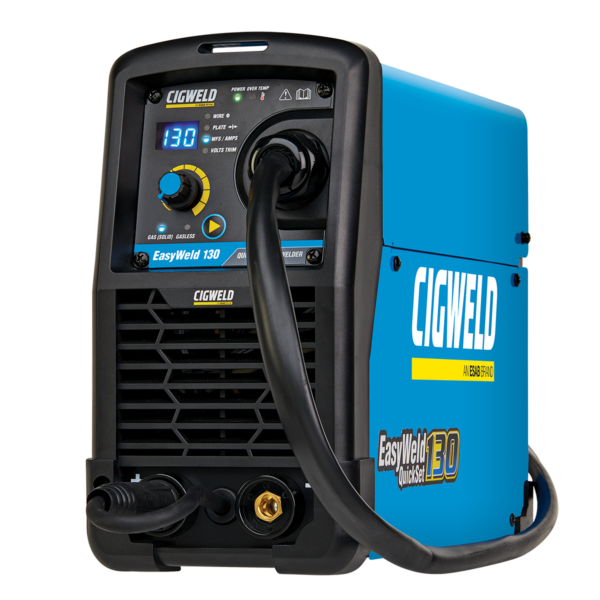

EasyWeld 130 is the most modern, easy-to-use small inverter MIG Welder designed to take away the guesswork when trying to decide what parameters should be set to weld differing thicknesses of metal.
The Electronic QuickSet provides accurate adjustment of the welding parameters reducing the amount of time wasted in the guessing settings!
- Suitable for MIG with Shielding Gas and MIG Gasless Welding.
- Welds most metals including Mild Steel, Stainless Steel, Aluminium and Bronze
- CIGWELD have specially configured this machine to be able to produce great welding results from domestic household 230/240V x 10A power.
The EasyWeld 130 machine is ideal for people who want to do light fabrication, car repairs, automotive restorations, maintenance and repairs or DIY around the home, workshop, worksite, or farm, without compromising on quality or safety.
QuickSet your Plate thickness and weld away
Plate Thickness setting allows you to set up in no time. There is no guessing the welding parameters. The QuickSet feature enables you to set the plate thickness you are welding.
Awesome output for a small MIG
The EasyWeld 130 delivers a maximum output of 130Amps DC, and welds metals from 0.6mm up to 6mm.
In QuickSet mode the EasyWeld 130 is limited to 3mm thickness. To weld higher thicknesses up to 6mm, settings can be manually adjusted to maximum Wire Feed Speed and Voltage which delivers exceptional welding results on larger metal joints.
VERSATILE
- You can weld most metals including Mild Steel, Stainless Steel, Aluminium and Bronze.
- As part of our local product development, we rigorously tested the EasyWeld 130 with different metals!

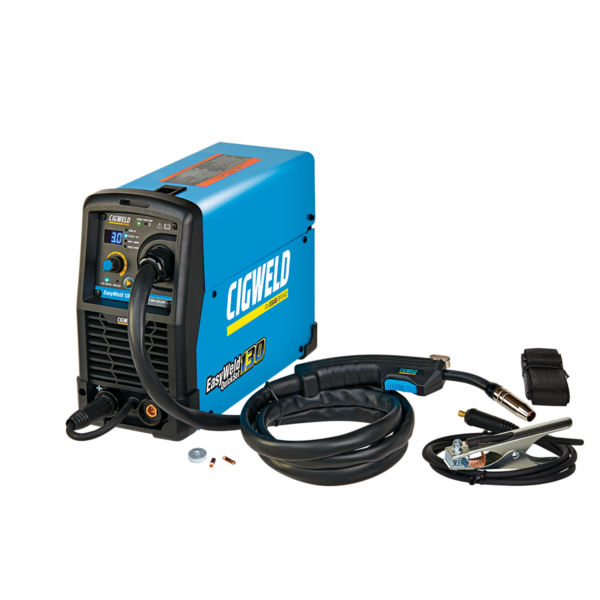

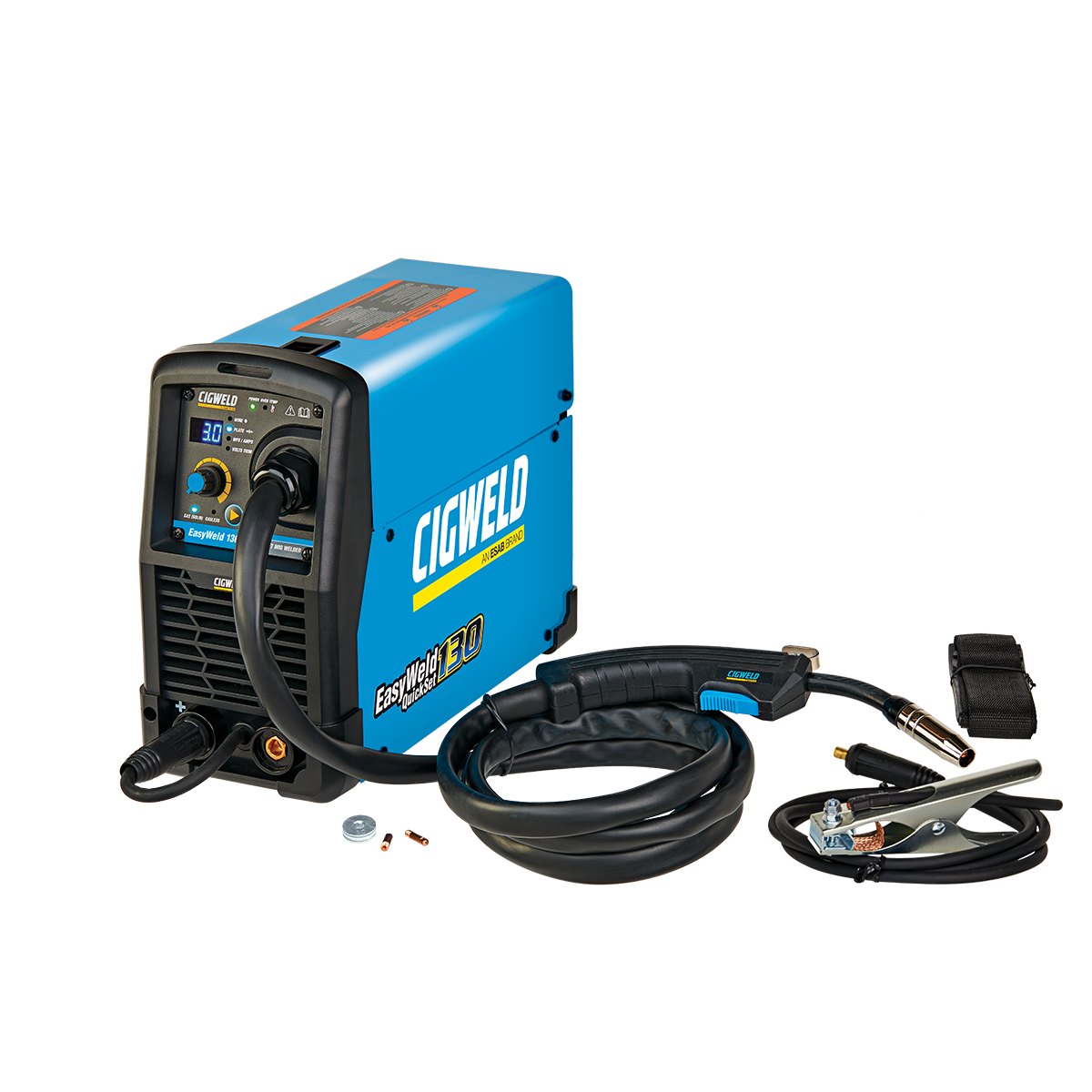

PACKAGE CONTENTS
- EasyWeld 130 Power Source
- CMG13DL MIG Gun 3m- Hardwired
- Work Clamp with 2.5m Lead
- 2 x Feed Rolls: 0.8/0.9mm Gasless (Fitted), 0.6/0.8mm Solid Wires
- Contact Tips: 0.6mm, 0.8mm (Fitted), 0.9mm
- Shoulder Strap

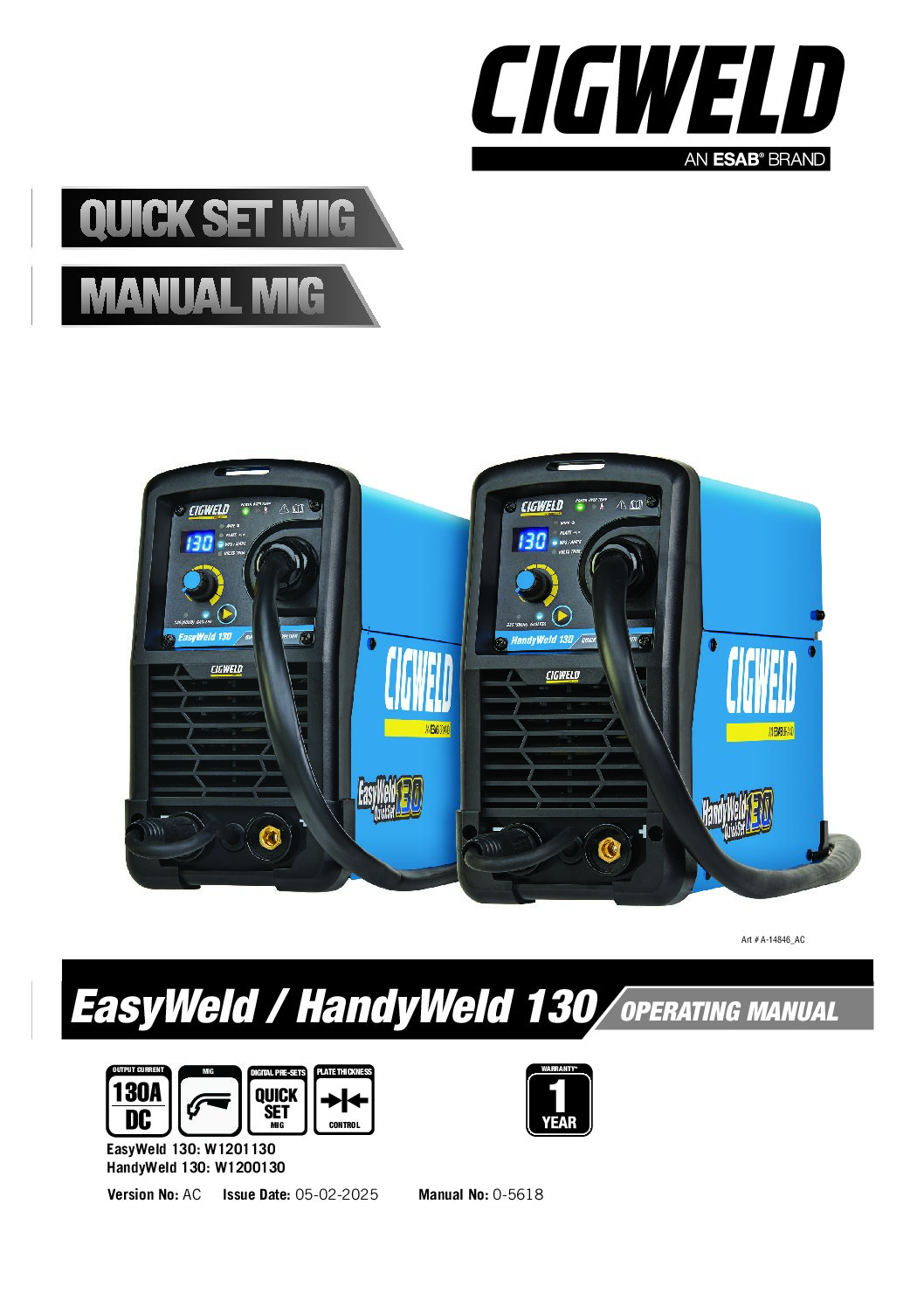

- Operating Manual – Operating Manual can be downloaded at cigweld.com.au/manuals
KEY FEATURES:
- Single Phase 10A/240V
- Electronic QuickSet control – eliminates the guesswork for setting parameters with Plate Thickness Control (max 6mm thickness)
- Duty Cycle: 130A@20%
- Gas & Gasless Wire
- Single Knob Synergic Control
- 3 Step setup
- Digital Meter – Easily view all your important welding parameters including plate thickness and welding Amps
- Weighs only 7.2kg
- Integrated Wire Feed Units -Suits 100mm spools
- Creep Start
- 1 Year Warranty – Refer to operating manual for further details
- Easyweld130 diagram
MIG GUN
- The EasyWeld 130 MIG machine is supplied with a quality MIG Gun rated to handle in excess of the maximum output of the machine.
- Model Name: CMG13DL
- Replacement Part Number: W52BR13D3
ORDERING INFORMATION:
EASYWELD 130MIG, P/N: W1201130
PRODUCT TESTING
As part of our product development, CIGWELD rigorously test all the internal components of the welding machine and its external accessories. We make sure that the machines are not just fit for purpose, but will handle tougher than expected working conditions. Additionally, we also conduct weld tests on various common metals, using the expertise of our local technical team ensuring that the settings you use on our machines are tuned to local conditions.
