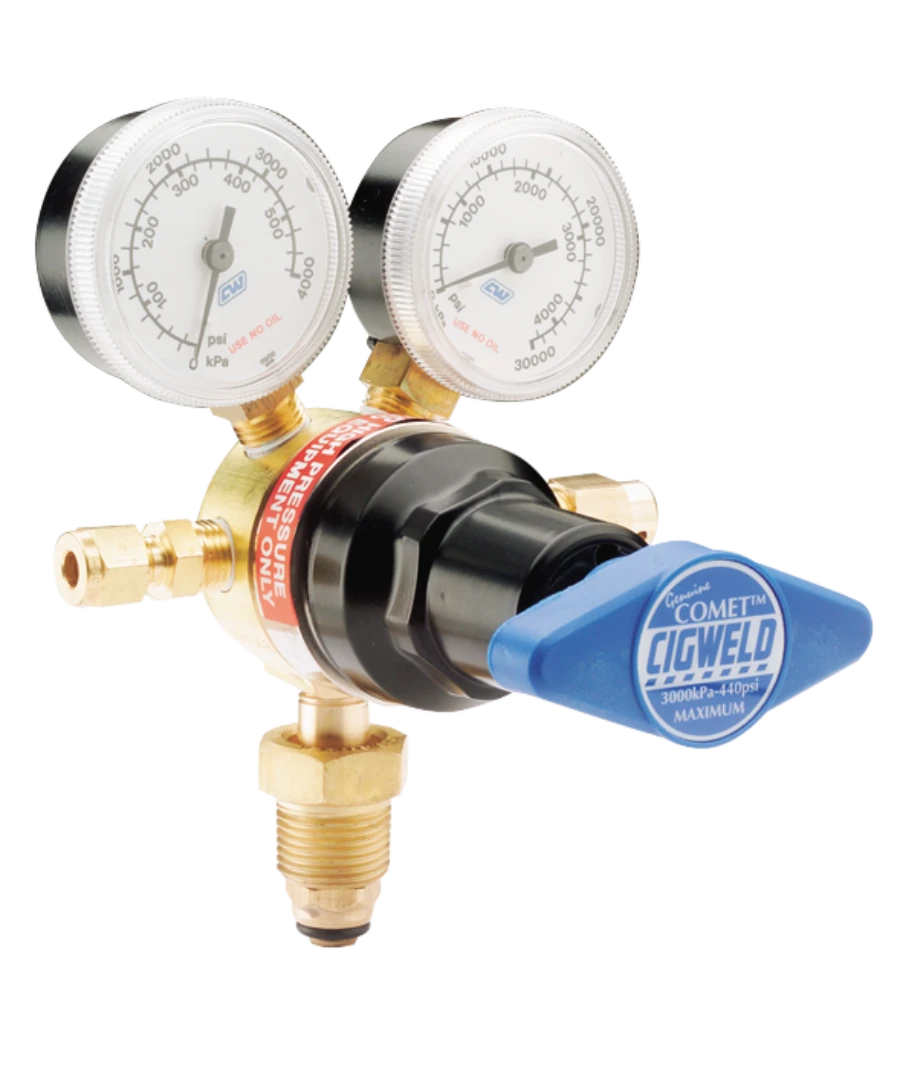

COMET High Pressure Regulators are specifically designed for high pressure applications up to 20,000 kPa. The precision control of high pressure offered by these regulators makes them highly suitable for high pressure industrial or laboratory applications.

Features:

• Provides safe and accurate control pressures up to
20,000 kPa (2,800 psi)
• Offers a range designed for use with oxygen service
and inert gases
• Designed for cylinder fill pressures up to 31,500 kPa
• Encapsulated seat which incorporates a sintered filter,
protecting the seat against foreign material
• The 3,000 kPa and 7,000 kPa versions incorporate a Pressure
Relief Valve which gives the ability to pipe away any relieved gas
• 20,000 kPa models are fitted with either Type 11, Type 51
or Type 61 inlet nut for EHP cylinder connection
• Tube outlet connectors are a safety feature designed to prevent
accidental connection of low pressure equipment to the regulator
• Each regulator is individually tested and set to a maximum
delivery pressure.

P/N: 301562
