Features:
• Provides safe and accurate control pressures up to
20,000 kPa (2,800 psi)
• Offers a range designed for use with oxygen service
and inert gases
• Designed for cylinder fill pressures up to 31,500 kPa
• Encapsulated seat which incorporates a sintered filter,
protecting the seat against foreign material
• The 3,000 kPa and 7,000 kPa versions incorporate a Pressure
Relief Valve which gives the ability to pipe away any relieved gas
• 20,000 kPa models are fitted with either Type 11, Type 51
or Type 61 inlet nut for EHP cylinder connection
• Tube outlet connectors are a safety feature designed to prevent
accidental connection of low pressure equipment to the regulator
• Each regulator is individually tested and set to a maximum
delivery pressure.

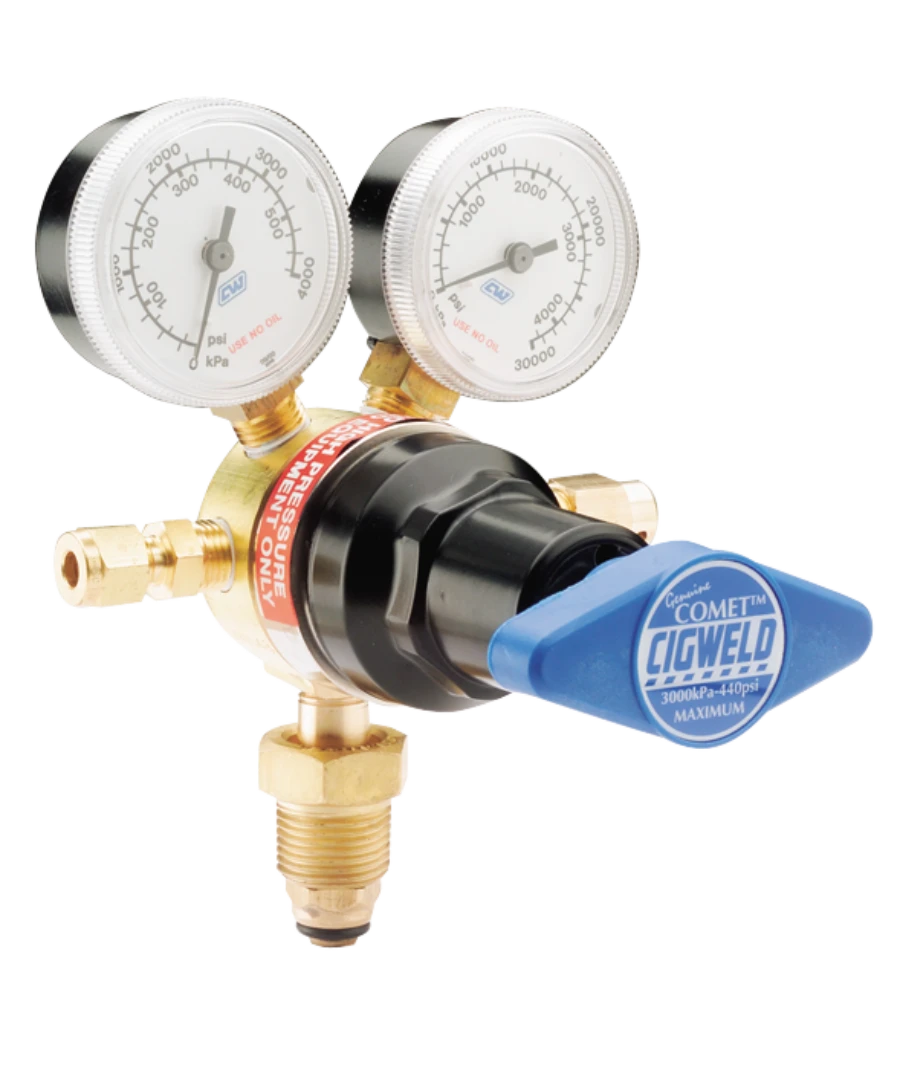

P/N: 301565
