Cigweld

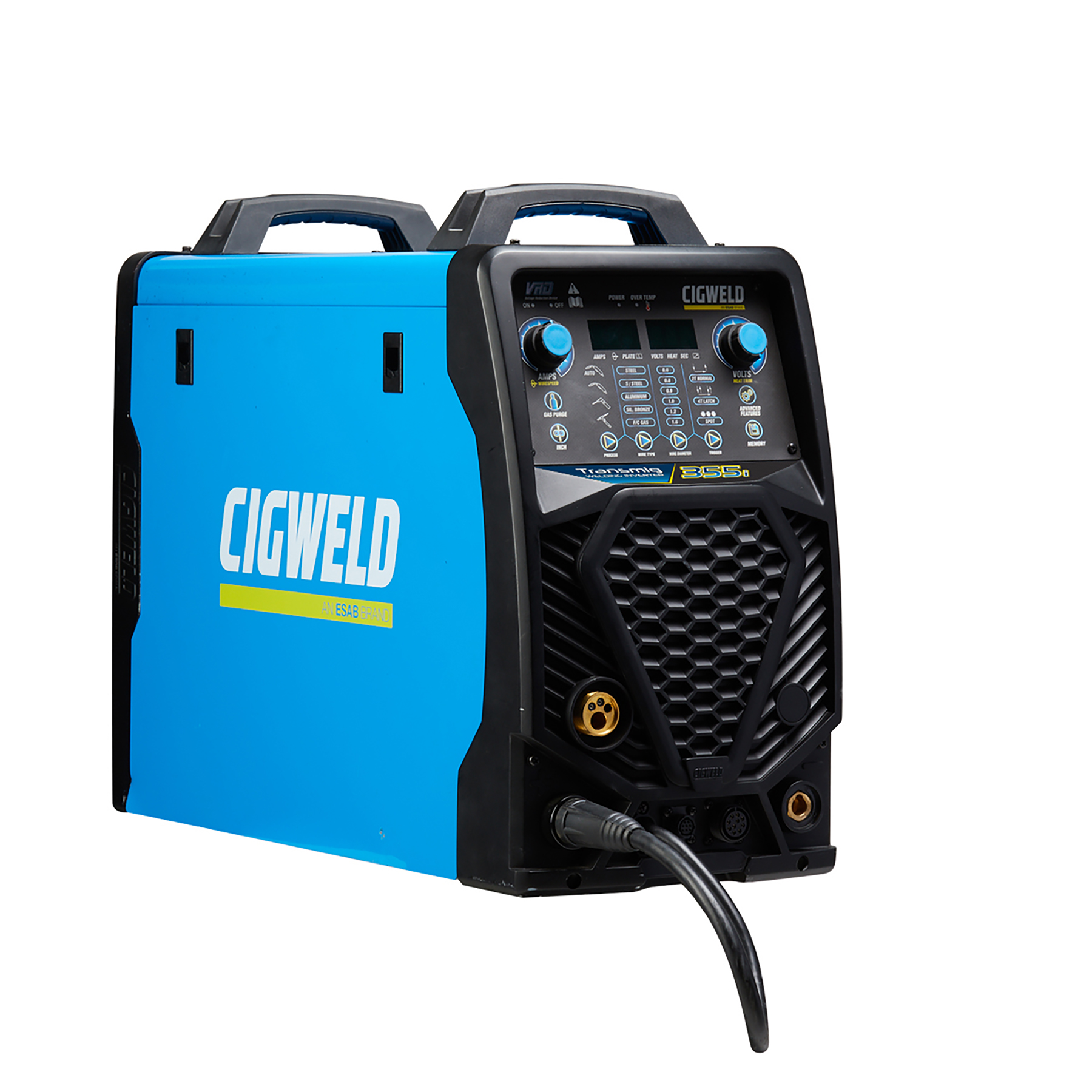

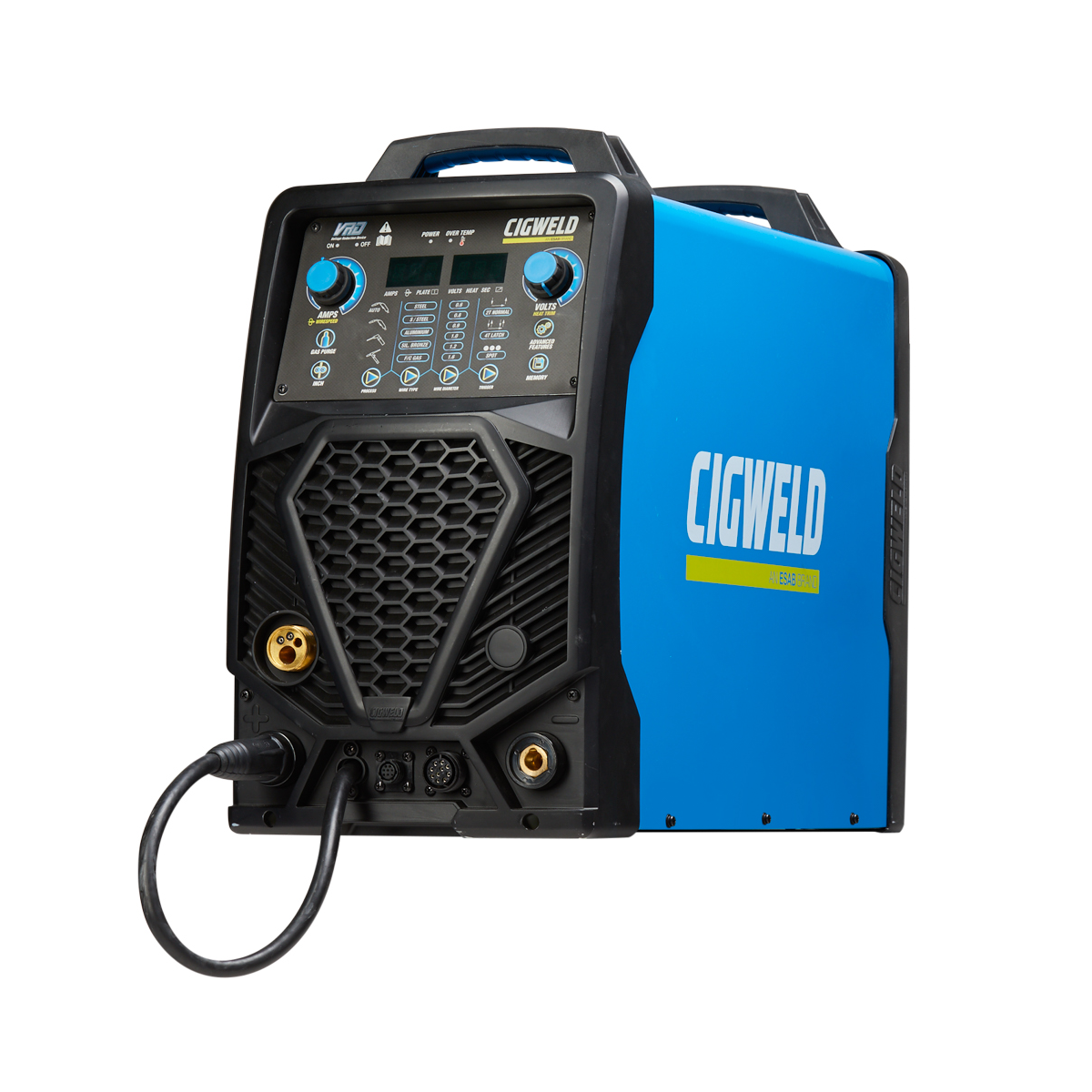

Transmig 355i Compact Plant

SKU: W1003511

CIGWELD’s Transmig 355i is a powerful 3phase 3in1 Multi-Process inverter that operates at 355A@60% Duty Cycle and offers exceptional welding results across MIG, STICK and TIG, and the added convenience of CIGWELD’s AUTO SET MIG feature for optimal plate thickness control. The AUTO SET MIG Process has been pre-programmed with synergic lines determined by material […]

CIGWELD’s Transmig 355i is a powerful 3phase 3in1 Multi-Process inverter that operates at 355A@60% Duty Cycle and offers exceptional welding results across MIG, STICK and TIG, and the added convenience of CIGWELD’s AUTO SET MIG feature for optimal plate thickness control.

The AUTO SET MIG Process has been pre-programmed with synergic lines determined by material type, plate thickness and consumable diameter reduce your setup time and ensures you are always getting the best from your welds.

The Transmig 355i has an easy-to-use push-button design, convenient memory storage, and is loaded with advanced features to ensure you can always customise your welds.
And best of all you can operate it as a compact inverter or with a remote 4RX feeder^

^Compact Plant (W1003511) or Remote Plant with Transmig 4RX wirefeeder (W1003510)

FEATURES:

  • Superior arc characteristics and duty cycle
    Smooth, stable arc performance at 355A @ 60%.
  • Push Pull Gun Compatible
    Transmig 355i is compatible with the CIGWELD TBI Push Pull Torch (#185P958180) with Sync Box (#590P958000).
  • Spool Gun Compatible
    Transmig 355i is compatible with the Tweco SGT250 Spool Gun (#W4011250)
  • Voltage Reduction Device (VRD)
    Built in as standard
  • Generator Compliant
    14KVA
  • Power Input
    3 PHASE 415V
  • Robust Design
    IP23S designed for heavy duty fabrication
  • Flexible Remote or Local Configurations
    With the added benefit of operating both as a compact inverter in Local mode, or remotely with the TransMig 4RX Remote Wire Feeder (#W3000410).
  • 4 Roll Feeder
    Driven by a robust 4 Roll drive system to ensure smooth wire feedability
  • Memory Push Button
    Easy access memory to store up to 15 of your favourite welds
  • Gas Purge / Wire Inch Push Buttons
    Easy access push buttons to either purge shielding gas through the torch, or feed wire without wasting shielding gas.
  • User Friendly
    Simple to use push button design
  • Adjustable Advanced Features
    Burnback, Inductance, 2T/4T, Spot/Stitch Weld, Pre/Post Flow, Crater Fill, Crater Current, Crater Volts, Run In, Creep Feed & Down Slope.
  • Auto Set Plate Thickness Control
    Pre-programmed with synergic lines determined by material type, plate thickness and consumable diameter
  • Heat Trim Control
    Allows the user to customise and tweak their voltage for optimal performance when in AUTO SET MIG mode.
  • 3 IN 1 Multi-Process
    A true multi-process machine offering outstanding welding results across MIG, Stick TIG.
  • Auto Set Process
    Auto Set parameters for MIG.
    Determined by material type, thickness & consumable diameter.
  • Current Range
    Current range for this Power Source is 30 to 355A (MIG Mode) of DC Welding Output.
  • Heat Trim
    Customisable Heat Trim Function allows user to tweak voltage for optimal performance (in AUTO SET MIG only).
  • Push Button Interface
    Simple Push button display for easy navigation.
  • MIG (GMAW/FCAW) 355A @ 60%
    0.6-1.2mm: Solid Wires & 0.8-2.0mm: Gasless Wires. 0.9-1.2mm: Aluminium Wires.
    0.9-1.2mm: Stainless Steel Wires.
    0.8-1.2mm: Silicon Bronze Wires.
  • STICK (MMAW) 355A @ 60%
    Power Source suitable for 2.0mm, 2.5mm, 3.2mm and 4mm and 5mm electrode sizes.
  • TIG (GTAW) 355A @ 60%
    Lift TIG function provides smooth starting and running characteristics across varying applications.
  • Arc Control
    Variable inductance for softer arc and less spatter or stronger arc and increased penetration.
  • Euro Torch Connection
  • Warranty
    3 Year Limited Warranty*
    *Refer to the operating manual for further details.

Transmig 355i Compact Plant
Part Number: W1003511

CONTENTS:

  • Transmig 355i Inverter Power Source
  • Feedroll 0.9/1.2mm V Groove (Fitted)
  • Tweco Fusion 400 Mig Torch 3.6m
  • Comet Professional Argon Regulator
  • Flowmeter Work Clamp with 4m Lead
  • Shielding Gas Hose Assembly
  • Operation Manual

OPTIONAL ACCESSORIES:

  • Tweco Fusion 400 MIG Torch, 3.6m, Euro OTWF412X3545
  • Tweco No. 4 MIG Torch, 3.6m, Euro OTWX412/3545
  • Tweco No. 4 MIG Torch, 4.5m, Euro OTWX415/3545
  • Transmig 4RX Wirefeeder W3000410
  • 2m Interconnection Lead, 10 Pin, suits 4RX wirefeeder W4016003
  • 8m Interconnection Lead, 10 Pin, suits 4RX wirefeeder W4016002
  • 15m Interconnection Lead, 10 Pin, suits 4RX wirefeeder W4016004
  • Tweco SGT 250 Spool Gun W4011250
  • CIGWELD TBi Push-Pull Gun, 8m 185P958180
  • CIGWELD TBi Push-Pull Gun, 12m 185P9581C0
  • CIGWELD TBi Push-Pull Gun Neck, 40 degree 185P001002
  • CIGWELD TBi Synchroniser Box 590P958000
  • Twistlock Electrode Holder Lead, 400A, 5m 646779
  • TIG Torch 17V with 4m lead (200A@20%) W4013801
  • TIG Torch 17V with 4m lead and remote control (200A@20%) W4013800
  • TIG Torch 26V with 4m lead (240A@20%) W4014601
  • Transmig 355i Trolley with inbuilt cylinder carrier W4015005
  • Feed Roll 0.6/0.8mm V groove (hard) 7977729
  • Feed Roll 0.9/1.2mm V groove (hard) (fitted) 7977703
  • Feed Roll 1.2/1.6mm V groove (hard) (fitted) 7977346
  • Feed Roll 0.8/0.9mm U groove (soft) 7977733
  • Feed Roll 1.0/1.2mm U groove (soft) 7977730
  • Feed Roll 1.2/1.6mm U groove (soft) 7977348
  • Feed Roll 0.8/0.9mm V groove knurled (flux cored) 7977734
  • Feed Roll 1.2/1.6mm V groove knurled (flux cored) 7977347
  • Shielding Gas Hose Assembly W7004913
  • MIG Pliers CWPLIER

Transmig 355i Power Source Dimensions
700H x 287W x 517D mm

Transmig 355i Power Source Weight
45kg

Number of Phases
Three Phase

Nominal Supply Voltage
415 VAC 15%

Transmig 355i Compact Plant
W1003511

Cooling
Fan Cooled

Welder Type
MIG, STICK, LIFT TIG, AutoSet MIG Inverter Power Source

Standards
AS 60974.1-2006 / IEC 60974-1

Nominal Supply Frequency
50/60Hz

Open Circuit Voltage (VRD On) Stick Weld Mode
<35V

Effective Input Current (I1eff )
15 Amps

Maximum Input Current (I1max)
20 Amps

Minimum Three Phase Generator (Recommended)
14 kVA (at 0.8 Power Factor)

Protection Class
IP23S

MIG (GMAW) Welding Output, 40oC, 10 min.
355A @ 60%, 31.8V

STICK (MMAW) Welding Output, 40oC, 10 min.
355A @ 60%, 34.2V

TIG (GTAW) Welding Output, 40oC, 10 min.
355A @ 60%, 24.2V

Warranty
3 Year Limited Warranty*
