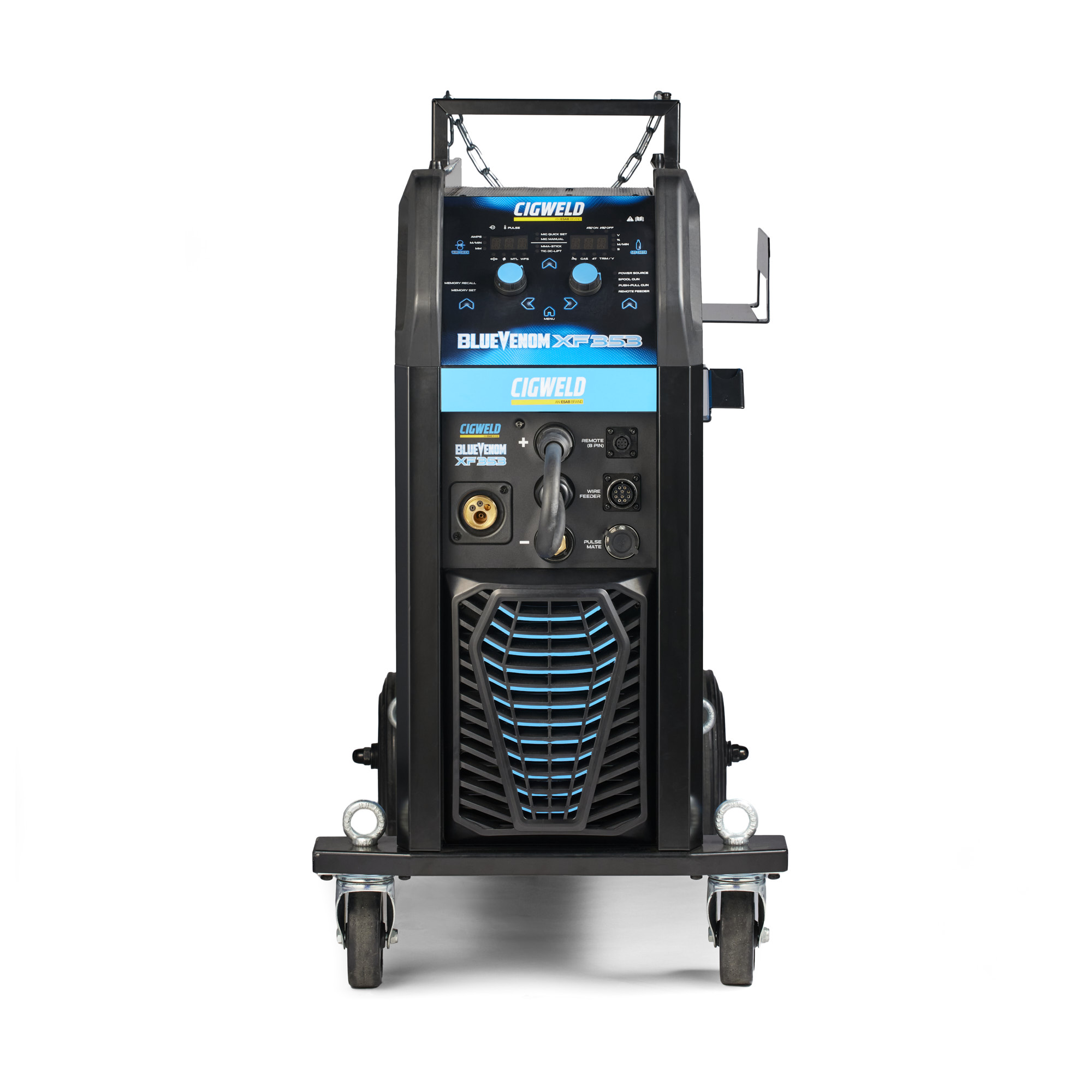

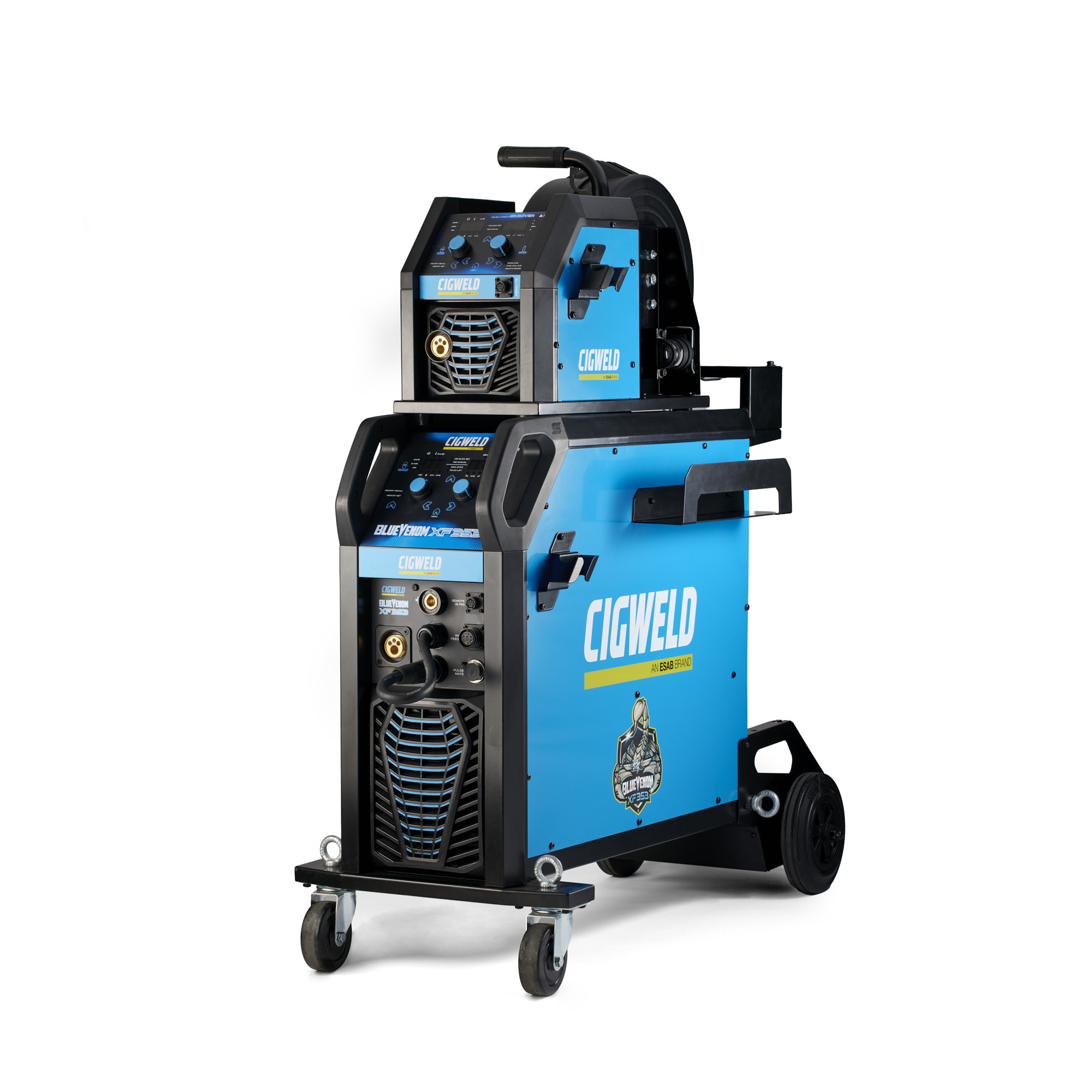

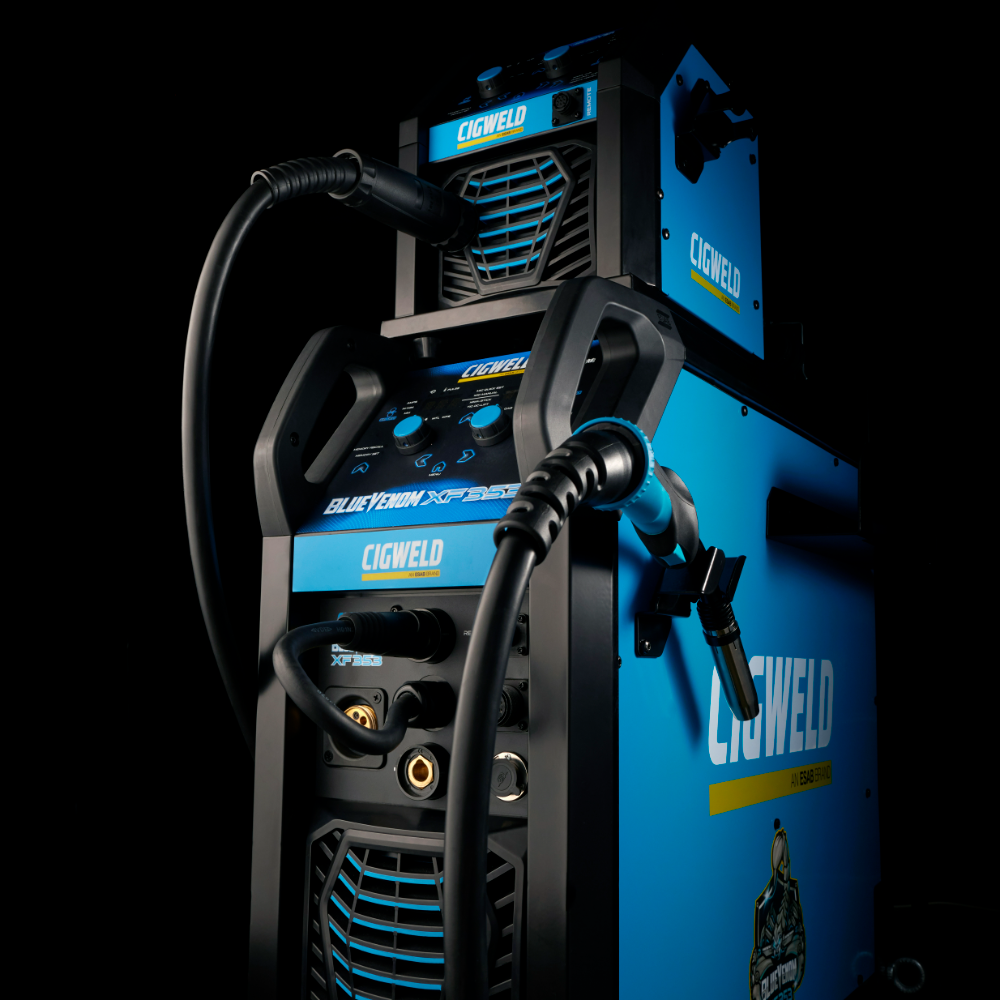

BlueVenom XF353

SKU: W1400353

Multi Process Welding Inverter

The new BlueVenom XF353 is a 3-in-1 multiprocess welding inverter that has been specifically engineered to be narrower in size for easy access in tight and constrained areas but also as a modular arc station!

The XF353 can deliver awesome arc characteristics in the most popular processes of, MIG (QuickSet & Manual modes, Gas & Gasless operation, Single & Double Pulse MIG with the optional PulseMate™, STICK (MMA with VRD for extra safety) and TIG DC-Lift welding modes.

Additionally, this machine has the following features:

• 4x Roll Wire Drive system
• 300mm Diameter Spool Capability and includes 200mm spool adapter

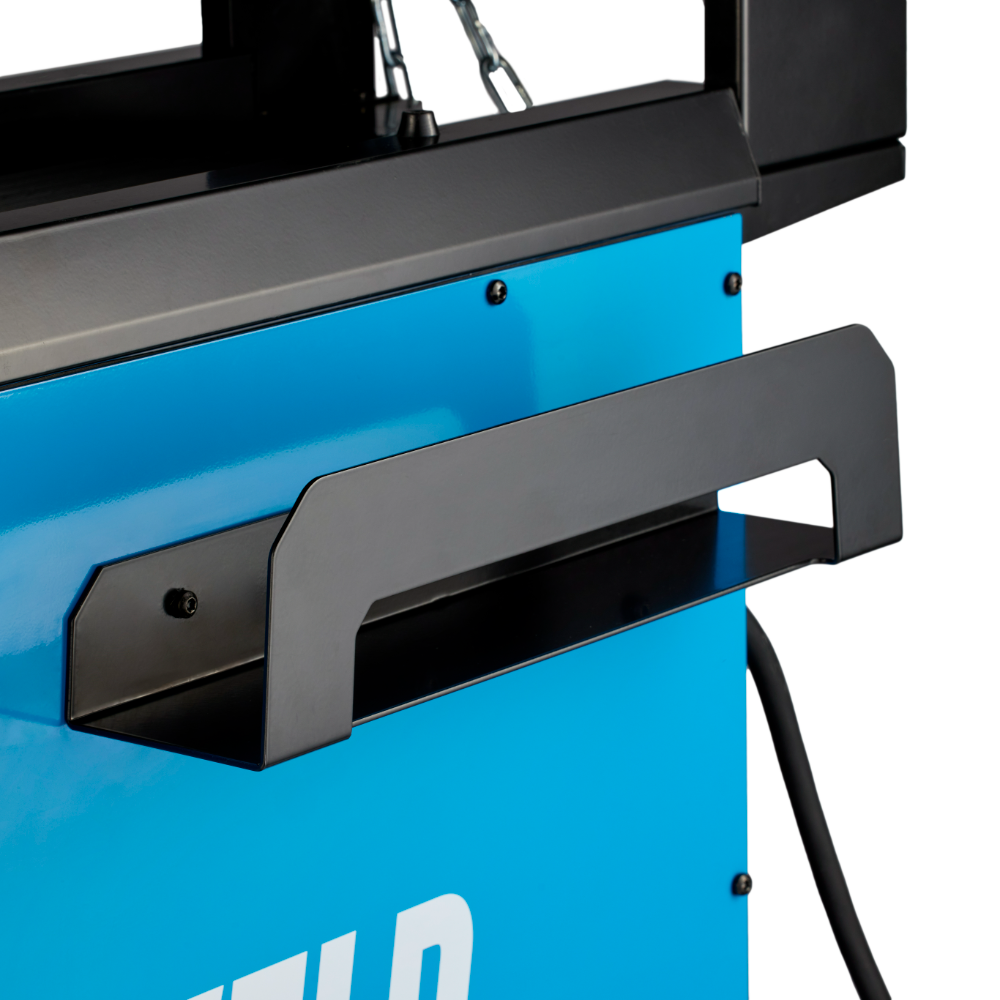

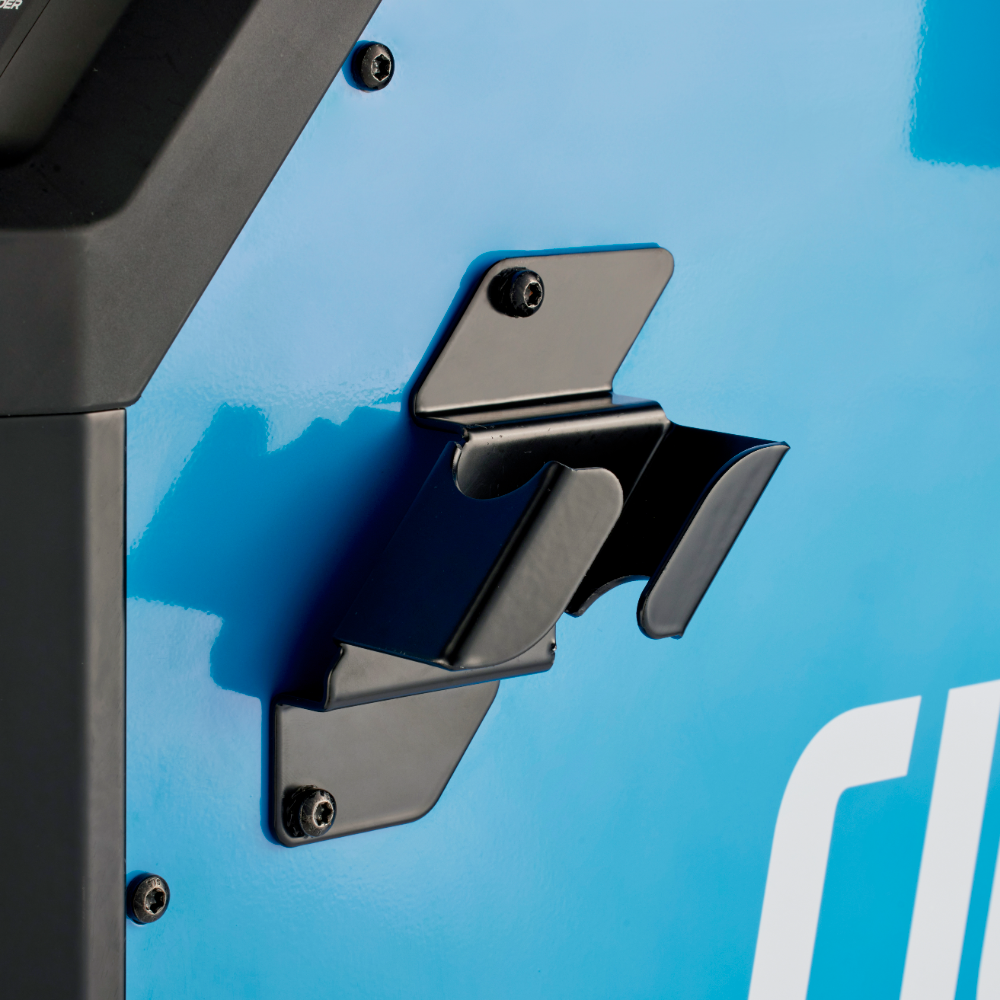

• MIG Gun holder and cable management bracket
• Engineered Gas Cylinder holder for up to ‘G’ Size cylinders

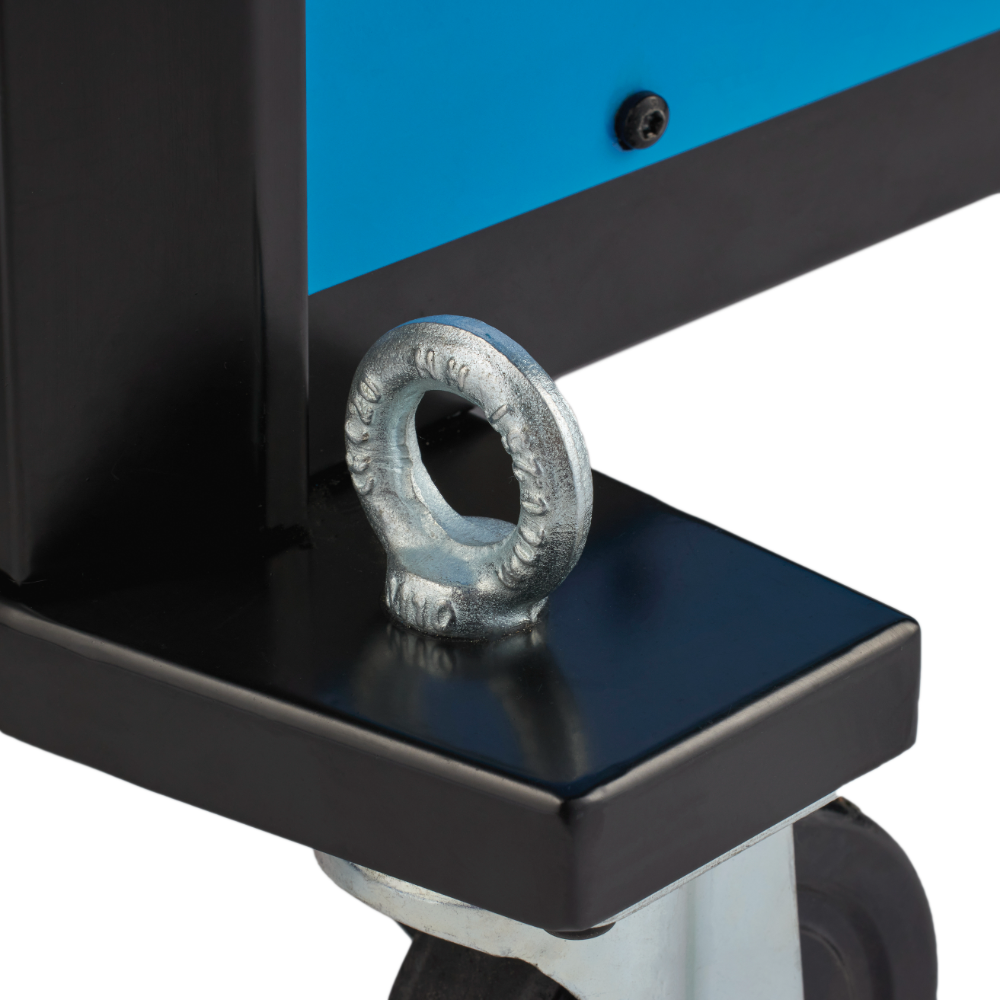

• 4-Point Lifting Lugs for safer and convenient maneuverability

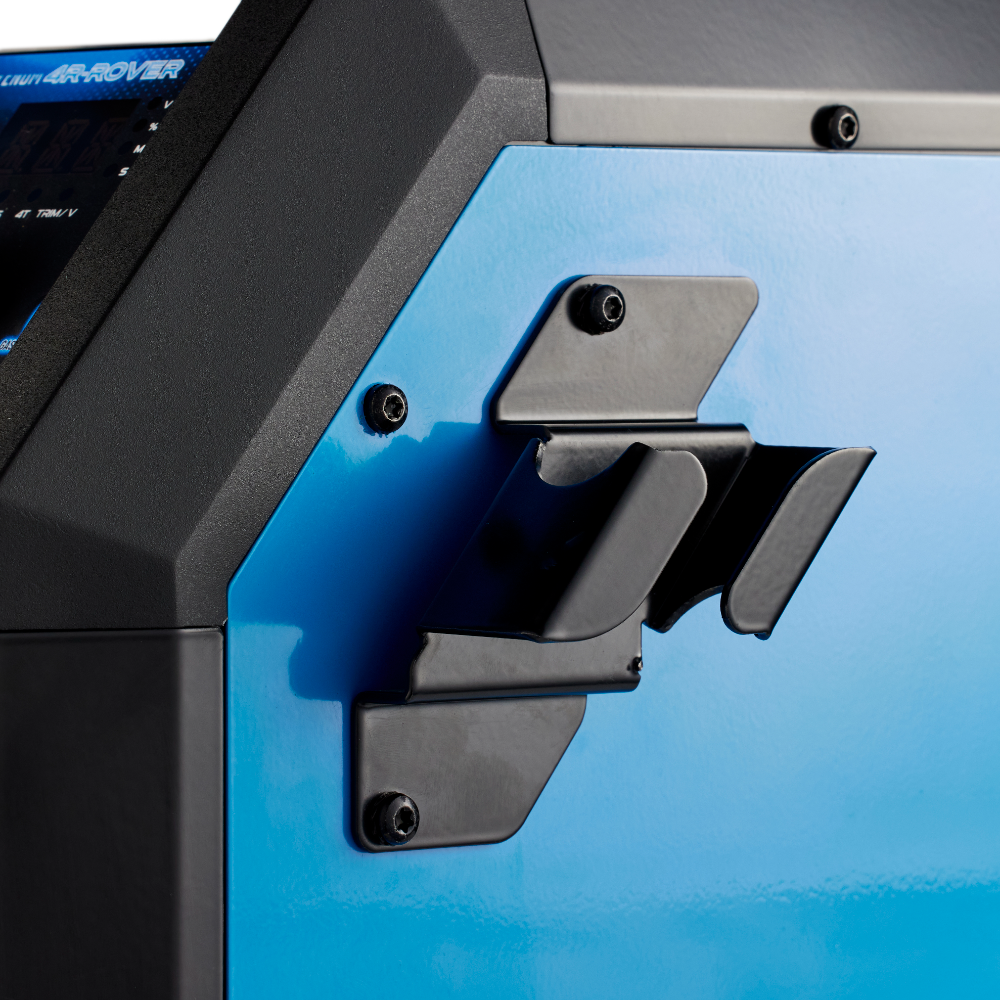

• Locking brackets for 4R-Rover to avoid wirefeeder sliding
• MIG Adjustable Wire Burnback
• MIG Crater Fill function in 2T & 4T

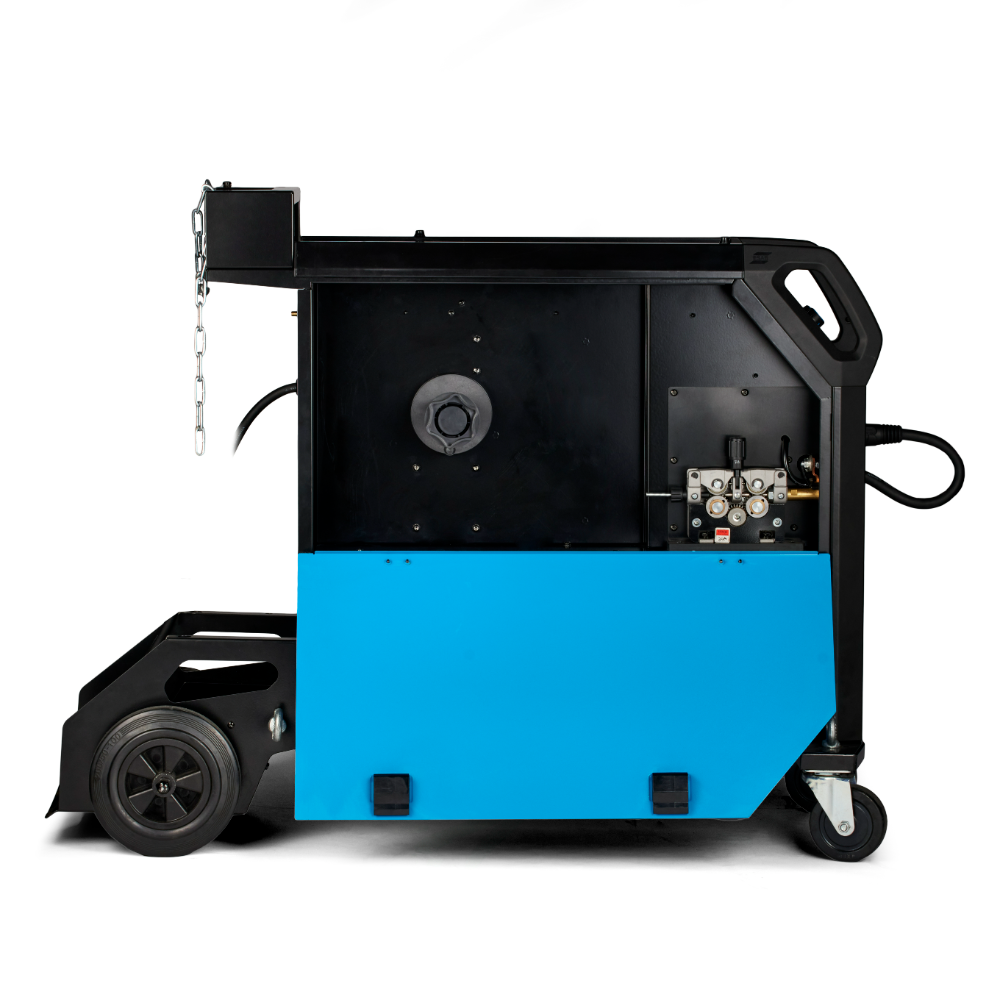

• MIG Side door wire installation, side loader
• MIG Anti de-spooling safety feature
• MIG PulseMate™ , Spool Gun & Push-Pull Gun Compatible
• STICK with Voltage Reduction Devise (VRD) built-in for Safe Welding
• STICK Hot Start
• STICK Arc Force
• TIG Foot Control Compatible
• TIG Dial Remote Torch Compatible

  • DESIGNED, DEVELOPED & TESTED IN AUSTRALIA!


    As a compact unit you will have access to Xtra Functions that allows the machine to be used for standard MIG / STICK / TIG DC-Lift processes, or as a Synergic MIG with Plate Thickness Selection as standard. The BlueVenom™ XF353 delivers a maximum output of 350Amps DC in MIG and TIG Modes, which means the machine is capable of welding metals from 1.0mm up to 16mm. In STICK mode the machine is capable of welding metals from 1.6mm up to 25mm in thickness. The BlueVenom™ XF353 delivers a maximum output of 350Amps DC in MIG and TIG Modes, which means the machine is capable of welding metals from 1.0mm up to 16mm. In STICK mode the machine is capable of welding metals from 1.6mm up to 25mm in thickness.



  • EASY TO SET FOR PROFESSIONAL RESULTS

    The BlueVenom™ XF353 is the perfect solution for light to medium fabrication, maintenance and industrial repairs in the workshop, worksite, shipyard, or marina without compromising on quality or professional performance! Use it with the included premium BZ36 MIG Gun or swap it out for a Push-Pull or Spool Gun (each sold separately) for more precise control.

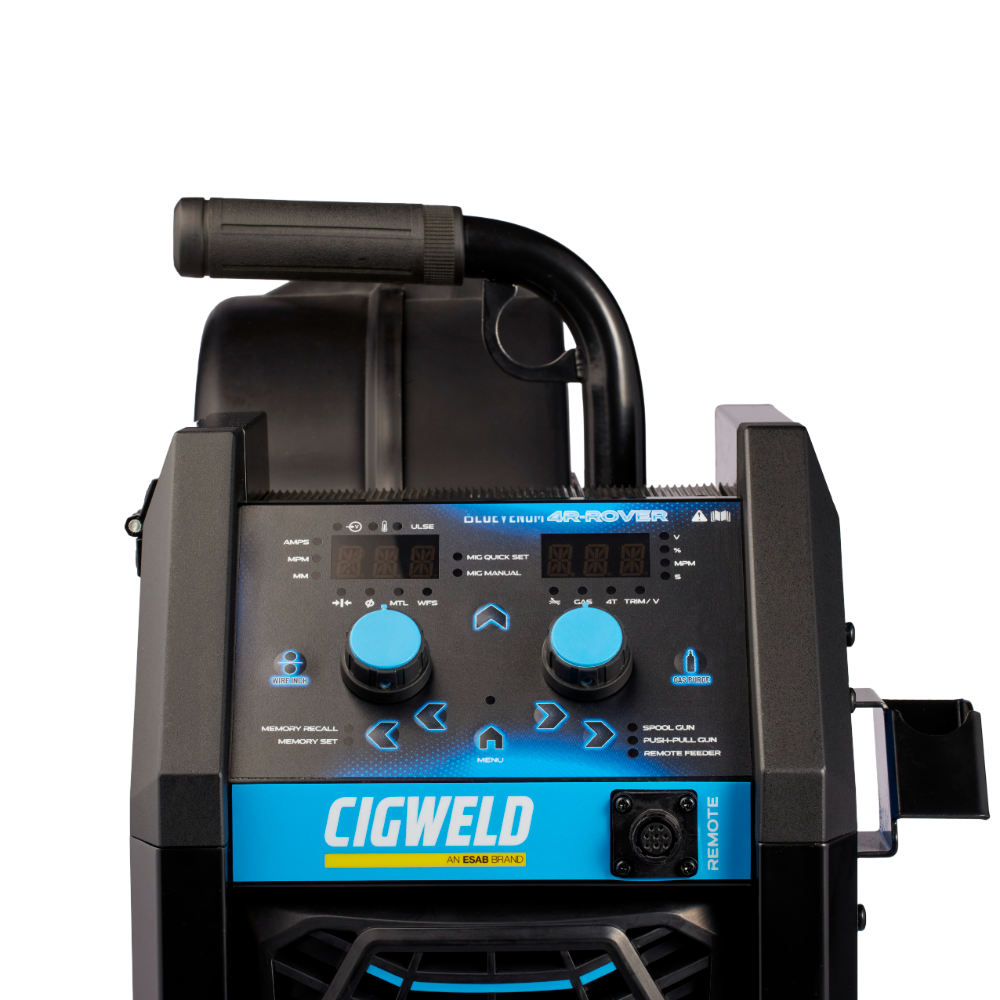

  • ALL-NEW 4R-ROVER™

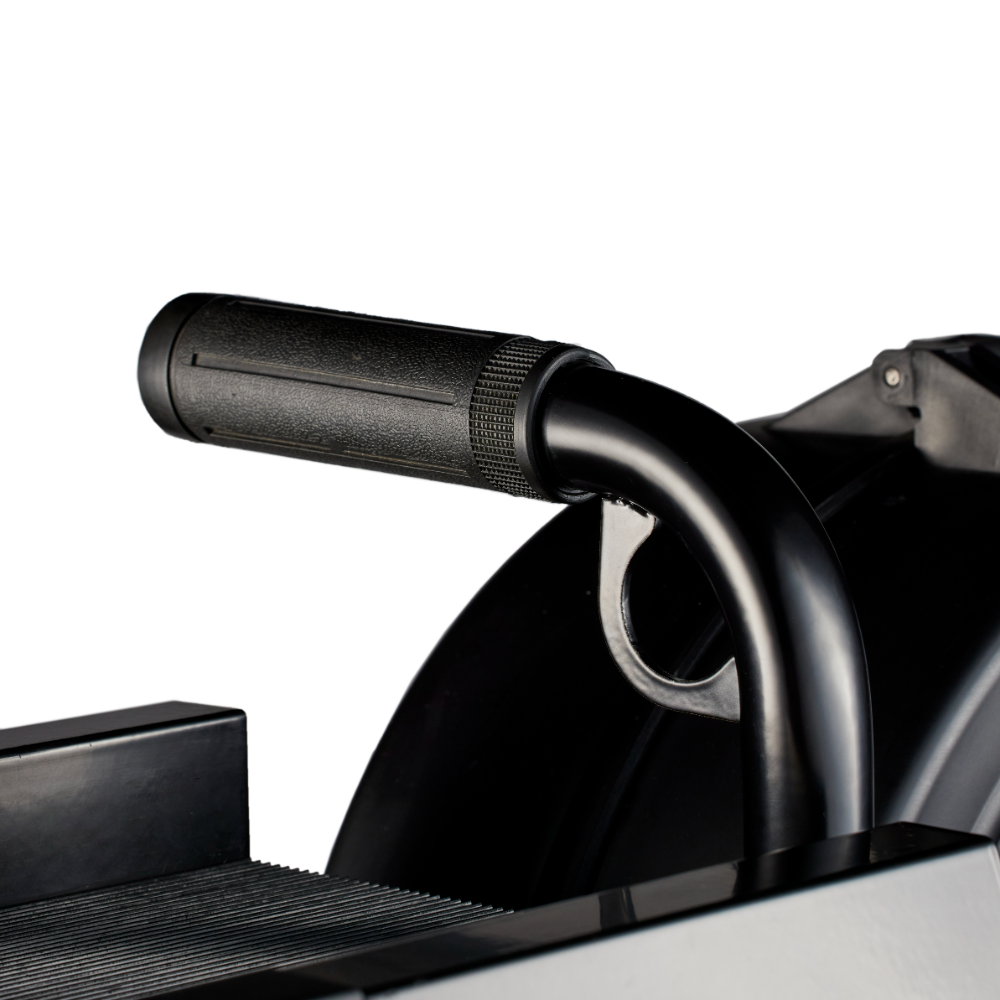

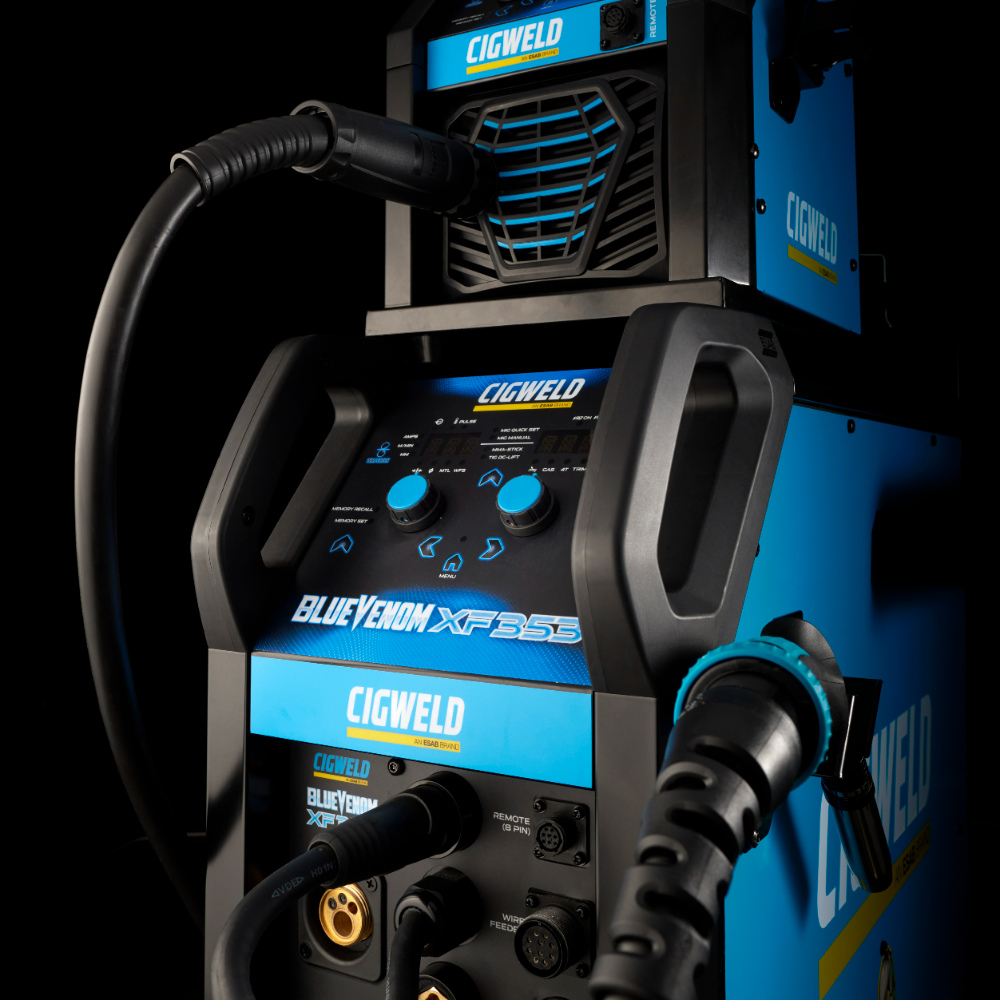

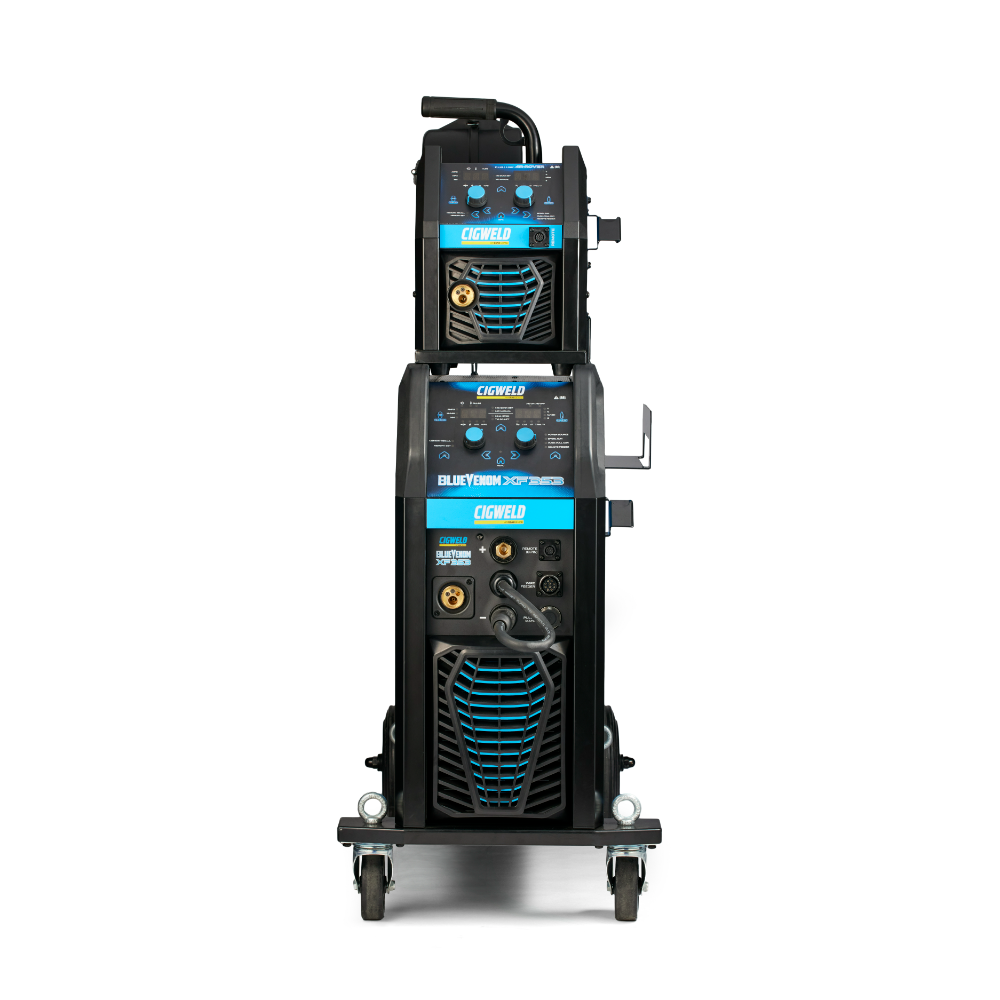

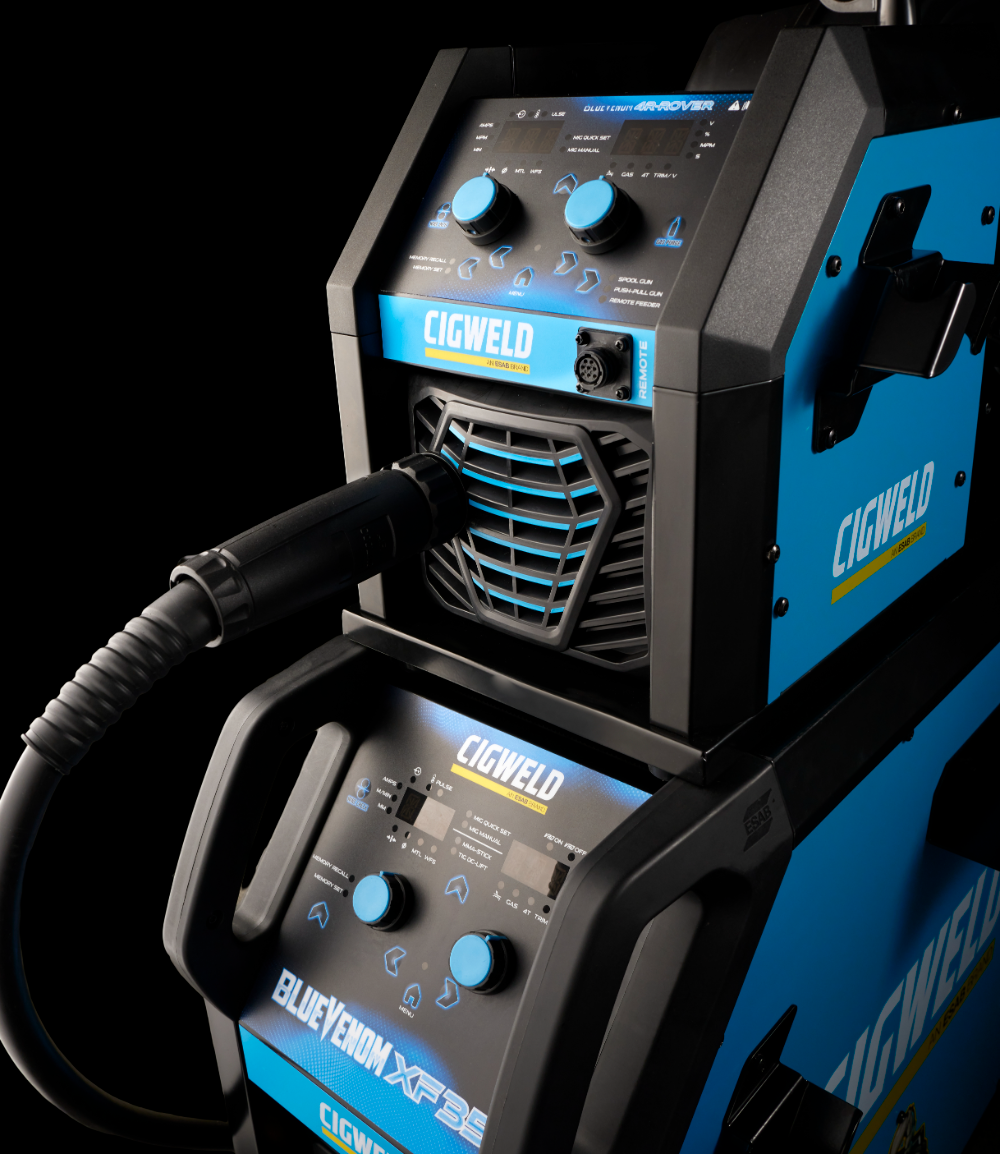

    To take it a step further, the XF353 can connect to the All-New 4R-Rover™ remote wirefeed system (sold separately) – a plug n’ play, 4 Roll wire drive unit that you can setup where you need it. Need it on a gantry or boom? No problem, with the 8m interconnection cable and in-built hanging mount, you can! PLUS, its designed specifically with a low mount handle making this little gem as compact a 300mm wire spool system can be!

    *SOLD SEPARATELY

  • ALL NEW PULSEMATE™

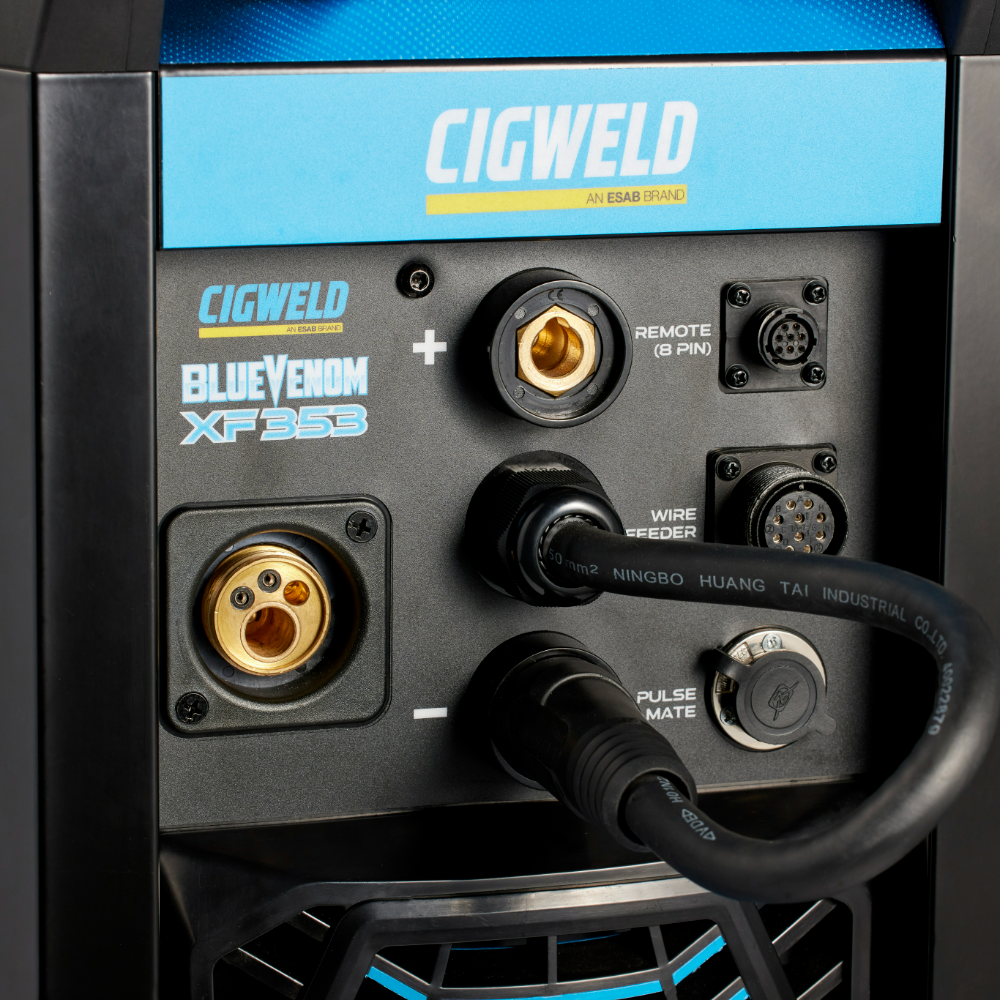

    Here’s the kicker – want Pulse? Of course you do! Turn your XF353 arc station into a single and double pulse work horse! Simply plug in the hand-held PulseMate™ pendant (sold separately) equipped with 8m of lead into the XF353 machine or 4R-Rover™ and start getting TIG like looking welds through our simple yet intuitive SimplePulse MIG system!

    *SOLD SEPARATELY

  • XF353 PACKAGE CONTENTS

    • BlueVenom™ XF353 Power Source
    • MIG Gun BZ36 “Style”, 4m, Euro
    • Work Clamp 3OOA with 4m Lead
    • Twistlock Electrode Holder 4OOA with 4m Lead
    • Feed Rolls: O.9/1.2mm V Groove (fitted), 1.O/1.2mm U Groove, 0.9/1.2mm Gasless Knurled
    • Gas Regulator/Flowmeter
    • Quick Connect Gas Hose 3m
    • Operating Manual

  • WARRANTY PERIOD

    3-Year conditional warranty.

    See terms and conditions at cigweld.com.au or in the Operating Manual, included with the machine

    ORDERING DETAILS

    Get the Full Package (sold separately):
    BlueVenom™ 4R-ROVER™ Wirefeeder – P/N: W3200401
    BlueVenom™ PulseMate™ – P/N: W4200PM1
    BZL36 Push-Pull Gun, 8m – P/N: W52BP36E8
    BZL24 Spool Gun, 6m – P/N: W52BS24E6

Power Source Dimensions
(L) 1075mm x (W) 460mm x (H) 865mm

Power Source Weight
62kg

Cooling
Fan Cooled

Standards
AS 60974.1:2020 / IEC 60974-1:2019
EN 60974-10:2021

Number of Phases
Three Phase

Nominal Supply Voltage
400 VAC ± 15%

Nominal Supply Frequency
50/60Hz

Welding Current Range (MIG mode)
30-350A

Welding Current Range (Stick mode)
20-300A

Welding Current Range (TIG DC Lift)
20-350A

Nominal DC Open Circuit Voltage MIG Weld Mode
86V

Open Circuit Voltage (VRD On) Stick Weld Mode
<35V

Open Circuit Voltage (VRD Off) Stick Weld Mode
85V

Effective Input Current (l1eff)
12.4 Amps

Maximum Input Current (l1max)
19.6 Amps

Minimum Three Phase Generator Requirement for Maximum Output
16kVA @ 0.8PF

MIG (GMAW) Welding Output, 40°C, 10 min
350A @ 40%, 31.5V | 285A @ 60%,
28.3V | 221A @ 100%, 25.1V

Stick (MMAW) Welding Output, 40°C, 10 min
300A @ 40%, 32.0V | 245A @ 60%,
29.8V | 190A @ 100%, 27.6V

TIG DC Lift (GTAW) Welding Output, 40°C, 10 min
350A @ 40%, 24.0V | 285A @ 60%,
21.4V | 221A @ 100%, 18.9V

Protection Class
IP21
