Price range: $31,295.00 through $31,790.00

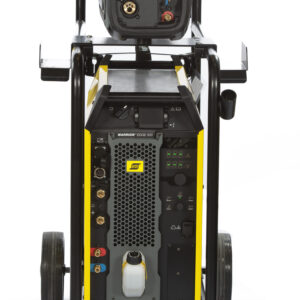

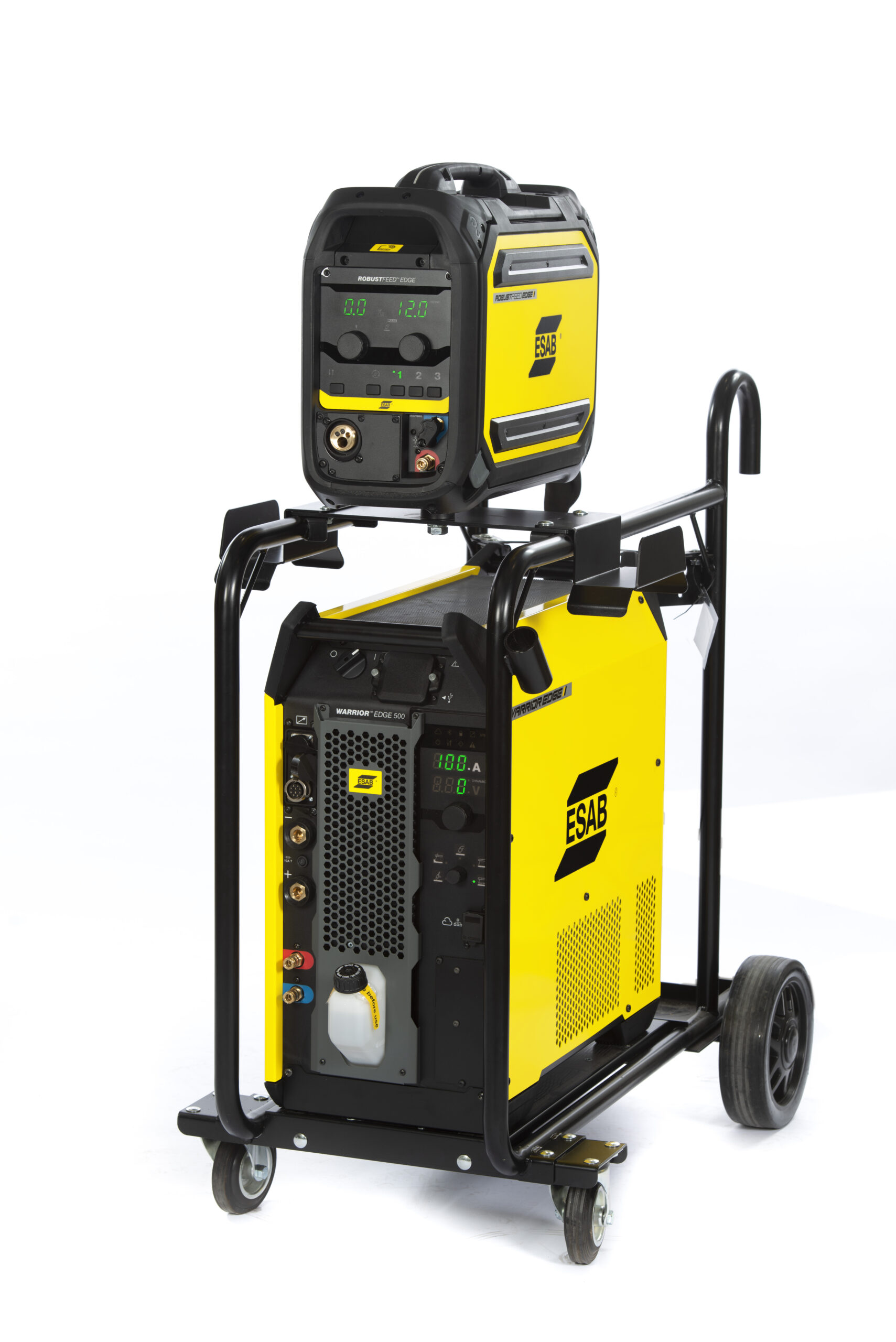

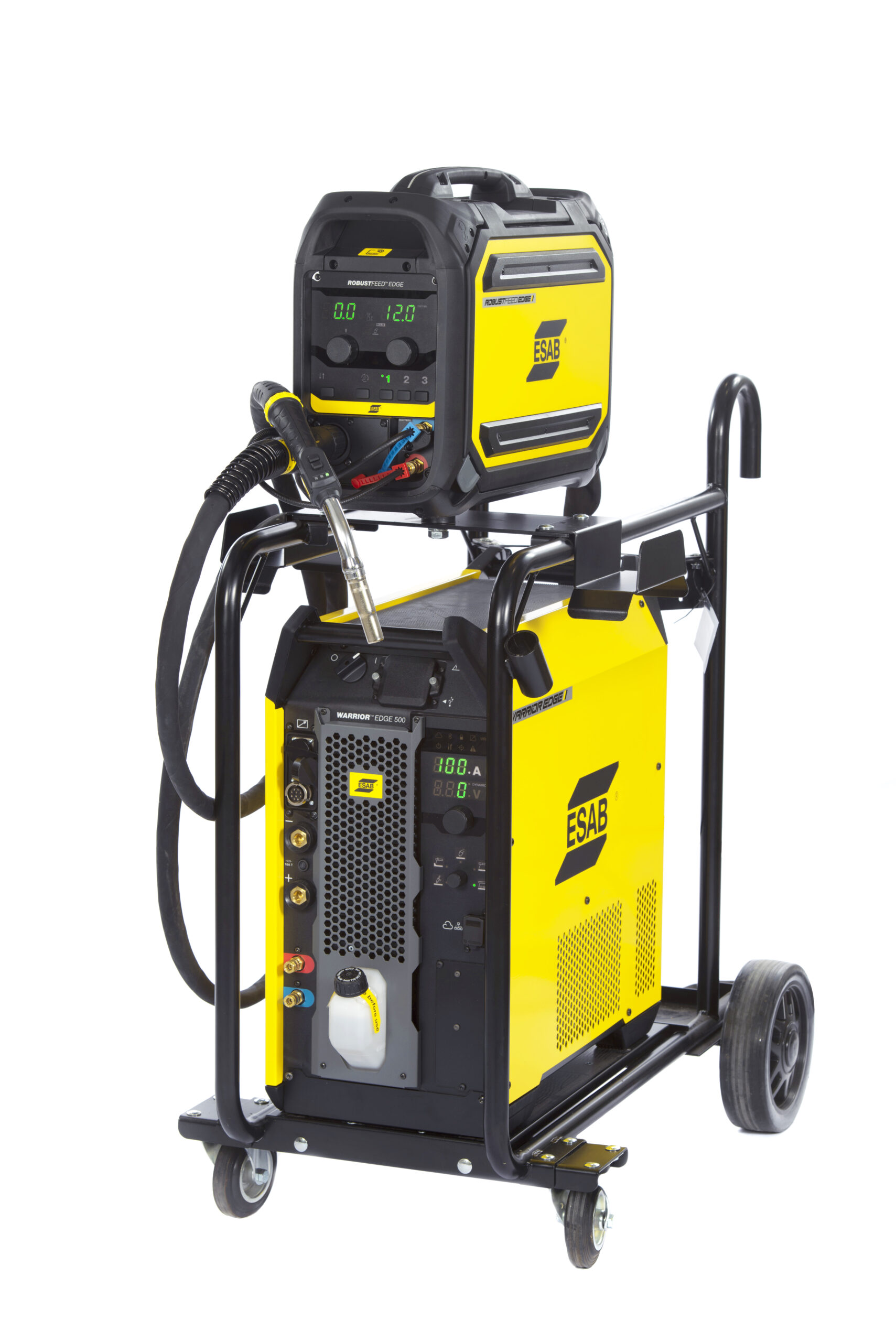

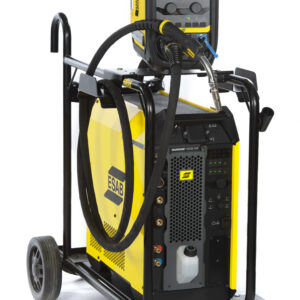

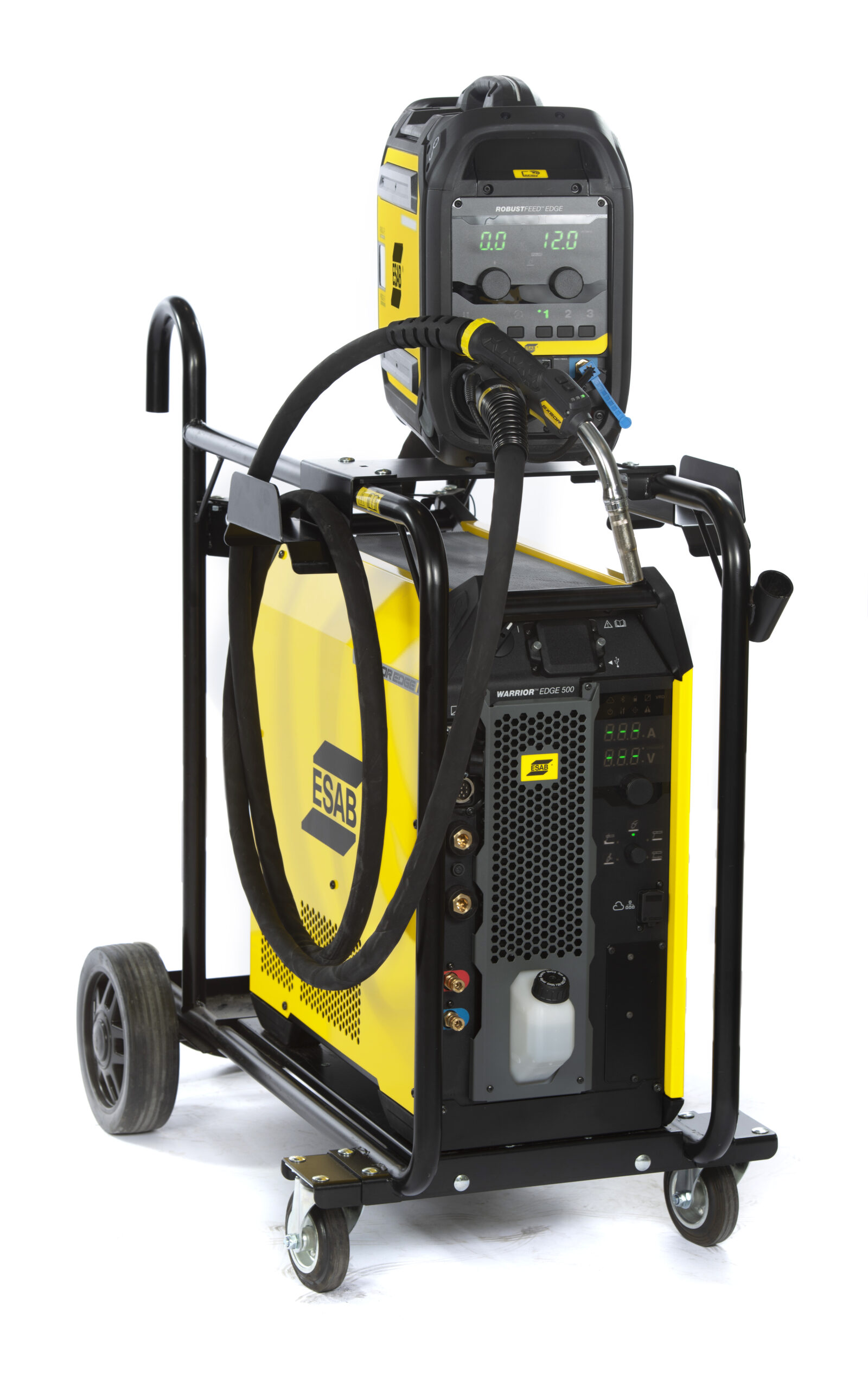

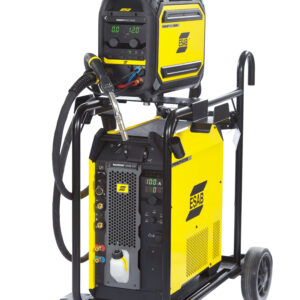

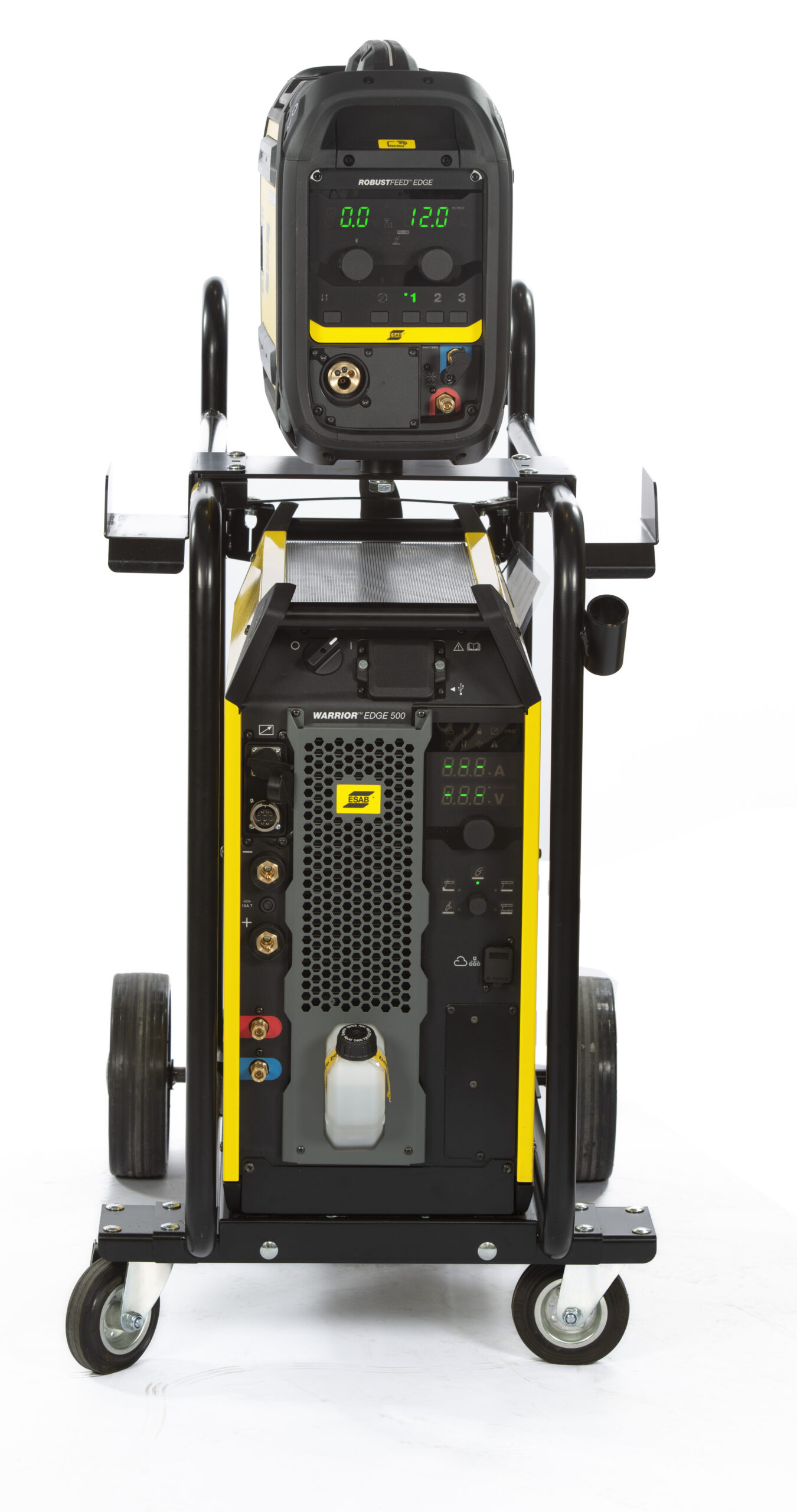

Warrior Edge 500 DX is an easy-to-use, high-performing and connected multi-process welding machine featuring the WeldModes THIN, ROOT, Pulse, SPEED and CRAFT.
• High performance THIN WeldMode reduces spatter levels and helps reduce distortion when welding thin plates
• With a gap bridging ability, the easy to control ROOT WeldMode is optimized for root passes
• Adaptive optimized Pulse MIG process for Carbon Steel welding that compensates for operator variation with an easy, user-friendly setup designed to achieve excellent weld results
• Fit for purpose SPEED WeldMode provide a focused arc that allows the welder to better and easier handle the weld pool at higher travel speeds increasing the productivity
• Aluminium Double Pulse MIG welding becomes a breeze with the CRAFT WeldMode, with the easiest to use Double Pulse settings on the market for the best looking stacked dimes look
• Integrated 1.4 kW high performance cooling unit
• Integrated WeldCloud connectivity
ROBUSTFEED EDGE FEATURES:
• TrueFlow, the digital gas flow control system from ESAB, effectively manages shielding gas both in starts and while welding thus improving quality and decreasing consumption
• Effective and quick to set-up operator management system with key card that allows locking down quick-jobs with setting limits improves repeatability and adherence to welding procedure specifications
• The 2021 Red Dot design award winning design provides well-designed ergonomics and intuitive user interface that reduces training needs for operators
• SpoolSafe – unique in the market IP54 protection against dirt/dust, keeping your wire dry and clean, protecting the integrity of your weld
• A hybrid HMI solution with material selection and configurations on a TFT-screen inside the unit with a clear and easy to use external display for everyday operation makes unit easy to operate
• Integrates with the Exeor DX torch models graphic display remote without the need for additional connectors
If you need further information
Talk to us on 1300 654 674
| Cooling Type | |
|---|---|
| Dimensions | |
| Mains Voltage | |
| Open Circuit Voltage | 54.8 V |
| Operating Temperature | |
| Standby Power | 43 W |
| Weight | |
| Welding Output GMAW (MIG/MAG) | 500 A / 39.0 V at 60% Duty Cycle 400 A / 34.0 V at 100% Duty Cycle |
| Welding Output GTAW (TIG) | 500 A / 30.0 V at 60% Duty Cycle 400 A / 26.0 V at 100% Duty Cycle |
| Welding Output SMAW (MMA) | 500 A / 40.0 V at 60% Duty Cycle 400 A / 36.0 V at 100% Duty Cycle |
| Operating Temperature | '-20° to +55°C | Weight | 85 kg |
| Mains Voltage | 380 - 460 V ±10%, 3ph, 50/60 Hz | Dimensions | 700 x 325 x 680 mm |
| Open Circuit Voltage | 54.8 V | Standby Power | 43 W |
| Welding Output GTAW (TIG) | 500 A / 30.0 V at 60% Duty Cycle 400 A / 26.0 V at 100% Duty Cycle | Welding Output SMAW (MMA) | 500 A / 40.0 V at 60% Duty Cycle 400 A / 36.0 V at 100% Duty Cycle |
| Welding Output GMAW (MIG/MAG) | 500 A / 39.0 V at 60% Duty Cycle 400 A / 34.0 V at 100% Duty Cycle | DRAFT | DRAFT |
| Cooling Type | Air-cooled, Water-cooled |
| Operating Temperature | '-20° to +55°C |
| Weight | 85 kg |
| Mains Voltage | 380 - 460 V ±10%, 3ph, 50/60 Hz |
| Dimensions | 700 x 325 x 680 mm |
| Open Circuit Voltage | 54.8 V |
| Standby Power | 43 W |
| Welding Output GTAW (TIG) | 500 A / 30.0 V at 60% Duty Cycle 400 A / 26.0 V at 100% Duty Cycle |
| Welding Output SMAW (MMA) | 500 A / 40.0 V at 60% Duty Cycle 400 A / 36.0 V at 100% Duty Cycle |
| Welding Output GMAW (MIG/MAG) | 500 A / 39.0 V at 60% Duty Cycle 400 A / 34.0 V at 100% Duty Cycle |
| DRAFT | DRAFT |
| Cooling Type | Air-cooled, Water-cooled |
For over 100 years, CIGWELD has proudly served Australian industry with trusted, high-performance welding equipment.
Local Expertise & Support
CIGWELD is committed to providing exceptional customer service, with products backed by local expertise and nationwide support.
As part of ESAB, CIGWELD benefits from world-leading innovation and technology, ensuring our customers get access to the most advanced and reliable solutions available.
Find your nearest CIGWELD ESAB distributor or service agent.. Search by postcode or suburb to locate trusted partners who stock our products and support our full range of welding solutions.

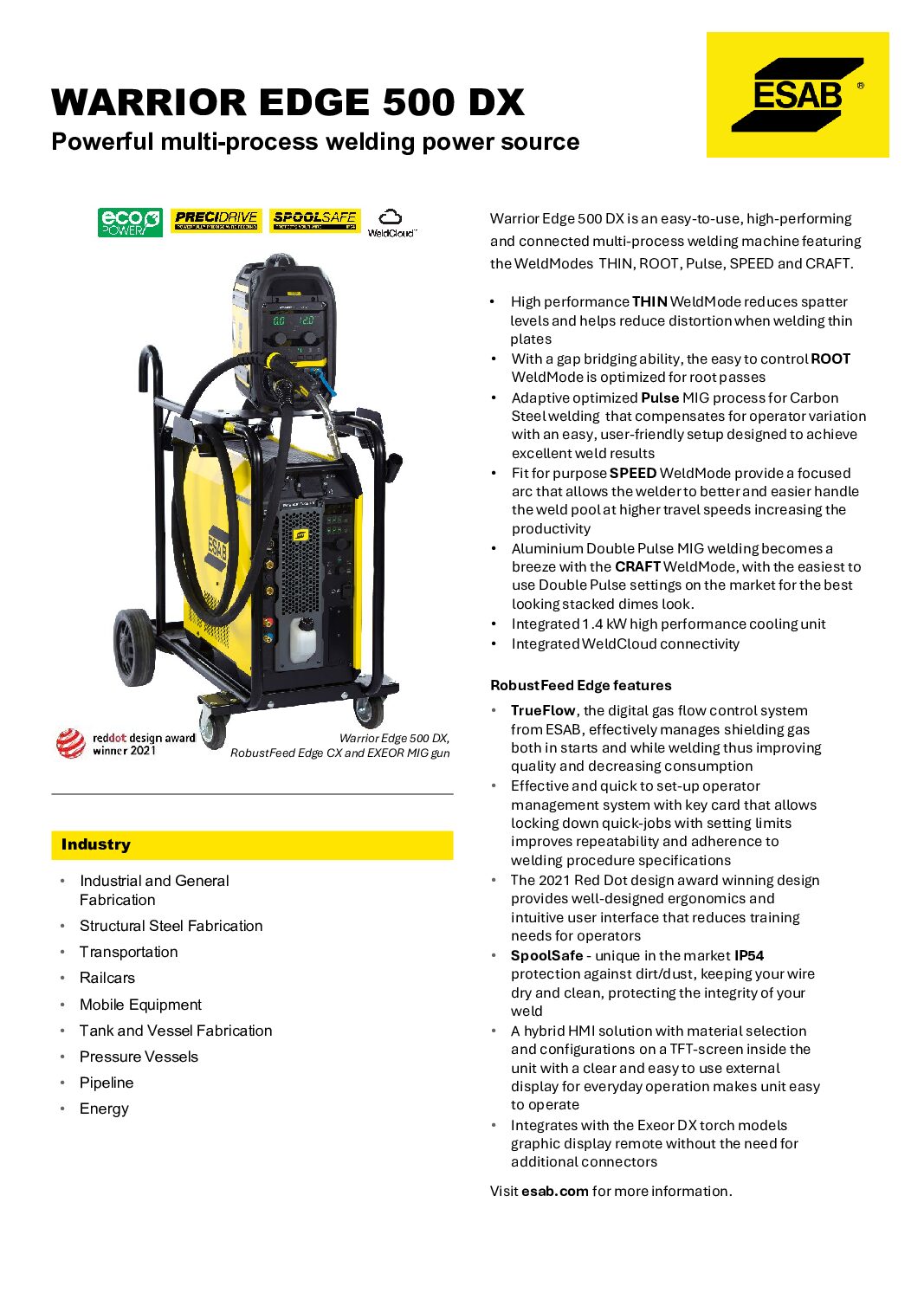

Download
