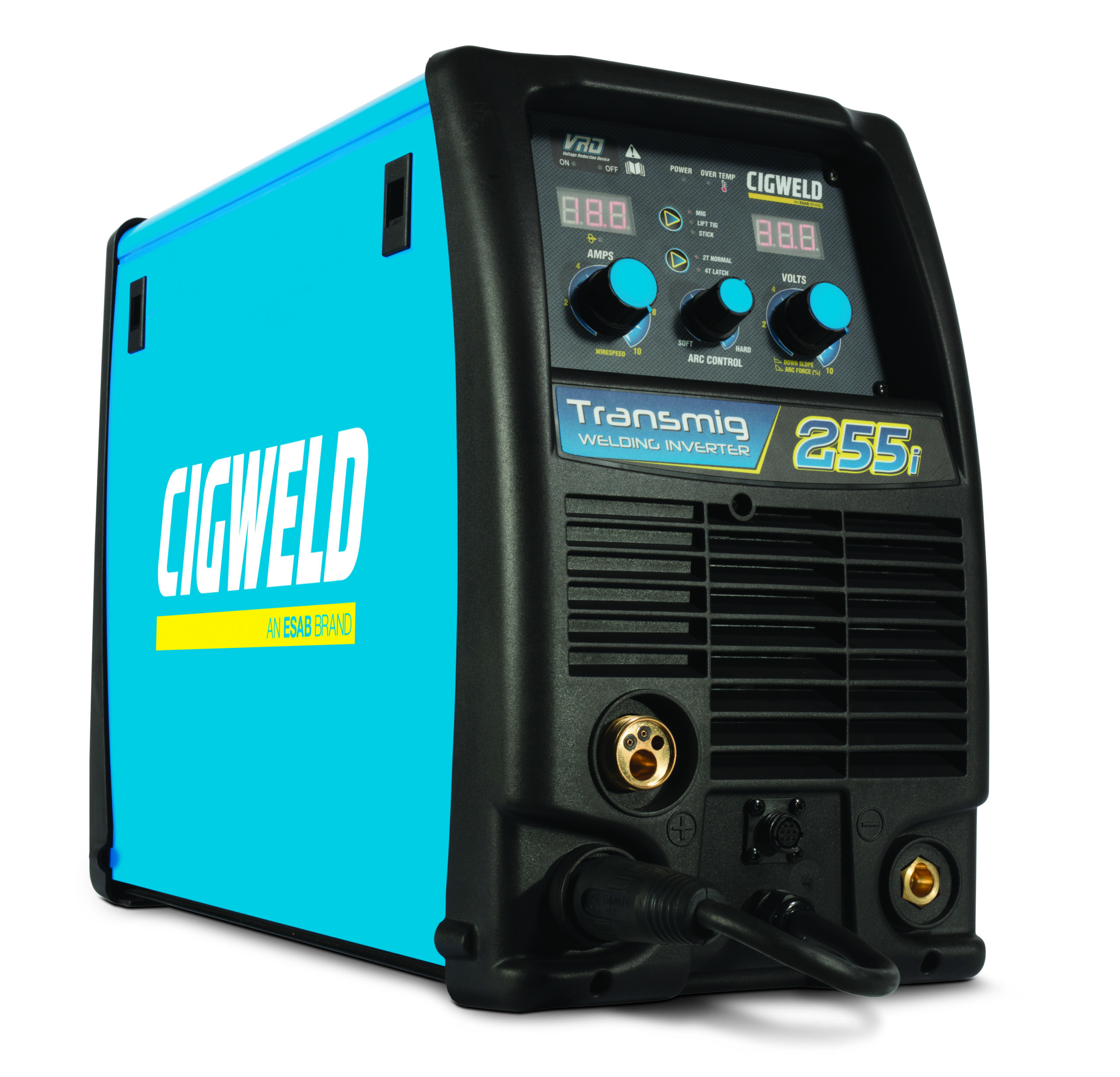

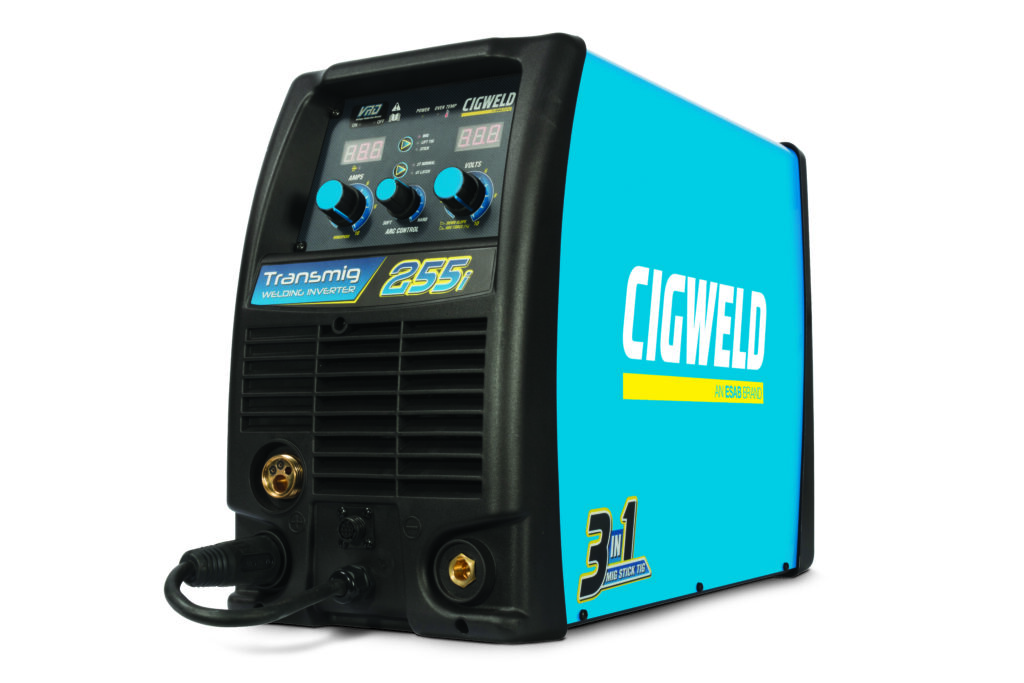

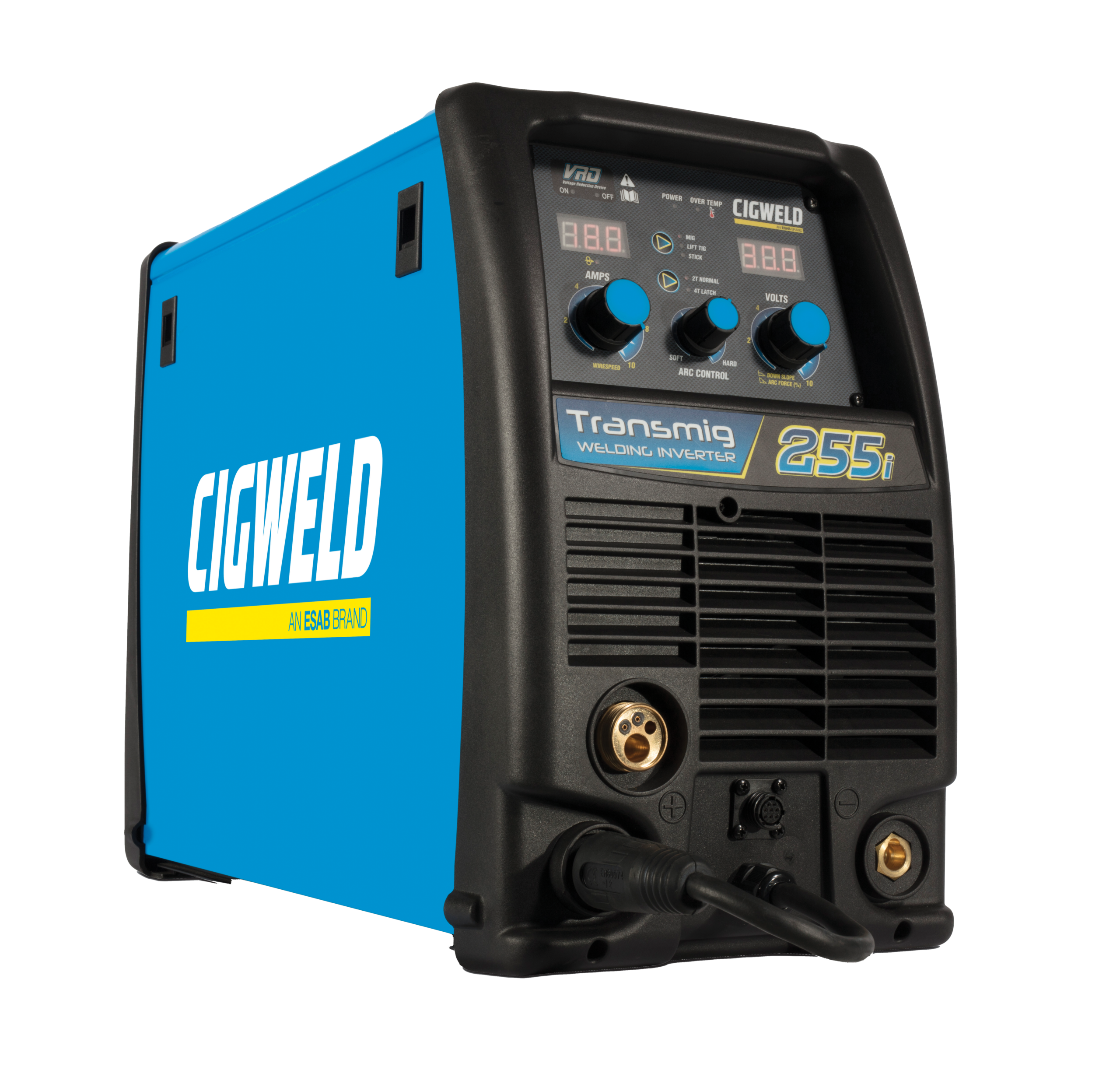

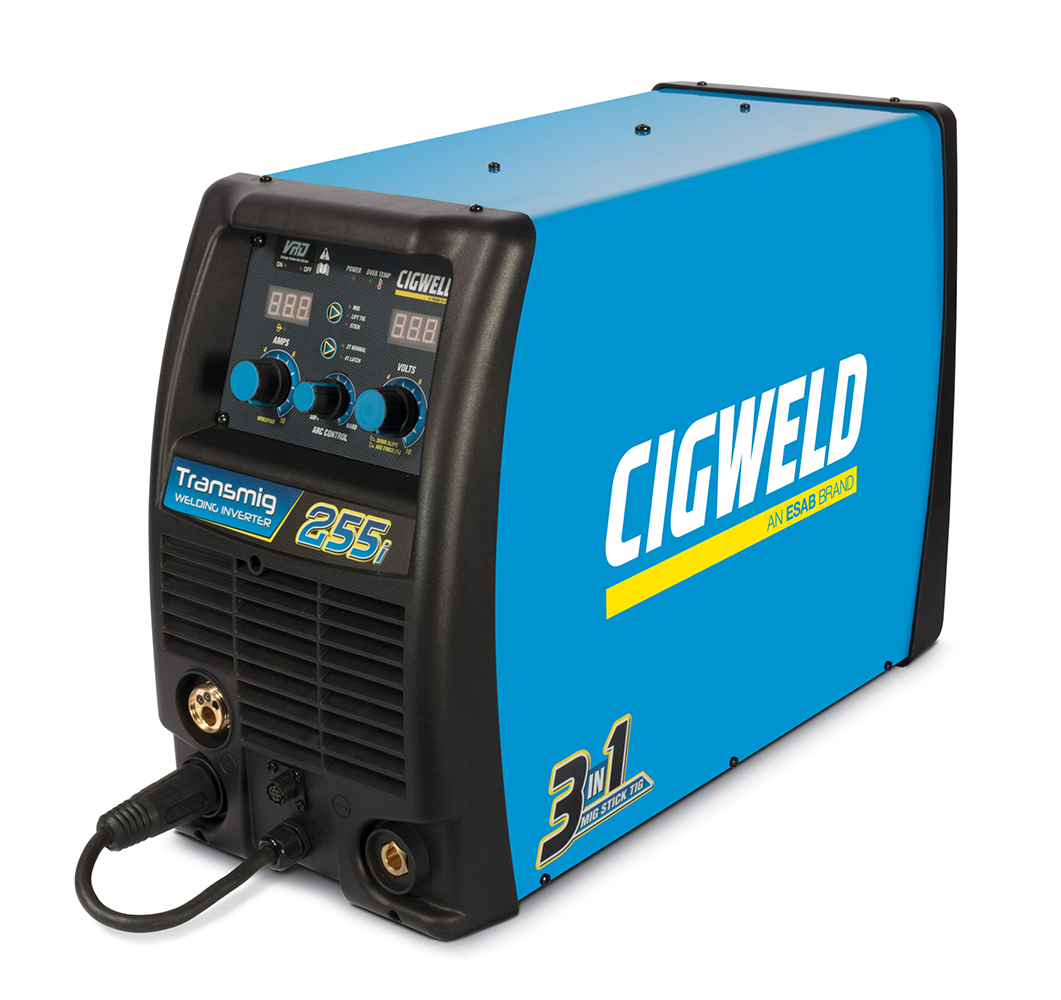

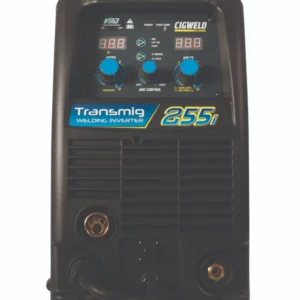

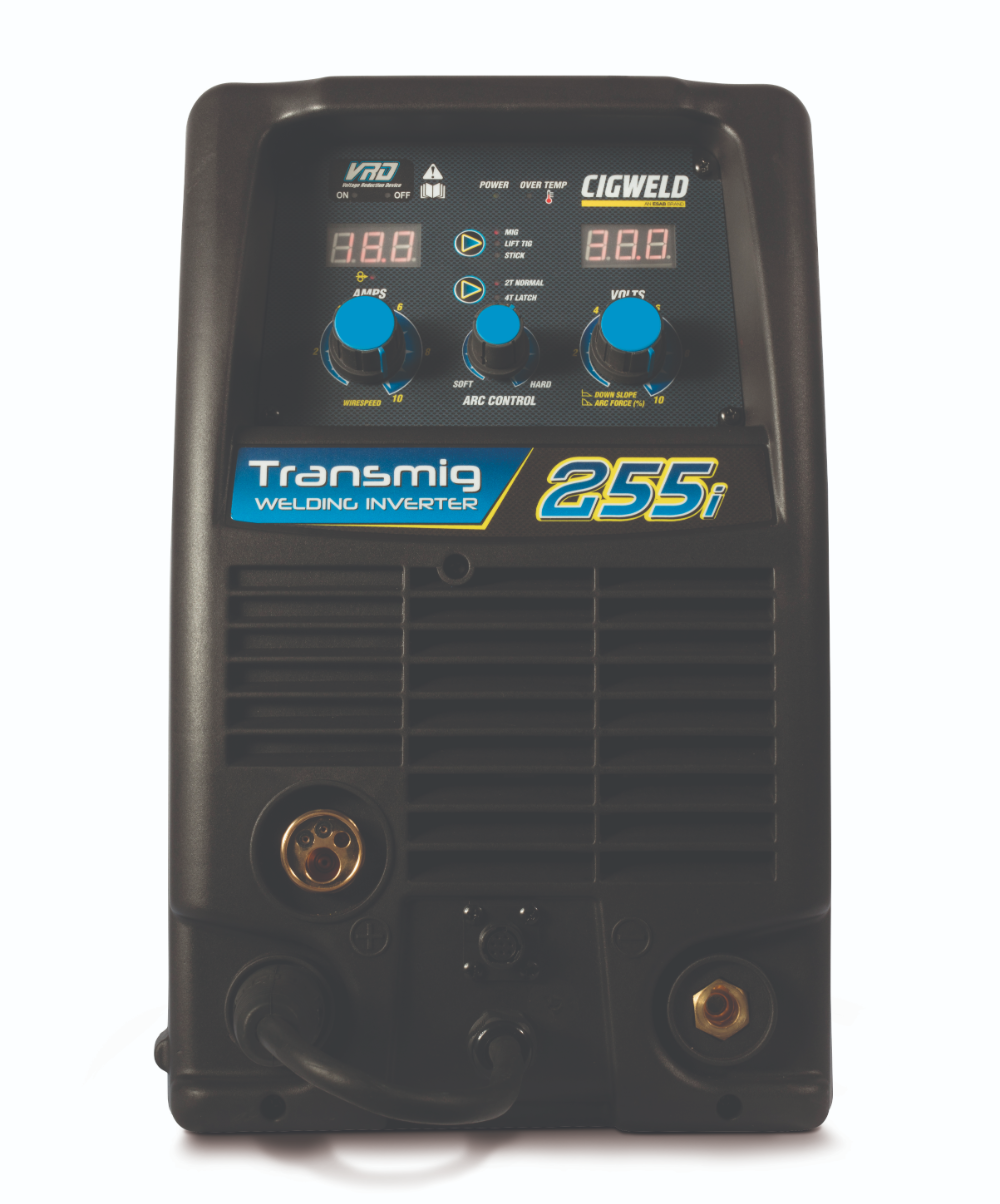

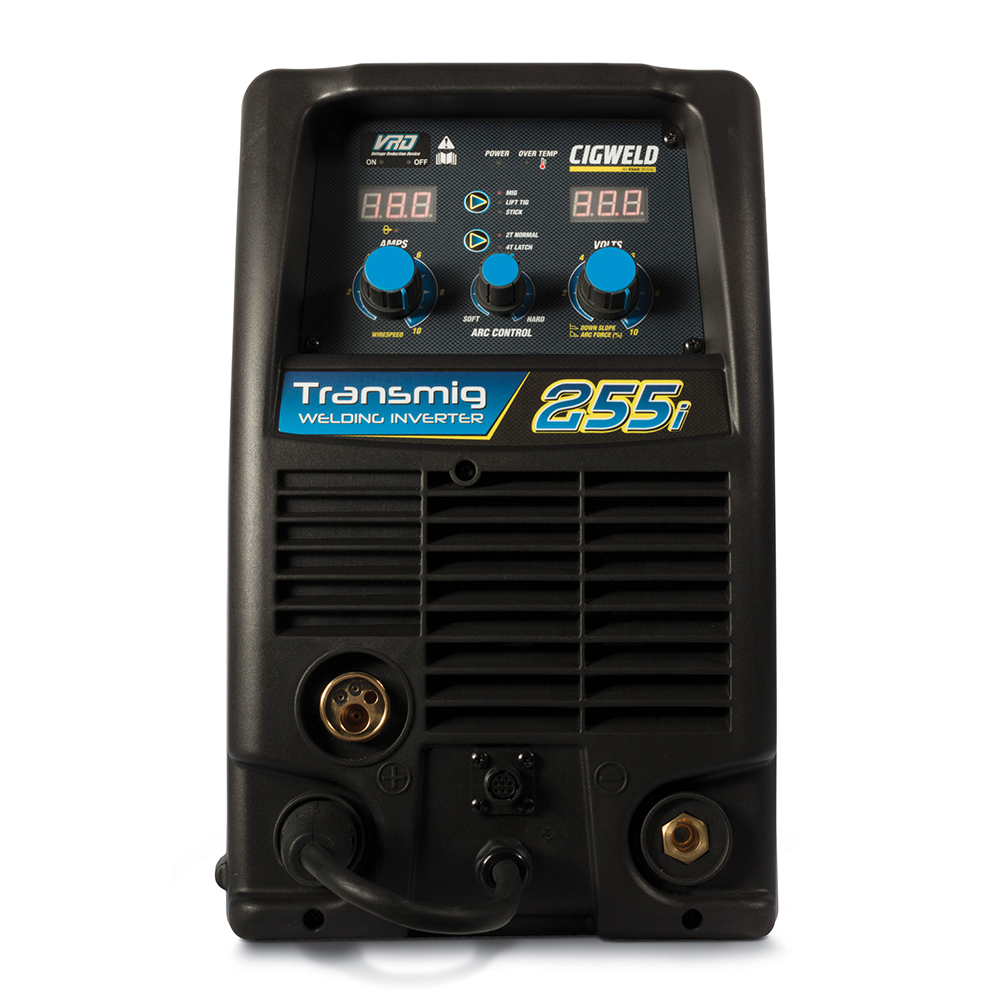

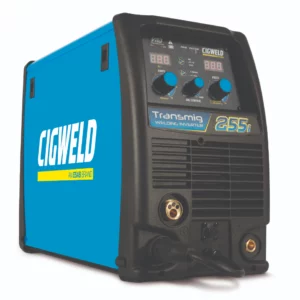

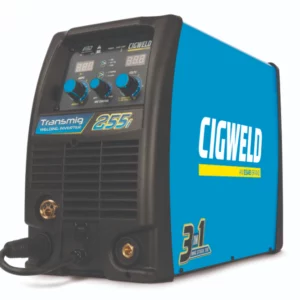

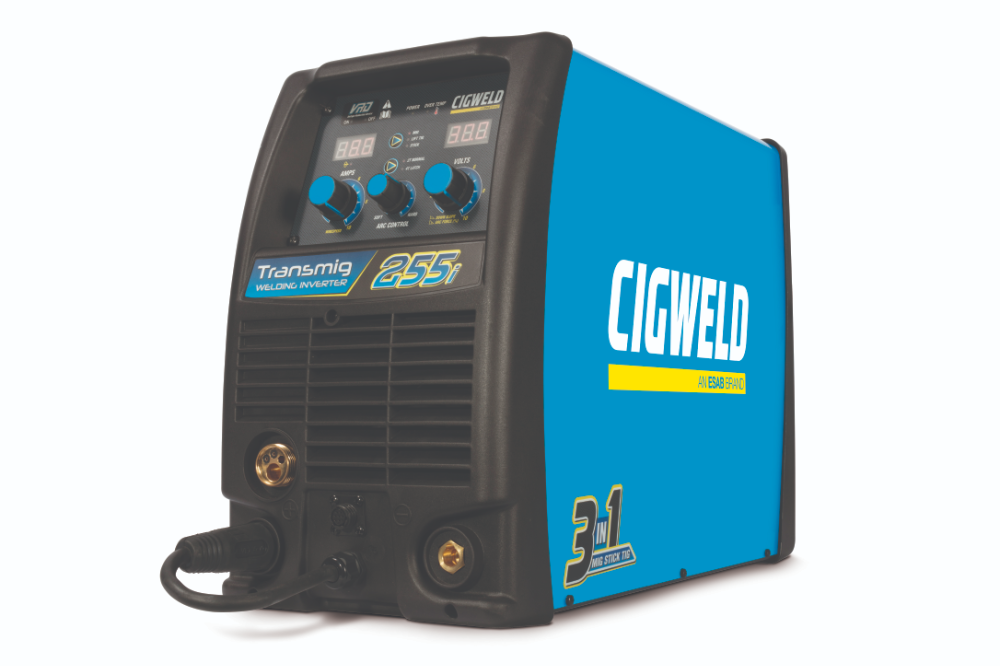

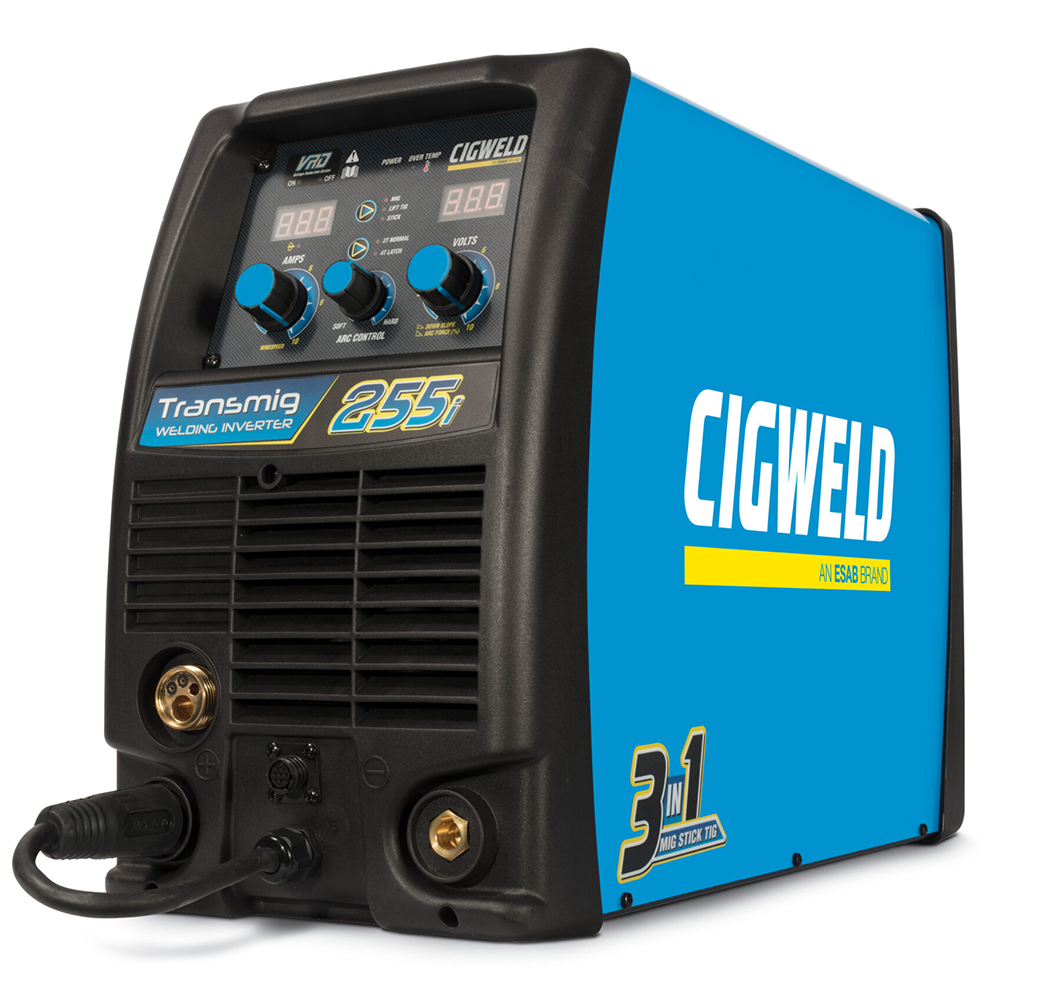

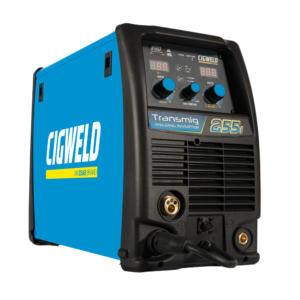

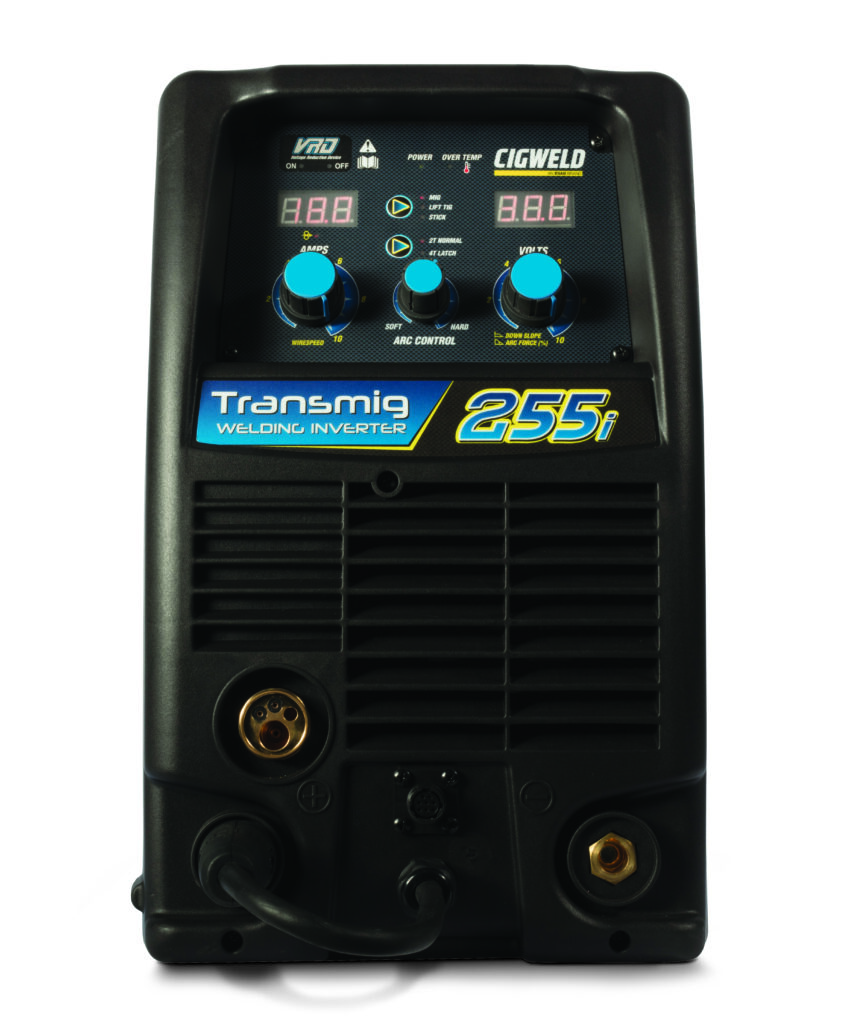

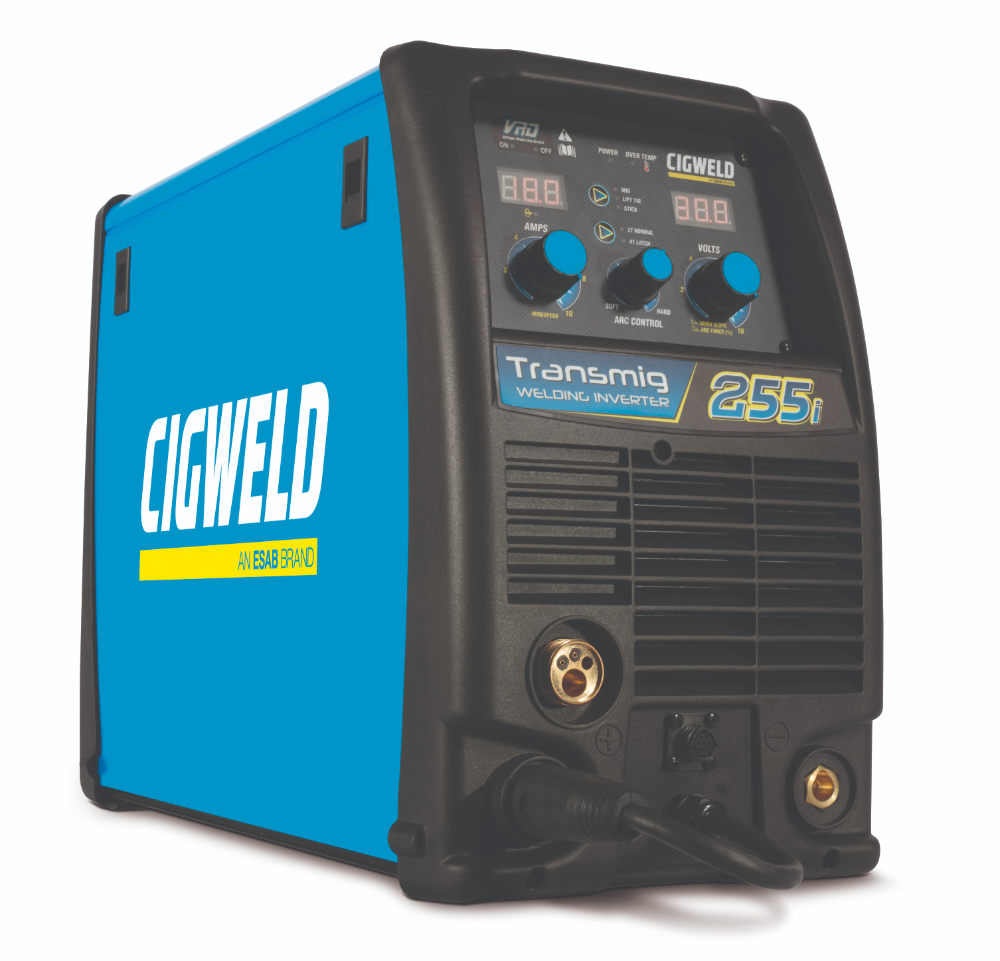

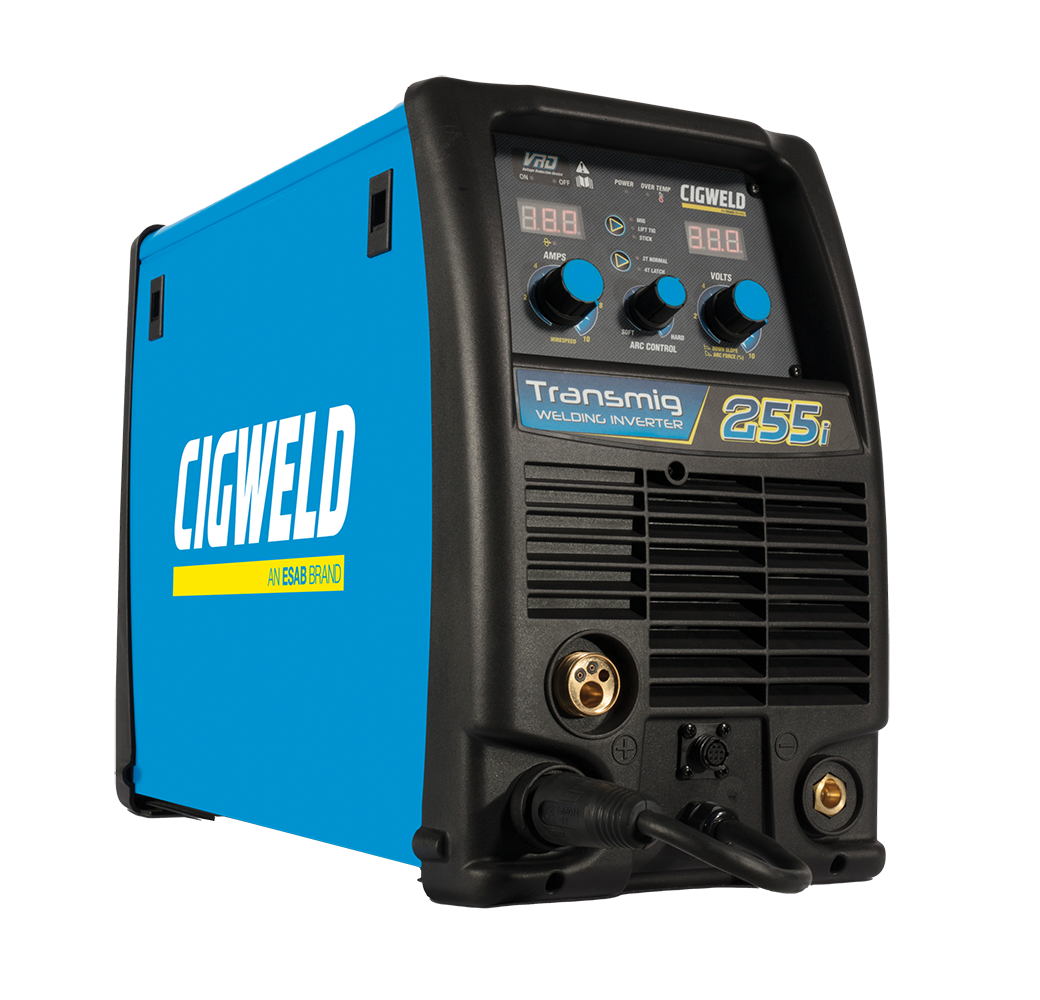

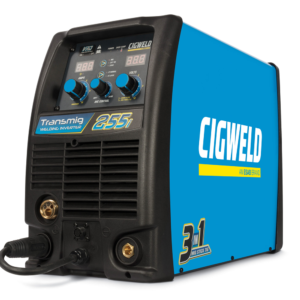

TransMIG 255i – Multiprocess Welding Inverter – 240V 15A

SKU: W1005255
$2,620.00

$2,620.00

The CIGWELD Transmig 255i is a self contained single phase multiprocess welding inverter with digital voltage and amperage meters, that is capable of performing MIG (GMAW/FCAW), Stick (MMAW) and Lift TIG (GTAW) welding processes. It is ideal for welding plate thicknesses between 0.8mm and 12mm with a range of wires from 0.6mm-1.2mm (solid), and has the added benefit of running the Tweco SGT250 Spool Gun for the convenience of your precision aluminium work.

Out of stock

Description

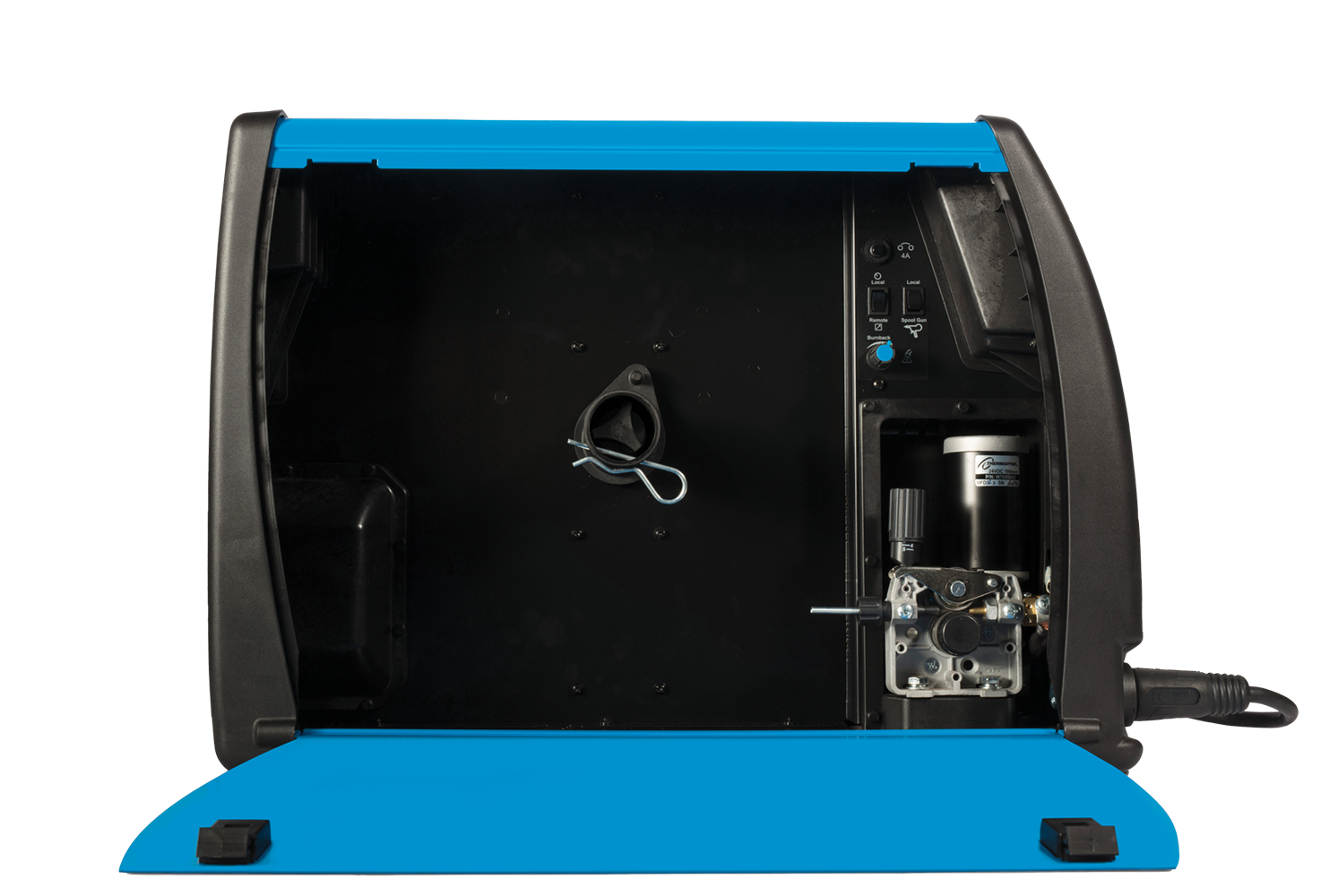

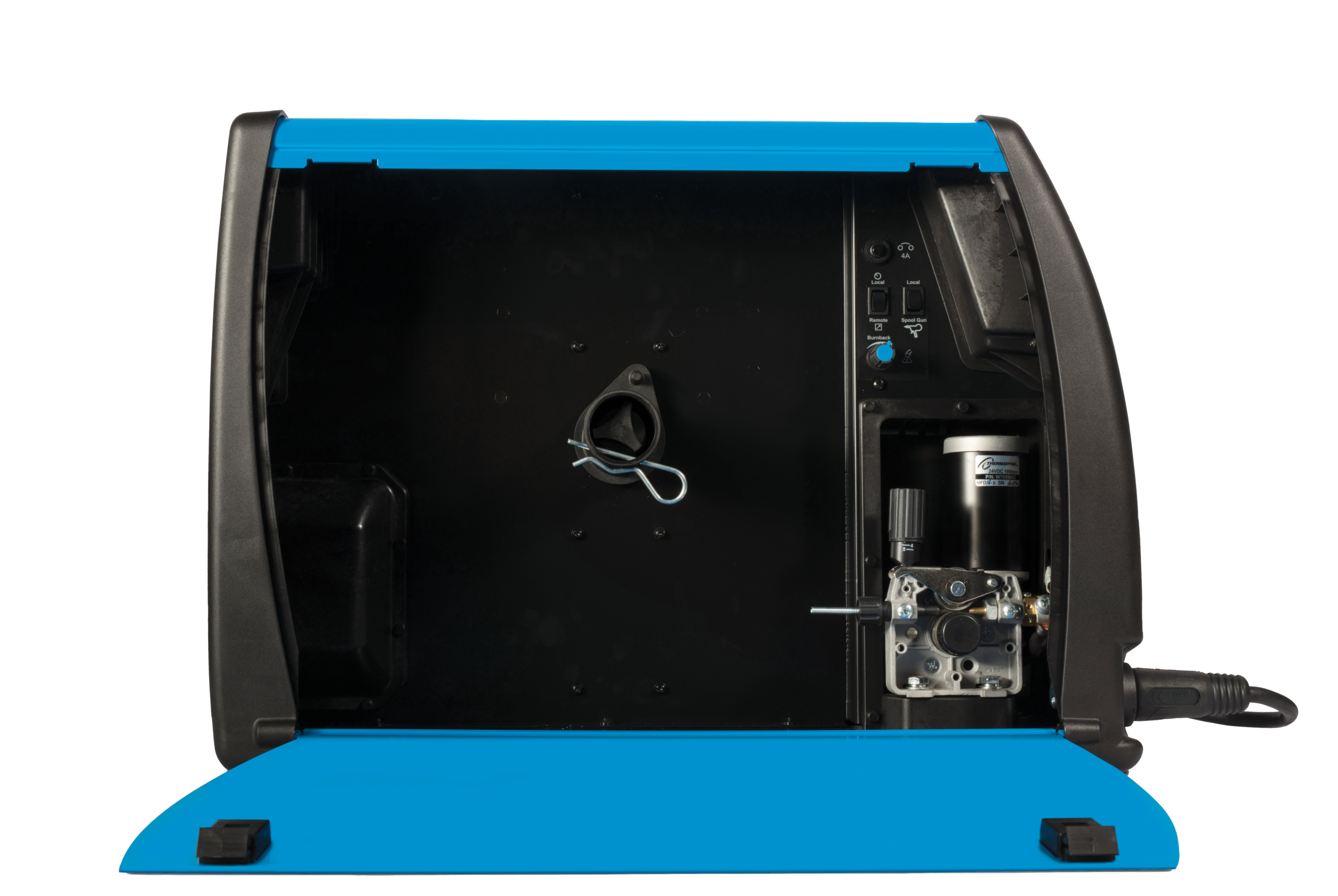

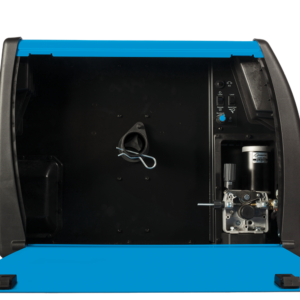

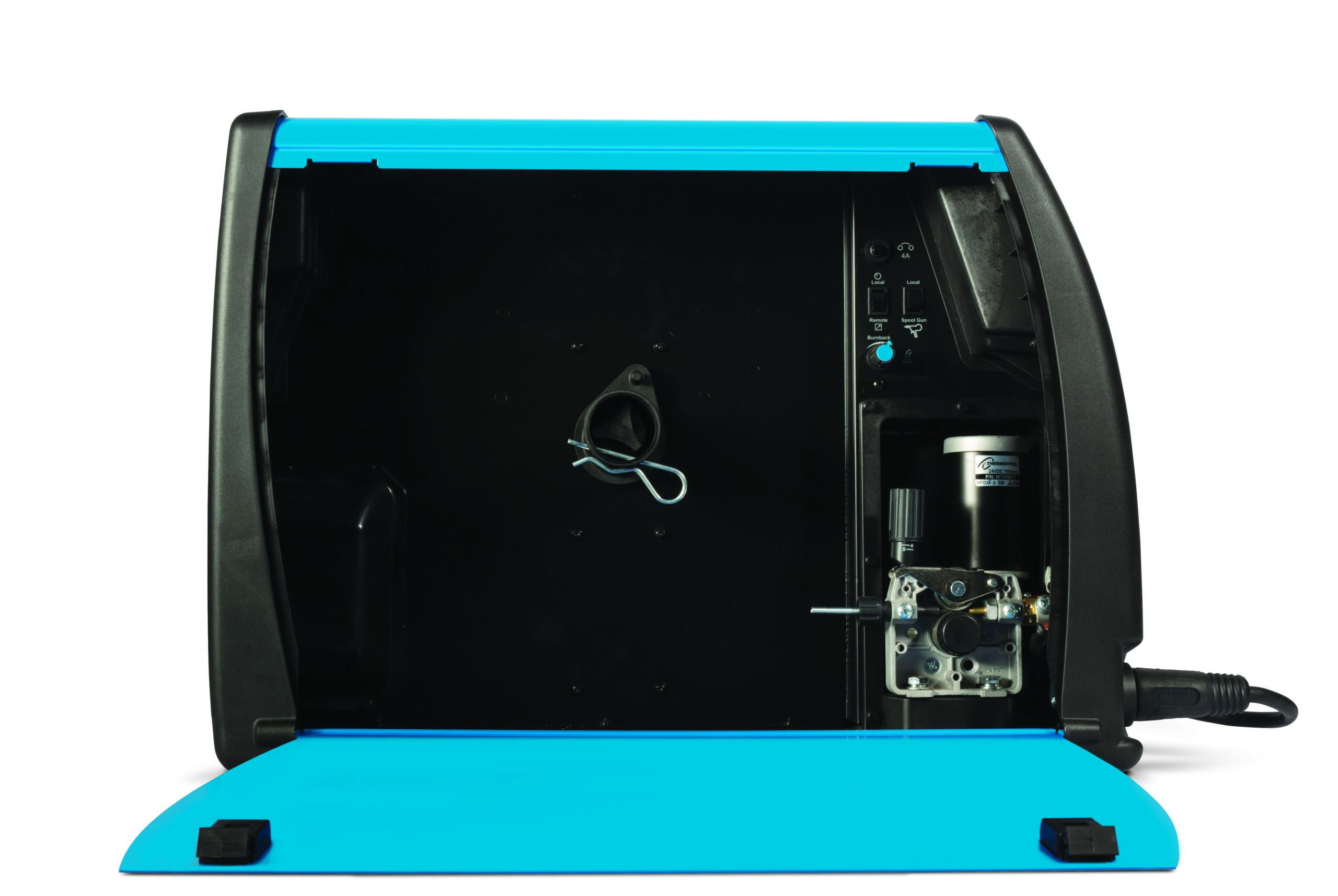

The CIGWELD Transmig 255i is a self contained single phase multiprocess welding inverter with digital voltage and amperage meters, that is capable of performing MIG (GMAW/FCAW), Stick (MMAW) and Lift TIG (GTAW) welding processes. It is ideal for welding plate thicknesses between 0.8mm and 12mm with a range of wires from 0.6mm-1.2mm (solid), and has the added benefit of running the Tweco SGT250 Spool Gun for the convenience of your precision aluminium work. The Transmig 255i is equipped with an integrated wire feed unit to fit 300mm spools whilst being compliant to Australian Standard AS 60974.1-2006. It is ideal for indoor/outdoor use with an enclosure rating of IP23S. The 255i can be upgraded with a 25 Amp plug and 4mm2 supply lead which increases your duty cycle so you can run it harder for longer. Ideal for onsite repairs and maintenance, medium industrial workshops, car panel repairs or serious welders that want a single phase inverter they can plug in and use around their own home workshop. FEATURES:
  • Adjustable Inductance
  • Adjustable Burnback
  • 2T/4T Trigger Mode
  • Hot Start & Anti-Stick (Stick)
  • Down Slope (TIG)
  • Adjustable Arc Force (Stick)
  • VRD (Stick)
  • Power Factor Correction (PFC)
  • Fan on Demand
  • Spool Gun Compatible (Tweco SGT 250)

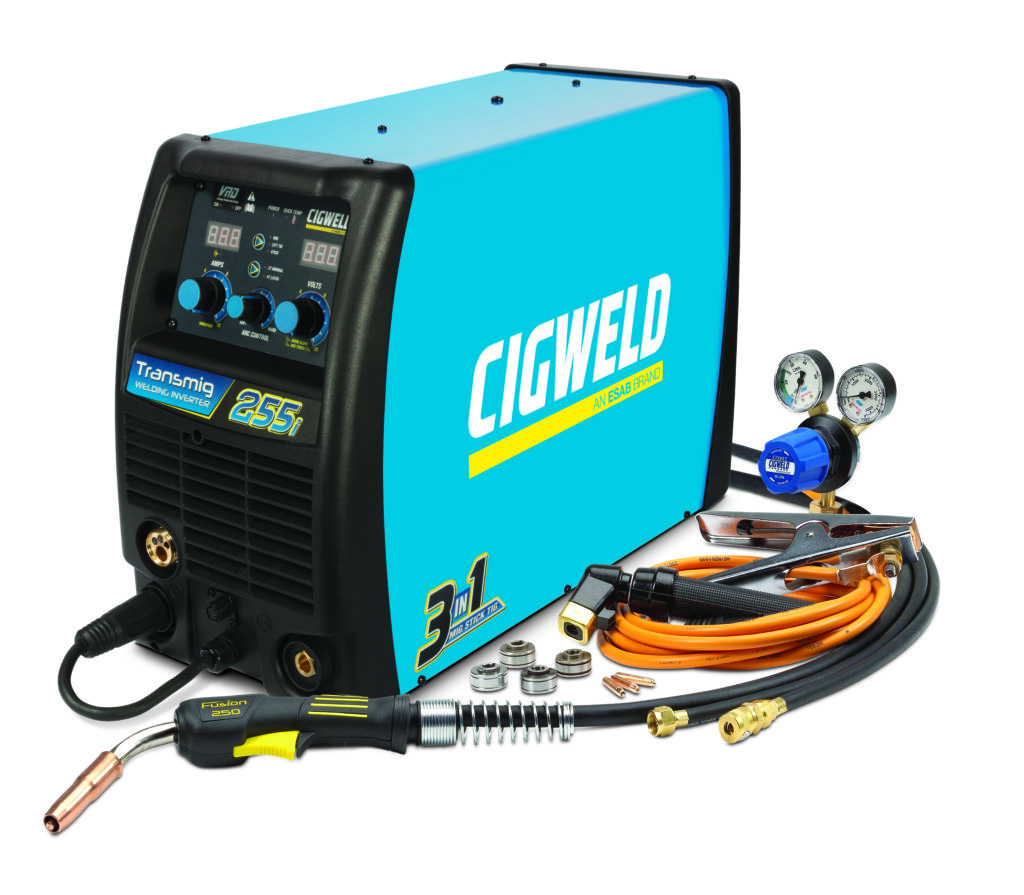

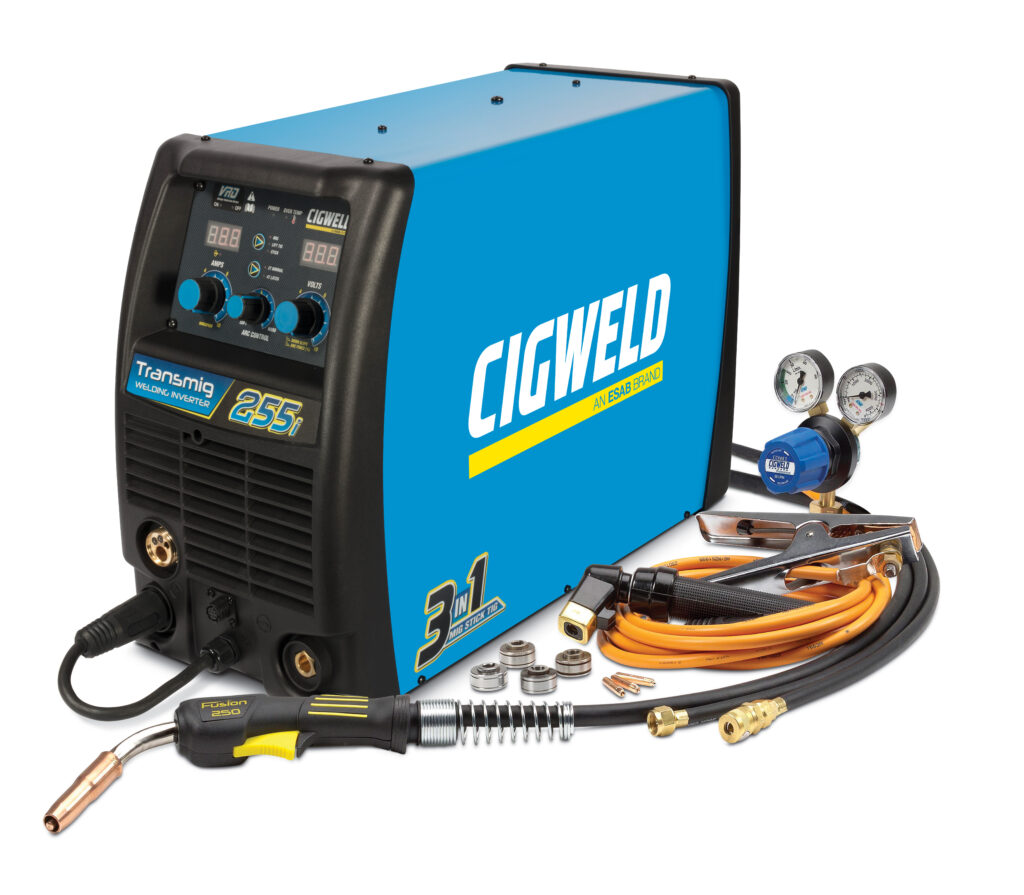

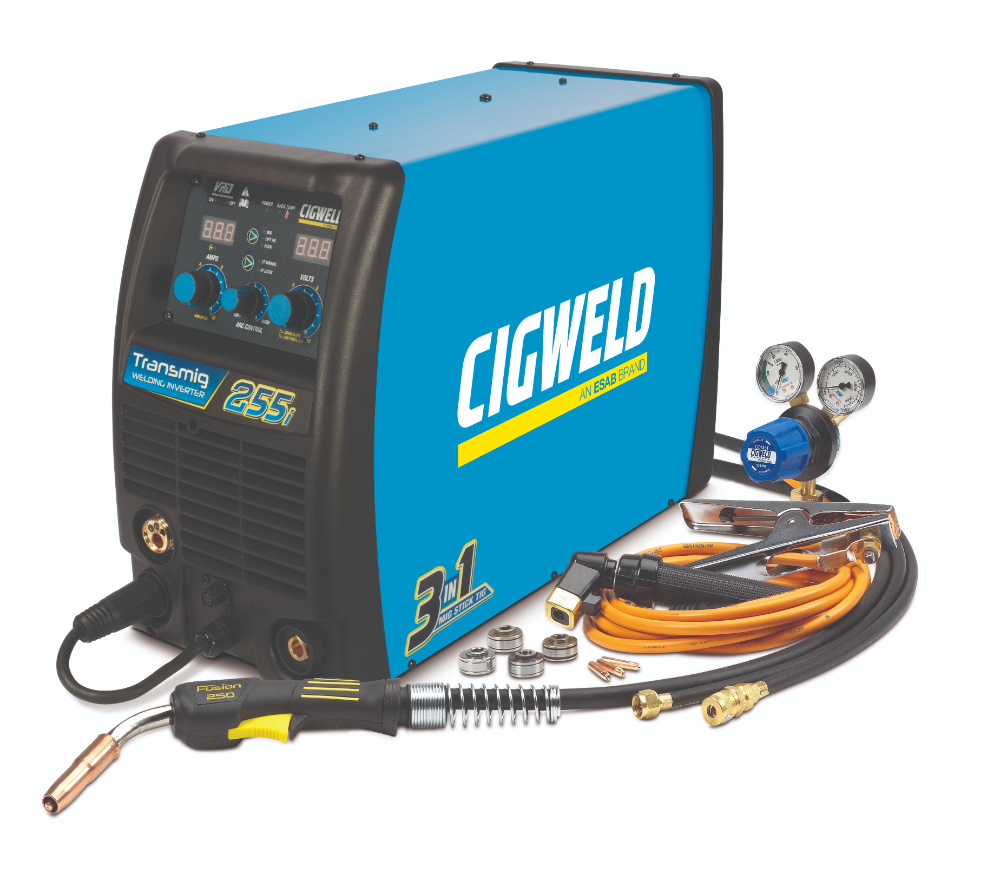

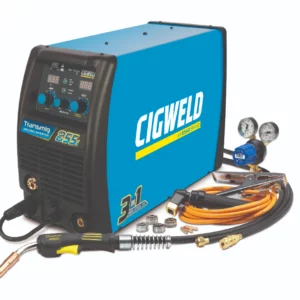

CONTENTS:
  • Transmig 255i Inverter Power Source (27kg)
  • Tweco Professional Fusion 250 MIG Torch, 3m
  • COMET Professional Argon regulator/flowmeter
  • Feed Rolls: 0.9/1.2mm “V” groove (fitted), 0.6/0.8mm “V” groove, 0.9/1.0mm (U) groove, 0.8/0.9mm “V” knurled
  • Contact Tips: 0.9mm (fitted), 0.8mm, 0.9mm, 1.0mm
  • Twistlock Electrode Holder with 4m lead
  • Work Clamp with 4m Lead
  • Shielding Gas Hose Assembly
  • Operating Manual
ORDERING INFORMATION: TRANSMIG 255i, P/N: W1005255 PRODUCT TESTING As part of our product development, CIGWELD rigorously test all the internal components of the welding machine and its external accessories. We make sure that the machines are not just fit for purpose, but will handle tougher than expected working conditions. Additionally, we also conduct weld tests on various common metals, using the expertise of our local technical team ensuring that the settings you use on our machines are tuned to local conditions.
The CIGWELD Transmig 255i is a self contained single phase multiprocess welding inverter with digital voltage and amperage meters, that is capable of performing MIG (GMAW/FCAW), Stick (MMAW) and Lift TIG (GTAW) welding processes. It is ideal for welding plate thicknesses between 0.8mm and 12mm with a range of wires from 0.6mm-1.2mm (solid), and has the added benefit of running the Tweco SGT250 Spool Gun for the convenience of your precision aluminium work. The Transmig 255i is equipped with an integrated wire feed unit to fit 300mm spools whilst being compliant to Australian Standard AS 60974.1-2006. It is ideal for indoor/outdoor use with an enclosure rating of IP23S. The 255i can be upgraded with a 25 Amp plug and 4mm2 supply lead which increases your duty cycle so you can run it harder for longer. Ideal for onsite repairs and maintenance, medium industrial workshops, car panel repairs or serious welders that want a single phase inverter they can plug in and use around their own home workshop. FEATURES:
  • Adjustable Inductance
  • Adjustable Burnback
  • 2T/4T Trigger Mode
  • Hot Start & Anti-Stick (Stick)
  • Down Slope (TIG)
  • Adjustable Arc Force (Stick)
  • VRD (Stick)
  • Power Factor Correction (PFC)
  • Fan on Demand
  • Spool Gun Compatible (Tweco SGT 250)
CONTENTS:
  • Transmig 255i Inverter Power Source (27kg)
  • Tweco Professional Fusion 250 MIG Torch, 3m
  • COMET Professional Argon regulator/flowmeter
  • Feed Rolls: 0.9/1.2mm “V” groove (fitted), 0.6/0.8mm “V” groove, 0.9/1.0mm (U) groove, 0.8/0.9mm “V” knurled
  • Contact Tips: 0.9mm (fitted), 0.8mm, 0.9mm, 1.0mm
  • Twistlock Electrode Holder with 4m lead
  • Work Clamp with 4m Lead
  • Shielding Gas Hose Assembly
  • Operating Manual
ORDERING INFORMATION: TRANSMIG 255i, P/N: W1005255 PRODUCT TESTING As part of our product development, CIGWELD rigorously test all the internal components of the welding machine and its external accessories. We make sure that the machines are not just fit for purpose, but will handle tougher than expected working conditions. Additionally, we also conduct weld tests on various common metals, using the expertise of our local technical team ensuring that the settings you use on our machines are tuned to local conditions.
Additional Features

Brand

Dimensions Power Source

Duty cycle

, ,

Generator Requirement

Material Thickness MIG

Material Thickness STICK

Material Thickness TIG

Material Type

Number of Phases

Plug Type

Power Supply

Pulse Capable MIG

Pulse Capable STICK

Pulse Capable TIG

Usage

Warranty

Welding Process

Brand

CIGWELD
