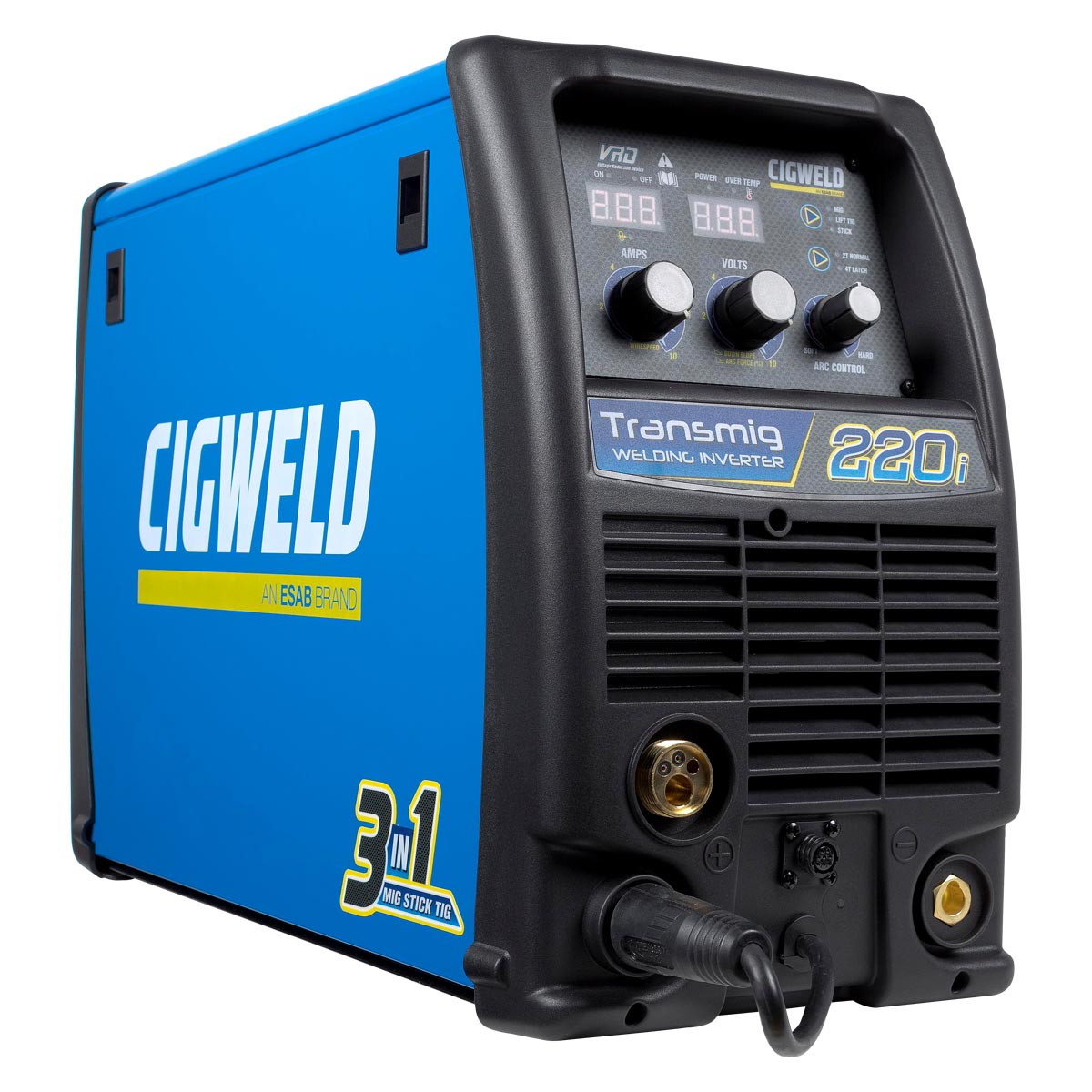

The CIGWELD TRANSMIG 220i is a self-contained single phase multiprocess welding inverter that is capable of performing GMAW/FCAW (MIG), MMAW (Stick) and GTAW (Lift TIG) welding processes. The unit is equipped with an integrated wire feed unit, voltage reduction device (VRD applicable in Stick mode only), digital voltage and amperage meters, and a host of other features in order to fully satisfy the broad operating needs of the modern welding professional.

• 220A (MIG Mode) 3-in-1 MIG / Stick / Lift TIG Inverter Welder
• Digital Amperage and Voltage Meters
• Full multi-process capabilities; MIG, Stick and Lift TIG
• Integrated Wire Feed Unit – Spools up to 15kg or 300mm
• Standards compliant VRD
• Fully compliant to AS 60974.1-2006. Enclosure Rated to IP23S – Designed for Indoor & Outdoor use.
• Arc Control (Inductance) for adjusting the intensity of the arc
• Adjustable Burnback Control for controlling MIG wire stick out
• Euro MIG Torch Connection
• Accepts Mechafin style 2R feed rolls
• Robust 50mm Dinse twist lock connections
• 3 Year Limited Warranty

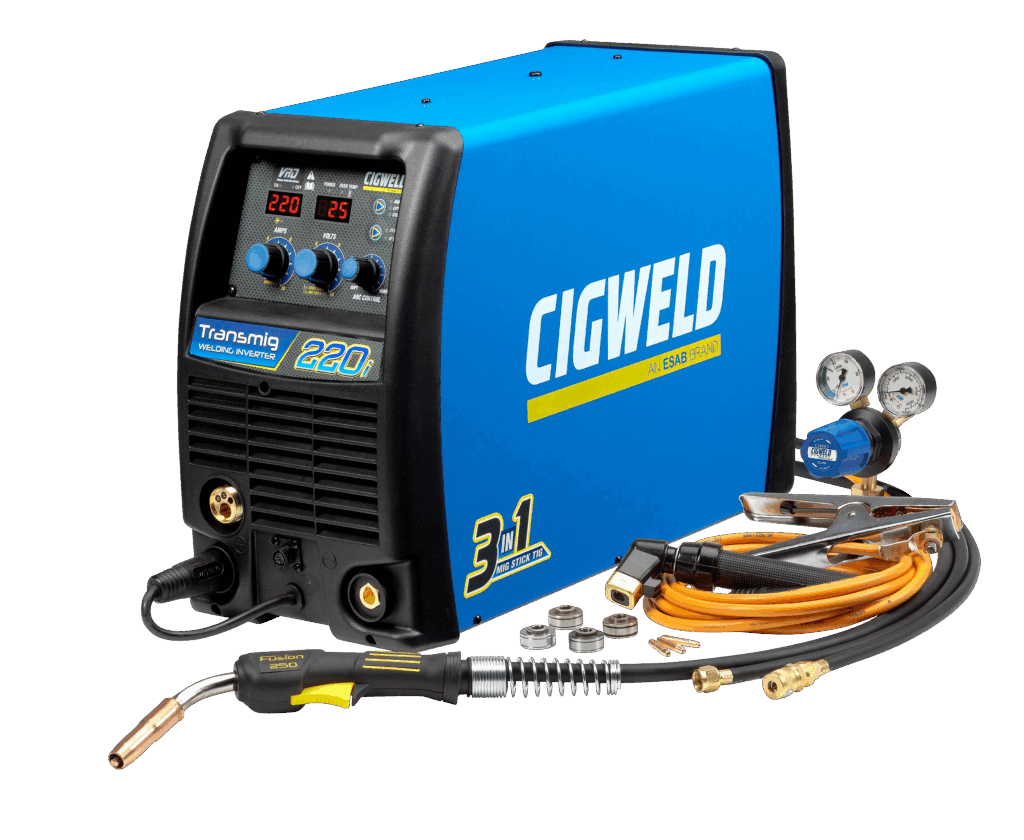

INCLUDES:

• Transmig 220i Inverter power source
• Tweco Professional Fusion 250 MIG Torch, 3m
• COMET Professional Argon Regulator/Flowmeter
• Feed Rolls: 0.6/0.8mm V Groove (fitted), 0.9/1.2mm V Groove, 1.0/1.2mm U Groove; 0.8/0.9mm V Knurled; 1.2/1.6mm V Knurled
• Contact Tips: 0.8mm (fitted), 0.6mm, 0.9mm, 1.0mm
• Twist Lock Electrode Holder with 4m Lead
• Work Clamp with 4m Lead
• Shielding Gas Hose Assembly
• Operating manual (not pictured)

ORDERING INFORMATION: TRANSMIG 220i, P/N: W1005220
