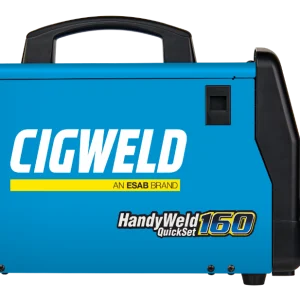

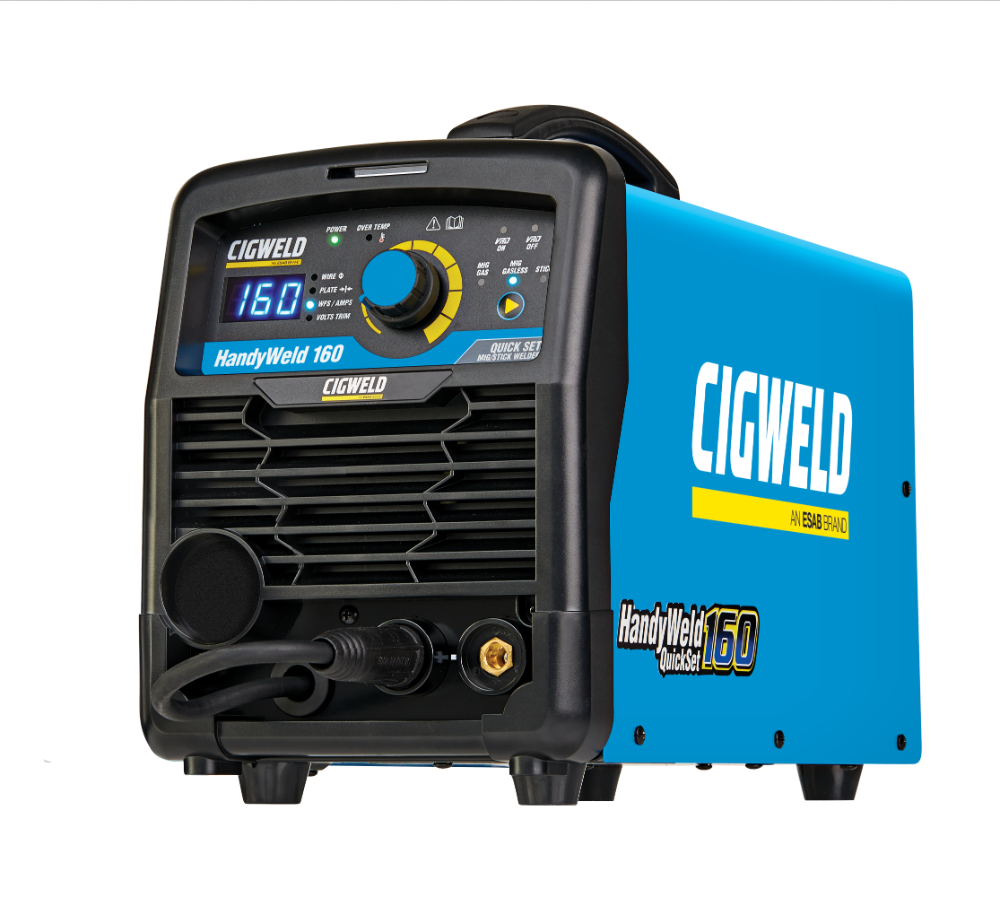

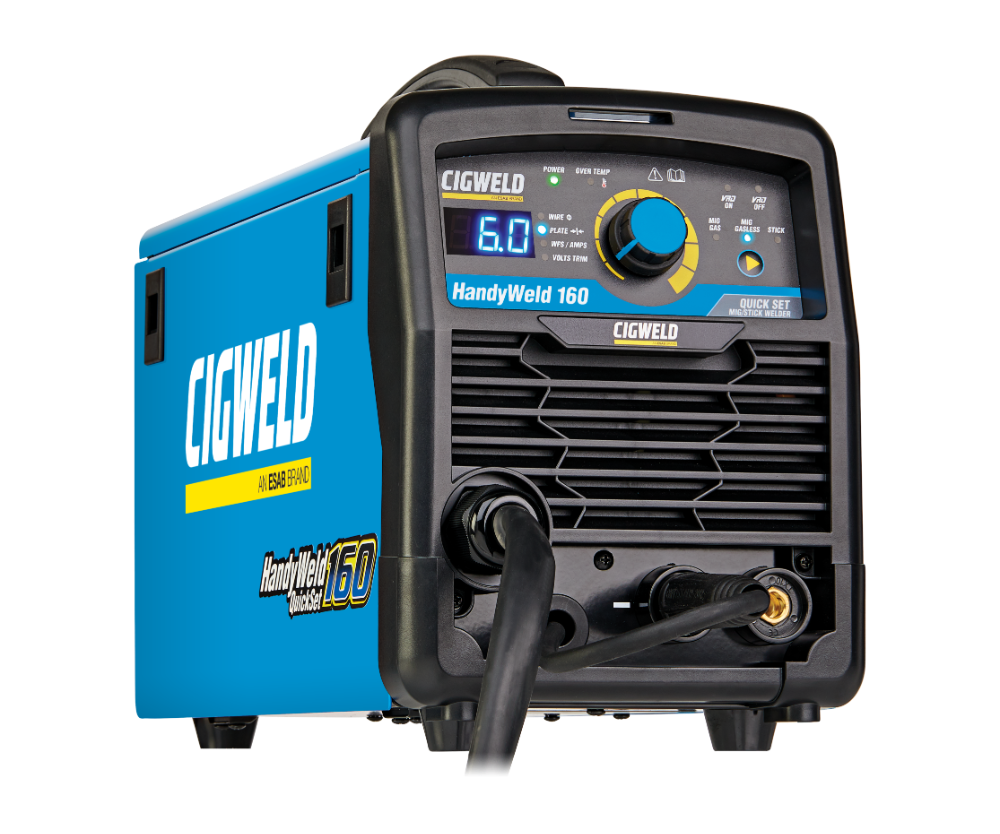

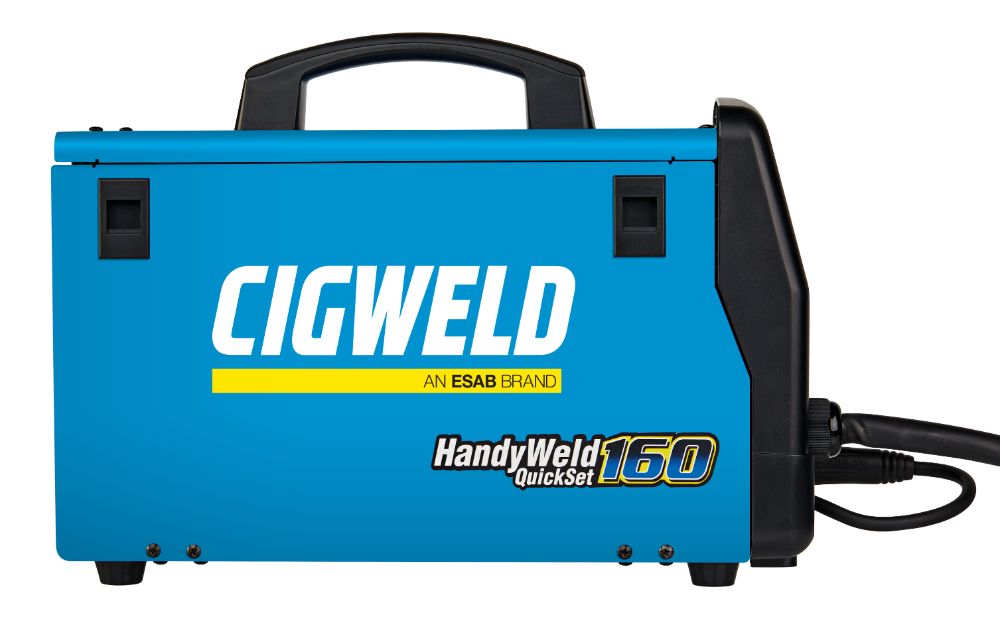

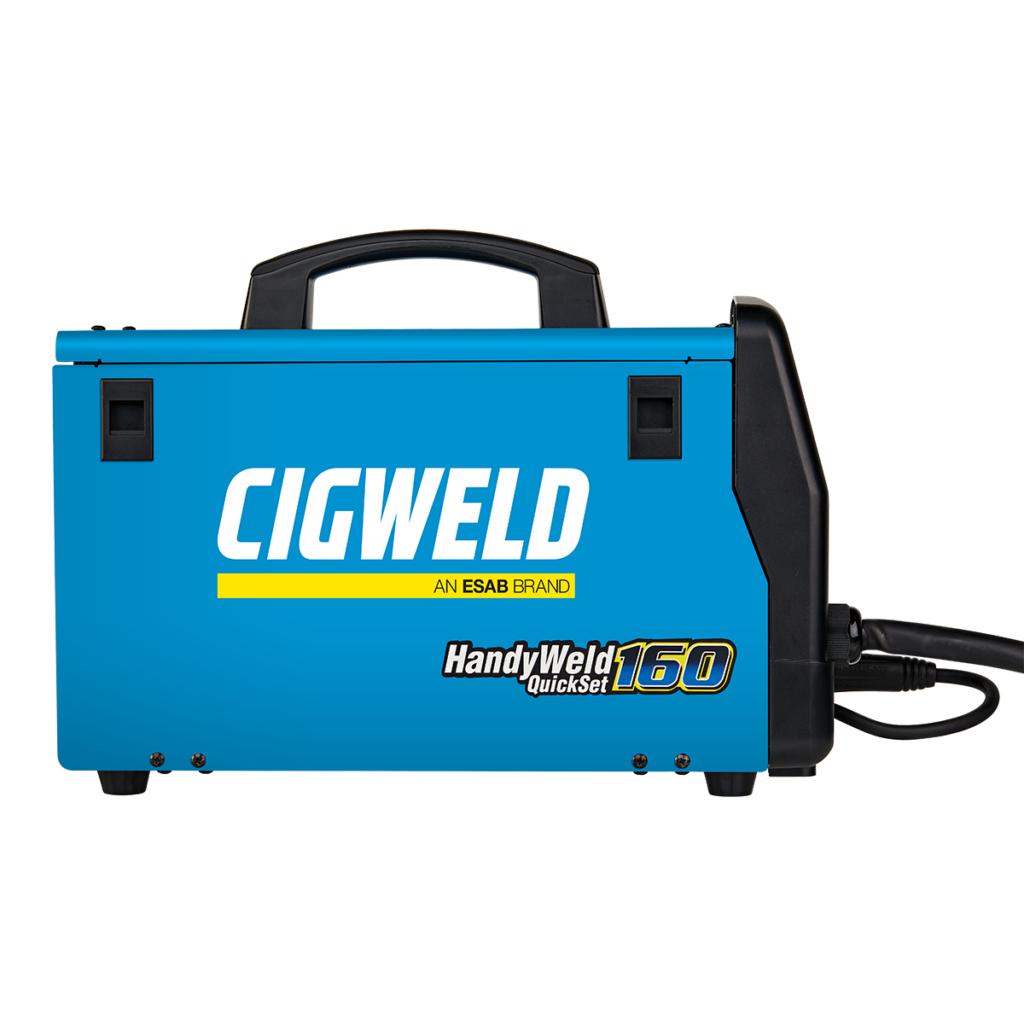

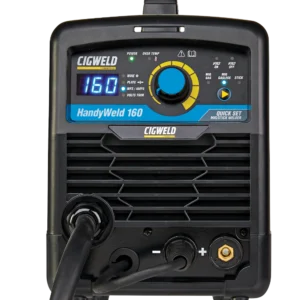

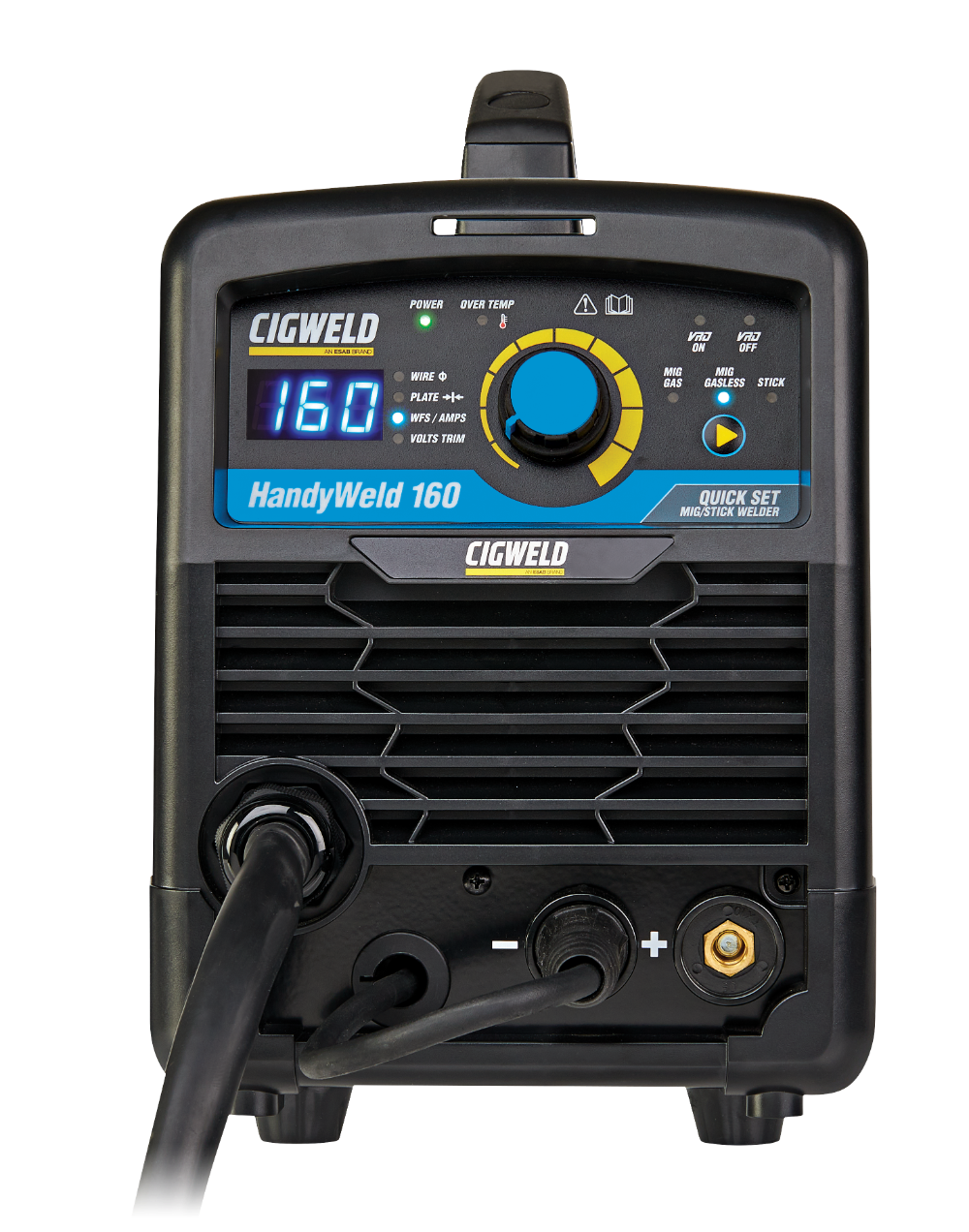

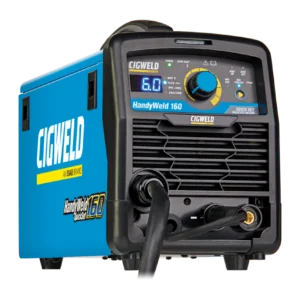

Think MIG welding is hard to set? Not Any more! The HandyWeld 160 is the most modern, easy-to-use inverter MIG Welder designed to remove the guess work when deciding what parameters should be set to weld differing thicknesses of metal.

• Electronic QuickSet control for accurate adjustment of the welding parameters
• Suitable for MIG with Shielding Gas and MIG Gasless Welding.
• STICK Welding capability to 140 Amps, withbuilt Voltage Reduction Device (VRD) for extra safety.
• Weld most metals including Mild Steel, Stainless Steel, Aluminium and Bronze.

CIGWELD have specially configured this machine to be able to produce great welding results from domestic household 230V/240V 10A power. The HandyWeld 160 machine is ideal for people who want to do light fabrication, car repairs, automotive restorations, maintenance and repairs or DIY around the home, workshop, worksite, or farm, without compromising on quality or safety. QuickSet your Plate thickness and weld away Plate Thickness setting allows you to set up in a flash. There is no guessing the welding parameters. Use the QuickSet feature to set the machine to the correct plate thickness you are welding. Awesome output for a small MIG! The HandyWeld 160 delivers a maximum output of 160Amps DC, which means the machine is capable of welding metals from 0.6mm up to 10mm. In QuickSet mode the machine is limited to 6mm thickness. To reach higher thicknesses up to 10mm the machine can be manually adjusted to maximum Wire Feed Speed and Voltage which delivers exceptional welding results on larger metal joints. VERSATILE You can weld most metals including Mild Steel, Stainless Steel, Aluminium and Bronze. As part of our local product development, we rigorously tested the HandyWeld 160 with different metals! PACKAGE CONTENTS

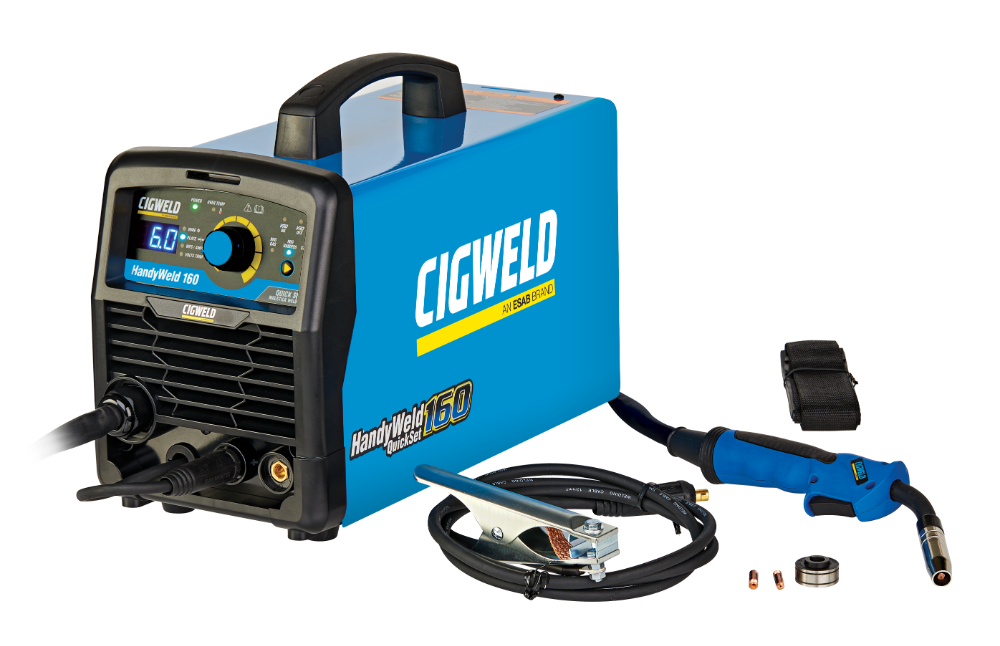

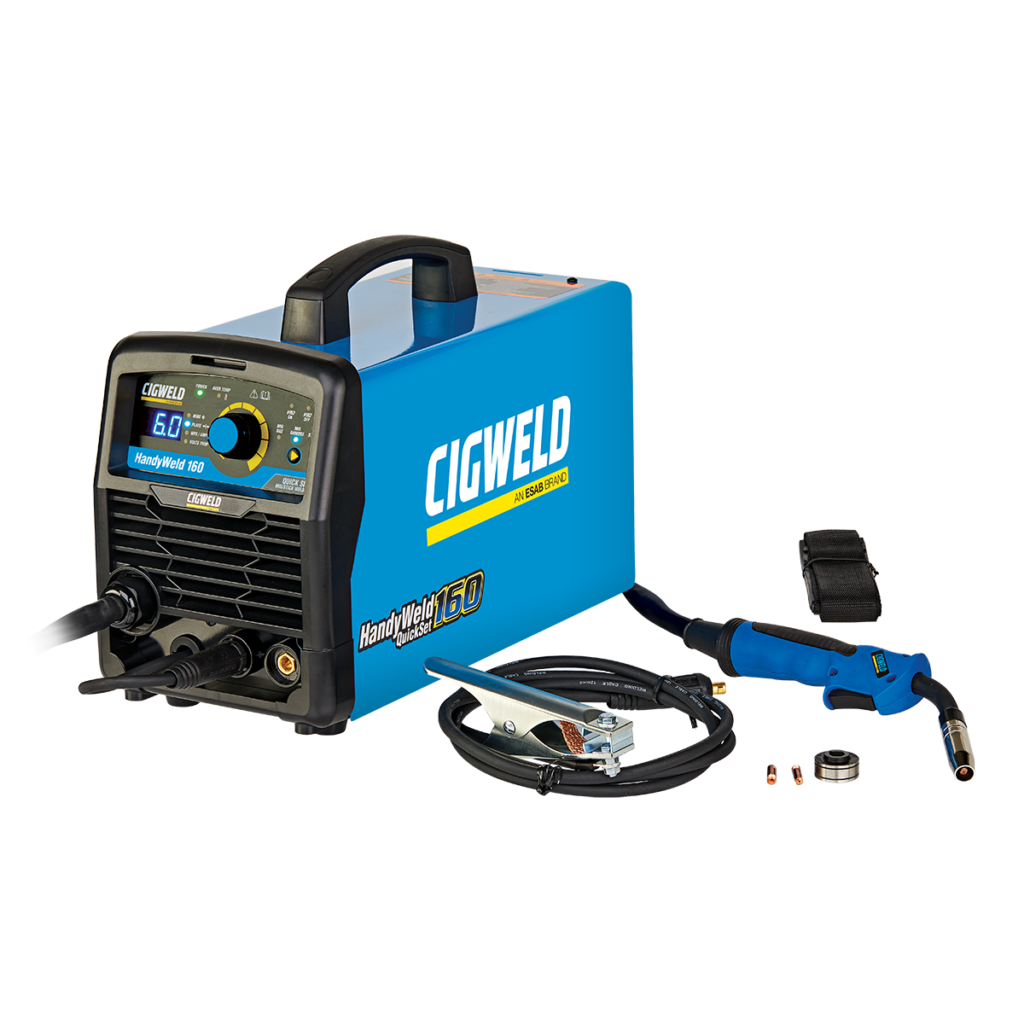

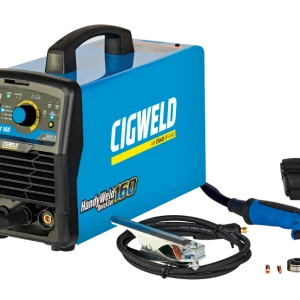

• HandyWeld 160 Power Source
• CMG16DL MIG Gun 2m- Hardwired
• Work Clamp with 2m Lead
• 2 x Feed Rolls: 0.8/0.9mm Gasless (Fitted), 0.6/0.8mm Solid Wires
• Contact Tips: 0.6mm, 0.8mm (Fitted), 0.9mm
• Shoulder Strap
• Operating Manual

KEY FEATURES:

• Single Phase 10A – 230/240V
• Electronic QuickSet control – eliminates the guesswork for setting parameters with Plate Thickness Control (max 10mm thickness)
• Duty Cycle MIG: 160A@10%
• Duty Cycle STICK: 140A@10%
• Gas & Gasless Wires
• 0.6-0.8mm: Solid MIG wires (extra-low current – ideal for welding thin sheet metal in MIG Gas mode with solid 0.6mm wire)
• 0.8-0.9mm Gasless MIG wires
• 0.8mm: Aluminium MIG wires
• 0.8mm: Stainless Steel MIG wires
• STICK Electrodes – suits 2.0mm, 2.5mm and 3.2mm
• Single Knob Synergic Control
• 3 Step setup
• Digital Meter – Easily view all your important welding parameters including plate thickness and welding Amps
• Weighs only 10.0kg
• Integrated Wire Feed Units -Suits 100mm & 200mm spools
• Creep Start
• 1 Year Warranty – Refer to operating manual for further details

MIG GUN The HandyWeld 160 MIG machine is supplied with a quality MIG Gun rated to handle in excess of the maximum output of the machine. Model Name: CMG16DL Replacement Part Number: W52BR15E3 ORDERING INFORMATION: HANDYWELD 160 MIG, P/N: W1200160 PRODUCT TESTING As part of our product development, CIGWELD rigorously test all the internal components of the welding machine and its external accessories. We make sure that the machines are not just fit for purpose, but will handle tougher than expected working conditions. Additionally, we also conduct weld tests on various common metals, using the expertise of our local technical team ensuring that the settings you use on our machines are tuned to local conditions.
