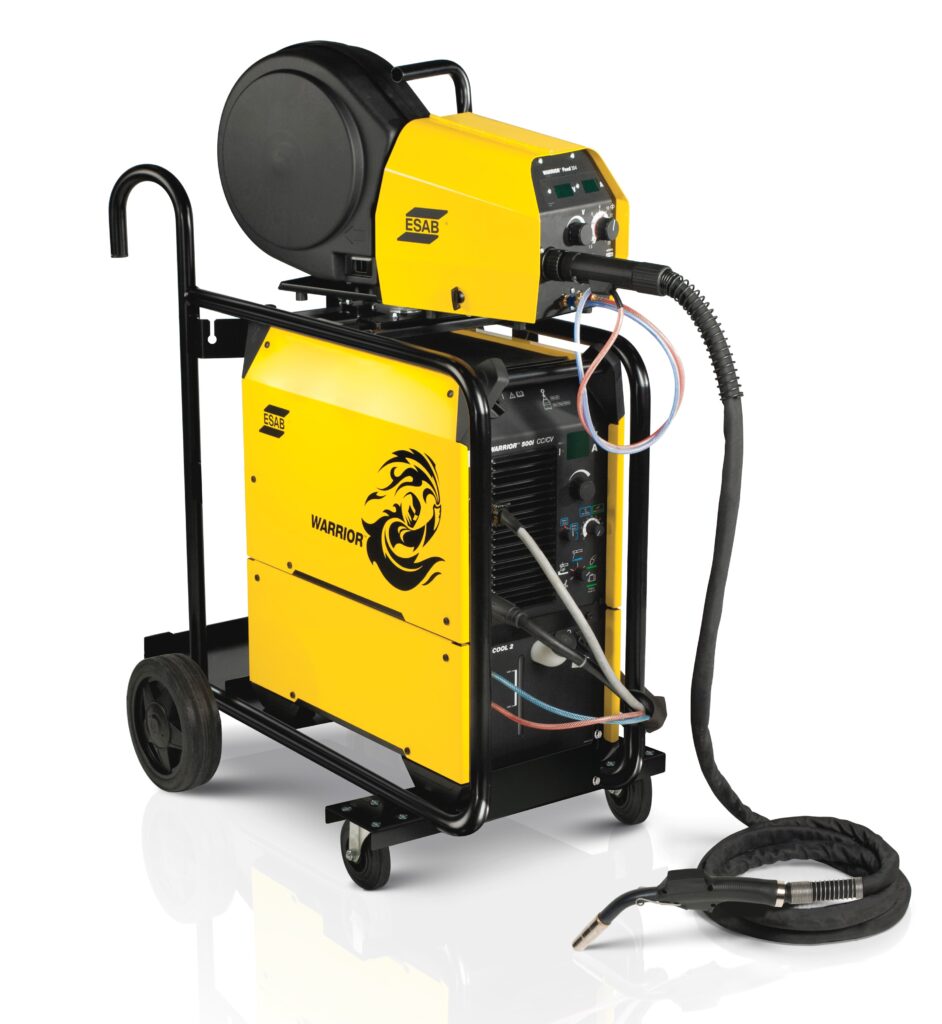

ESAB Warrior 500i CC/CV – 3Ph, 400/415V

SKU: 0465350885

W1009760_Right_45_HR

ESAB Warrior 500i CC/CV – 3Ph, 400/415V

SKU: 0465350885

Price range: $15,530.00 through $18,040.00

EA

With the Warrior 500i CC/CV, the operator can tailor the welds by locking Voltage (like most power sources), but also the Current. It brings the outstanding arc performance and energy savings you expect from an inverter.

Along with increased energy efficiency and more power from a lighter, smaller, and more portable unit, the Warrior 500i provides the simple functionality welders want at a competitive price.

Type

Clear

100 Years of Australian Heritage

Unmatched Local Expertise & Support

Backed by ESAB Global Innovation

Also available here online

Specifications

Downloads

If you need further information
Talk to us on 1300 654 674

Add to wishlist

Description

High-Powered Multi-Process Capability

Performs MIG, TIG, Stick, and Gouging applications with ease, delivering up to 500A @ 60% duty cycle for maximum productivity and performance versatility.

Advanced Inverter Technology

Provides superior arc characteristics and energy efficiency while reducing overall power consumption, resulting in cost savings and improved output consistency.

Dual Voltage & Current Control

Allows the operator to lock in not only voltage (as with traditional power sources) but also current, giving greater control and customisation for every weld.

Durable, Industrial-Grade Construction

IP23-rated for both indoor and outdoor use, the Warrior 500i is engineered to perform reliably in rough and demanding environments.

High-Powered Multi-Process Capability

Performs MIG, TIG, Stick, and Gouging applications with ease, delivering up to 500A @ 60% duty cycle for maximum productivity and performance versatility.

Advanced Inverter Technology

Provides superior arc characteristics and energy efficiency while reducing overall power consumption, resulting in cost savings and improved output consistency.

Dual Voltage & Current Control

Allows the operator to lock in not only voltage (as with traditional power sources) but also current, giving greater control and customisation for every weld.

Durable, Industrial-Grade Construction

IP23-rated for both indoor and outdoor use, the Warrior 500i is engineered to perform reliably in rough and demanding environments.

Additional Features

Portability & Compact Design

The Warrior 500i offers a lighter, smaller footprint for easier transport and setup, with the included trolley and cable system providing smooth mobility across job sites.

Complete Professional Package

Supplied with the Warrior Feed 304, Trolley, 10m interconnection cables, and a Tweco PSF 405 MIG torch, ensuring a complete and ready-to-weld solution straight out of the box.

Portability & Compact Design

The Warrior 500i offers a lighter, smaller footprint for easier transport and setup, with the included trolley and cable system providing smooth mobility across job sites.

Complete Professional Package

Supplied with the Warrior Feed 304, Trolley, 10m interconnection cables, and a Tweco PSF 405 MIG torch, ensuring a complete and ready-to-weld solution straight out of the box.

The ESAB Warrior 500i brings the outstanding arc performance and energy savings you expect from an inverter. Along with increased energy efficiency and more power from a lighter, smaller, and more portable unit, Warrior provides the simple functionality welders want at a competitive price. Comes with Warrior Feed 304, Trolley, Cables & Mig Torch Multi Process – MIG/TIG/Stick/Gouging Designed to be durable & rugged 500amps @ 60% Duty Cycle Easy to use, intuitive user interface Perfect for long runs across a variety of applications and delivers 500amps @ 60% Duty Cycle. Warrior has been designed to be durable and rugged, with an IP23 rating for outdoor and indoor use in rough environment. Easy-to-use, clear and intuitive user interface for everyone to get started quickly, including glove-friendly knobs make adjustments quick and easy. Package Includes: ESAB Warrior 500i CC/CV – 0465350885 ESAB Warrior Feed 304 – 0465250881 ESAB Trolley – 0465510880 ESAB 10m Interconnection Cables – 0459836882 Tweco 4, 3.6m PSF 405 Mig Torch – OTWX415/3545 P/N: 0465350885 Variations: W1009660, W1009760

Brand	ESAB
Dimensions Power Source	595 x 250 x 430mm, 675 x 264 x 218mm
Duty cycle	500A @ 60%
Material Thickness MIG	Up to 32mm
Material Thickness STICK	Up to 32mm
Material Thickness TIG	Up to 16mm
Material Type	Mild Steel, Aluminium, Bronze, Stainless Steel
Plug Type	Not Fitted
Power Supply	415V
Pulse Capable MIG	No
Pulse Capable STICK	No
Pulse Capable TIG	No
Type	Plant w/Robust Feed Pro, Plant w/Warrior Feed
Usage	Industrial
Warranty	3 Years
Welding Process	MIG, STICK, TIG

Brand

ESAB

Specifications

Brand	ESAB	Type	Plant w/Robust Feed Pro, Plant w/Warrior Feed
Power Supply	415V	Plug Type	Not Fitted
Welding Process	MIG, STICK, TIG	Material Thickness MIG	Up to 32mm
Material Thickness STICK	Up to 32mm	Material Thickness TIG	Up to 16mm
Usage	Industrial	Duty cycle	500A @ 60%
Material Type	Mild Steel, Aluminium, Bronze, Stainless Steel	Dimensions Power Source	595 x 250 x 430mm, 675 x 264 x 218mm
Pulse Capable MIG	No	Pulse Capable TIG	No
Pulse Capable	Yes	Pulse Capable STICK	No
Weight	16.8kg, 18kg	Warranty	3 Years

Brand	ESAB
Type	Plant w/Robust Feed Pro, Plant w/Warrior Feed
Power Supply	415V
Plug Type	Not Fitted
Welding Process	MIG, STICK, TIG
Material Thickness MIG	Up to 32mm
Material Thickness STICK	Up to 32mm
Material Thickness TIG	Up to 16mm
Usage	Industrial
Duty cycle	500A @ 60%
Material Type	Mild Steel, Aluminium, Bronze, Stainless Steel
Dimensions Power Source	595 x 250 x 430mm, 675 x 264 x 218mm
Pulse Capable MIG	No
Pulse Capable TIG	No
Pulse Capable	Yes
Pulse Capable STICK	No
Weight	16.8kg, 18kg
Warranty	3 Years
