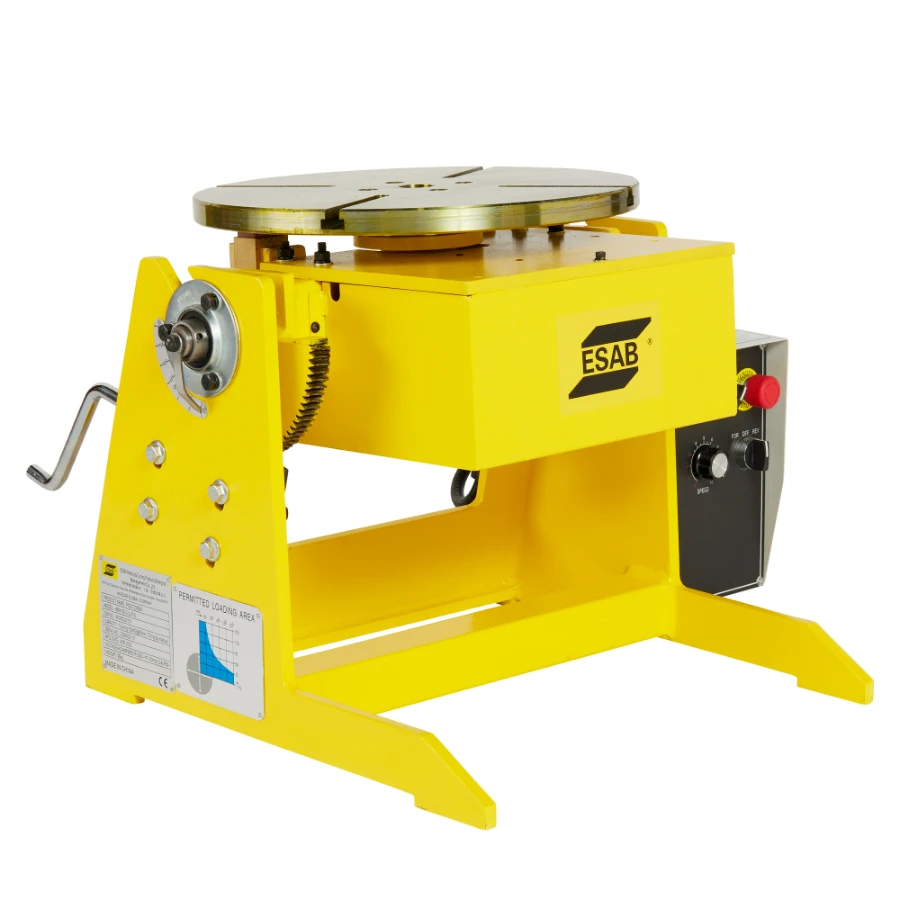

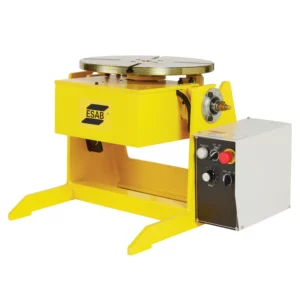

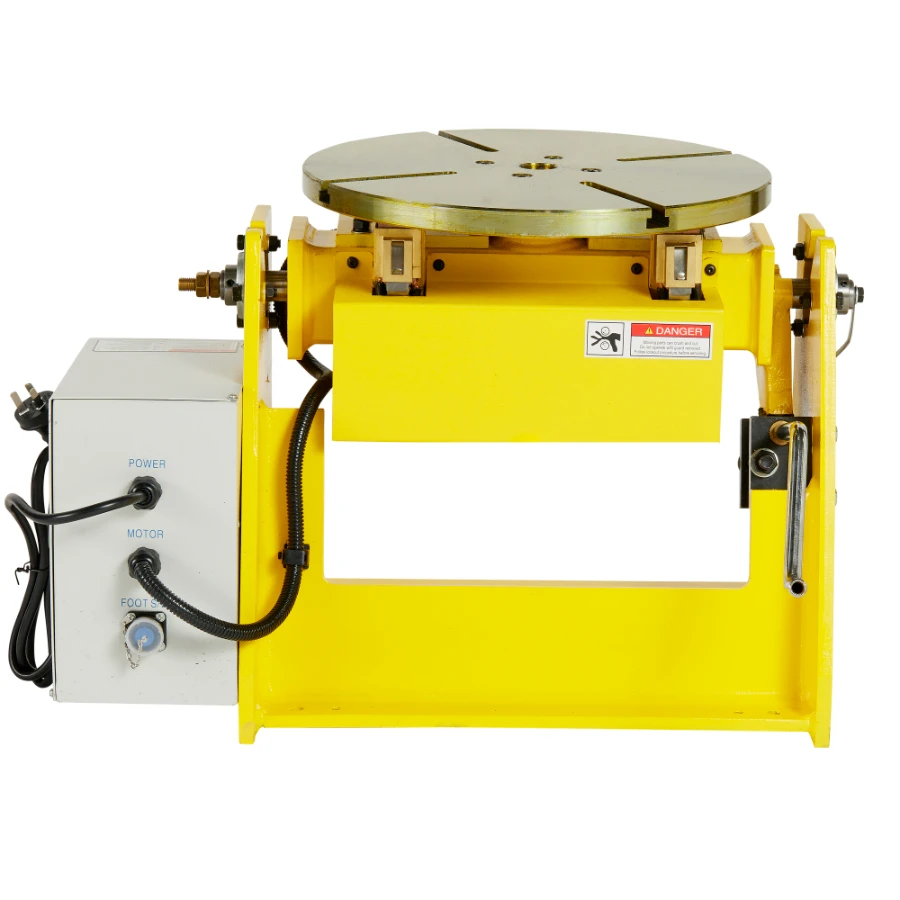

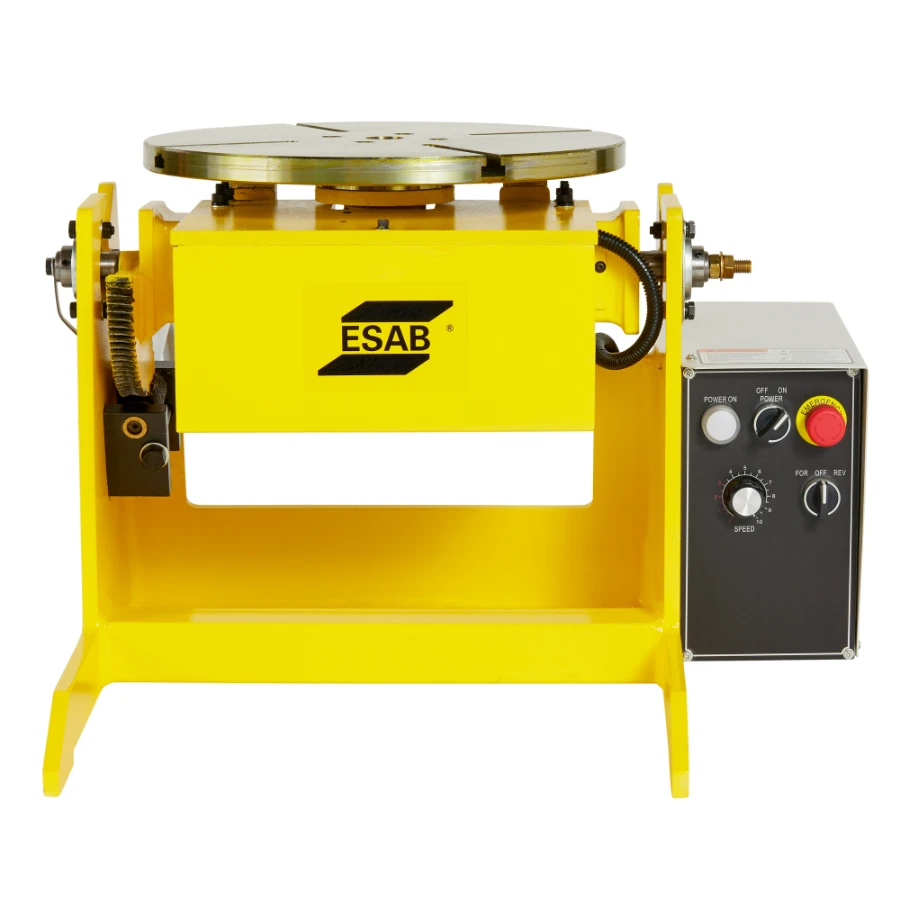

Features:
• 2-Axis Positioners are ideal for rotating and tilting workpieces.
• Speed is stepless adjustable.
• ESAB Positioners exceed the strictest international ISO safety requirements.
• CE Compliant.
• Optimized motor and gear drive sizes.
• 2-Axis operation guarantees ideal ergonomic working positions.
• Designed for easier mechanical and electrical maintenance.
Applications and Benefits:
• The positioning of fabricated metal components and structures ready for
welding in the horizontal or down-hand positions, which enables easier, faster
and more consistent welding speeds using semi-automatic or robotic welding
installations.
• Weld quality and speed is increased and importantly weld defects are reduced
and overall production costs are lowered.
• Used extensively in Pressure Vessel and Pipe Fitting workshops, fuel tank,
mining machinery, transport, Wheel and Rim Manufacturers & repairers,
Hydraulic Cylinder Manufacturers and refurbishment, repair & maintenance,
off-road equipment, wind tower, military and ship building industries.
Specification:
Loading Capacity: 150Kg
Maximum Rotation Torque: 100Nm
Eccentricity: 65mm
Driving Motor (kW): 0.15DC
Turning Speed: 0.25-5.5rpm
Maximum Tilt Torque (Nm): Manual
Tilting Offset from Table (mm): Manual
Tilting Speed (rpm): Manual
Tilting Range : 0-90°
Turn Table Diameter: 380mm
Number of slots and width: 4x12mm
Maximum Turning Diameter at 90°: 670mm
Table Height from Floor: 436mm
Earthing Current: 500A
Control Inputs: Electrical panel + Foot Pedal
Input Power Supply: 220V +/- 10% 50 Hz +/- 1% 0.3kW
IP rating : IP23
PEK Kits: No
Sync Kits: No
CE Compliance: Yes
Control Voltage: 24V
Weight: 90Kgs
P/N: W0000U0101
