$680.90

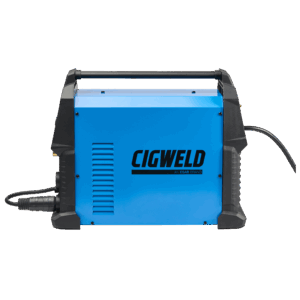

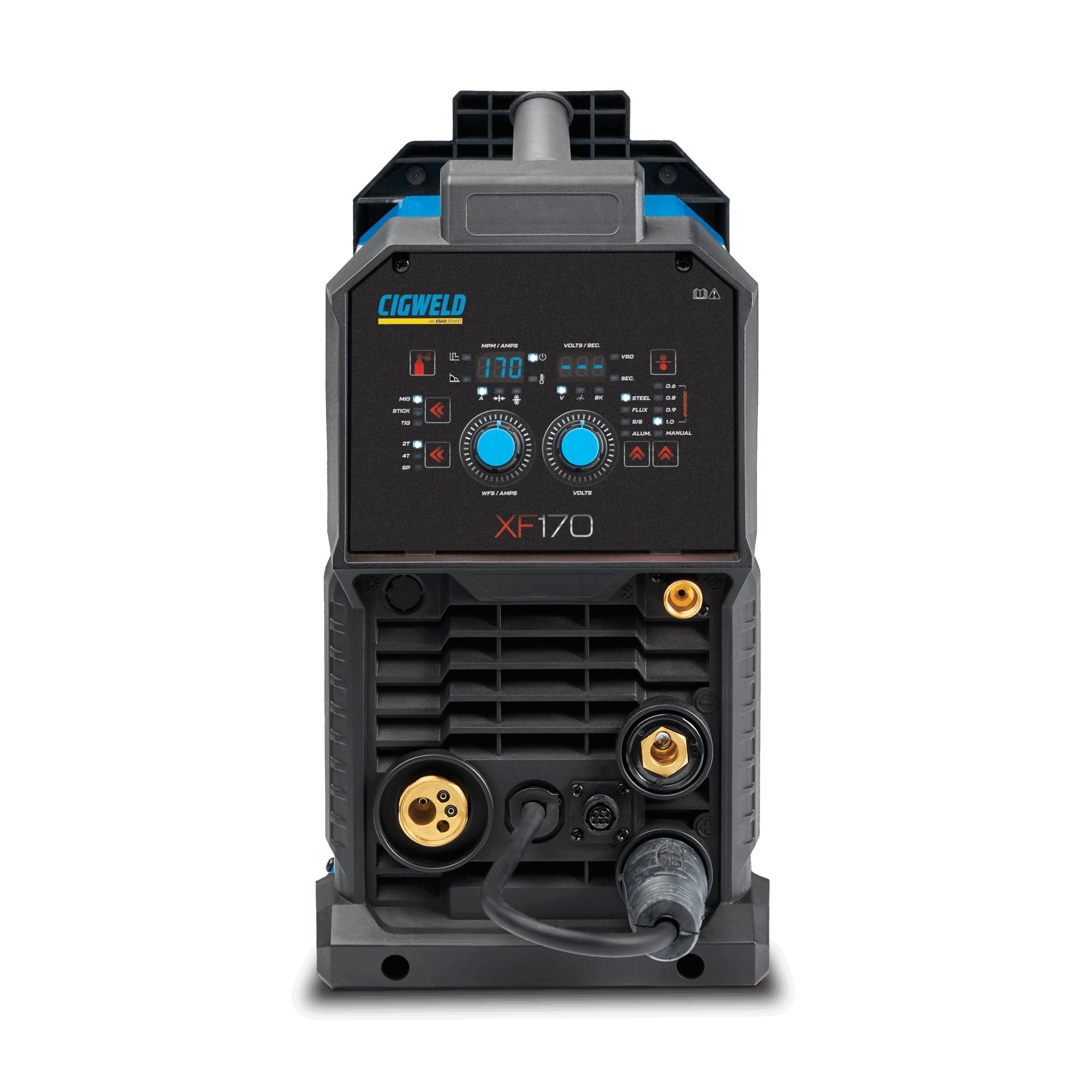

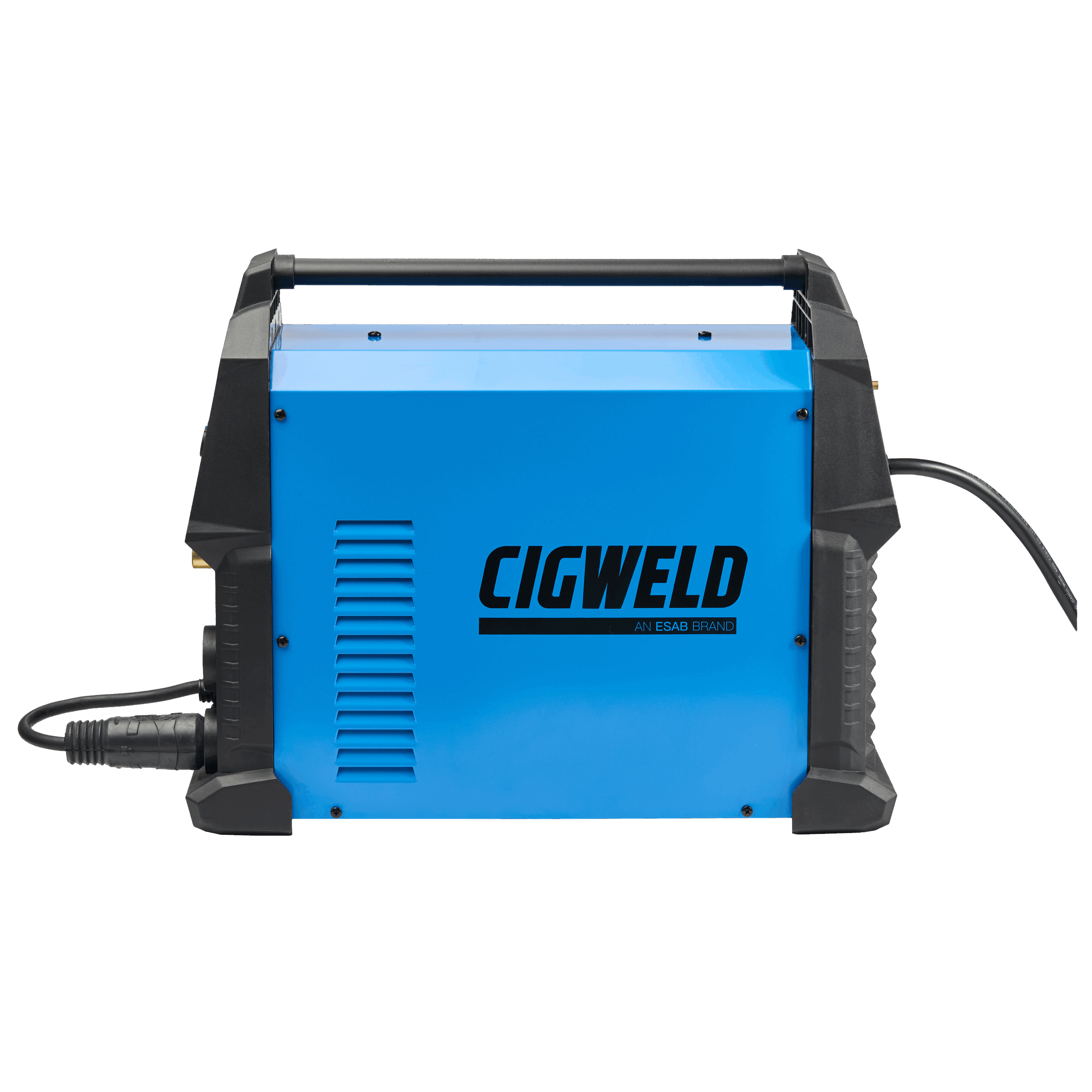

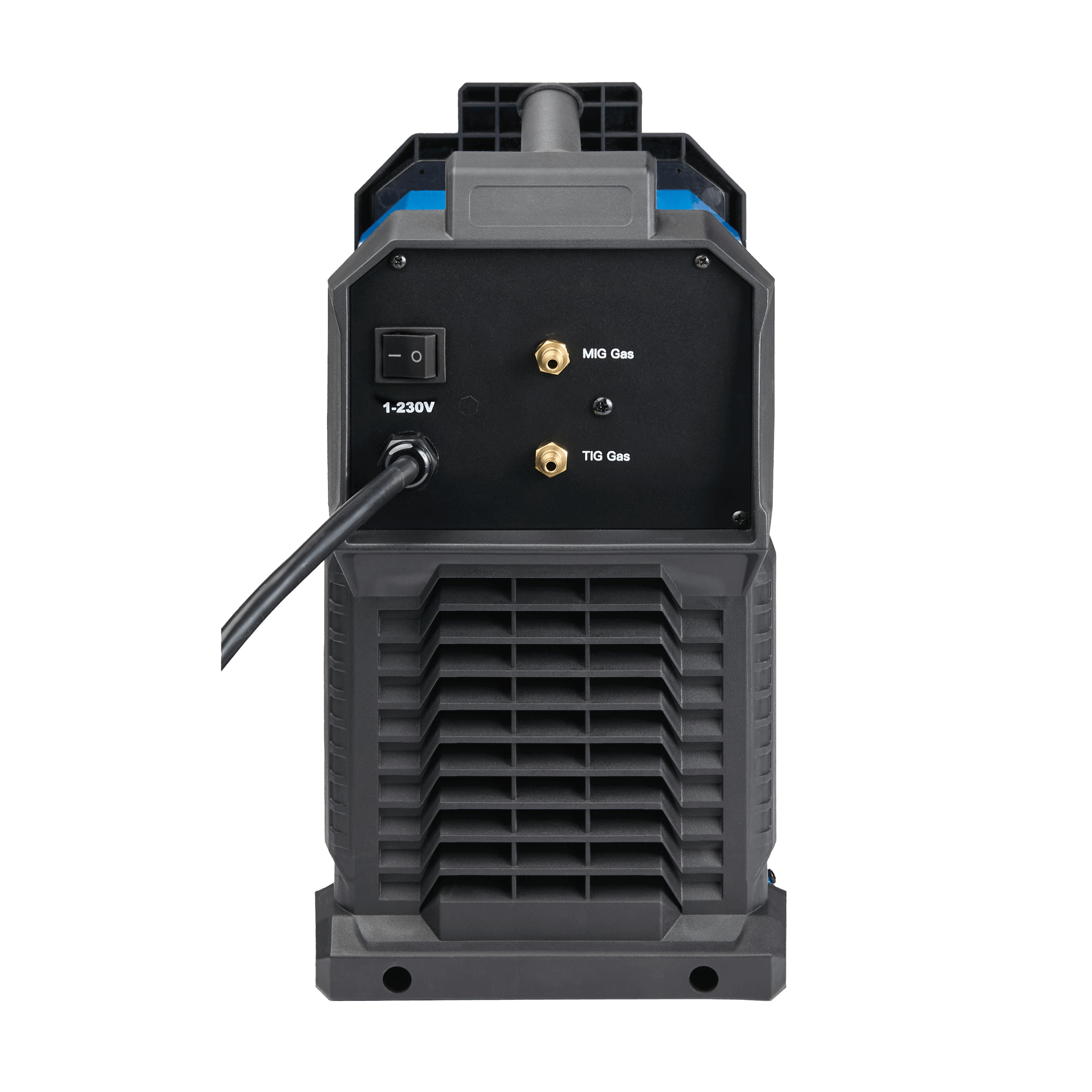

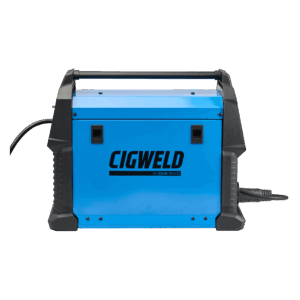

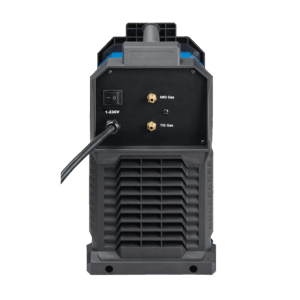

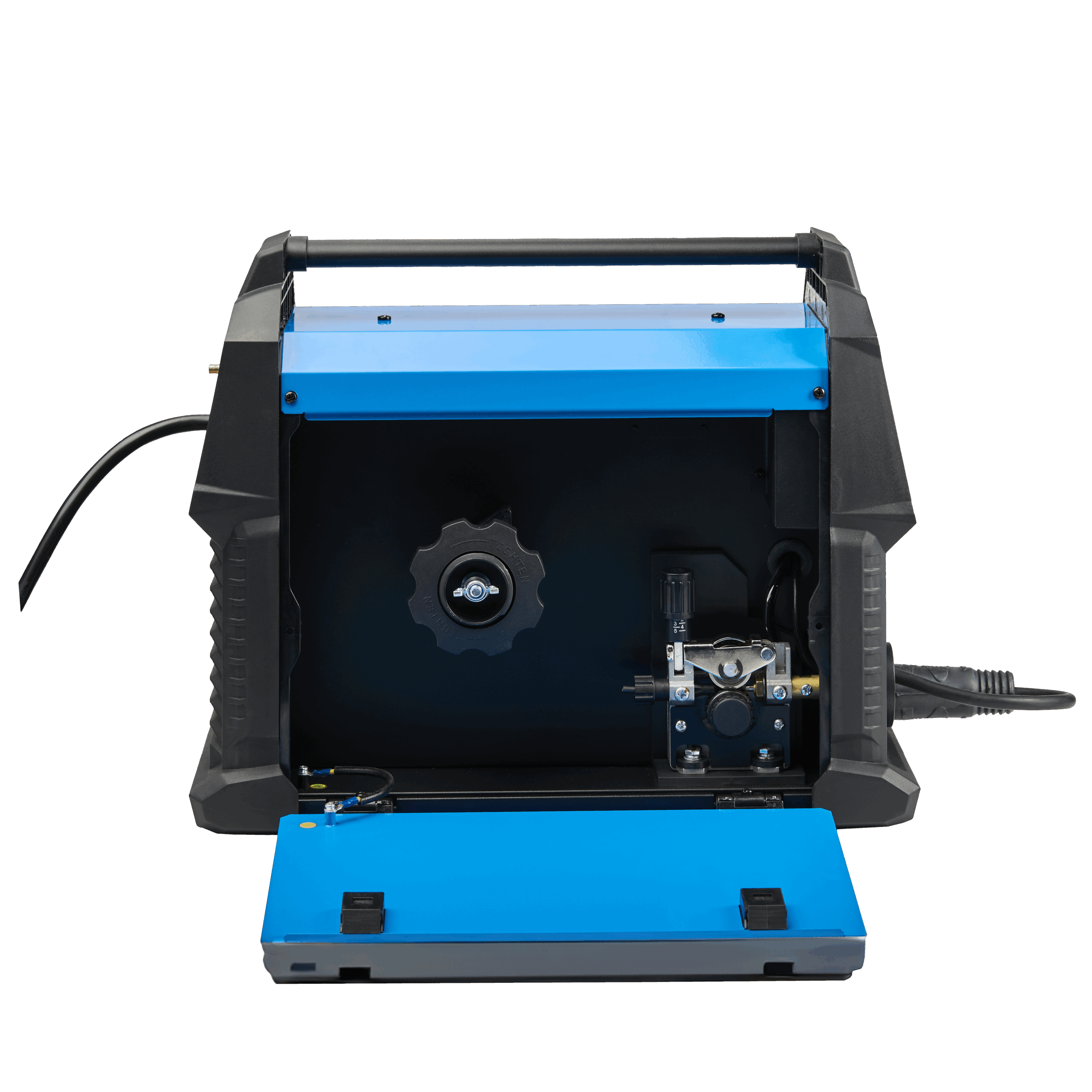

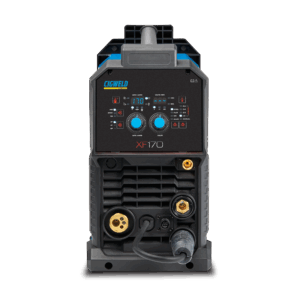

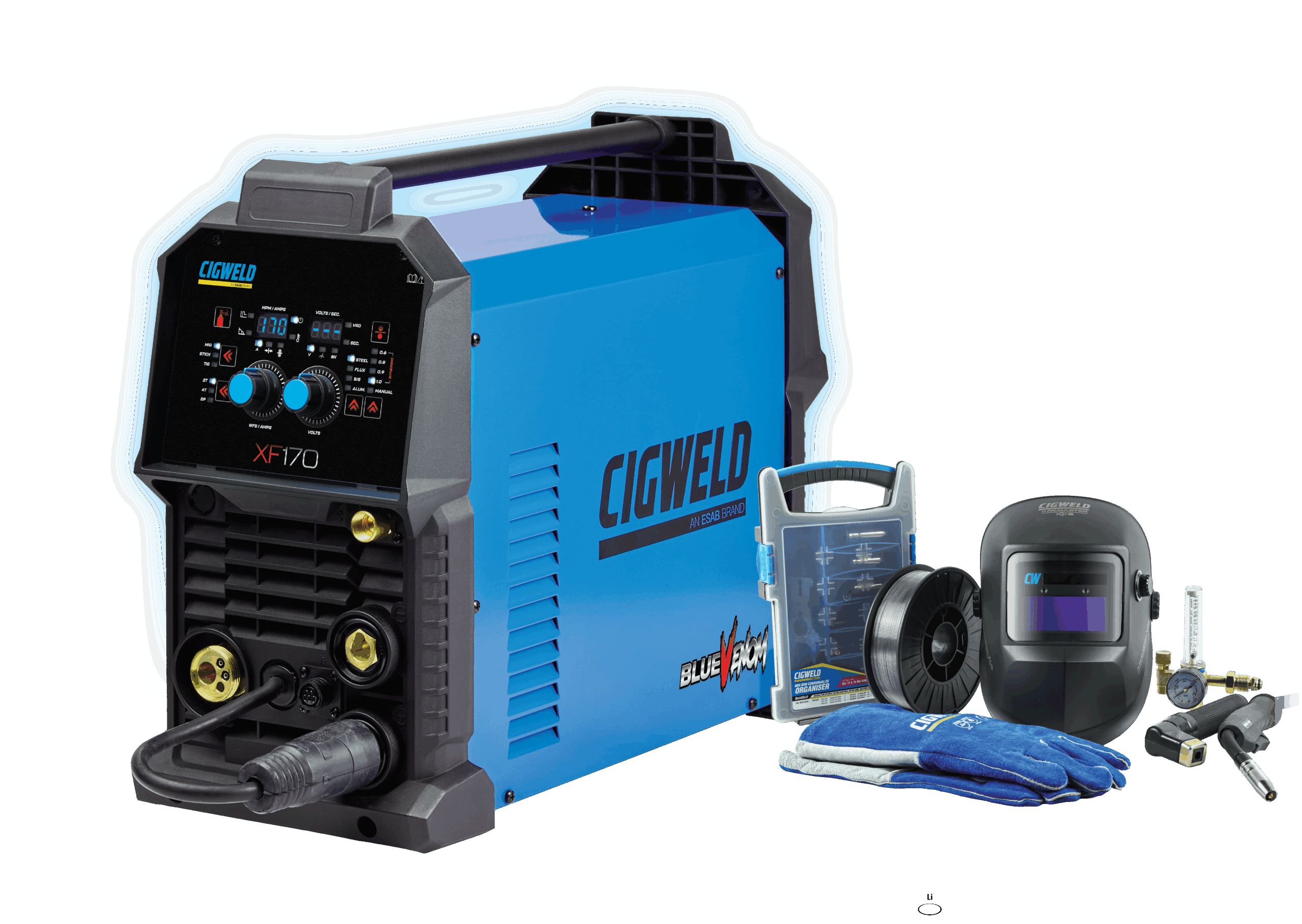

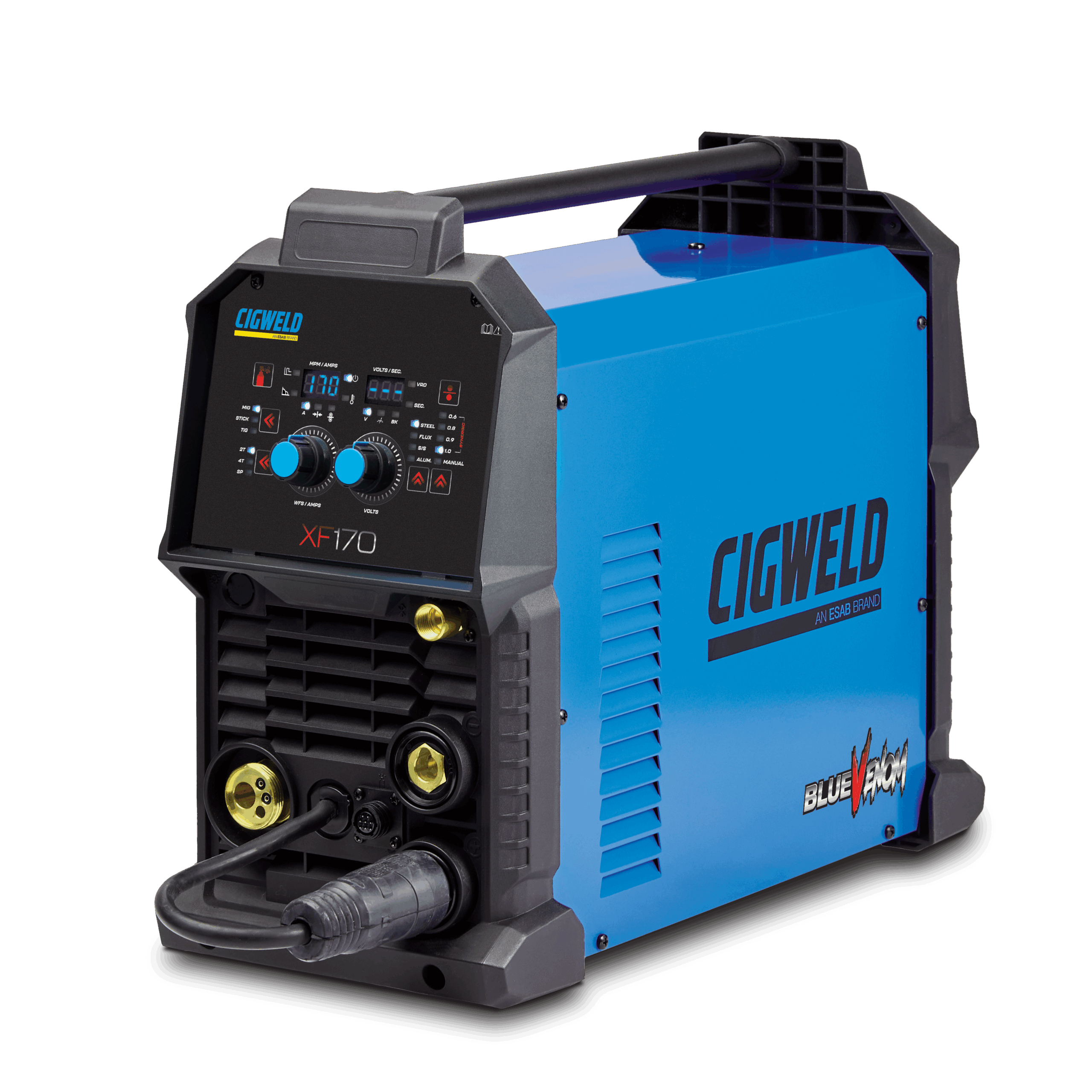

The CIGWELD BlueVenom XF170 combines the strength of a workshop welder with the convenience of a portable powerhouse. Designed to deliver exceptional performance across MIG, Stick, and TIG processes, it’s your all-in-one solution for fabrication, maintenance, and repair. Compact, tough-tested, and easy to use — the XF170 ensures you’re ready for any job, anywhere.
P/N: 800170
Unmatched Local Expertise & Support
If you need further information
Talk to us on 1800 855 412
| Additional Features | |
|---|---|
| Brand | |
| Dimensions Power Source | |
| Duty cycle | MIG: 170A @ 10% (22.5V), Stick: 170A @ 8% (26.8V), TIG: 170A @ 15% (16.8V) |
| Generator Requirement | |
| Material Type | |
| Number of Phases | |
| Ocv vrd on stick weld mode | <35V |
| Package dimensions | 650 (L) × 280 (W) × 330 (H) mm |
| Plug Type | |
| Power Supply | |
| Protection Class | |
| Pulse Capable | |
| Pulse Capable STICK | |
| Pulse Capable TIG | |
| Standard | |
| Usage | |
| Warranty | |
| Weight | |
| Weight Power Source | |
| Welding Process |
| Brand | Cigweld | Power Supply | 230V |
| Plug Type | 10A | Welding Process | LIFT-TIG, PULSE STICK, PULSE TIG, STICK |
| Usage | DIY | Material Type | Mild Steel, Aluminium, Stainless Steel |
| Additional Features | Pulse Stick, Pulse TIG | Material Thickness STICK | Up to 10mm |
| Material Thickness TIG | Up to 6mm | Pulse Capable | Yes |
| Duty cycle | MIG: 170A @ 10% (22.5V), Stick: 170A @ 8% (26.8V), TIG: 170A @ 15% (16.8V) | Warranty | 2 Year + 6 months Extended Warranty |
| Number of Phases | Single Phase | Generator Requirement | 9 kVA (at 0.8 Power Factor) |
| Dimensions Power Source | 485 (L) × 220 (W) × 385 (H) mm | Pulse Capable MIG | No |
| Pulse Capable TIG | Yes | Pulse Capable STICK | Yes |
| Ocv vrd on stick weld mode | <35V | Package dimensions | 650 (L) × 280 (W) × 330 (H) mm |
| Protection Class | IP21S | Standard | AS 60974.1:2020 / IEC 60974-1:2019 EN IEC 60974-10:2021 |
| Weight | 27 kg | Weight Power Source | 11 kg |
| Brand | Cigweld |
| Power Supply | 230V |
| Plug Type | 10A |
| Welding Process | LIFT-TIG, PULSE STICK, PULSE TIG, STICK |
| Usage | DIY |
| Material Type | Mild Steel, Aluminium, Stainless Steel |
| Additional Features | Pulse Stick, Pulse TIG |
| Material Thickness STICK | Up to 10mm |
| Material Thickness TIG | Up to 6mm |
| Pulse Capable | Yes |
| Duty cycle | MIG: 170A @ 10% (22.5V), Stick: 170A @ 8% (26.8V), TIG: 170A @ 15% (16.8V) |
| Warranty | 2 Year + 6 months Extended Warranty |
| Number of Phases | Single Phase |
| Generator Requirement | 9 kVA (at 0.8 Power Factor) |
| Dimensions Power Source | 485 (L) × 220 (W) × 385 (H) mm |
| Pulse Capable MIG | No |
| Pulse Capable TIG | Yes |
| Pulse Capable STICK | Yes |
| Ocv vrd on stick weld mode | <35V |
| Package dimensions | 650 (L) × 280 (W) × 330 (H) mm |
| Protection Class | IP21S |
| Standard | AS 60974.1:2020 / IEC 60974-1:2019 EN IEC 60974-10:2021 |
| Weight | 27 kg |
| Weight Power Source | 11 kg |
For over 100 years, CIGWELD has proudly served Australian industry with trusted, high-performance welding equipment.
Local Expertise & Support
CIGWELD is committed to providing exceptional customer service, with products backed by local expertise and nationwide support.
As part of ESAB, CIGWELD benefits from world-leading innovation and technology, ensuring our customers get access to the most advanced and reliable solutions available.

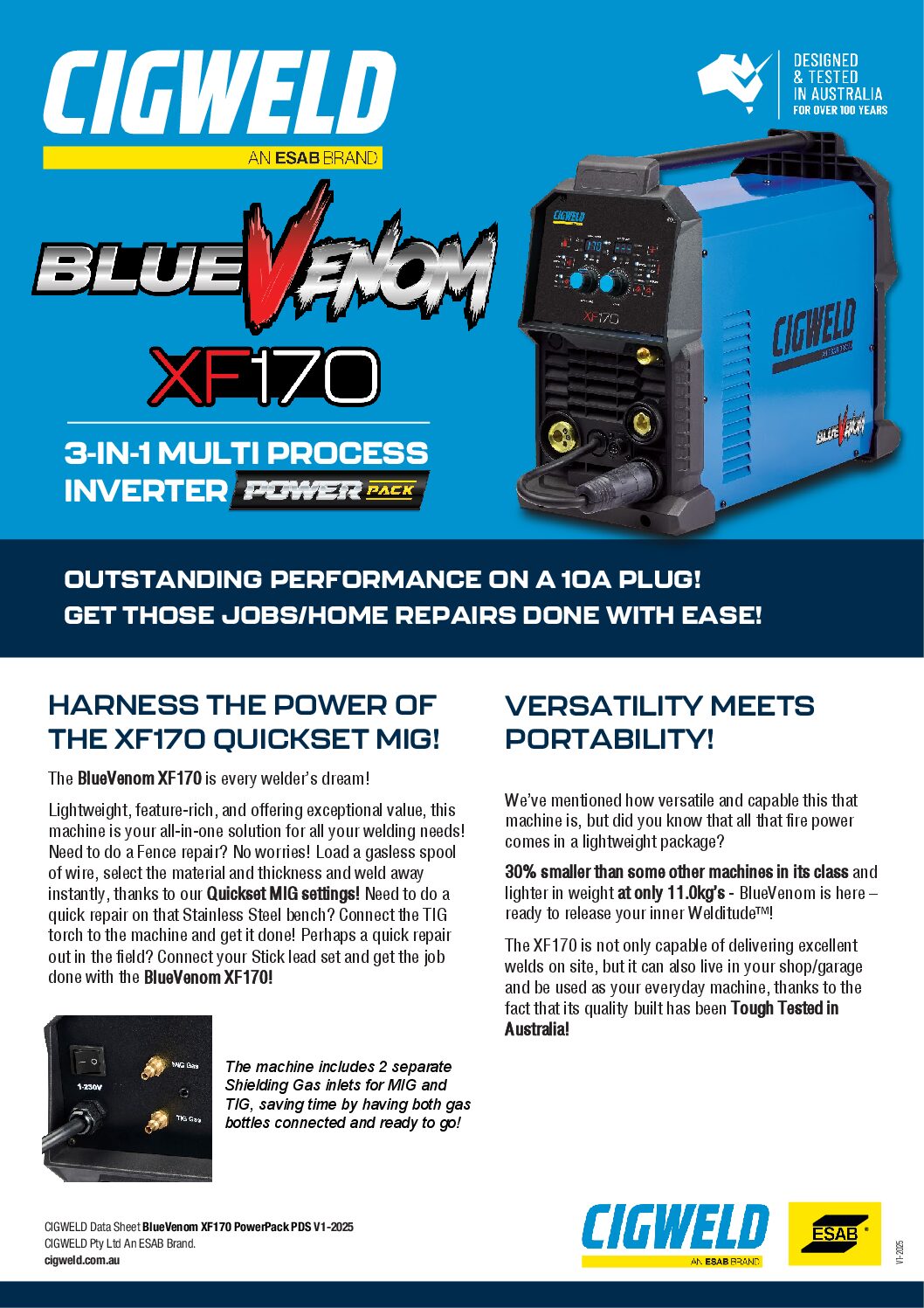

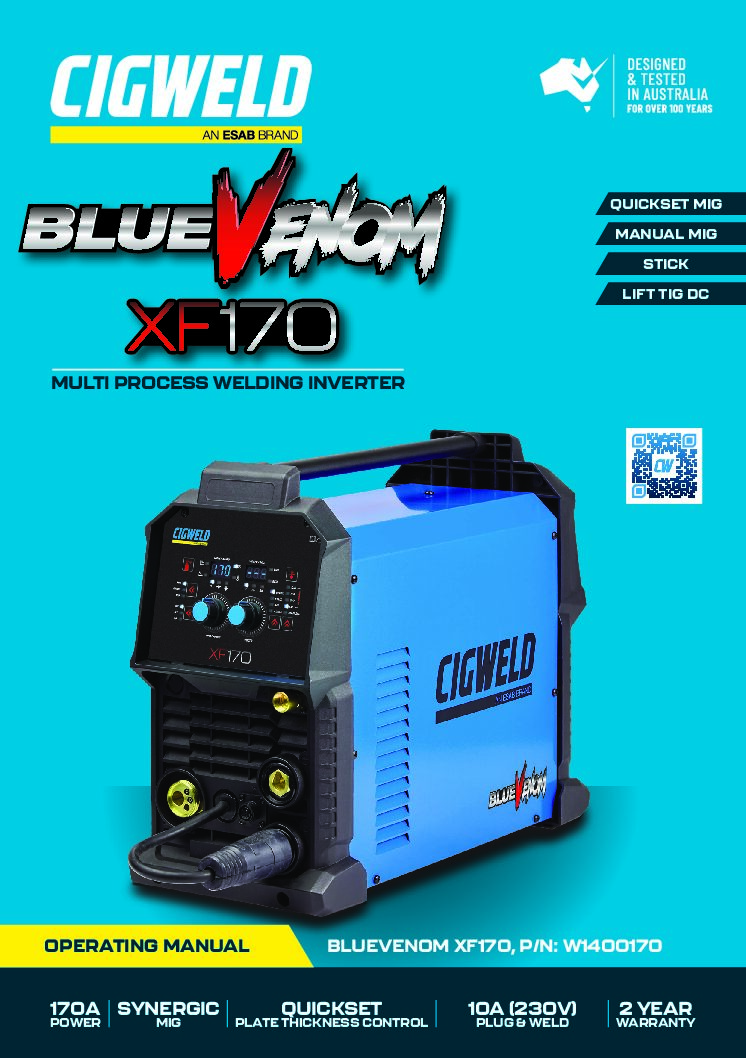

Download
