$749.00

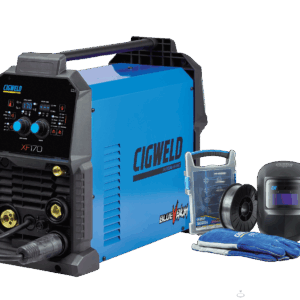

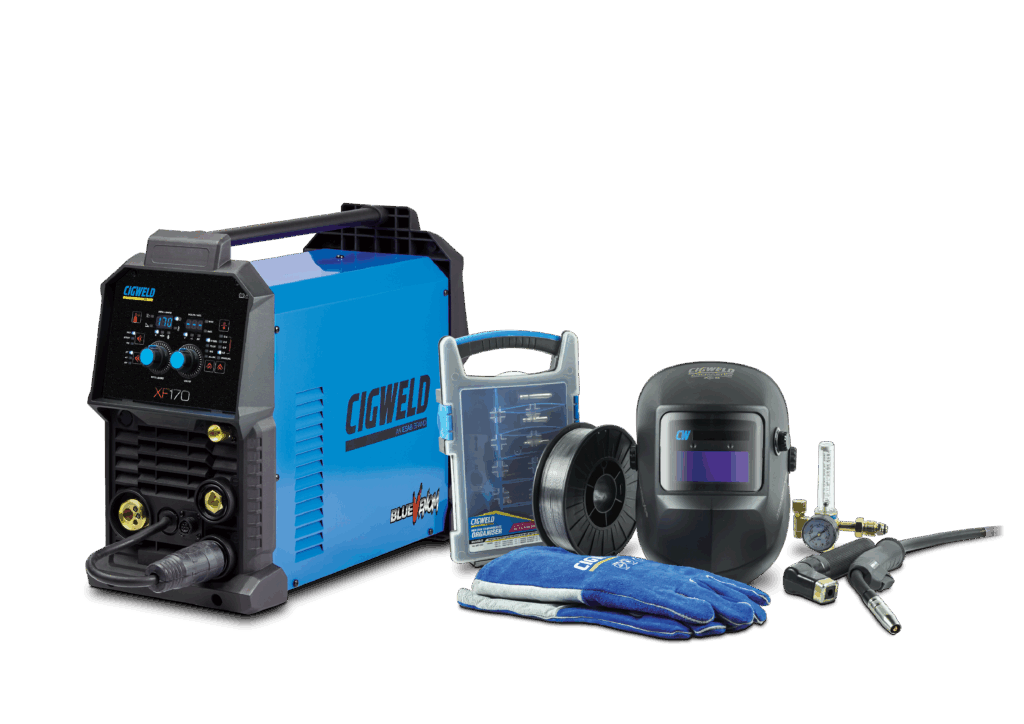

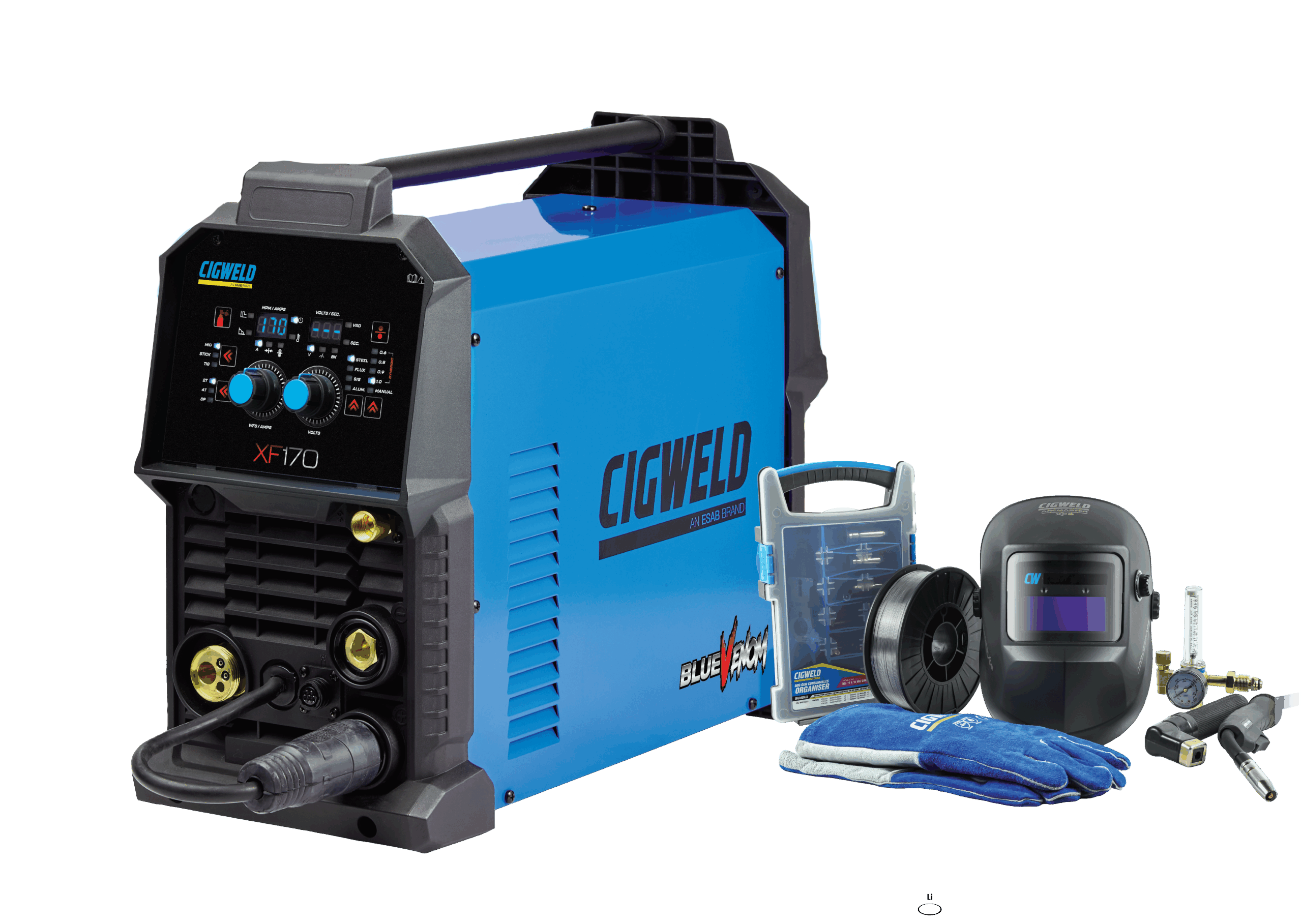

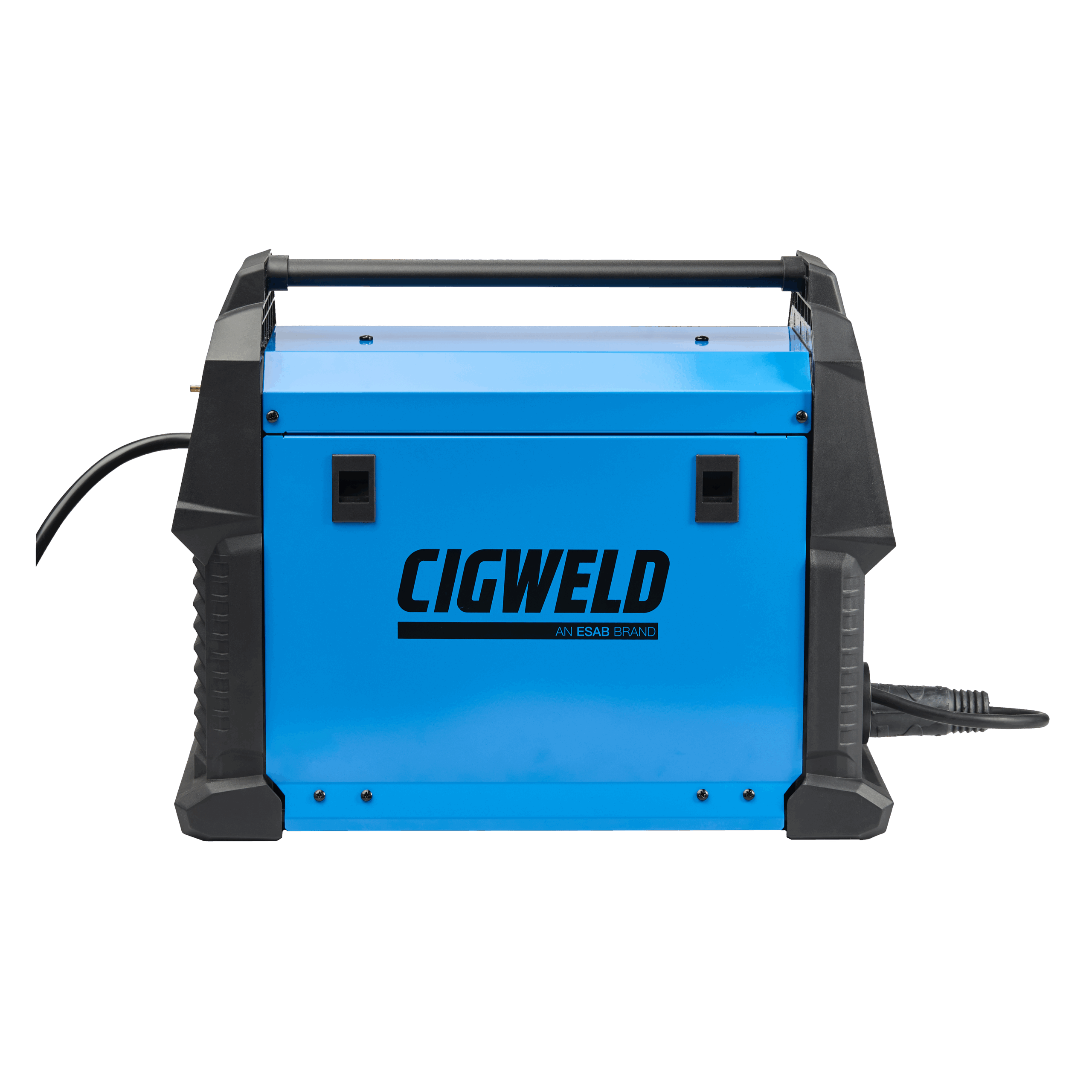

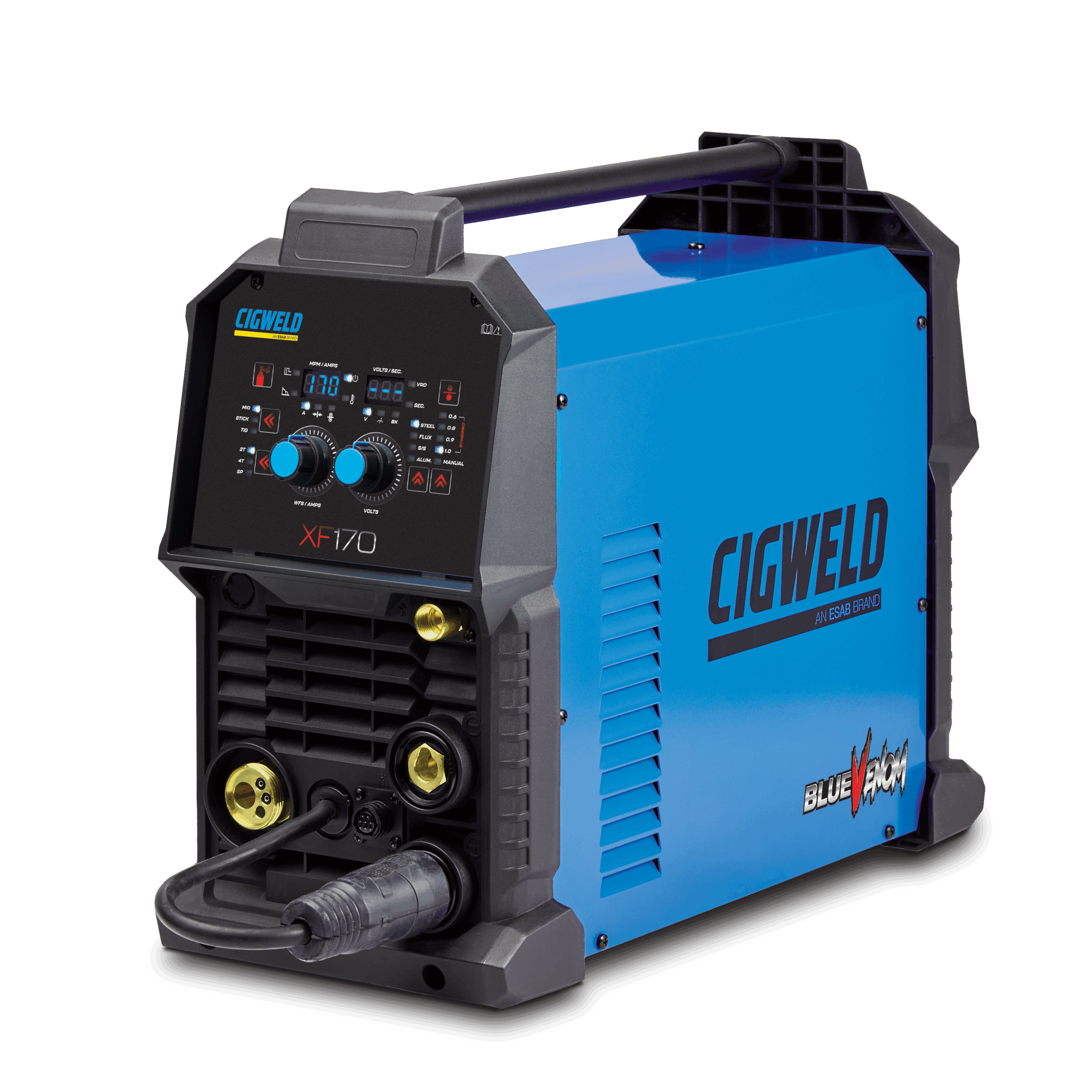

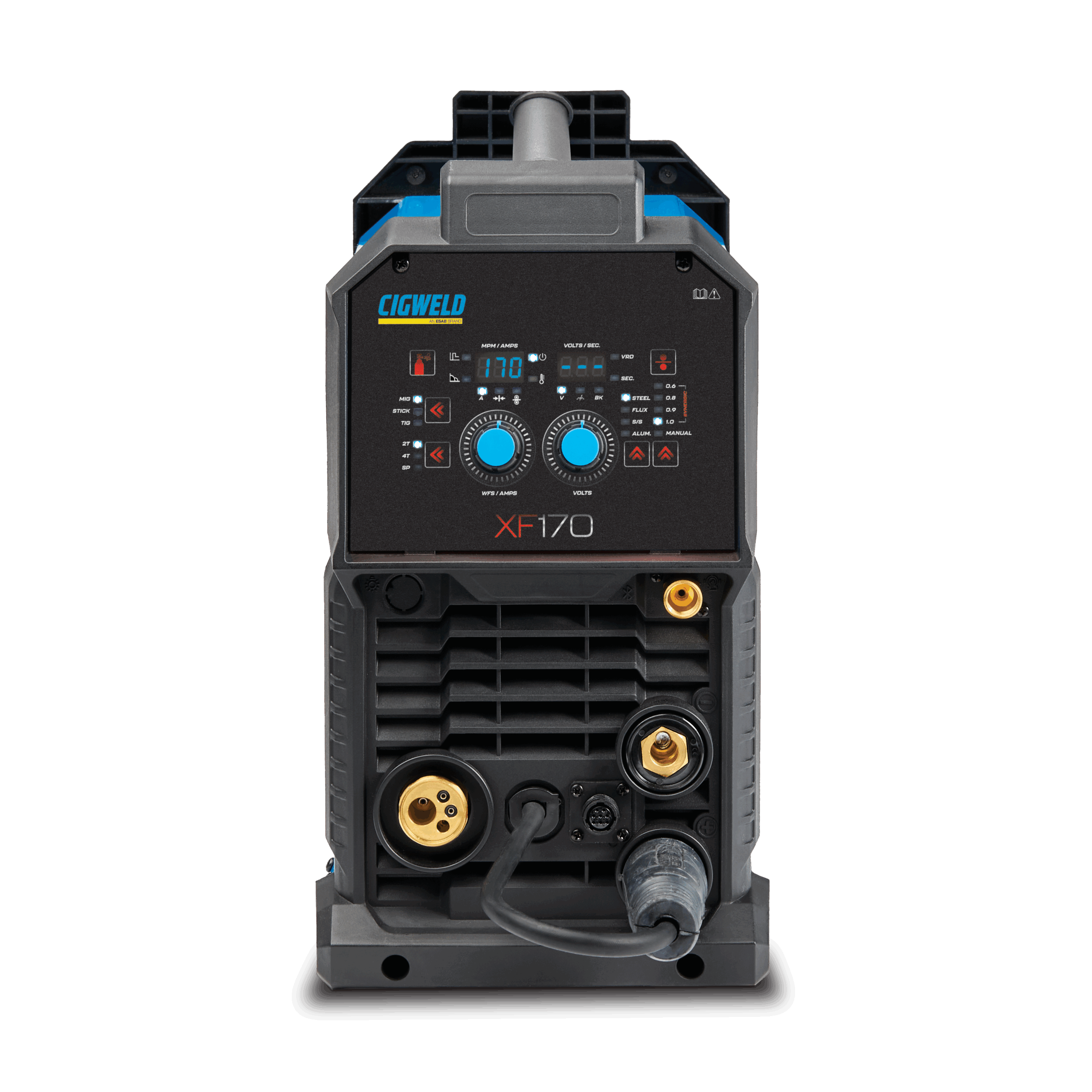

The BlueVenom XF170 PowerPack provides a versatile, fully equipped 3-in-1 welding bundle built for performance across home, workshop and on-site environments.
Featuring a compact MIG/TIG/Stick inverter, paired with a complete accessory and consumables kit—including helmet, gloves, MIG gun, regulator and 5kg gasless wire—this pack delivers a complete, ready-to-use welding setup powered from any standard 10A outlet.
P/N: 800170
Also available here online
Also available here online
If you need further information
Talk to us on 1300 654 674
| Amperage | |
|---|---|
| Brand | |
| Dimensions Power Source | |
| Duty cycle | MIG: 170A @ 10% (22.5V), Stick: 170A @ 8% (26.8V), TIG: 170A @ 15% (16.8V) |
| Generator Requirement | |
| MIG Duty Cycle @ 40° | 170A @ 10%, 22.5V |
| Nominal Supply Frequency | |
| Plug Type | |
| Power Supply | |
| Protection Class | |
| STICK Duty Cycle @ 40° | 170A @ 8%, 26.8V |
| Standard | |
| Supply Lead and Plug | |
| TIG Duty Cycle @ 40° | 170A @ 15%, 16.8V |
| Voltage Reduction Device VRD: | Yes, on Stick Mode (<35V) |
| Warranty | |
| Weight | |
| Weight Power Source |
| Brand | Cigweld | Standard | AS 60974.1:2020 / IEC 60974-1:2019 EN IEC 60974-10:2021 |
| Nominal Supply Frequency | 50/60 Hz | Supply Lead and Plug | 10 Amp |
| Generator Requirement | 9 kVA (at 0.8 Power Factor) | Amperage | MIG: 30A - 170A, TIG: 10A - 170A, STICK: 10A-170A |
| Power Supply | 230V | Plug Type | 10A |
| Package dimensions | 830 (L) x 300 (W) x 460(H) | Duty cycle | MIG: 170A @ 10% (22.5V), Stick: 170A @ 8% (26.8V), TIG: 170A @ 15% (16.8V) |
| Warranty | 2 Year + 6 months Extended Warranty | Dimensions Power Source | 485 (L) × 220 (W) × 385 (H) mm |
| Protection Class | IP21S | Weight | 27 kg |
| Weight Power Source | 11 kg | MIG Duty Cycle @ 40° | 170A @ 10%, 22.5V |
| TIG Duty Cycle @ 40° | 170A @ 15%, 16.8V | STICK Duty Cycle @ 40° | 170A @ 8%, 26.8V |
| Voltage Reduction Device VRD: | Yes, on Stick Mode (<35V) |
| Brand | Cigweld |
| Standard | AS 60974.1:2020 / IEC 60974-1:2019 EN IEC 60974-10:2021 |
| Nominal Supply Frequency | 50/60 Hz |
| Supply Lead and Plug | 10 Amp |
| Generator Requirement | 9 kVA (at 0.8 Power Factor) |
| Amperage | MIG: 30A - 170A, TIG: 10A - 170A, STICK: 10A-170A |
| Power Supply | 230V |
| Plug Type | 10A |
| Package dimensions | 830 (L) x 300 (W) x 460(H) |
| Duty cycle | MIG: 170A @ 10% (22.5V), Stick: 170A @ 8% (26.8V), TIG: 170A @ 15% (16.8V) |
| Warranty | 2 Year + 6 months Extended Warranty |
| Dimensions Power Source | 485 (L) × 220 (W) × 385 (H) mm |
| Protection Class | IP21S |
| Weight | 27 kg |
| Weight Power Source | 11 kg |
| MIG Duty Cycle @ 40° | 170A @ 10%, 22.5V |
| TIG Duty Cycle @ 40° | 170A @ 15%, 16.8V |
| STICK Duty Cycle @ 40° | 170A @ 8%, 26.8V |
| Voltage Reduction Device VRD: | Yes, on Stick Mode (<35V) |
For over 100 years, CIGWELD has proudly served Australian industry with trusted, high-performance welding equipment.
Local Expertise & Support
CIGWELD is committed to providing exceptional customer service, with products backed by local expertise and nationwide support.
As part of ESAB, CIGWELD benefits from world-leading innovation and technology, ensuring our customers get access to the most advanced and reliable solutions available.
Find your nearest CIGWELD ESAB distributor or service agent.. Search by postcode or suburb to locate trusted partners who stock our products and support our full range of welding solutions.
